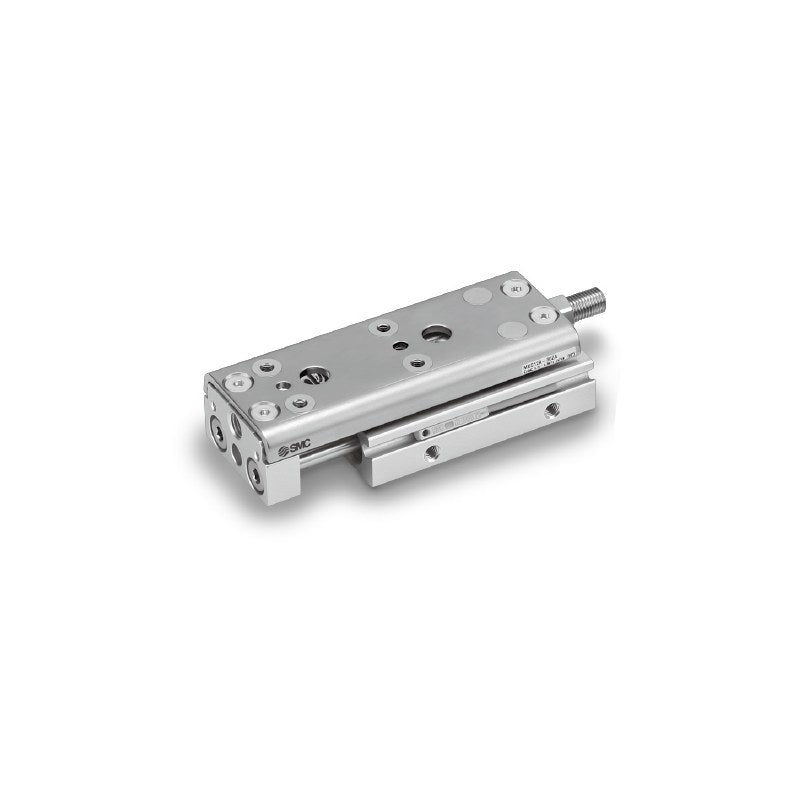

SMC MXQ-A Air Slide Table (Both-Side Piping, ø6 to ø25)

SMC MXQ-A Air Slide Table (Both-Side Piping, ø6 to ø25)

SMC MXQ-A series air slide table with dual rods and an integrated recirculating linear guide, with ports and auto switch grooves on both sides.

Key features

  • Dual-rod design gives twice the output of a single-rod cylinder of the same bore
  • Thin special stainless steel table lowers height and weight (MXQ12A: 27 mm height, 22% lighter than previous MXQ)
  • Ports and auto switch mounting grooves on both sides for flexible piping and wiring
  • Adjuster codes listed: none (Z), damper metal stopper (ZA/ZB/ZC), rubber stopper (ZD/ZE/ZF), shock absorber/RJ (ZG/ZH/ZJ) and metal stopper (ZK/ZL/ZM) at both, extension or retraction end; shortened-length (ZN to ZT) and combined types (ZBF to ZLJ) on request
  • Function options as suffix: buffer, End Lock, axial piping, centralized adjuster unit (1 to 9)
  • Built-in magnet for auto switches (D-M9N/M9P/M9B, M9xW, M9xA, A93/A96/A90) ordered as a suffix; switches ship unassembled

Specifications

Bore sizes 6, 8, 12, 16, 20, 25 mm
Port size M5x0.8
Fluid Air
Action Double acting, dual rod
Operating pressure 0.15 to 0.7 MPa (End Lock 0.35 to 0.7 MPa)
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s (damper metal stopper 50 to 300, metal stopper 50 to 200)
Cushion Rubber cushion (no adjuster); per adjuster unit otherwise
Lubrication Not required (non-lube)
Stroke tolerance +2/0 mm
Source SMC Korea catalog CAT.KS20-211C (SMCKR_MXQ-Z.pdf), p. 11-14 (PDF p. 12-15)
MXQ6A-10Z Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ6A-10ZD Bore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-10ZE Bore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-10ZF Bore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-10ZG Bore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-10ZH Bore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-10ZJ Bore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-10ZK Bore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-10ZL Bore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-10ZM Bore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-20Z Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ6A-20ZD Bore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-20ZE Bore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-20ZF Bore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-20ZG Bore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-20ZH Bore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-20ZJ Bore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-20ZK Bore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-20ZL Bore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-20ZM Bore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-30Z Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ6A-30ZD Bore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-30ZE Bore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-30ZF Bore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-30ZG Bore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-30ZH Bore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-30ZJ Bore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-30ZK Bore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-30ZL Bore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-30ZM Bore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-40Z Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ6A-40ZD Bore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-40ZE Bore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-40ZF Bore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-40ZG Bore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-40ZH Bore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-40ZJ Bore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-40ZK Bore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-40ZL Bore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-40ZM Bore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-50Z Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ6A-50ZD Bore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-50ZE Bore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-50ZF Bore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-50ZG Bore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-50ZH Bore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-50ZJ Bore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-50ZK Bore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-50ZL Bore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-50ZM Bore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-10Z Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8A-10ZA Bore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-10ZB Bore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-10ZC Bore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-10ZD Bore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-10ZE Bore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-10ZF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-10ZG Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-10ZH Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-10ZJ Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-10ZK Bore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-10ZL Bore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-10ZM Bore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-20Z Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8A-20ZA Bore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-20ZB Bore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-20ZC Bore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-20ZD Bore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-20ZE Bore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-20ZF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-20ZG Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-20ZH Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-20ZJ Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-20ZK Bore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-20ZL Bore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-20ZM Bore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-30Z Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8A-30ZA Bore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-30ZB Bore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-30ZC Bore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-30ZD Bore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-30ZE Bore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-30ZF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-30ZG Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-30ZH Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-30ZJ Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-30ZK Bore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-30ZL Bore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-30ZM Bore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-40Z Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8A-40ZA Bore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-40ZB Bore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-40ZC Bore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-40ZD Bore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-40ZE Bore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-40ZF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-40ZG Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-40ZH Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-40ZJ Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-40ZK Bore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-40ZL Bore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-40ZM Bore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-50Z Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8A-50ZA Bore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-50ZB Bore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-50ZC Bore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-50ZD Bore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-50ZE Bore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-50ZF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-50ZG Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-50ZH Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-50ZJ Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-50ZK Bore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-50ZL Bore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-50ZM Bore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-75Z Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8A-75ZA Bore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-75ZB Bore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-75ZC Bore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-75ZD Bore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-75ZE Bore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-75ZF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-75ZG Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-75ZH Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-75ZJ Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-75ZK Bore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-75ZL Bore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-75ZM Bore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-10Z Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12A-10ZA Bore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-10ZB Bore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-10ZC Bore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-10ZD Bore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-10ZE Bore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-10ZF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-10ZG Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-10ZH Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-10ZJ Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-10ZK Bore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-10ZL Bore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-10ZM Bore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-20Z Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12A-20ZA Bore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-20ZB Bore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-20ZC Bore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-20ZD Bore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-20ZE Bore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-20ZF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-20ZG Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-20ZH Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-20ZJ Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-20ZK Bore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-20ZL Bore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-20ZM Bore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-30Z Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12A-30ZA Bore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-30ZB Bore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-30ZC Bore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-30ZD Bore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-30ZE Bore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-30ZF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-30ZG Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-30ZH Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-30ZJ Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-30ZK Bore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-30ZL Bore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-30ZM Bore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-40Z Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12A-40ZA Bore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-40ZB Bore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-40ZC Bore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-40ZD Bore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-40ZE Bore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-40ZF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-40ZG Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-40ZH Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-40ZJ Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-40ZK Bore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-40ZL Bore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-40ZM Bore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-50Z Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12A-50ZA Bore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-50ZB Bore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-50ZC Bore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-50ZD Bore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-50ZE Bore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-50ZF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-50ZG Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-50ZH Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-50ZJ Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-50ZK Bore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-50ZL Bore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-50ZM Bore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-75Z Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12A-75ZA Bore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-75ZB Bore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-75ZC Bore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-75ZD Bore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-75ZE Bore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-75ZF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-75ZG Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-75ZH Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-75ZJ Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-75ZK Bore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-75ZL Bore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-75ZM Bore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-100Z Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12A-100ZA Bore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-100ZB Bore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-100ZC Bore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-100ZD Bore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-100ZE Bore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-100ZF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-100ZG Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-100ZH Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-100ZJ Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-100ZK Bore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-100ZL Bore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-100ZM Bore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-10Z Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ16A-10ZA Bore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-10ZB Bore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-10ZC Bore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-10ZD Bore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-10ZE Bore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-10ZF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-10ZG Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-10ZH Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-10ZJ Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-10ZK Bore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-10ZL Bore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-10ZM Bore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-20Z Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ16A-20ZA Bore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-20ZB Bore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-20ZC Bore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-20ZD Bore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-20ZE Bore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-20ZF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-20ZG Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-20ZH Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-20ZJ Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-20ZK Bore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-20ZL Bore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-20ZM Bore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-30Z Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ16A-30ZA Bore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-30ZB Bore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-30ZC Bore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-30ZD Bore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-30ZE Bore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-30ZF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-30ZG Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-30ZH Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-30ZJ Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-30ZK Bore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-30ZL Bore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-30ZM Bore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-40Z Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ16A-40ZA Bore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-40ZB Bore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-40ZC Bore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-40ZD Bore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-40ZE Bore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-40ZF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-40ZG Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-40ZH Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-40ZJ Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-40ZK Bore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-40ZL Bore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-40ZM Bore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-50Z Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ16A-50ZA Bore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-50ZB Bore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-50ZC Bore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-50ZD Bore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-50ZE Bore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-50ZF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-50ZG Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-50ZH Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-50ZJ Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-50ZK Bore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-50ZL Bore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-50ZM Bore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-75Z Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ16A-75ZA Bore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-75ZB Bore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-75ZC Bore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-75ZD Bore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-75ZE Bore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-75ZF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-75ZG Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-75ZH Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-75ZJ Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-75ZK Bore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-75ZL Bore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-75ZM Bore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-100Z Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ16A-100ZA Bore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-100ZB Bore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-100ZC Bore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-100ZD Bore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-100ZE Bore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-100ZF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-100ZG Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-100ZH Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-100ZJ Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-100ZK Bore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-100ZL Bore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-100ZM Bore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-125Z Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ16A-125ZA Bore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-125ZB Bore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-125ZC Bore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-125ZD Bore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-125ZE Bore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-125ZF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-125ZG Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-125ZH Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-125ZJ Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-125ZK Bore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-125ZL Bore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-125ZM Bore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-10Z Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ20A-10ZA Bore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-10ZB Bore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-10ZC Bore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-10ZD Bore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-10ZE Bore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-10ZF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-10ZG Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-10ZH Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-10ZJ Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-10ZK Bore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-10ZL Bore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-10ZM Bore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-20Z Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ20A-20ZA Bore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-20ZB Bore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-20ZC Bore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-20ZD Bore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-20ZE Bore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-20ZF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-20ZG Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-20ZH Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-20ZJ Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-20ZK Bore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-20ZL Bore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-20ZM Bore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-30Z Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ20A-30ZA Bore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-30ZB Bore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-30ZC Bore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-30ZD Bore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-30ZE Bore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-30ZF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-30ZG Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-30ZH Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-30ZJ Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-30ZK Bore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-30ZL Bore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-30ZM Bore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-40Z Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ20A-40ZA Bore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-40ZB Bore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-40ZC Bore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-40ZD Bore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-40ZE Bore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-40ZF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-40ZG Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-40ZH Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-40ZJ Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-40ZK Bore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-40ZL Bore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-40ZM Bore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-50Z Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ20A-50ZA Bore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-50ZB Bore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-50ZC Bore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-50ZD Bore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-50ZE Bore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-50ZF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-50ZG Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-50ZH Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-50ZJ Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-50ZK Bore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-50ZL Bore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-50ZM Bore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-75Z Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ20A-75ZA Bore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-75ZB Bore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-75ZC Bore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-75ZD Bore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-75ZE Bore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-75ZF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-75ZG Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-75ZH Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-75ZJ Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-75ZK Bore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-75ZL Bore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-75ZM Bore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-100Z Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ20A-100ZA Bore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-100ZB Bore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-100ZC Bore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-100ZD Bore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-100ZE Bore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-100ZF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-100ZG Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-100ZH Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-100ZJ Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-100ZK Bore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-100ZL Bore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-100ZM Bore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-125Z Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ20A-125ZA Bore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-125ZB Bore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-125ZC Bore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-125ZD Bore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-125ZE Bore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-125ZF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-125ZG Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-125ZH Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-125ZJ Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-125ZK Bore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-125ZL Bore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-125ZM Bore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-150Z Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Adjuster position: -
MXQ20A-150ZA Bore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-150ZB Bore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-150ZC Bore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-150ZD Bore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-150ZE Bore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-150ZF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-150ZG Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-150ZH Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-150ZJ Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-150ZK Bore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-150ZL Bore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-150ZM Bore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-10Z Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ25A-10ZA Bore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-10ZB Bore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-10ZC Bore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-10ZD Bore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-10ZE Bore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-10ZF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-10ZG Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-10ZH Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-10ZJ Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-10ZK Bore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-10ZL Bore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-10ZM Bore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-20Z Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ25A-20ZA Bore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-20ZB Bore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-20ZC Bore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-20ZD Bore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-20ZE Bore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-20ZF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-20ZG Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-20ZH Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-20ZJ Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-20ZK Bore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-20ZL Bore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-20ZM Bore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-30Z Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ25A-30ZA Bore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-30ZB Bore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-30ZC Bore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-30ZD Bore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-30ZE Bore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-30ZF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-30ZG Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-30ZH Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-30ZJ Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-30ZK Bore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-30ZL Bore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-30ZM Bore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-40Z Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ25A-40ZA Bore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-40ZB Bore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-40ZC Bore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-40ZD Bore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-40ZE Bore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-40ZF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-40ZG Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-40ZH Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-40ZJ Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-40ZK Bore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-40ZL Bore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-40ZM Bore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-50Z Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ25A-50ZA Bore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-50ZB Bore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-50ZC Bore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-50ZD Bore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-50ZE Bore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-50ZF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-50ZG Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-50ZH Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-50ZJ Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-50ZK Bore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-50ZL Bore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-50ZM Bore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-75Z Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ25A-75ZA Bore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-75ZB Bore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-75ZC Bore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-75ZD Bore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-75ZE Bore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-75ZF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-75ZG Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-75ZH Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-75ZJ Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-75ZK Bore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-75ZL Bore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-75ZM Bore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-100Z Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ25A-100ZA Bore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-100ZB Bore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-100ZC Bore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-100ZD Bore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-100ZE Bore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-100ZF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-100ZG Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-100ZH Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-100ZJ Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-100ZK Bore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-100ZL Bore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-100ZM Bore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-125Z Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ25A-125ZA Bore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-125ZB Bore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-125ZC Bore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-125ZD Bore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-125ZE Bore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-125ZF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-125ZG Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-125ZH Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-125ZJ Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-125ZK Bore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-125ZL Bore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-125ZM Bore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-150Z Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Adjuster position: -
MXQ25A-150ZA Bore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-150ZB Bore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-150ZC Bore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-150ZD Bore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-150ZE Bore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-150ZF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-150ZG Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-150ZH Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-150ZJ Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-150ZK Bore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-150ZL Bore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-150ZM Bore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
Slide TablesSMC
557 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXQ-A Air Slide Table (Both-Side Piping, ø6 to ø25)

Brand SMC·Slide Tables

Available part numbers (557)

MXQ6A-10Z, MXQ6A-10ZD, MXQ6A-10ZE, MXQ6A-10ZF, MXQ6A-10ZG, MXQ6A-10ZH, MXQ6A-10ZJ, MXQ6A-10ZK, MXQ6A-10ZL, MXQ6A-10ZM + 547 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXQ6A-10ZBore: ø6 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ6A-10ZDBore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-10ZEBore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-10ZFBore: ø6 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-10ZGBore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-10ZHBore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-10ZJBore: ø6 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-10ZKBore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-10ZLBore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-10ZMBore: ø6 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-20ZBore: ø6 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ6A-20ZDBore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-20ZEBore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-20ZFBore: ø6 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-20ZGBore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-20ZHBore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-20ZJBore: ø6 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-20ZKBore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-20ZLBore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-20ZMBore: ø6 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-30ZBore: ø6 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ6A-30ZDBore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-30ZEBore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-30ZFBore: ø6 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-30ZGBore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-30ZHBore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-30ZJBore: ø6 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-30ZKBore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-30ZLBore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-30ZMBore: ø6 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-40ZBore: ø6 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ6A-40ZDBore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-40ZEBore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-40ZFBore: ø6 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-40ZGBore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-40ZHBore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-40ZJBore: ø6 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-40ZKBore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-40ZLBore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-40ZMBore: ø6 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ6A-50ZBore: ø6 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ6A-50ZDBore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ6A-50ZEBore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ6A-50ZFBore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ6A-50ZGBore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ6A-50ZHBore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ6A-50ZJBore: ø6 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ6A-50ZKBore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ6A-50ZLBore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ6A-50ZMBore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-10ZBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8A-10ZABore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-10ZBBore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-10ZCBore: ø8 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-10ZDBore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-10ZEBore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-10ZFBore: ø8 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-10ZGBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-10ZHBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-10ZJBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-10ZKBore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-10ZLBore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-10ZMBore: ø8 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-20ZBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8A-20ZABore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-20ZBBore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-20ZCBore: ø8 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-20ZDBore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-20ZEBore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-20ZFBore: ø8 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-20ZGBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-20ZHBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-20ZJBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-20ZKBore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-20ZLBore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-20ZMBore: ø8 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-30ZBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8A-30ZABore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-30ZBBore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-30ZCBore: ø8 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-30ZDBore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-30ZEBore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-30ZFBore: ø8 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-30ZGBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-30ZHBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-30ZJBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-30ZKBore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-30ZLBore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-30ZMBore: ø8 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-40ZBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8A-40ZABore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-40ZBBore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-40ZCBore: ø8 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-40ZDBore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-40ZEBore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-40ZFBore: ø8 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-40ZGBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-40ZHBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-40ZJBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-40ZKBore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-40ZLBore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-40ZMBore: ø8 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-50ZBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8A-50ZABore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-50ZBBore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-50ZCBore: ø8 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-50ZDBore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-50ZEBore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-50ZFBore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-50ZGBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-50ZHBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-50ZJBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-50ZKBore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-50ZLBore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-50ZMBore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8A-75ZBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8A-75ZABore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8A-75ZBBore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8A-75ZCBore: ø8 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8A-75ZDBore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8A-75ZEBore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8A-75ZFBore: ø8 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8A-75ZGBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8A-75ZHBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8A-75ZJBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8A-75ZKBore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8A-75ZLBore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8A-75ZMBore: ø8 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-10ZBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12A-10ZABore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-10ZBBore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-10ZCBore: ø12 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-10ZDBore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-10ZEBore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-10ZFBore: ø12 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-10ZGBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-10ZHBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-10ZJBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-10ZKBore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-10ZLBore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-10ZMBore: ø12 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-20ZBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12A-20ZABore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-20ZBBore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-20ZCBore: ø12 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-20ZDBore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-20ZEBore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-20ZFBore: ø12 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-20ZGBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-20ZHBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-20ZJBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-20ZKBore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-20ZLBore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-20ZMBore: ø12 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-30ZBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12A-30ZABore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-30ZBBore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-30ZCBore: ø12 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-30ZDBore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-30ZEBore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-30ZFBore: ø12 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-30ZGBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-30ZHBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-30ZJBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-30ZKBore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-30ZLBore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-30ZMBore: ø12 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-40ZBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12A-40ZABore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-40ZBBore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-40ZCBore: ø12 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-40ZDBore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-40ZEBore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-40ZFBore: ø12 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-40ZGBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-40ZHBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-40ZJBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-40ZKBore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-40ZLBore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-40ZMBore: ø12 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-50ZBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12A-50ZABore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-50ZBBore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-50ZCBore: ø12 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-50ZDBore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-50ZEBore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-50ZFBore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-50ZGBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-50ZHBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-50ZJBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-50ZKBore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-50ZLBore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-50ZMBore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-75ZBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12A-75ZABore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-75ZBBore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-75ZCBore: ø12 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-75ZDBore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-75ZEBore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-75ZFBore: ø12 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-75ZGBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-75ZHBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-75ZJBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-75ZKBore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-75ZLBore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-75ZMBore: ø12 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12A-100ZBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12A-100ZABore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12A-100ZBBore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12A-100ZCBore: ø12 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12A-100ZDBore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12A-100ZEBore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12A-100ZFBore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12A-100ZGBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12A-100ZHBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12A-100ZJBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12A-100ZKBore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12A-100ZLBore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12A-100ZMBore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-10ZBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ16A-10ZABore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-10ZBBore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-10ZCBore: ø16 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-10ZDBore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-10ZEBore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-10ZFBore: ø16 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-10ZGBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-10ZHBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-10ZJBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-10ZKBore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-10ZLBore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-10ZMBore: ø16 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-20ZBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ16A-20ZABore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-20ZBBore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-20ZCBore: ø16 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-20ZDBore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-20ZEBore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-20ZFBore: ø16 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-20ZGBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-20ZHBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-20ZJBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-20ZKBore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-20ZLBore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-20ZMBore: ø16 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-30ZBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ16A-30ZABore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-30ZBBore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-30ZCBore: ø16 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-30ZDBore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-30ZEBore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-30ZFBore: ø16 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-30ZGBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-30ZHBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-30ZJBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-30ZKBore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-30ZLBore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-30ZMBore: ø16 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-40ZBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ16A-40ZABore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-40ZBBore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-40ZCBore: ø16 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-40ZDBore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-40ZEBore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-40ZFBore: ø16 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-40ZGBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-40ZHBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-40ZJBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-40ZKBore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-40ZLBore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-40ZMBore: ø16 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-50ZBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ16A-50ZABore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-50ZBBore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-50ZCBore: ø16 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-50ZDBore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-50ZEBore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-50ZFBore: ø16 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-50ZGBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-50ZHBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-50ZJBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-50ZKBore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-50ZLBore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-50ZMBore: ø16 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-75ZBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ16A-75ZABore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-75ZBBore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-75ZCBore: ø16 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-75ZDBore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-75ZEBore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-75ZFBore: ø16 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-75ZGBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-75ZHBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-75ZJBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-75ZKBore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-75ZLBore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-75ZMBore: ø16 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-100ZBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ16A-100ZABore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-100ZBBore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-100ZCBore: ø16 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-100ZDBore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-100ZEBore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-100ZFBore: ø16 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-100ZGBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-100ZHBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-100ZJBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-100ZKBore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-100ZLBore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-100ZMBore: ø16 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ16A-125ZBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ16A-125ZABore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ16A-125ZBBore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ16A-125ZCBore: ø16 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ16A-125ZDBore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ16A-125ZEBore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ16A-125ZFBore: ø16 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ16A-125ZGBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ16A-125ZHBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ16A-125ZJBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ16A-125ZKBore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ16A-125ZLBore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ16A-125ZMBore: ø16 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-10ZBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ20A-10ZABore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-10ZBBore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-10ZCBore: ø20 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-10ZDBore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-10ZEBore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-10ZFBore: ø20 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-10ZGBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-10ZHBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-10ZJBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-10ZKBore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-10ZLBore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-10ZMBore: ø20 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-20ZBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ20A-20ZABore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-20ZBBore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-20ZCBore: ø20 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-20ZDBore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-20ZEBore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-20ZFBore: ø20 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-20ZGBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-20ZHBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-20ZJBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-20ZKBore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-20ZLBore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-20ZMBore: ø20 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-30ZBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ20A-30ZABore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-30ZBBore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-30ZCBore: ø20 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-30ZDBore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-30ZEBore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-30ZFBore: ø20 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-30ZGBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-30ZHBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-30ZJBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-30ZKBore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-30ZLBore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-30ZMBore: ø20 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-40ZBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ20A-40ZABore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-40ZBBore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-40ZCBore: ø20 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-40ZDBore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-40ZEBore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-40ZFBore: ø20 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-40ZGBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-40ZHBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-40ZJBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-40ZKBore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-40ZLBore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-40ZMBore: ø20 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-50ZBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ20A-50ZABore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-50ZBBore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-50ZCBore: ø20 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-50ZDBore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-50ZEBore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-50ZFBore: ø20 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-50ZGBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-50ZHBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-50ZJBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-50ZKBore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-50ZLBore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-50ZMBore: ø20 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-75ZBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ20A-75ZABore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-75ZBBore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-75ZCBore: ø20 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-75ZDBore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-75ZEBore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-75ZFBore: ø20 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-75ZGBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-75ZHBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-75ZJBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-75ZKBore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-75ZLBore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-75ZMBore: ø20 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-100ZBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ20A-100ZABore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-100ZBBore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-100ZCBore: ø20 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-100ZDBore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-100ZEBore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-100ZFBore: ø20 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-100ZGBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-100ZHBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-100ZJBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-100ZKBore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-100ZLBore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-100ZMBore: ø20 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-125ZBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ20A-125ZABore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-125ZBBore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-125ZCBore: ø20 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-125ZDBore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-125ZEBore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-125ZFBore: ø20 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-125ZGBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-125ZHBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-125ZJBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-125ZKBore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-125ZLBore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-125ZMBore: ø20 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ20A-150ZBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Adjuster position: -
MXQ20A-150ZABore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ20A-150ZBBore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ20A-150ZCBore: ø20 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ20A-150ZDBore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ20A-150ZEBore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ20A-150ZFBore: ø20 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ20A-150ZGBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ20A-150ZHBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ20A-150ZJBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ20A-150ZKBore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ20A-150ZLBore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ20A-150ZMBore: ø20 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-10ZBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ25A-10ZABore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-10ZBBore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-10ZCBore: ø25 mm | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-10ZDBore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-10ZEBore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-10ZFBore: ø25 mm | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-10ZGBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-10ZHBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-10ZJBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-10ZKBore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-10ZLBore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-10ZMBore: ø25 mm | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-20ZBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ25A-20ZABore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-20ZBBore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-20ZCBore: ø25 mm | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-20ZDBore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-20ZEBore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-20ZFBore: ø25 mm | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-20ZGBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-20ZHBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-20ZJBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-20ZKBore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-20ZLBore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-20ZMBore: ø25 mm | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-30ZBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ25A-30ZABore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-30ZBBore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-30ZCBore: ø25 mm | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-30ZDBore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-30ZEBore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-30ZFBore: ø25 mm | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-30ZGBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-30ZHBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-30ZJBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-30ZKBore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-30ZLBore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-30ZMBore: ø25 mm | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-40ZBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ25A-40ZABore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-40ZBBore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-40ZCBore: ø25 mm | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-40ZDBore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-40ZEBore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-40ZFBore: ø25 mm | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-40ZGBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-40ZHBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-40ZJBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-40ZKBore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-40ZLBore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-40ZMBore: ø25 mm | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-50ZBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ25A-50ZABore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-50ZBBore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-50ZCBore: ø25 mm | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-50ZDBore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-50ZEBore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-50ZFBore: ø25 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-50ZGBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-50ZHBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-50ZJBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-50ZKBore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-50ZLBore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-50ZMBore: ø25 mm | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-75ZBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ25A-75ZABore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-75ZBBore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-75ZCBore: ø25 mm | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-75ZDBore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-75ZEBore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-75ZFBore: ø25 mm | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-75ZGBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-75ZHBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-75ZJBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-75ZKBore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-75ZLBore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-75ZMBore: ø25 mm | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-100ZBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ25A-100ZABore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-100ZBBore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-100ZCBore: ø25 mm | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-100ZDBore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-100ZEBore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-100ZFBore: ø25 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-100ZGBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-100ZHBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-100ZJBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-100ZKBore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-100ZLBore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-100ZMBore: ø25 mm | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-125ZBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Adjuster position: -
MXQ25A-125ZABore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-125ZBBore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-125ZCBore: ø25 mm | Stroke: 125 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-125ZDBore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-125ZEBore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-125ZFBore: ø25 mm | Stroke: 125 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-125ZGBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-125ZHBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-125ZJBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-125ZKBore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-125ZLBore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-125ZMBore: ø25 mm | Stroke: 125 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ25A-150ZBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Adjuster position: -
MXQ25A-150ZABore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ25A-150ZBBore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ25A-150ZCBore: ø25 mm | Stroke: 150 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ25A-150ZDBore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ25A-150ZEBore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ25A-150ZFBore: ø25 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ25A-150ZGBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ25A-150ZHBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ25A-150ZJBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ25A-150ZKBore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ25A-150ZLBore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ25A-150ZMBore: ø25 mm | Stroke: 150 mm | Adjuster: Metal stopper | Adjuster position: Retraction end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
