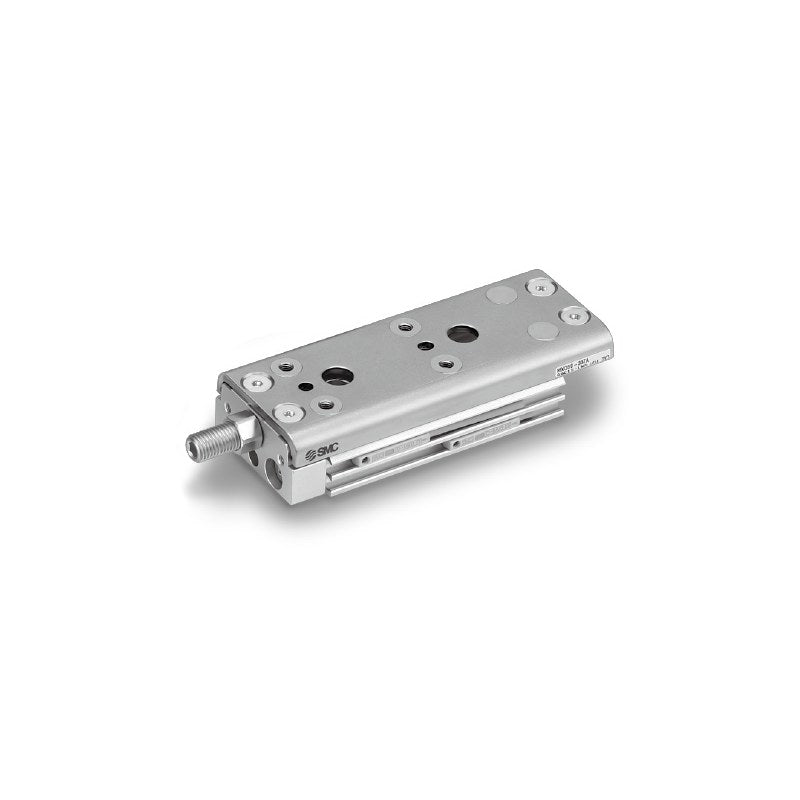

SMC MXQ Air Slide Table (Height Interchangeable, ø6 to ø25)

SMC MXQ series air slide table, height-interchangeable type with the same height dimensions as the previous MXQ series for drop-in replacement.

Key features

Height dimensions interchangeable with the previous MXQ series (e.g. MXQ12 30 mm)
Standard and symmetric (L, ø6 to ø12) body types; dual rods with integrated recirculating linear guide
Adjuster codes listed: none (Z), damper metal stopper (ZA/ZB/ZC), rubber stopper (ZD/ZE/ZF), shock absorber/RJ (ZG/ZH/ZJ) and metal stopper (ZK/ZL/ZM) at both, extension or retraction end; shortened-length (ZN to ZT) and combined types (ZBF to ZLJ) on request
Function options as suffix: buffer, End Lock, axial piping, centralized adjuster unit
Made to order includes -X2100 end plate interchangeable with previous MXQ, -X2200 side adjuster, -X2201 shock absorber + metal stopper
Built-in magnet for auto switches (D-M9N/M9P/M9B, M9xW, M9xA, A93/A96/A90) ordered as a suffix; switches ship unassembled

Specifications

Bore sizes	6, 8, 12, 16, 20, 25 mm
Port size	M5x0.8
Fluid	Air
Action	Double acting, dual rod
Operating pressure	0.15 to 0.7 MPa (End Lock 0.35 to 0.7 MPa)
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s (damper metal stopper 50 to 300, metal stopper 50 to 200)
Cushion	Rubber cushion (no adjuster); per adjuster unit otherwise
Lubrication	Not required (non-lube)
Stroke tolerance	+2/0 mm
Source	SMC Korea catalog CAT.KS20-211C (SMCKR_MXQ-Z.pdf), p. 83-86 (PDF p. 84-87)

MXQ6-10Z		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ6-10ZD		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6-10ZE		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6-10ZF		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6-10ZG		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6-10ZH		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6-10ZJ		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6-10ZK		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6-10ZL		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6-10ZM		Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6-20Z		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ6-20ZD		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6-20ZE		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6-20ZF		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6-20ZG		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6-20ZH		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6-20ZJ		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6-20ZK		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6-20ZL		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6-20ZM		Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6-30Z		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ6-30ZD		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6-30ZE		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6-30ZF		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6-30ZG		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6-30ZH		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6-30ZJ		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6-30ZK		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6-30ZL		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6-30ZM		Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6-40Z		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ6-40ZD		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6-40ZE		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6-40ZF		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6-40ZG		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6-40ZH		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6-40ZJ		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6-40ZK		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6-40ZL		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6-40ZM		Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6-50Z		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ6-50ZD		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6-50ZE		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6-50ZF		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6-50ZG		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6-50ZH		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6-50ZJ		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6-50ZK		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6-50ZL		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6-50ZM		Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-10Z		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ8-10ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-10ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-10ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-10ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-10ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-10ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-10ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-10ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-10ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-10ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-10ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-10ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-20Z		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ8-20ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-20ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-20ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-20ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-20ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-20ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-20ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-20ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-20ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-20ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-20ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-20ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-30Z		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ8-30ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-30ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-30ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-30ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-30ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-30ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-30ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-30ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-30ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-30ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-30ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-30ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-40Z		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ8-40ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-40ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-40ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-40ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-40ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-40ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-40ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-40ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-40ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-40ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-40ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-40ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-50Z		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ8-50ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-50ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-50ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-50ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-50ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-50ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-50ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-50ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-50ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-50ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-50ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-50ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8-75Z		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ8-75ZA		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8-75ZB		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8-75ZC		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8-75ZD		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8-75ZE		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8-75ZF		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8-75ZG		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8-75ZH		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8-75ZJ		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8-75ZK		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8-75ZL		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8-75ZM		Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-10Z		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ12-10ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-10ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-10ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-10ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-10ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-10ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-10ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-10ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-10ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-10ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-10ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-10ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-20Z		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ12-20ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-20ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-20ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-20ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-20ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-20ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-20ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-20ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-20ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-20ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-20ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-20ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-30Z		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ12-30ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-30ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-30ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-30ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-30ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-30ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-30ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-30ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-30ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-30ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-30ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-30ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-40Z		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ12-40ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-40ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-40ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-40ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-40ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-40ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-40ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-40ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-40ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-40ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-40ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-40ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-50Z		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ12-50ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-50ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-50ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-50ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-50ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-50ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-50ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-50ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-50ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-50ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-50ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-50ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-75Z		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ12-75ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-75ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-75ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-75ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-75ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-75ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-75ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-75ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-75ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-75ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-75ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-75ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12-100Z		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
MXQ12-100ZA		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12-100ZB		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12-100ZC		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12-100ZD		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12-100ZE		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12-100ZF		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12-100ZG		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12-100ZH		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12-100ZJ		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12-100ZK		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12-100ZL		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12-100ZM		Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-10Z		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ16-10ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-10ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-10ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-10ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-10ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-10ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-10ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-10ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-10ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-10ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-10ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-10ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-20Z		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ16-20ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-20ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-20ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-20ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-20ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-20ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-20ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-20ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-20ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-20ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-20ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-20ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-30Z		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ16-30ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-30ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-30ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-30ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-30ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-30ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-30ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-30ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-30ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-30ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-30ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-30ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-40Z		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ16-40ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-40ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-40ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-40ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-40ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-40ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-40ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-40ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-40ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-40ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-40ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-40ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-50Z		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ16-50ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-50ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-50ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-50ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-50ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-50ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-50ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-50ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-50ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-50ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-50ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-50ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-75Z		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ16-75ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-75ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-75ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-75ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-75ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-75ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-75ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-75ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-75ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-75ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-75ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-75ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-100Z		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
MXQ16-100ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-100ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-100ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-100ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-100ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-100ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-100ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-100ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-100ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-100ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-100ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-100ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ16-125Z		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
MXQ16-125ZA		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ16-125ZB		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ16-125ZC		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ16-125ZD		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ16-125ZE		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ16-125ZF		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ16-125ZG		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ16-125ZH		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ16-125ZJ		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ16-125ZK		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ16-125ZL		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ16-125ZM		Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-10Z		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ20-10ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-10ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-10ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-10ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-10ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-10ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-10ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-10ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-10ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-10ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-10ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-10ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-20Z		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ20-20ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-20ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-20ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-20ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-20ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-20ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-20ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-20ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-20ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-20ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-20ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-20ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-30Z		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ20-30ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-30ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-30ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-30ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-30ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-30ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-30ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-30ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-30ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-30ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-30ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-30ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-40Z		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ20-40ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-40ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-40ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-40ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-40ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-40ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-40ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-40ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-40ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-40ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-40ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-40ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-50Z		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ20-50ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-50ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-50ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-50ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-50ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-50ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-50ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-50ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-50ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-50ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-50ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-50ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-75Z		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ20-75ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-75ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-75ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-75ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-75ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-75ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-75ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-75ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-75ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-75ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-75ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-75ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-100Z		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
MXQ20-100ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-100ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-100ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-100ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-100ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-100ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-100ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-100ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-100ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-100ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-100ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-100ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-125Z		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
MXQ20-125ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-125ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-125ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-125ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-125ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-125ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-125ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-125ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-125ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-125ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-125ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-125ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ20-150Z		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: -
MXQ20-150ZA		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ20-150ZB		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ20-150ZC		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ20-150ZD		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ20-150ZE		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ20-150ZF		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ20-150ZG		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ20-150ZH		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ20-150ZJ		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ20-150ZK		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ20-150ZL		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ20-150ZM		Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-10Z		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ25-10ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-10ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-10ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-10ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-10ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-10ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-10ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-10ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-10ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-10ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-10ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-10ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-20Z		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ25-20ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-20ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-20ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-20ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-20ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-20ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-20ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-20ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-20ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-20ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-20ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-20ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-30Z		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ25-30ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-30ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-30ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-30ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-30ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-30ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-30ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-30ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-30ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-30ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-30ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-30ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-40Z		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ25-40ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-40ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-40ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-40ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-40ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-40ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-40ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-40ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-40ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-40ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-40ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-40ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-50Z		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ25-50ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-50ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-50ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-50ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-50ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-50ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-50ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-50ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-50ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-50ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-50ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-50ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-75Z		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ25-75ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-75ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-75ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-75ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-75ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-75ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-75ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-75ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-75ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-75ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-75ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-75ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-100Z		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
MXQ25-100ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-100ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-100ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-100ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-100ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-100ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-100ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-100ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-100ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-100ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-100ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-100ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-125Z		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
MXQ25-125ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-125ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-125ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-125ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-125ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-125ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-125ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-125ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-125ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-125ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-125ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-125ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ25-150Z		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: -
MXQ25-150ZA		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ25-150ZB		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ25-150ZC		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ25-150ZD		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ25-150ZE		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ25-150ZF		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ25-150ZG		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ25-150ZH		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ25-150ZJ		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ25-150ZK		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ25-150ZL		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ25-150ZM		Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6L-10Z		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ6L-10ZD		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6L-10ZE		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6L-10ZF		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6L-10ZG		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6L-10ZH		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6L-10ZJ		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6L-10ZK		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6L-10ZL		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6L-10ZM		Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6L-20Z		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ6L-20ZD		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6L-20ZE		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6L-20ZF		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6L-20ZG		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6L-20ZH		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6L-20ZJ		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6L-20ZK		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6L-20ZL		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6L-20ZM		Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6L-30Z		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ6L-30ZD		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6L-30ZE		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6L-30ZF		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6L-30ZG		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6L-30ZH		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6L-30ZJ		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6L-30ZK		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6L-30ZL		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6L-30ZM		Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6L-40Z		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ6L-40ZD		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6L-40ZE		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6L-40ZF		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6L-40ZG		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6L-40ZH		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6L-40ZJ		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6L-40ZK		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6L-40ZL		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6L-40ZM		Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ6L-50Z		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ6L-50ZD		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ6L-50ZE		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ6L-50ZF		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ6L-50ZG		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ6L-50ZH		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ6L-50ZJ		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ6L-50ZK		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ6L-50ZL		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ6L-50ZM		Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-10Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-10ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-10ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-10ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-10ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-10ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-10ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-10ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-10ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-10ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-10ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-10ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-10ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-20Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-20ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-20ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-20ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-20ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-20ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-20ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-20ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-20ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-20ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-20ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-20ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-20ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-30Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-30ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-30ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-30ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-30ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-30ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-30ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-30ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-30ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-30ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-30ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-30ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-30ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-40Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-40ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-40ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-40ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-40ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-40ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-40ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-40ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-40ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-40ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-40ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-40ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-40ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-50Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-50ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-50ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-50ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-50ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-50ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-50ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-50ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-50ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-50ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-50ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-50ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-50ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ8L-75Z		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ8L-75ZA		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ8L-75ZB		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ8L-75ZC		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ8L-75ZD		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ8L-75ZE		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ8L-75ZF		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ8L-75ZG		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ8L-75ZH		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ8L-75ZJ		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ8L-75ZK		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ8L-75ZL		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ8L-75ZM		Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-10Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-10ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-10ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-10ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-10ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-10ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-10ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-10ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-10ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-10ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-10ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-10ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-10ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-20Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-20ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-20ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-20ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-20ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-20ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-20ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-20ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-20ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-20ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-20ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-20ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-20ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-30Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-30ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-30ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-30ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-30ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-30ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-30ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-30ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-30ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-30ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-30ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-30ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-30ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-40Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-40ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-40ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-40ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-40ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-40ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-40ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-40ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-40ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-40ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-40ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-40ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-40ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-50Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-50ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-50ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-50ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-50ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-50ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-50ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-50ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-50ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-50ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-50ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-50ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-50ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-75Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-75ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-75ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-75ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-75ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-75ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-75ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-75ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-75ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-75ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-75ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-75ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-75ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
MXQ12L-100Z		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
MXQ12L-100ZA		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
MXQ12L-100ZB		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
MXQ12L-100ZC		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
MXQ12L-100ZD		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
MXQ12L-100ZE		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
MXQ12L-100ZF		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
MXQ12L-100ZG		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
MXQ12L-100ZH		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
MXQ12L-100ZJ		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
MXQ12L-100ZK		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
MXQ12L-100ZL		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
MXQ12L-100ZM		Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end

Slide TablesSMC

776 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXQ Air Slide Table (Height Interchangeable, ø6 to ø25)

Brand SMC·Slide Tables

Available part numbers (776)

MXQ6-10Z, MXQ6-10ZD, MXQ6-10ZE, MXQ6-10ZF, MXQ6-10ZG, MXQ6-10ZH, MXQ6-10ZJ, MXQ6-10ZK, MXQ6-10ZL, MXQ6-10ZM + 766 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MXQ6-10Z	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ6-10ZD	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6-10ZE	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6-10ZF	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6-10ZG	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6-10ZH	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6-10ZJ	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6-10ZK	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6-10ZL	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6-10ZM	Bore: ø6 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6-20Z	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ6-20ZD	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6-20ZE	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6-20ZF	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6-20ZG	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6-20ZH	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6-20ZJ	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6-20ZK	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6-20ZL	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6-20ZM	Bore: ø6 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6-30Z	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ6-30ZD	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6-30ZE	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6-30ZF	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6-30ZG	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6-30ZH	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6-30ZJ	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6-30ZK	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6-30ZL	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6-30ZM	Bore: ø6 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6-40Z	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ6-40ZD	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6-40ZE	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6-40ZF	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6-40ZG	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6-40ZH	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6-40ZJ	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6-40ZK	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6-40ZL	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6-40ZM	Bore: ø6 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6-50Z	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ6-50ZD	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6-50ZE	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6-50ZF	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6-50ZG	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6-50ZH	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6-50ZJ	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6-50ZK	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6-50ZL	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6-50ZM	Bore: ø6 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-10Z	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-10ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-10ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-10ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-10ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-10ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-10ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-10ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-10ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-10ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-10ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-10ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-10ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-20Z	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-20ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-20ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-20ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-20ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-20ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-20ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-20ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-20ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-20ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-20ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-20ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-20ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-30Z	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-30ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-30ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-30ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-30ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-30ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-30ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-30ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-30ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-30ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-30ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-30ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-30ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-40Z	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-40ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-40ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-40ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-40ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-40ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-40ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-40ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-40ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-40ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-40ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-40ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-40ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-50Z	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-50ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-50ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-50ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-50ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-50ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-50ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-50ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-50ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-50ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-50ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-50ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-50ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8-75Z	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ8-75ZA	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8-75ZB	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8-75ZC	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8-75ZD	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8-75ZE	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8-75ZF	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8-75ZG	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8-75ZH	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8-75ZJ	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8-75ZK	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8-75ZL	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8-75ZM	Bore: ø8 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-10Z	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-10ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-10ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-10ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-10ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-10ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-10ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-10ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-10ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-10ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-10ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-10ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-10ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-20Z	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-20ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-20ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-20ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-20ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-20ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-20ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-20ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-20ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-20ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-20ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-20ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-20ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-30Z	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-30ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-30ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-30ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-30ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-30ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-30ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-30ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-30ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-30ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-30ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-30ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-30ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-40Z	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-40ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-40ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-40ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-40ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-40ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-40ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-40ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-40ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-40ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-40ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-40ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-40ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-50Z	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-50ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-50ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-50ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-50ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-50ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-50ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-50ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-50ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-50ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-50ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-50ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-50ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-75Z	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-75ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-75ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-75ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-75ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-75ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-75ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-75ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-75ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-75ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-75ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-75ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-75ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12-100Z	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
	MXQ12-100ZA	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12-100ZB	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12-100ZC	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12-100ZD	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12-100ZE	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12-100ZF	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12-100ZG	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12-100ZH	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12-100ZJ	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12-100ZK	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12-100ZL	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12-100ZM	Bore: ø12 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-10Z	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-10ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-10ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-10ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-10ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-10ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-10ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-10ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-10ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-10ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-10ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-10ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-10ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-20Z	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-20ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-20ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-20ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-20ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-20ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-20ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-20ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-20ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-20ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-20ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-20ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-20ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-30Z	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-30ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-30ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-30ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-30ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-30ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-30ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-30ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-30ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-30ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-30ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-30ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-30ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-40Z	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-40ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-40ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-40ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-40ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-40ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-40ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-40ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-40ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-40ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-40ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-40ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-40ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-50Z	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-50ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-50ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-50ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-50ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-50ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-50ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-50ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-50ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-50ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-50ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-50ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-50ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-75Z	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-75ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-75ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-75ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-75ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-75ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-75ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-75ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-75ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-75ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-75ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-75ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-75ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-100Z	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-100ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-100ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-100ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-100ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-100ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-100ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-100ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-100ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-100ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-100ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-100ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-100ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ16-125Z	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
	MXQ16-125ZA	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ16-125ZB	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ16-125ZC	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ16-125ZD	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ16-125ZE	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ16-125ZF	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ16-125ZG	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ16-125ZH	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ16-125ZJ	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ16-125ZK	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ16-125ZL	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ16-125ZM	Bore: ø16 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-10Z	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-10ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-10ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-10ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-10ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-10ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-10ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-10ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-10ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-10ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-10ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-10ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-10ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-20Z	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-20ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-20ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-20ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-20ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-20ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-20ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-20ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-20ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-20ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-20ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-20ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-20ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-30Z	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-30ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-30ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-30ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-30ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-30ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-30ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-30ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-30ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-30ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-30ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-30ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-30ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-40Z	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-40ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-40ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-40ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-40ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-40ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-40ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-40ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-40ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-40ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-40ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-40ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-40ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-50Z	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-50ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-50ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-50ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-50ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-50ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-50ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-50ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-50ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-50ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-50ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-50ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-50ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-75Z	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-75ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-75ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-75ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-75ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-75ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-75ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-75ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-75ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-75ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-75ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-75ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-75ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-100Z	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-100ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-100ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-100ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-100ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-100ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-100ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-100ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-100ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-100ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-100ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-100ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-100ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-125Z	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-125ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-125ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-125ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-125ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-125ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-125ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-125ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-125ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-125ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-125ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-125ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-125ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ20-150Z	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: -
	MXQ20-150ZA	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ20-150ZB	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ20-150ZC	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ20-150ZD	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ20-150ZE	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ20-150ZF	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ20-150ZG	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ20-150ZH	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ20-150ZJ	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ20-150ZK	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ20-150ZL	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ20-150ZM	Bore: ø20 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-10Z	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-10ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-10ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-10ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-10ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-10ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-10ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-10ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-10ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-10ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-10ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-10ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-10ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-20Z	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-20ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-20ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-20ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-20ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-20ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-20ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-20ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-20ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-20ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-20ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-20ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-20ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-30Z	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-30ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-30ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-30ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-30ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-30ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-30ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-30ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-30ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-30ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-30ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-30ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-30ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-40Z	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-40ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-40ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-40ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-40ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-40ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-40ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-40ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-40ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-40ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-40ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-40ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-40ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-50Z	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-50ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-50ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-50ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-50ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-50ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-50ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-50ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-50ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-50ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-50ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-50ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-50ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-75Z	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-75ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-75ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-75ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-75ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-75ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-75ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-75ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-75ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-75ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-75ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-75ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-75ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-100Z	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-100ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-100ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-100ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-100ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-100ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-100ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-100ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-100ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-100ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-100ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-100ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-100ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-125Z	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-125ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-125ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-125ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-125ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-125ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-125ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-125ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-125ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-125ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-125ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-125ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-125ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ25-150Z	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: -
	MXQ25-150ZA	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ25-150ZB	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ25-150ZC	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ25-150ZD	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ25-150ZE	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ25-150ZF	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ25-150ZG	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ25-150ZH	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ25-150ZJ	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ25-150ZK	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ25-150ZL	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ25-150ZM	Bore: ø25 mm \| Body: Standard \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6L-10Z	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ6L-10ZD	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6L-10ZE	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6L-10ZF	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6L-10ZG	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6L-10ZH	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6L-10ZJ	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6L-10ZK	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6L-10ZL	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6L-10ZM	Bore: ø6 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6L-20Z	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ6L-20ZD	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6L-20ZE	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6L-20ZF	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6L-20ZG	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6L-20ZH	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6L-20ZJ	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6L-20ZK	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6L-20ZL	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6L-20ZM	Bore: ø6 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6L-30Z	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ6L-30ZD	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6L-30ZE	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6L-30ZF	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6L-30ZG	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6L-30ZH	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6L-30ZJ	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6L-30ZK	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6L-30ZL	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6L-30ZM	Bore: ø6 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6L-40Z	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ6L-40ZD	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6L-40ZE	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6L-40ZF	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6L-40ZG	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6L-40ZH	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6L-40ZJ	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6L-40ZK	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6L-40ZL	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6L-40ZM	Bore: ø6 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ6L-50Z	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ6L-50ZD	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ6L-50ZE	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ6L-50ZF	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ6L-50ZG	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ6L-50ZH	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ6L-50ZJ	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ6L-50ZK	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ6L-50ZL	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ6L-50ZM	Bore: ø6 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-10Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-10ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-10ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-10ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-10ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-10ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-10ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-10ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-10ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-10ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-10ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-10ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-10ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-20Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-20ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-20ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-20ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-20ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-20ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-20ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-20ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-20ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-20ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-20ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-20ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-20ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-30Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-30ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-30ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-30ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-30ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-30ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-30ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-30ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-30ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-30ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-30ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-30ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-30ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-40Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-40ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-40ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-40ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-40ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-40ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-40ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-40ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-40ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-40ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-40ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-40ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-40ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-50Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-50ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-50ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-50ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-50ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-50ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-50ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-50ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-50ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-50ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-50ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-50ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-50ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ8L-75Z	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ8L-75ZA	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ8L-75ZB	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ8L-75ZC	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ8L-75ZD	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ8L-75ZE	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ8L-75ZF	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ8L-75ZG	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ8L-75ZH	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ8L-75ZJ	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ8L-75ZK	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ8L-75ZL	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ8L-75ZM	Bore: ø8 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-10Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-10ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-10ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-10ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-10ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-10ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-10ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-10ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-10ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-10ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-10ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-10ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-10ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-20Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-20ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-20ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-20ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-20ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-20ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-20ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-20ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-20ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-20ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-20ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-20ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-20ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-30Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-30ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-30ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-30ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-30ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-30ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-30ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-30ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-30ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-30ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-30ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-30ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-30ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-40Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-40ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-40ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-40ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-40ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-40ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-40ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-40ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-40ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-40ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-40ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-40ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-40ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-50Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-50ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-50ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-50ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-50ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-50ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-50ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-50ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-50ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-50ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-50ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-50ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-50ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-75Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-75ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-75ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-75ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-75ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-75ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-75ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-75ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-75ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-75ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-75ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-75ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-75ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end
	MXQ12L-100Z	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: -
	MXQ12L-100ZA	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Both ends
	MXQ12L-100ZB	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Extension end
	MXQ12L-100ZC	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Damper metal stopper \| Adjuster position: Retraction end
	MXQ12L-100ZD	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends
	MXQ12L-100ZE	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end
	MXQ12L-100ZF	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end
	MXQ12L-100ZG	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Both ends
	MXQ12L-100ZH	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Extension end
	MXQ12L-100ZJ	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Shock absorber/RJ \| Adjuster position: Retraction end
	MXQ12L-100ZK	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends
	MXQ12L-100ZL	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end
	MXQ12L-100ZM	Bore: ø12 mm \| Body: Symmetric \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MXQ Air Slide Table (Height Interchangeable, ø6 to ø25)
