SMC MXQ-C Air Slide Table (Single-Side Piping, ø8, ø12)

SMC MXQ-C Air Slide Table (Single-Side Piping, ø8, ø12)

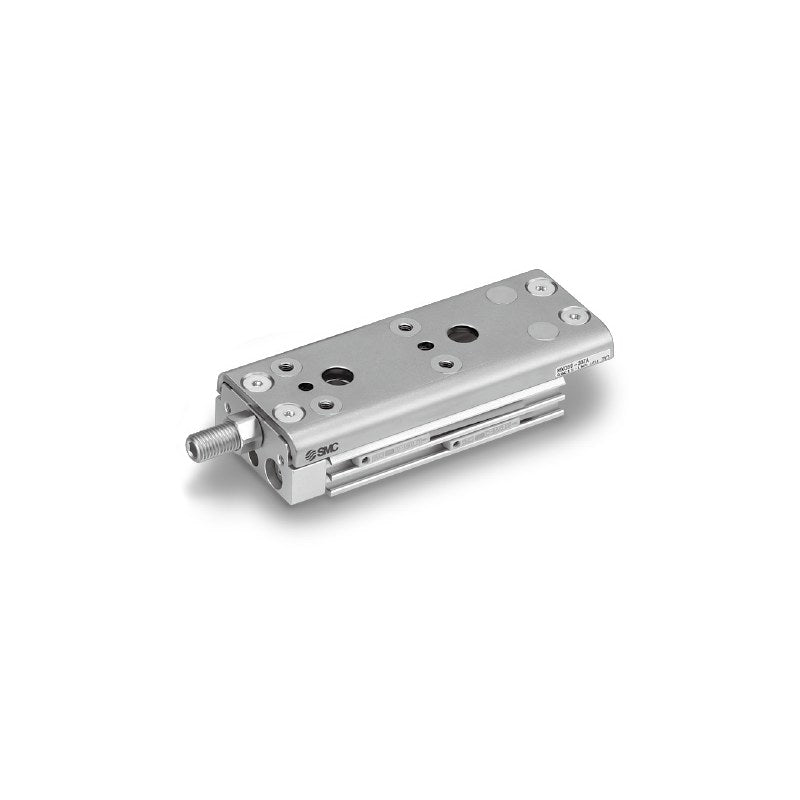

SMC MXQ-C series air slide table with ports and two auto switch grooves on one side, for easy switch indicator viewing even at short strokes.

Key features

  • Ports and auto switch rails on one side; two switches can be mounted on one face even for short strokes
  • Standard (C) and symmetric (CL) body types, ø8 and ø12
  • Dual-rod design with integrated recirculating linear guide; reduced height (MXQ12C 27 mm)
  • Adjuster codes listed: none (Z), damper metal stopper (ZA/ZB/ZC), rubber stopper (ZD/ZE/ZF), shock absorber/RJ (ZG/ZH/ZJ) and metal stopper (ZK/ZL/ZM) at both, extension or retraction end; shortened-length (ZN to ZT) and combined types (ZBF to ZLJ) on request
  • Function options as suffix: buffer, End Lock, axial piping, centralized adjuster unit
  • Built-in magnet for auto switches (D-M9N/M9P/M9B, M9xW, M9xA, A93/A96/A90) ordered as a suffix; switches ship unassembled

Specifications

Bore sizes 8, 12 mm
Port size M5x0.8
Fluid Air
Action Double acting, dual rod
Operating pressure 0.15 to 0.7 MPa (End Lock 0.35 to 0.7 MPa)
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s (damper metal stopper 50 to 300, metal stopper 50 to 200)
Cushion Rubber cushion (no adjuster); per adjuster unit otherwise
Lubrication Not required (non-lube)
Stroke tolerance +2/0 mm
Source SMC Korea catalog CAT.KS20-211C (SMCKR_MXQ-Z.pdf), p. 67-70 (PDF p. 68-71)
MXQ8C-10Z Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8C-10ZA Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-10ZB Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-10ZC Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-10ZD Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-10ZE Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-10ZF Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-10ZG Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-10ZH Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-10ZJ Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-10ZK Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-10ZL Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-10ZM Bore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-20Z Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8C-20ZA Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-20ZB Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-20ZC Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-20ZD Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-20ZE Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-20ZF Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-20ZG Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-20ZH Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-20ZJ Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-20ZK Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-20ZL Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-20ZM Bore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-30Z Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8C-30ZA Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-30ZB Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-30ZC Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-30ZD Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-30ZE Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-30ZF Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-30ZG Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-30ZH Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-30ZJ Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-30ZK Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-30ZL Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-30ZM Bore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-40Z Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8C-40ZA Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-40ZB Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-40ZC Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-40ZD Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-40ZE Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-40ZF Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-40ZG Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-40ZH Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-40ZJ Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-40ZK Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-40ZL Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-40ZM Bore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-50Z Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8C-50ZA Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-50ZB Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-50ZC Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-50ZD Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-50ZE Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-50ZF Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-50ZG Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-50ZH Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-50ZJ Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-50ZK Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-50ZL Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-50ZM Bore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-75Z Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8C-75ZA Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-75ZB Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-75ZC Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-75ZD Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-75ZE Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-75ZF Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-75ZG Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-75ZH Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-75ZJ Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-75ZK Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-75ZL Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-75ZM Bore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-10Z Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12C-10ZA Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-10ZB Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-10ZC Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-10ZD Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-10ZE Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-10ZF Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-10ZG Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-10ZH Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-10ZJ Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-10ZK Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-10ZL Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-10ZM Bore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-20Z Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12C-20ZA Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-20ZB Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-20ZC Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-20ZD Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-20ZE Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-20ZF Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-20ZG Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-20ZH Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-20ZJ Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-20ZK Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-20ZL Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-20ZM Bore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-30Z Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12C-30ZA Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-30ZB Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-30ZC Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-30ZD Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-30ZE Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-30ZF Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-30ZG Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-30ZH Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-30ZJ Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-30ZK Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-30ZL Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-30ZM Bore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-40Z Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12C-40ZA Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-40ZB Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-40ZC Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-40ZD Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-40ZE Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-40ZF Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-40ZG Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-40ZH Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-40ZJ Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-40ZK Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-40ZL Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-40ZM Bore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-50Z Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12C-50ZA Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-50ZB Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-50ZC Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-50ZD Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-50ZE Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-50ZF Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-50ZG Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-50ZH Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-50ZJ Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-50ZK Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-50ZL Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-50ZM Bore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-75Z Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12C-75ZA Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-75ZB Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-75ZC Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-75ZD Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-75ZE Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-75ZF Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-75ZG Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-75ZH Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-75ZJ Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-75ZK Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-75ZL Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-75ZM Bore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-100Z Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12C-100ZA Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-100ZB Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-100ZC Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-100ZD Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-100ZE Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-100ZF Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-100ZG Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-100ZH Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-100ZJ Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-100ZK Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-100ZL Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-100ZM Bore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-10Z Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8CL-10ZA Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-10ZB Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-10ZC Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-10ZD Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-10ZE Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-10ZF Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-10ZG Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-10ZH Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-10ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-10ZK Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-10ZL Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-10ZM Bore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-20Z Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8CL-20ZA Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-20ZB Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-20ZC Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-20ZD Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-20ZE Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-20ZF Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-20ZG Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-20ZH Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-20ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-20ZK Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-20ZL Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-20ZM Bore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-30Z Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8CL-30ZA Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-30ZB Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-30ZC Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-30ZD Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-30ZE Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-30ZF Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-30ZG Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-30ZH Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-30ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-30ZK Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-30ZL Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-30ZM Bore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-40Z Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8CL-40ZA Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-40ZB Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-40ZC Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-40ZD Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-40ZE Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-40ZF Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-40ZG Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-40ZH Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-40ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-40ZK Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-40ZL Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-40ZM Bore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-50Z Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8CL-50ZA Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-50ZB Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-50ZC Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-50ZD Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-50ZE Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-50ZF Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-50ZG Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-50ZH Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-50ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-50ZK Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-50ZL Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-50ZM Bore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-75Z Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8CL-75ZA Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-75ZB Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-75ZC Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-75ZD Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-75ZE Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-75ZF Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-75ZG Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-75ZH Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-75ZJ Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-75ZK Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-75ZL Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-75ZM Bore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-10Z Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12CL-10ZA Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-10ZB Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-10ZC Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-10ZD Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-10ZE Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-10ZF Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-10ZG Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-10ZH Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-10ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-10ZK Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-10ZL Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-10ZM Bore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-20Z Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12CL-20ZA Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-20ZB Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-20ZC Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-20ZD Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-20ZE Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-20ZF Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-20ZG Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-20ZH Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-20ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-20ZK Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-20ZL Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-20ZM Bore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-30Z Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12CL-30ZA Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-30ZB Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-30ZC Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-30ZD Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-30ZE Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-30ZF Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-30ZG Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-30ZH Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-30ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-30ZK Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-30ZL Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-30ZM Bore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-40Z Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12CL-40ZA Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-40ZB Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-40ZC Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-40ZD Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-40ZE Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-40ZF Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-40ZG Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-40ZH Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-40ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-40ZK Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-40ZL Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-40ZM Bore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-50Z Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12CL-50ZA Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-50ZB Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-50ZC Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-50ZD Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-50ZE Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-50ZF Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-50ZG Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-50ZH Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-50ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-50ZK Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-50ZL Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-50ZM Bore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-75Z Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12CL-75ZA Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-75ZB Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-75ZC Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-75ZD Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-75ZE Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-75ZF Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-75ZG Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-75ZH Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-75ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-75ZK Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-75ZL Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-75ZM Bore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-100Z Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12CL-100ZA Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-100ZB Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-100ZC Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-100ZD Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-100ZE Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-100ZF Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-100ZG Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-100ZH Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-100ZJ Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-100ZK Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-100ZL Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-100ZM Bore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
Slide TablesSMC
338 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXQ-C Air Slide Table (Single-Side Piping, ø8, ø12)

Brand SMC·Slide Tables

Available part numbers (338)

MXQ8C-10Z, MXQ8C-10ZA, MXQ8C-10ZB, MXQ8C-10ZC, MXQ8C-10ZD, MXQ8C-10ZE, MXQ8C-10ZF, MXQ8C-10ZG, MXQ8C-10ZH, MXQ8C-10ZJ + 328 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXQ8C-10ZBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8C-10ZABore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-10ZBBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-10ZCBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-10ZDBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-10ZEBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-10ZFBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-10ZGBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-10ZHBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-10ZJBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-10ZKBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-10ZLBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-10ZMBore: ø8 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-20ZBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8C-20ZABore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-20ZBBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-20ZCBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-20ZDBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-20ZEBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-20ZFBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-20ZGBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-20ZHBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-20ZJBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-20ZKBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-20ZLBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-20ZMBore: ø8 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-30ZBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8C-30ZABore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-30ZBBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-30ZCBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-30ZDBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-30ZEBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-30ZFBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-30ZGBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-30ZHBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-30ZJBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-30ZKBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-30ZLBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-30ZMBore: ø8 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-40ZBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8C-40ZABore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-40ZBBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-40ZCBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-40ZDBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-40ZEBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-40ZFBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-40ZGBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-40ZHBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-40ZJBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-40ZKBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-40ZLBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-40ZMBore: ø8 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-50ZBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8C-50ZABore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-50ZBBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-50ZCBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-50ZDBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-50ZEBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-50ZFBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-50ZGBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-50ZHBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-50ZJBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-50ZKBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-50ZLBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-50ZMBore: ø8 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8C-75ZBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8C-75ZABore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8C-75ZBBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8C-75ZCBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8C-75ZDBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8C-75ZEBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8C-75ZFBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8C-75ZGBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8C-75ZHBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8C-75ZJBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8C-75ZKBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8C-75ZLBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8C-75ZMBore: ø8 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-10ZBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12C-10ZABore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-10ZBBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-10ZCBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-10ZDBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-10ZEBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-10ZFBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-10ZGBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-10ZHBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-10ZJBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-10ZKBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-10ZLBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-10ZMBore: ø12 mm | Body: Standard | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-20ZBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12C-20ZABore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-20ZBBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-20ZCBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-20ZDBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-20ZEBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-20ZFBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-20ZGBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-20ZHBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-20ZJBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-20ZKBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-20ZLBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-20ZMBore: ø12 mm | Body: Standard | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-30ZBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12C-30ZABore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-30ZBBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-30ZCBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-30ZDBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-30ZEBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-30ZFBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-30ZGBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-30ZHBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-30ZJBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-30ZKBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-30ZLBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-30ZMBore: ø12 mm | Body: Standard | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-40ZBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12C-40ZABore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-40ZBBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-40ZCBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-40ZDBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-40ZEBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-40ZFBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-40ZGBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-40ZHBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-40ZJBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-40ZKBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-40ZLBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-40ZMBore: ø12 mm | Body: Standard | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-50ZBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12C-50ZABore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-50ZBBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-50ZCBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-50ZDBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-50ZEBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-50ZFBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-50ZGBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-50ZHBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-50ZJBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-50ZKBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-50ZLBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-50ZMBore: ø12 mm | Body: Standard | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-75ZBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12C-75ZABore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-75ZBBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-75ZCBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-75ZDBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-75ZEBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-75ZFBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-75ZGBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-75ZHBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-75ZJBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-75ZKBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-75ZLBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-75ZMBore: ø12 mm | Body: Standard | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12C-100ZBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12C-100ZABore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12C-100ZBBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12C-100ZCBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12C-100ZDBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12C-100ZEBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12C-100ZFBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12C-100ZGBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12C-100ZHBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12C-100ZJBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12C-100ZKBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12C-100ZLBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12C-100ZMBore: ø12 mm | Body: Standard | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-10ZBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ8CL-10ZABore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-10ZBBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-10ZCBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-10ZDBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-10ZEBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-10ZFBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-10ZGBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-10ZHBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-10ZJBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-10ZKBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-10ZLBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-10ZMBore: ø8 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-20ZBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ8CL-20ZABore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-20ZBBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-20ZCBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-20ZDBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-20ZEBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-20ZFBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-20ZGBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-20ZHBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-20ZJBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-20ZKBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-20ZLBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-20ZMBore: ø8 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-30ZBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ8CL-30ZABore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-30ZBBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-30ZCBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-30ZDBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-30ZEBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-30ZFBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-30ZGBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-30ZHBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-30ZJBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-30ZKBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-30ZLBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-30ZMBore: ø8 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-40ZBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ8CL-40ZABore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-40ZBBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-40ZCBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-40ZDBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-40ZEBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-40ZFBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-40ZGBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-40ZHBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-40ZJBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-40ZKBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-40ZLBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-40ZMBore: ø8 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-50ZBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ8CL-50ZABore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-50ZBBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-50ZCBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-50ZDBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-50ZEBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-50ZFBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-50ZGBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-50ZHBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-50ZJBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-50ZKBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-50ZLBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-50ZMBore: ø8 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ8CL-75ZBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ8CL-75ZABore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ8CL-75ZBBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ8CL-75ZCBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ8CL-75ZDBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ8CL-75ZEBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ8CL-75ZFBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ8CL-75ZGBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ8CL-75ZHBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ8CL-75ZJBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ8CL-75ZKBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ8CL-75ZLBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ8CL-75ZMBore: ø8 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-10ZBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: None | Adjuster position: -
MXQ12CL-10ZABore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-10ZBBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-10ZCBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-10ZDBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-10ZEBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-10ZFBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-10ZGBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-10ZHBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-10ZJBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-10ZKBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-10ZLBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-10ZMBore: ø12 mm | Body: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-20ZBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: None | Adjuster position: -
MXQ12CL-20ZABore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-20ZBBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-20ZCBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-20ZDBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-20ZEBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-20ZFBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-20ZGBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-20ZHBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-20ZJBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-20ZKBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-20ZLBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-20ZMBore: ø12 mm | Body: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-30ZBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: None | Adjuster position: -
MXQ12CL-30ZABore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-30ZBBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-30ZCBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-30ZDBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-30ZEBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-30ZFBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-30ZGBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-30ZHBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-30ZJBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-30ZKBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-30ZLBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-30ZMBore: ø12 mm | Body: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-40ZBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: None | Adjuster position: -
MXQ12CL-40ZABore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-40ZBBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-40ZCBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-40ZDBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-40ZEBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-40ZFBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-40ZGBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-40ZHBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-40ZJBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-40ZKBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-40ZLBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-40ZMBore: ø12 mm | Body: Symmetric | Stroke: 40 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-50ZBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: None | Adjuster position: -
MXQ12CL-50ZABore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-50ZBBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-50ZCBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-50ZDBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-50ZEBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-50ZFBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-50ZGBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-50ZHBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-50ZJBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-50ZKBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-50ZLBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-50ZMBore: ø12 mm | Body: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-75ZBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: None | Adjuster position: -
MXQ12CL-75ZABore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-75ZBBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-75ZCBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-75ZDBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-75ZEBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-75ZFBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-75ZGBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-75ZHBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-75ZJBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-75ZKBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-75ZLBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-75ZMBore: ø12 mm | Body: Symmetric | Stroke: 75 mm | Adjuster: Metal stopper | Adjuster position: Retraction end
MXQ12CL-100ZBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: None | Adjuster position: -
MXQ12CL-100ZABore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Both ends
MXQ12CL-100ZBBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Extension end
MXQ12CL-100ZCBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Damper metal stopper | Adjuster position: Retraction end
MXQ12CL-100ZDBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Both ends
MXQ12CL-100ZEBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Extension end
MXQ12CL-100ZFBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Rubber stopper | Adjuster position: Retraction end
MXQ12CL-100ZGBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Both ends
MXQ12CL-100ZHBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Extension end
MXQ12CL-100ZJBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Shock absorber/RJ | Adjuster position: Retraction end
MXQ12CL-100ZKBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Both ends
MXQ12CL-100ZLBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Extension end
MXQ12CL-100ZMBore: ø12 mm | Body: Symmetric | Stroke: 100 mm | Adjuster: Metal stopper | Adjuster position: Retraction end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
