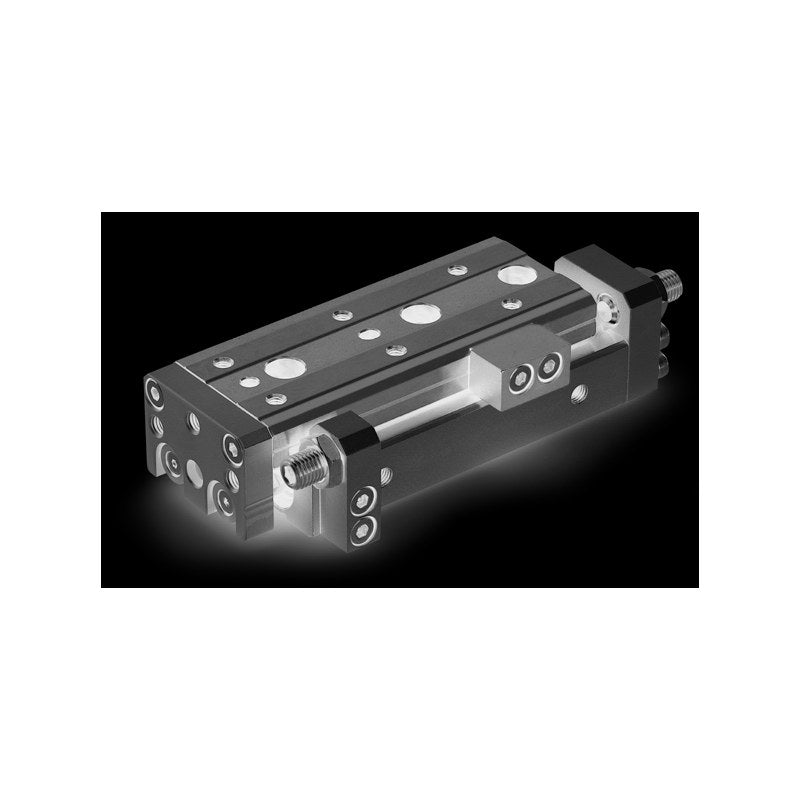

SMC MXQR Air Slide Table (Reversible Type, ø6 to ø25)

SMC MXQR series reversible air slide table whose body can be inverted on site to change the piping and adjuster side, with mounting dimensions compatible with MXQ.

Key features

Reversible structure: piping and adjuster unit side can be changed on site (shipped right or left, L)
Guide rail integrated with the table; recirculating linear guide in martensitic stainless steel
Dual rods for twice the output of a conventional cylinder; body and work mounting dimensions compatible with MXQ
Three body mounting methods (lateral via tapped holes or through holes, vertical); two auto switches on one face
Adjuster codes listed: rubber stopper (A), shock absorber RB (B), metal stopper (C) and RJ short stroke (J, not ø6) at both, extension (S) or retraction (T) end; mixed front/rear combinations on request
Port thread: M5 (ø6 to ø16) or Rc1/8 (ø20, ø25) standard; NPT (TN) and G (TF) for ø20/ø25 on request

Specifications

Bore sizes	6, 8, 12, 16, 20, 25 mm
Fluid	Air
Action	Double acting, dual rod
Operating pressure	0.15 to 0.7 MPa (MXQR6 with shock absorber 0.3 to 0.7 MPa)
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s (metal stopper 50 to 200 mm/s)
Cushion	Rubber cushion standard; shock absorber or none per adjuster
Lubrication	Not required (non-lube)
Stroke tolerance	+1/0 mm
Auto switch	Built-in magnet; D-M9 series, A93/A96/A90 ordered as suffix
Source	SMC Korea catalog CAT.KS20-203B (SMCKR_MXQR.pdf), p. 1-3 (PDF p. 7-9)

MXQR6-10		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR6-10A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-10A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-10AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-10AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-10AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-10AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-10B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-10B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-10BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-10BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-10BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-10BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-10C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-10C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-10CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-10CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-10CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-10CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-20		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR6-20A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-20A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-20AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-20AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-20AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-20AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-20B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-20B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-20BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-20BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-20BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-20BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-20C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-20C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-20CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-20CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-20CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-20CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-30		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR6-30A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-30A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-30AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-30AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-30AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-30AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-30B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-30B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-30BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-30BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-30BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-30BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-30C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-30C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-30CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-30CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-30CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-30CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-40		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR6-40A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-40A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-40AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-40AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-40AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-40AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-40B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-40B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-40BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-40BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-40BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-40BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-40C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-40C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-40CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-40CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-40CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-40CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-50		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR6-50A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-50A		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-50AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-50AS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-50AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-50AT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-50B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-50B		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-50BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-50BS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-50BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-50BT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR6-50C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR6L-50C		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR6-50CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR6L-50CS		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR6-50CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR6L-50CT		Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-10		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-10A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-10A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-10AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-10AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-10AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-10AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-10B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-10B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-10BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-10BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-10BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-10BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-10C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-10C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-10CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-10CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-10CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-10CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-10J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-10J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-10JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-10JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-10JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-10JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-20		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-20A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-20A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-20AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-20AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-20AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-20AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-20B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-20B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-20BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-20BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-20BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-20BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-20C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-20C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-20CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-20CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-20CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-20CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-20J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-20J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-20JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-20JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-20JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-20JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-30		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-30A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-30A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-30AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-30AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-30AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-30AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-30B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-30B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-30BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-30BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-30BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-30BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-30C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-30C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-30CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-30CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-30CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-30CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-30J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-30J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-30JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-30JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-30JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-30JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-40		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-40A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-40A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-40AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-40AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-40AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-40AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-40B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-40B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-40BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-40BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-40BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-40BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-40C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-40C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-40CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-40CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-40CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-40CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-40J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-40J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-40JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-40JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-40JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-40JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-50		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-50A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-50A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-50AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-50AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-50AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-50AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-50B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-50B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-50BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-50BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-50BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-50BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-50C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-50C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-50CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-50CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-50CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-50CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-50J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-50J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-50JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-50JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-50JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-50JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-75		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR8-75A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-75A		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-75AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-75AS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-75AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-75AT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-75B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-75B		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-75BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-75BS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-75BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-75BT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-75C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-75C		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-75CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-75CS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-75CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-75CT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR8-75J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR8L-75J		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR8-75JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR8L-75JS		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR8-75JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR8L-75JT		Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-10		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-10A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-10A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-10AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-10AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-10AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-10AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-10B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-10B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-10BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-10BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-10BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-10BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-10C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-10C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-10CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-10CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-10CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-10CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-10J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-10J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-10JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-10JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-10JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-10JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-20		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-20A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-20A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-20AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-20AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-20AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-20AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-20B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-20B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-20BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-20BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-20BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-20BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-20C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-20C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-20CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-20CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-20CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-20CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-20J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-20J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-20JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-20JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-20JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-20JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-30		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-30A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-30A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-30AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-30AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-30AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-30AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-30B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-30B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-30BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-30BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-30BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-30BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-30C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-30C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-30CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-30CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-30CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-30CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-30J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-30J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-30JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-30JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-30JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-30JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-40		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-40A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-40A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-40AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-40AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-40AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-40AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-40B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-40B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-40BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-40BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-40BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-40BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-40C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-40C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-40CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-40CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-40CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-40CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-40J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-40J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-40JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-40JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-40JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-40JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-50		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-50A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-50A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-50AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-50AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-50AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-50AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-50B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-50B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-50BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-50BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-50BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-50BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-50C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-50C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-50CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-50CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-50CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-50CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-50J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-50J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-50JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-50JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-50JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-50JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-75		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-75A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-75A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-75AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-75AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-75AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-75AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-75B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-75B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-75BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-75BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-75BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-75BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-75C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-75C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-75CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-75CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-75CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-75CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-75J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-75J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-75JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-75JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-75JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-75JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-100		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR12-100A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-100A		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-100AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-100AS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-100AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-100AT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-100B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-100B		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-100BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-100BS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-100BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-100BT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-100C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-100C		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-100CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-100CS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-100CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-100CT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR12-100J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR12L-100J		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR12-100JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR12L-100JS		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR12-100JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR12L-100JT		Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-10		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-10A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-10A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-10AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-10AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-10AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-10AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-10B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-10B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-10BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-10BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-10BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-10BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-10C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-10C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-10CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-10CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-10CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-10CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-10J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-10J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-10JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-10JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-10JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-10JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-20		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-20A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-20A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-20AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-20AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-20AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-20AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-20B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-20B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-20BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-20BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-20BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-20BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-20C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-20C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-20CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-20CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-20CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-20CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-20J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-20J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-20JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-20JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-20JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-20JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-30		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-30A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-30A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-30AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-30AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-30AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-30AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-30B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-30B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-30BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-30BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-30BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-30BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-30C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-30C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-30CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-30CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-30CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-30CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-30J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-30J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-30JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-30JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-30JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-30JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-40		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-40A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-40A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-40AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-40AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-40AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-40AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-40B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-40B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-40BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-40BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-40BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-40BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-40C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-40C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-40CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-40CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-40CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-40CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-40J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-40J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-40JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-40JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-40JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-40JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-50		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-50A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-50A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-50AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-50AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-50AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-50AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-50B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-50B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-50BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-50BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-50BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-50BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-50C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-50C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-50CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-50CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-50CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-50CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-50J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-50J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-50JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-50JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-50JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-50JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-75		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-75A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-75A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-75AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-75AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-75AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-75AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-75B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-75B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-75BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-75BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-75BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-75BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-75C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-75C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-75CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-75CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-75CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-75CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-75J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-75J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-75JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-75JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-75JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-75JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-100		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-100A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-100A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-100AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-100AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-100AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-100AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-100B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-100B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-100BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-100BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-100BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-100BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-100C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-100C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-100CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-100CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-100CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-100CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-100J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-100J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-100JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-100JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-100JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-100JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-125		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR16-125A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-125A		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-125AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-125AS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-125AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-125AT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-125B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-125B		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-125BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-125BS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-125BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-125BT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-125C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-125C		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-125CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-125CS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-125CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-125CT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR16-125J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR16L-125J		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR16-125JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR16L-125JS		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR16-125JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR16L-125JT		Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-10		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-10A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-10A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-10AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-10AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-10AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-10AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-10B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-10B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-10BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-10BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-10BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-10BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-10C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-10C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-10CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-10CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-10CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-10CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-10J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-10J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-10JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-10JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-10JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-10JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-20		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-20A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-20A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-20AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-20AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-20AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-20AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-20B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-20B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-20BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-20BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-20BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-20BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-20C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-20C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-20CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-20CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-20CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-20CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-20J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-20J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-20JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-20JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-20JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-20JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-30		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-30A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-30A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-30AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-30AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-30AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-30AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-30B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-30B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-30BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-30BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-30BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-30BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-30C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-30C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-30CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-30CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-30CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-30CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-30J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-30J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-30JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-30JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-30JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-30JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-40		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-40A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-40A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-40AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-40AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-40AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-40AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-40B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-40B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-40BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-40BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-40BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-40BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-40C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-40C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-40CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-40CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-40CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-40CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-40J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-40J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-40JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-40JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-40JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-40JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-50		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-50A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-50A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-50AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-50AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-50AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-50AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-50B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-50B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-50BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-50BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-50BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-50BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-50C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-50C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-50CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-50CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-50CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-50CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-50J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-50J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-50JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-50JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-50JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-50JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-75		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-75A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-75A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-75AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-75AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-75AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-75AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-75B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-75B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-75BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-75BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-75BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-75BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-75C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-75C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-75CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-75CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-75CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-75CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-75J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-75J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-75JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-75JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-75JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-75JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-100		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-100A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-100A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-100AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-100AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-100AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-100AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-100B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-100B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-100BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-100BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-100BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-100BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-100C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-100C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-100CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-100CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-100CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-100CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-100J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-100J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-100JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-100JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-100JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-100JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-125		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-125A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-125A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-125AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-125AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-125AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-125AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-125B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-125B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-125BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-125BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-125BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-125BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-125C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-125C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-125CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-125CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-125CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-125CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-125J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-125J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-125JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-125JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-125JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-125JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-150		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR20-150A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-150A		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-150AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-150AS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-150AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-150AT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-150B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-150B		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-150BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-150BS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-150BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-150BT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-150C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-150C		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-150CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-150CS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-150CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-150CT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR20-150J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR20L-150J		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR20-150JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR20L-150JS		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR20-150JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR20L-150JT		Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-10		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-10A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-10A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-10AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-10AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-10AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-10AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-10B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-10B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-10BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-10BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-10BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-10BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-10C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-10C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-10CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-10CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-10CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-10CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-10J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-10J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-10JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-10JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-10JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-10JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-20		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-20A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-20A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-20AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-20AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-20AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-20AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-20B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-20B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-20BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-20BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-20BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-20BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-20C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-20C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-20CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-20CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-20CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-20CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-20J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-20J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-20JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-20JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-20JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-20JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-30		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-30A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-30A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-30AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-30AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-30AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-30AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-30B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-30B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-30BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-30BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-30BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-30BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-30C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-30C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-30CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-30CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-30CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-30CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-30J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-30J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-30JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-30JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-30JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-30JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-40		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-40A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-40A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-40AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-40AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-40AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-40AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-40B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-40B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-40BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-40BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-40BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-40BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-40C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-40C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-40CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-40CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-40CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-40CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-40J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-40J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-40JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-40JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-40JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-40JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-50		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-50A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-50A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-50AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-50AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-50AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-50AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-50B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-50B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-50BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-50BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-50BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-50BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-50C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-50C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-50CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-50CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-50CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-50CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-50J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-50J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-50JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-50JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-50JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-50JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-75		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-75A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-75A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-75AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-75AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-75AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-75AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-75B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-75B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-75BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-75BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-75BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-75BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-75C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-75C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-75CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-75CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-75CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-75CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-75J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-75J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-75JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-75JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-75JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-75JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-100		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-100A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-100A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-100AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-100AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-100AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-100AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-100B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-100B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-100BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-100BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-100BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-100BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-100C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-100C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-100CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-100CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-100CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-100CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-100J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-100J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-100JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-100JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-100JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-100JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-125		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-125A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-125A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-125AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-125AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-125AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-125AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-125B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-125B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-125BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-125BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-125BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-125BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-125C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-125C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-125CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-125CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-125CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-125CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-125J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-125J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-125JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-125JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-125JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-125JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-150		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
MXQR25-150A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-150A		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-150AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-150AS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-150AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-150AT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-150B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-150B		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-150BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-150BS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-150BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-150BT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-150C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-150C		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-150CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-150CS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-150CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-150CT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
MXQR25-150J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
MXQR25L-150J		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
MXQR25-150JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
MXQR25L-150JS		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
MXQR25-150JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
MXQR25L-150JT		Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left

Slide TablesSMC

1070 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXQR Air Slide Table (Reversible Type, ø6 to ø25)

Brand SMC·Slide Tables

Available part numbers (1070)

MXQR6-10, MXQR6-10A, MXQR6L-10A, MXQR6-10AS, MXQR6L-10AS, MXQR6-10AT, MXQR6L-10AT, MXQR6-10B, MXQR6L-10B, MXQR6-10BS + 1060 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MXQR6-10	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR6-10A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-10A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-10AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-10AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-10AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-10AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-10B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-10B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-10BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-10BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-10BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-10BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-10C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-10C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-10CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-10CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-10CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-10CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-20	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR6-20A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-20A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-20AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-20AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-20AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-20AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-20B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-20B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-20BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-20BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-20BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-20BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-20C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-20C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-20CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-20CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-20CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-20CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-30	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR6-30A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-30A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-30AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-30AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-30AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-30AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-30B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-30B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-30BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-30BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-30BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-30BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-30C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-30C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-30CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-30CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-30CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-30CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-40	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR6-40A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-40A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-40AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-40AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-40AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-40AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-40B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-40B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-40BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-40BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-40BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-40BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-40C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-40C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-40CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-40CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-40CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-40CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-50	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR6-50A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-50A	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-50AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-50AS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-50AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-50AT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-50B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-50B	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-50BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-50BS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-50BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-50BT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR6-50C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR6L-50C	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR6-50CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR6L-50CS	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR6-50CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR6L-50CT	Bore: ø6 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-10	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-10A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-10A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-10AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-10AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-10AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-10AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-10B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-10B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-10BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-10BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-10BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-10BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-10C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-10C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-10CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-10CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-10CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-10CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-10J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-10J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-10JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-10JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-10JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-10JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-20	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-20A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-20A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-20AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-20AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-20AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-20AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-20B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-20B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-20BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-20BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-20BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-20BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-20C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-20C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-20CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-20CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-20CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-20CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-20J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-20J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-20JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-20JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-20JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-20JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-30	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-30A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-30A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-30AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-30AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-30AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-30AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-30B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-30B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-30BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-30BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-30BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-30BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-30C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-30C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-30CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-30CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-30CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-30CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-30J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-30J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-30JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-30JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-30JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-30JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-40	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-40A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-40A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-40AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-40AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-40AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-40AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-40B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-40B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-40BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-40BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-40BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-40BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-40C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-40C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-40CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-40CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-40CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-40CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-40J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-40J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-40JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-40JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-40JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-40JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-50	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-50A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-50A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-50AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-50AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-50AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-50AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-50B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-50B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-50BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-50BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-50BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-50BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-50C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-50C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-50CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-50CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-50CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-50CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-50J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-50J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-50JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-50JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-50JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-50JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-75	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR8-75A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-75A	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-75AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-75AS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-75AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-75AT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-75B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-75B	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-75BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-75BS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-75BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-75BT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-75C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-75C	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-75CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-75CS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-75CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-75CT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR8-75J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR8L-75J	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR8-75JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR8L-75JS	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR8-75JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR8L-75JT	Bore: ø8 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-10	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-10A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-10A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-10AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-10AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-10AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-10AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-10B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-10B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-10BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-10BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-10BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-10BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-10C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-10C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-10CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-10CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-10CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-10CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-10J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-10J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-10JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-10JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-10JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-10JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-20	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-20A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-20A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-20AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-20AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-20AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-20AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-20B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-20B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-20BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-20BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-20BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-20BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-20C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-20C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-20CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-20CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-20CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-20CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-20J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-20J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-20JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-20JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-20JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-20JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-30	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-30A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-30A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-30AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-30AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-30AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-30AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-30B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-30B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-30BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-30BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-30BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-30BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-30C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-30C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-30CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-30CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-30CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-30CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-30J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-30J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-30JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-30JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-30JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-30JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-40	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-40A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-40A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-40AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-40AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-40AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-40AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-40B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-40B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-40BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-40BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-40BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-40BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-40C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-40C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-40CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-40CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-40CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-40CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-40J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-40J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-40JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-40JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-40JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-40JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-50	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-50A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-50A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-50AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-50AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-50AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-50AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-50B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-50B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-50BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-50BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-50BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-50BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-50C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-50C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-50CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-50CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-50CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-50CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-50J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-50J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-50JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-50JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-50JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-50JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-75	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-75A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-75A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-75AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-75AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-75AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-75AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-75B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-75B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-75BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-75BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-75BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-75BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-75C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-75C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-75CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-75CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-75CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-75CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-75J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-75J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-75JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-75JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-75JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-75JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-100	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR12-100A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-100A	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-100AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-100AS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-100AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-100AT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-100B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-100B	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-100BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-100BS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-100BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-100BT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-100C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-100C	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-100CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-100CS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-100CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-100CT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR12-100J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR12L-100J	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR12-100JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR12L-100JS	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR12-100JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR12L-100JT	Bore: ø12 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-10	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-10A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-10A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-10AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-10AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-10AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-10AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-10B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-10B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-10BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-10BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-10BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-10BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-10C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-10C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-10CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-10CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-10CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-10CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-10J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-10J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-10JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-10JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-10JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-10JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-20	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-20A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-20A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-20AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-20AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-20AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-20AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-20B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-20B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-20BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-20BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-20BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-20BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-20C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-20C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-20CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-20CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-20CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-20CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-20J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-20J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-20JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-20JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-20JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-20JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-30	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-30A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-30A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-30AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-30AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-30AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-30AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-30B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-30B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-30BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-30BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-30BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-30BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-30C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-30C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-30CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-30CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-30CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-30CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-30J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-30J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-30JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-30JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-30JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-30JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-40	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-40A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-40A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-40AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-40AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-40AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-40AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-40B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-40B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-40BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-40BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-40BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-40BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-40C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-40C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-40CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-40CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-40CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-40CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-40J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-40J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-40JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-40JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-40JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-40JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-50	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-50A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-50A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-50AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-50AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-50AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-50AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-50B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-50B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-50BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-50BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-50BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-50BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-50C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-50C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-50CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-50CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-50CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-50CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-50J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-50J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-50JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-50JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-50JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-50JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-75	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-75A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-75A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-75AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-75AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-75AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-75AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-75B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-75B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-75BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-75BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-75BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-75BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-75C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-75C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-75CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-75CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-75CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-75CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-75J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-75J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-75JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-75JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-75JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-75JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-100	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-100A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-100A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-100AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-100AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-100AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-100AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-100B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-100B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-100BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-100BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-100BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-100BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-100C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-100C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-100CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-100CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-100CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-100CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-100J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-100J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-100JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-100JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-100JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-100JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-125	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR16-125A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-125A	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-125AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-125AS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-125AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-125AT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-125B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-125B	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-125BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-125BS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-125BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-125BT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-125C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-125C	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-125CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-125CS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-125CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-125CT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR16-125J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR16L-125J	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR16-125JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR16L-125JS	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR16-125JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR16L-125JT	Bore: ø16 mm \| Port: M5x0.8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-10	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-10A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-10A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-10AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-10AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-10AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-10AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-10B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-10B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-10BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-10BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-10BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-10BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-10C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-10C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-10CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-10CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-10CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-10CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-10J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-10J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-10JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-10JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-10JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-10JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-20	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-20A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-20A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-20AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-20AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-20AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-20AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-20B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-20B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-20BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-20BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-20BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-20BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-20C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-20C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-20CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-20CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-20CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-20CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-20J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-20J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-20JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-20JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-20JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-20JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-30	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-30A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-30A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-30AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-30AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-30AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-30AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-30B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-30B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-30BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-30BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-30BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-30BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-30C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-30C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-30CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-30CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-30CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-30CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-30J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-30J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-30JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-30JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-30JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-30JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-40	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-40A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-40A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-40AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-40AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-40AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-40AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-40B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-40B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-40BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-40BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-40BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-40BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-40C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-40C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-40CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-40CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-40CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-40CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-40J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-40J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-40JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-40JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-40JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-40JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-50	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-50A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-50A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-50AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-50AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-50AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-50AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-50B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-50B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-50BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-50BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-50BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-50BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-50C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-50C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-50CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-50CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-50CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-50CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-50J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-50J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-50JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-50JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-50JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-50JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-75	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-75A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-75A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-75AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-75AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-75AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-75AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-75B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-75B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-75BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-75BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-75BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-75BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-75C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-75C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-75CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-75CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-75CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-75CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-75J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-75J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-75JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-75JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-75JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-75JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-100	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-100A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-100A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-100AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-100AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-100AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-100AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-100B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-100B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-100BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-100BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-100BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-100BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-100C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-100C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-100CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-100CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-100CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-100CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-100J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-100J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-100JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-100JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-100JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-100JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-125	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-125A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-125A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-125AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-125AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-125AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-125AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-125B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-125B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-125BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-125BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-125BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-125BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-125C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-125C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-125CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-125CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-125CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-125CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-125J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-125J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-125JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-125JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-125JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-125JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-150	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR20-150A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-150A	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-150AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-150AS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-150AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-150AT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-150B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-150B	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-150BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-150BS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-150BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-150BT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-150C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-150C	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-150CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-150CS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-150CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-150CT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR20-150J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR20L-150J	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR20-150JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR20L-150JS	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR20-150JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR20L-150JT	Bore: ø20 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-10	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-10A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-10A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-10AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-10AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-10AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-10AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-10B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-10B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-10BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-10BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-10BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-10BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-10C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-10C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-10CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-10CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-10CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-10CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-10J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-10J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-10JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-10JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-10JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-10JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 10 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-20	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-20A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-20A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-20AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-20AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-20AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-20AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-20B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-20B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-20BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-20BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-20BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-20BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-20C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-20C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-20CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-20CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-20CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-20CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-20J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-20J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-20JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-20JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-20JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-20JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 20 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-30	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-30A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-30A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-30AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-30AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-30AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-30AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-30B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-30B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-30BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-30BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-30BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-30BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-30C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-30C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-30CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-30CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-30CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-30CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-30J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-30J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-30JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-30JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-30JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-30JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 30 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-40	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-40A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-40A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-40AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-40AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-40AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-40AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-40B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-40B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-40BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-40BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-40BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-40BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-40C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-40C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-40CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-40CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-40CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-40CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-40J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-40J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-40JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-40JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-40JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-40JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 40 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-50	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-50A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-50A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-50AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-50AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-50AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-50AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-50B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-50B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-50BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-50BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-50BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-50BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-50C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-50C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-50CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-50CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-50CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-50CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-50J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-50J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-50JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-50JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-50JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-50JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 50 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-75	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-75A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-75A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-75AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-75AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-75AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-75AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-75B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-75B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-75BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-75BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-75BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-75BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-75C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-75C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-75CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-75CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-75CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-75CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-75J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-75J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-75JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-75JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-75JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-75JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 75 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-100	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-100A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-100A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-100AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-100AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-100AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-100AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-100B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-100B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-100BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-100BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-100BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-100BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-100C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-100C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-100CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-100CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-100CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-100CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-100J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-100J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-100JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-100JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-100JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-100JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 100 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-125	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-125A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-125A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-125AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-125AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-125AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-125AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-125B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-125B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-125BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-125BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-125BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-125BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-125C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-125C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-125CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-125CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-125CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-125CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-125J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-125J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-125JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-125JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-125JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-125JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 125 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-150	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: None \| Adjuster position: - \| Adjuster side: -
	MXQR25-150A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-150A	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-150AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-150AS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-150AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-150AT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Rubber stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-150B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-150B	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-150BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-150BS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-150BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-150BT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RB \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-150C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-150C	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-150CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-150CS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-150CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-150CT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Metal stopper \| Adjuster position: Retraction end \| Adjuster side: Left
	MXQR25-150J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Right (standard)
	MXQR25L-150J	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Both ends \| Adjuster side: Left
	MXQR25-150JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Right (standard)
	MXQR25L-150JS	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Extension end \| Adjuster side: Left
	MXQR25-150JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Right (standard)
	MXQR25L-150JT	Bore: ø25 mm \| Port: Rc1/8 \| Stroke: 150 mm \| Adjuster: Shock absorber RJ \| Adjuster position: Retraction end \| Adjuster side: Left

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MXQR Air Slide Table (Reversible Type, ø6 to ø25)
