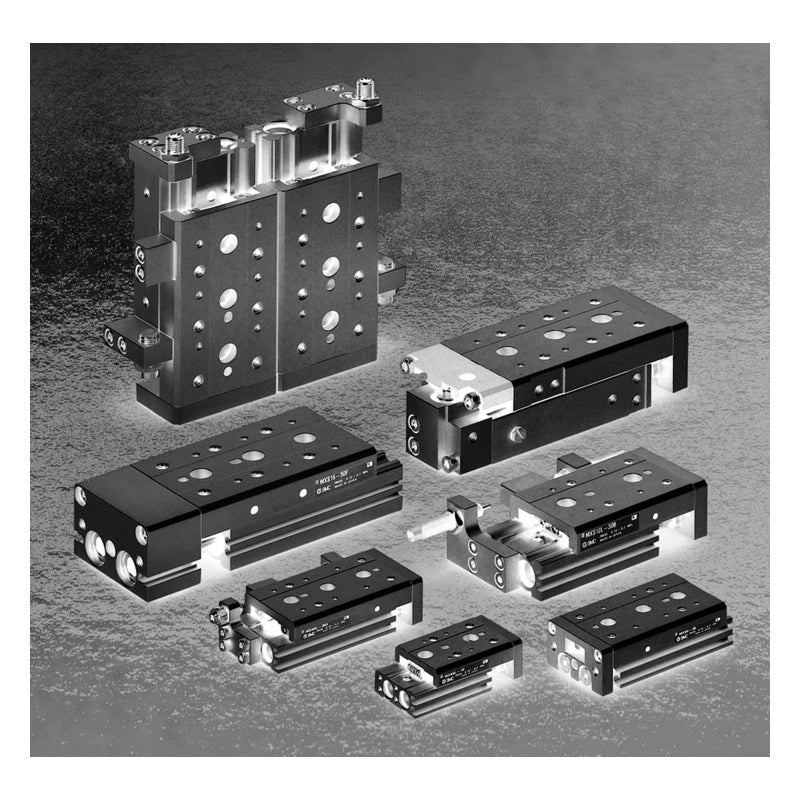

SMC MXS Air Slide Table (Cross Roller Guide, ø6-ø25)

SMC MXS Air Slide Table (Cross Roller Guide, ø6-ø25)

SMC MXS series air slide table integrating a work table and a dual-rod air cylinder with a cross roller guide, for precision assembly, in bores ø6 to ø25.

Key features

  • Dual rod construction gives twice the output of a single cylinder of the same bore
  • Cross roller guide with optimized preload and no retainer; usable in vertical mounting
  • Adjuster options: rubber stopper or shock absorber at extend, retract or both ends (no shock absorber on ø6)
  • Function options: buffer (F), end lock (R, not ø6), axial piping (P) and combinations per catalog table
  • Auto switches fit into body side grooves without protruding (D-M9, D-A9 types, ordered separately)
  • Port thread M5/M3 (ø6-ø16) or Rc1/8 (ø20, ø25); NPT (TN) and G (TF) for ø20/ø25; -X7, -X9, -X11, -X12, -X39, -X42, -X45 on order

Specifications

Fluid Air
Action Double acting, dual rod
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion (standard, with stroke adjuster); shock absorber (option)
Lubrication Not required (non-lube)
Stroke tolerance +1/0 mm
Stroke adjustment range 0 to 5 mm (stroke adjuster)
Source SMC Korea catalog MXS (SMCKR_MXS.pdf), p. 54-55 (PDF p. 6-7)
MXS6-10 Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-10F Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-10P Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-10FP Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-10AS Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-10ASF Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-10ASP Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-10ASFP Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-10AT Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-10ATF Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-10A Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-10AF Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-20 Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-20F Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-20P Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-20FP Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-20AS Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-20ASF Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-20ASP Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-20ASFP Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-20AT Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-20ATF Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-20A Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-20AF Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-30 Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-30F Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-30P Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-30FP Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-30AS Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-30ASF Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-30ASP Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-30ASFP Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-30AT Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-30ATF Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-30A Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-30AF Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-40 Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-40F Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-40P Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-40FP Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-40AS Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-40ASF Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-40ASP Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-40ASFP Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-40AT Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-40ATF Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-40A Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-40AF Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-50 Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-50F Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-50P Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-50FP Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-50AS Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-50ASF Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-50ASP Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-50ASFP Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-50AT Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-50ATF Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-50A Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-50AF Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS8-10 Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-10F Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-10R Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-10P Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-10FR Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-10FP Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-10AS Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-10ASF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-10ASR Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-10ASP Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-10ASFR Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-10ASFP Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-10AT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-10ATF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-10A Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-10AF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-10BS Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-10BSR Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-10BSP Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-10BT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-10BTF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-10B Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-10ASBT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-10ASBTF Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-10BSAT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-20 Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-20F Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-20R Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-20P Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-20FR Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-20FP Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-20AS Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-20ASF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-20ASR Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-20ASP Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-20ASFR Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-20ASFP Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-20AT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-20ATF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-20A Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-20AF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-20BS Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-20BSR Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-20BSP Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-20BT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-20BTF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-20B Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-20ASBT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-20ASBTF Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-20BSAT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-30 Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-30F Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-30R Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-30P Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-30FR Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-30FP Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-30AS Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-30ASF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-30ASR Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-30ASP Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-30ASFR Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-30ASFP Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-30AT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-30ATF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-30A Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-30AF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-30BS Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-30BSR Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-30BSP Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-30BT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-30BTF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-30B Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-30ASBT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-30ASBTF Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-30BSAT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-40 Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-40F Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-40R Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-40P Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-40FR Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-40FP Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-40AS Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-40ASF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-40ASR Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-40ASP Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-40ASFR Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-40ASFP Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-40AT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-40ATF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-40A Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-40AF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-40BS Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-40BSR Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-40BSP Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-40BT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-40BTF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-40B Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-40ASBT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-40ASBTF Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-40BSAT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-50 Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-50F Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-50R Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-50P Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-50FR Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-50FP Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-50AS Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-50ASF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-50ASR Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-50ASP Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-50ASFR Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-50ASFP Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-50AT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-50ATF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-50A Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-50AF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-50BS Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-50BSR Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-50BSP Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-50BT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-50BTF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-50B Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-50ASBT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-50ASBTF Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-50BSAT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-75 Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-75F Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-75R Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-75P Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-75FR Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-75FP Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-75AS Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-75ASF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-75ASR Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-75ASP Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-75ASFR Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-75ASFP Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-75AT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-75ATF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-75A Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-75AF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-75BS Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-75BSR Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-75BSP Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-75BT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-75BTF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-75B Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-75ASBT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-75ASBTF Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-75BSAT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-10 Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-10F Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-10R Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-10P Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-10FR Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-10FP Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-10AS Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-10ASF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-10ASR Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-10ASP Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-10ASFR Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-10ASFP Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-10AT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-10ATF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-10A Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-10AF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-10BS Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-10BSR Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-10BSP Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-10BT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-10BTF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-10B Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-10ASBT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-10ASBTF Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-10BSAT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-20 Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-20F Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-20R Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-20P Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-20FR Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-20FP Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-20AS Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-20ASF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-20ASR Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-20ASP Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-20ASFR Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-20ASFP Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-20AT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-20ATF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-20A Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-20AF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-20BS Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-20BSR Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-20BSP Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-20BT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-20BTF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-20B Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-20ASBT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-20ASBTF Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-20BSAT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-30 Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-30F Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-30R Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-30P Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-30FR Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-30FP Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-30AS Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-30ASF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-30ASR Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-30ASP Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-30ASFR Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-30ASFP Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-30AT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-30ATF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-30A Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-30AF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-30BS Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-30BSR Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-30BSP Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-30BT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-30BTF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-30B Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-30ASBT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-30ASBTF Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-30BSAT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-40 Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-40F Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-40R Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-40P Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-40FR Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-40FP Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-40AS Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-40ASF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-40ASR Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-40ASP Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-40ASFR Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-40ASFP Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-40AT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-40ATF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-40A Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-40AF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-40BS Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-40BSR Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-40BSP Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-40BT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-40BTF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-40B Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-40ASBT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-40ASBTF Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-40BSAT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-50 Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-50F Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-50R Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-50P Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-50FR Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-50FP Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-50AS Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-50ASF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-50ASR Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-50ASP Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-50ASFR Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-50ASFP Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-50AT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-50ATF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-50A Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-50AF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-50BS Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-50BSR Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-50BSP Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-50BT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-50BTF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-50B Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-50ASBT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-50ASBTF Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-50BSAT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-75 Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-75F Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-75R Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-75P Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-75FR Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-75FP Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-75AS Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-75ASF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-75ASR Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-75ASP Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-75ASFR Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-75ASFP Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-75AT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-75ATF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-75A Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-75AF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-75BS Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-75BSR Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-75BSP Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-75BT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-75BTF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-75B Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-75ASBT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-75ASBTF Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-75BSAT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-100 Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-100F Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-100R Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-100P Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-100FR Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-100FP Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-100AS Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-100ASF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-100ASR Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-100ASP Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-100ASFR Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-100ASFP Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-100AT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-100ATF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-100A Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-100AF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-100BS Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-100BSR Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-100BSP Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-100BT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-100BTF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-100B Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-100ASBT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-100ASBTF Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-100BSAT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-10 Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-10F Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-10R Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-10P Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-10FR Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-10FP Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-10AS Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-10ASF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-10ASR Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-10ASP Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-10ASFR Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-10ASFP Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-10AT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-10ATF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-10A Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-10AF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-10BS Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-10BSR Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-10BSP Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-10BT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-10BTF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-10B Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-10ASBT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-10ASBTF Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-10BSAT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-20 Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-20F Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-20R Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-20P Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-20FR Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-20FP Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-20AS Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-20ASF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-20ASR Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-20ASP Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-20ASFR Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-20ASFP Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-20AT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-20ATF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-20A Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-20AF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-20BS Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-20BSR Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-20BSP Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-20BT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-20BTF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-20B Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-20ASBT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-20ASBTF Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-20BSAT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-30 Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-30F Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-30R Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-30P Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-30FR Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-30FP Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-30AS Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-30ASF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-30ASR Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-30ASP Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-30ASFR Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-30ASFP Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-30AT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-30ATF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-30A Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-30AF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-30BS Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-30BSR Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-30BSP Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-30BT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-30BTF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-30B Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-30ASBT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-30ASBTF Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-30BSAT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-40 Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-40F Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-40R Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-40P Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-40FR Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-40FP Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-40AS Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-40ASF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-40ASR Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-40ASP Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-40ASFR Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-40ASFP Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-40AT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-40ATF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-40A Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-40AF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-40BS Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-40BSR Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-40BSP Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-40BT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-40BTF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-40B Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-40ASBT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-40ASBTF Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-40BSAT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-50 Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-50F Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-50R Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-50P Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-50FR Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-50FP Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-50AS Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-50ASF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-50ASR Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-50ASP Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-50ASFR Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-50ASFP Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-50AT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-50ATF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-50A Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-50AF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-50BS Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-50BSR Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-50BSP Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-50BT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-50BTF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-50B Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-50ASBT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-50ASBTF Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-50BSAT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-75 Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-75F Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-75R Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-75P Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-75FR Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-75FP Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-75AS Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-75ASF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-75ASR Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-75ASP Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-75ASFR Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-75ASFP Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-75AT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-75ATF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-75A Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-75AF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-75BS Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-75BSR Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-75BSP Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-75BT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-75BTF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-75B Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-75ASBT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-75ASBTF Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-75BSAT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-100 Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-100F Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-100R Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-100P Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-100FR Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-100FP Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-100AS Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-100ASF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-100ASR Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-100ASP Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-100ASFR Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-100ASFP Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-100AT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-100ATF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-100A Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-100AF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-100BS Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-100BSR Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-100BSP Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-100BT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-100BTF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-100B Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-100ASBT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-100ASBTF Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-100BSAT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-125 Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-125F Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-125R Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-125P Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-125FR Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-125FP Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-125AS Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-125ASF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-125ASR Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-125ASP Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-125ASFR Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-125ASFP Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-125AT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-125ATF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-125A Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-125AF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-125BS Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-125BSR Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-125BSP Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-125BT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-125BTF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-125B Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-125ASBT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-125ASBTF Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-125BSAT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS20-10 Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-10F Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-10R Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-10P Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-10FR Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-10FP Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-10AS Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-10ASF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-10ASR Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-10ASP Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-10ASFR Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-10ASFP Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-10AT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-10ATF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-10A Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-10AF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-10BS Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-10BSR Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-10BSP Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-10BT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-10BTF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-10B Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-10ASBT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-10ASBTF Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-10BSAT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-20 Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-20F Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-20R Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-20P Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-20FR Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-20FP Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-20AS Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-20ASF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-20ASR Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-20ASP Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-20ASFR Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-20ASFP Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-20AT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-20ATF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-20A Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-20AF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-20BS Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-20BSR Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-20BSP Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-20BT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-20BTF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-20B Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-20ASBT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-20ASBTF Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-20BSAT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-30 Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-30F Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-30R Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-30P Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-30FR Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-30FP Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-30AS Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-30ASF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-30ASR Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-30ASP Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-30ASFR Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-30ASFP Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-30AT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-30ATF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-30A Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-30AF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-30BS Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-30BSR Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-30BSP Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-30BT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-30BTF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-30B Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-30ASBT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-30ASBTF Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-30BSAT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-40 Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-40F Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-40R Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-40P Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-40FR Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-40FP Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-40AS Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-40ASF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-40ASR Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-40ASP Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-40ASFR Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-40ASFP Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-40AT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-40ATF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-40A Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-40AF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-40BS Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-40BSR Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-40BSP Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-40BT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-40BTF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-40B Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-40ASBT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-40ASBTF Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-40BSAT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-50 Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-50F Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-50R Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-50P Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-50FR Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-50FP Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-50AS Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-50ASF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-50ASR Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-50ASP Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-50ASFR Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-50ASFP Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-50AT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-50ATF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-50A Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-50AF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-50BS Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-50BSR Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-50BSP Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-50BT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-50BTF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-50B Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-50ASBT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-50ASBTF Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-50BSAT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-75 Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-75F Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-75R Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-75P Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-75FR Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-75FP Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-75AS Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-75ASF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-75ASR Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-75ASP Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-75ASFR Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-75ASFP Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-75AT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-75ATF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-75A Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-75AF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-75BS Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-75BSR Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-75BSP Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-75BT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-75BTF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-75B Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-75ASBT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-75ASBTF Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-75BSAT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-100 Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-100F Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-100R Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-100P Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-100FR Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-100FP Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-100AS Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-100ASF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-100ASR Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-100ASP Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-100ASFR Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-100ASFP Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-100AT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-100ATF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-100A Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-100AF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-100BS Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-100BSR Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-100BSP Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-100BT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-100BTF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-100B Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-100ASBT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-100ASBTF Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-100BSAT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-125 Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-125F Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-125R Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-125P Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-125FR Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-125FP Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-125AS Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-125ASF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-125ASR Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-125ASP Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-125ASFR Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-125ASFP Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-125AT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-125ATF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-125A Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-125AF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-125BS Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-125BSR Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-125BSP Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-125BT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-125BTF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-125B Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-125ASBT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-125ASBTF Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-125BSAT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-150 Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-150F Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-150R Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-150P Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-150FR Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-150FP Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-150AS Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-150ASF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-150ASR Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-150ASP Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-150ASFR Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-150ASFP Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-150AT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-150ATF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-150A Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-150AF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-150BS Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-150BSR Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-150BSP Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-150BT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-150BTF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-150B Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-150ASBT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-150ASBTF Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-150BSAT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-10 Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-10F Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-10R Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-10P Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-10FR Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-10FP Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-10AS Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-10ASF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-10ASR Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-10ASP Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-10ASFR Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-10ASFP Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-10AT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-10ATF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-10A Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-10AF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-10BS Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-10BSR Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-10BSP Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-10BT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-10BTF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-10B Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-10ASBT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-10ASBTF Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-10BSAT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-20 Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-20F Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-20R Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-20P Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-20FR Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-20FP Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-20AS Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-20ASF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-20ASR Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-20ASP Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-20ASFR Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-20ASFP Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-20AT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-20ATF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-20A Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-20AF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-20BS Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-20BSR Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-20BSP Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-20BT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-20BTF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-20B Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-20ASBT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-20ASBTF Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-20BSAT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-30 Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-30F Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-30R Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-30P Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-30FR Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-30FP Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-30AS Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-30ASF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-30ASR Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-30ASP Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-30ASFR Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-30ASFP Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-30AT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-30ATF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-30A Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-30AF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-30BS Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-30BSR Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-30BSP Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-30BT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-30BTF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-30B Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-30ASBT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-30ASBTF Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-30BSAT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-40 Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-40F Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-40R Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-40P Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-40FR Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-40FP Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-40AS Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-40ASF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-40ASR Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-40ASP Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-40ASFR Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-40ASFP Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-40AT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-40ATF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-40A Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-40AF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-40BS Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-40BSR Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-40BSP Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-40BT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-40BTF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-40B Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-40ASBT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-40ASBTF Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-40BSAT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-50 Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-50F Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-50R Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-50P Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-50FR Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-50FP Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-50AS Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-50ASF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-50ASR Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-50ASP Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-50ASFR Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-50ASFP Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-50AT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-50ATF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-50A Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-50AF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-50BS Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-50BSR Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-50BSP Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-50BT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-50BTF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-50B Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-50ASBT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-50ASBTF Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-50BSAT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-75 Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-75F Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-75R Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-75P Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-75FR Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-75FP Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-75AS Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-75ASF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-75ASR Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-75ASP Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-75ASFR Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-75ASFP Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-75AT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-75ATF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-75A Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-75AF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-75BS Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-75BSR Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-75BSP Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-75BT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-75BTF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-75B Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-75ASBT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-75ASBTF Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-75BSAT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-100 Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-100F Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-100R Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-100P Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-100FR Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-100FP Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-100AS Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-100ASF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-100ASR Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-100ASP Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-100ASFR Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-100ASFP Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-100AT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-100ATF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-100A Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-100AF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-100BS Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-100BSR Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-100BSP Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-100BT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-100BTF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-100B Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-100ASBT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-100ASBTF Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-100BSAT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-125 Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-125F Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-125R Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-125P Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-125FR Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-125FP Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-125AS Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-125ASF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-125ASR Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-125ASP Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-125ASFR Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-125ASFP Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-125AT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-125ATF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-125A Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-125AF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-125BS Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-125BSR Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-125BSP Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-125BT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-125BTF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-125B Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-125ASBT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-125ASBTF Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-125BSAT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-150 Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-150F Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-150R Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-150P Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-150FR Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-150FP Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-150AS Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-150ASF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-150ASR Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-150ASP Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-150ASFR Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-150ASFP Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-150AT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-150ATF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-150A Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-150AF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-150BS Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-150BSR Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-150BSP Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-150BT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-150BTF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-150B Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-150ASBT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-150ASBTF Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-150BSAT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
Slide TablesSMC
1035 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXS Air Slide Table (Cross Roller Guide, ø6-ø25)

Brand SMC·Slide Tables

Available part numbers (1035)

MXS6-10, MXS6-10F, MXS6-10P, MXS6-10FP, MXS6-10AS, MXS6-10ASF, MXS6-10ASP, MXS6-10ASFP, MXS6-10AT, MXS6-10ATF + 1025 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXS6-10Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-10FBore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-10PBore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-10FPBore: ø6 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-10ASBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-10ASFBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-10ASPBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-10ASFPBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-10ATBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-10ATFBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-10ABore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-10AFBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-20Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-20FBore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-20PBore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-20FPBore: ø6 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-20ASBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-20ASFBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-20ASPBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-20ASFPBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-20ATBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-20ATFBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-20ABore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-20AFBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-30Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-30FBore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-30PBore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-30FPBore: ø6 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-30ASBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-30ASFBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-30ASPBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-30ASFPBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-30ATBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-30ATFBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-30ABore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-30AFBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-40Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-40FBore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-40PBore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-40FPBore: ø6 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-40ASBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-40ASFBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-40ASPBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-40ASFPBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-40ATBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-40ATFBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-40ABore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-40AFBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS6-50Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M3x0.5
MXS6-50FBore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M3x0.5
MXS6-50PBore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M3x0.5
MXS6-50FPBore: ø6 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M3x0.5
MXS6-50ASBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M3x0.5
MXS6-50ASFBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M3x0.5
MXS6-50ASPBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M3x0.5
MXS6-50ASFPBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M3x0.5
MXS6-50ATBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M3x0.5
MXS6-50ATFBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M3x0.5
MXS6-50ABore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M3x0.5
MXS6-50AFBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M3x0.5
MXS8-10Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-10FBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-10RBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-10PBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-10FRBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-10FPBore: ø8 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-10ASBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-10ASFBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-10ASRBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-10ASPBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-10ASFRBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-10ASFPBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-10ATBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-10ATFBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-10ABore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-10AFBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-10BSBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-10BSRBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-10BSPBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-10BTBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-10BTFBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-10BBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-10ASBTBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-10ASBTFBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-10BSATBore: ø8 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-20Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-20FBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-20RBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-20PBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-20FRBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-20FPBore: ø8 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-20ASBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-20ASFBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-20ASRBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-20ASPBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-20ASFRBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-20ASFPBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-20ATBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-20ATFBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-20ABore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-20AFBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-20BSBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-20BSRBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-20BSPBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-20BTBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-20BTFBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-20BBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-20ASBTBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-20ASBTFBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-20BSATBore: ø8 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-30Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-30FBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-30RBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-30PBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-30FRBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-30FPBore: ø8 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-30ASBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-30ASFBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-30ASRBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-30ASPBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-30ASFRBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-30ASFPBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-30ATBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-30ATFBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-30ABore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-30AFBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-30BSBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-30BSRBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-30BSPBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-30BTBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-30BTFBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-30BBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-30ASBTBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-30ASBTFBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-30BSATBore: ø8 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-40Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-40FBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-40RBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-40PBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-40FRBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-40FPBore: ø8 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-40ASBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-40ASFBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-40ASRBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-40ASPBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-40ASFRBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-40ASFPBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-40ATBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-40ATFBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-40ABore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-40AFBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-40BSBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-40BSRBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-40BSPBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-40BTBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-40BTFBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-40BBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-40ASBTBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-40ASBTFBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-40BSATBore: ø8 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-50Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-50FBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-50RBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-50PBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-50FRBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-50FPBore: ø8 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-50ASBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-50ASFBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-50ASRBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-50ASPBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-50ASFRBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-50ASFPBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-50ATBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-50ATFBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-50ABore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-50AFBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-50BSBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-50BSRBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-50BSPBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-50BTBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-50BTFBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-50BBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-50ASBTBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-50ASBTFBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-50BSATBore: ø8 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS8-75Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS8-75FBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS8-75RBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS8-75PBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS8-75FRBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS8-75FPBore: ø8 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS8-75ASBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS8-75ASFBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS8-75ASRBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS8-75ASPBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS8-75ASFRBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS8-75ASFPBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS8-75ATBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS8-75ATFBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS8-75ABore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS8-75AFBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS8-75BSBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS8-75BSRBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS8-75BSPBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS8-75BTBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS8-75BTFBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS8-75BBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS8-75ASBTBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS8-75ASBTFBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS8-75BSATBore: ø8 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-10Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-10FBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-10RBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-10PBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-10FRBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-10FPBore: ø12 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-10ASBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-10ASFBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-10ASRBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-10ASPBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-10ASFRBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-10ASFPBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-10ATBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-10ATFBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-10ABore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-10AFBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-10BSBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-10BSRBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-10BSPBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-10BTBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-10BTFBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-10BBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-10ASBTBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-10ASBTFBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-10BSATBore: ø12 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-20Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-20FBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-20RBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-20PBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-20FRBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-20FPBore: ø12 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-20ASBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-20ASFBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-20ASRBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-20ASPBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-20ASFRBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-20ASFPBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-20ATBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-20ATFBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-20ABore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-20AFBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-20BSBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-20BSRBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-20BSPBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-20BTBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-20BTFBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-20BBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-20ASBTBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-20ASBTFBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-20BSATBore: ø12 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-30Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-30FBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-30RBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-30PBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-30FRBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-30FPBore: ø12 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-30ASBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-30ASFBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-30ASRBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-30ASPBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-30ASFRBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-30ASFPBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-30ATBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-30ATFBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-30ABore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-30AFBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-30BSBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-30BSRBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-30BSPBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-30BTBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-30BTFBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-30BBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-30ASBTBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-30ASBTFBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-30BSATBore: ø12 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-40Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-40FBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-40RBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-40PBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-40FRBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-40FPBore: ø12 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-40ASBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-40ASFBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-40ASRBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-40ASPBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-40ASFRBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-40ASFPBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-40ATBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-40ATFBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-40ABore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-40AFBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-40BSBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-40BSRBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-40BSPBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-40BTBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-40BTFBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-40BBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-40ASBTBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-40ASBTFBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-40BSATBore: ø12 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-50Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-50FBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-50RBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-50PBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-50FRBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-50FPBore: ø12 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-50ASBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-50ASFBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-50ASRBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-50ASPBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-50ASFRBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-50ASFPBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-50ATBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-50ATFBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-50ABore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-50AFBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-50BSBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-50BSRBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-50BSPBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-50BTBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-50BTFBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-50BBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-50ASBTBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-50ASBTFBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-50BSATBore: ø12 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-75Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-75FBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-75RBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-75PBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-75FRBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-75FPBore: ø12 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-75ASBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-75ASFBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-75ASRBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-75ASPBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-75ASFRBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-75ASFPBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-75ATBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-75ATFBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-75ABore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-75AFBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-75BSBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-75BSRBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-75BSPBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-75BTBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-75BTFBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-75BBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-75ASBTBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-75ASBTFBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-75BSATBore: ø12 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS12-100Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS12-100FBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS12-100RBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS12-100PBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS12-100FRBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS12-100FPBore: ø12 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS12-100ASBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS12-100ASFBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS12-100ASRBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS12-100ASPBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS12-100ASFRBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS12-100ASFPBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS12-100ATBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS12-100ATFBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS12-100ABore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS12-100AFBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS12-100BSBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS12-100BSRBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS12-100BSPBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS12-100BTBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS12-100BTFBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS12-100BBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS12-100ASBTBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS12-100ASBTFBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS12-100BSATBore: ø12 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-10Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-10FBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-10RBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-10PBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-10FRBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-10FPBore: ø16 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-10ASBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-10ASFBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-10ASRBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-10ASPBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-10ASFRBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-10ASFPBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-10ATBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-10ATFBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-10ABore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-10AFBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-10BSBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-10BSRBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-10BSPBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-10BTBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-10BTFBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-10BBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-10ASBTBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-10ASBTFBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-10BSATBore: ø16 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-20Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-20FBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-20RBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-20PBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-20FRBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-20FPBore: ø16 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-20ASBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-20ASFBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-20ASRBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-20ASPBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-20ASFRBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-20ASFPBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-20ATBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-20ATFBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-20ABore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-20AFBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-20BSBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-20BSRBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-20BSPBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-20BTBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-20BTFBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-20BBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-20ASBTBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-20ASBTFBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-20BSATBore: ø16 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-30Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-30FBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-30RBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-30PBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-30FRBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-30FPBore: ø16 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-30ASBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-30ASFBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-30ASRBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-30ASPBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-30ASFRBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-30ASFPBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-30ATBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-30ATFBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-30ABore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-30AFBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-30BSBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-30BSRBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-30BSPBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-30BTBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-30BTFBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-30BBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-30ASBTBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-30ASBTFBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-30BSATBore: ø16 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-40Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-40FBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-40RBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-40PBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-40FRBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-40FPBore: ø16 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-40ASBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-40ASFBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-40ASRBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-40ASPBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-40ASFRBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-40ASFPBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-40ATBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-40ATFBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-40ABore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-40AFBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-40BSBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-40BSRBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-40BSPBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-40BTBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-40BTFBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-40BBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-40ASBTBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-40ASBTFBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-40BSATBore: ø16 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-50Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-50FBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-50RBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-50PBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-50FRBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-50FPBore: ø16 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-50ASBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-50ASFBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-50ASRBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-50ASPBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-50ASFRBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-50ASFPBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-50ATBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-50ATFBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-50ABore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-50AFBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-50BSBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-50BSRBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-50BSPBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-50BTBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-50BTFBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-50BBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-50ASBTBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-50ASBTFBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-50BSATBore: ø16 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-75Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-75FBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-75RBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-75PBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-75FRBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-75FPBore: ø16 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-75ASBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-75ASFBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-75ASRBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-75ASPBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-75ASFRBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-75ASFPBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-75ATBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-75ATFBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-75ABore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-75AFBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-75BSBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-75BSRBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-75BSPBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-75BTBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-75BTFBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-75BBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-75ASBTBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-75ASBTFBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-75BSATBore: ø16 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-100Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-100FBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-100RBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-100PBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-100FRBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-100FPBore: ø16 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-100ASBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-100ASFBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-100ASRBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-100ASPBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-100ASFRBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-100ASFPBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-100ATBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-100ATFBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-100ABore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-100AFBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-100BSBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-100BSRBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-100BSPBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-100BTBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-100BTFBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-100BBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-100ASBTBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-100ASBTFBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-100BSATBore: ø16 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS16-125Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: M5x0.8
MXS16-125FBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: M5x0.8
MXS16-125RBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: M5x0.8
MXS16-125PBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: M5x0.8
MXS16-125FRBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: M5x0.8
MXS16-125FPBore: ø16 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: M5x0.8
MXS16-125ASBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: M5x0.8
MXS16-125ASFBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: M5x0.8
MXS16-125ASRBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: M5x0.8
MXS16-125ASPBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: M5x0.8
MXS16-125ASFRBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: M5x0.8
MXS16-125ASFPBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: M5x0.8
MXS16-125ATBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: M5x0.8
MXS16-125ATFBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: M5x0.8
MXS16-125ABore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: M5x0.8
MXS16-125AFBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: M5x0.8
MXS16-125BSBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: M5x0.8
MXS16-125BSRBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: M5x0.8
MXS16-125BSPBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: M5x0.8
MXS16-125BTBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: M5x0.8
MXS16-125BTFBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: M5x0.8
MXS16-125BBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: M5x0.8
MXS16-125ASBTBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: M5x0.8
MXS16-125ASBTFBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: M5x0.8
MXS16-125BSATBore: ø16 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: M5x0.8
MXS20-10Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-10FBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-10RBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-10PBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-10FRBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-10FPBore: ø20 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-10ASBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-10ASFBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-10ASRBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-10ASPBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-10ASFRBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-10ASFPBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-10ATBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-10ATFBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-10ABore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-10AFBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-10BSBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-10BSRBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-10BSPBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-10BTBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-10BTFBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-10BBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-10ASBTBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-10ASBTFBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-10BSATBore: ø20 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-20Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-20FBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-20RBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-20PBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-20FRBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-20FPBore: ø20 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-20ASBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-20ASFBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-20ASRBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-20ASPBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-20ASFRBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-20ASFPBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-20ATBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-20ATFBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-20ABore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-20AFBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-20BSBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-20BSRBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-20BSPBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-20BTBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-20BTFBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-20BBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-20ASBTBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-20ASBTFBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-20BSATBore: ø20 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-30Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-30FBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-30RBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-30PBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-30FRBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-30FPBore: ø20 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-30ASBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-30ASFBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-30ASRBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-30ASPBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-30ASFRBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-30ASFPBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-30ATBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-30ATFBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-30ABore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-30AFBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-30BSBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-30BSRBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-30BSPBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-30BTBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-30BTFBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-30BBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-30ASBTBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-30ASBTFBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-30BSATBore: ø20 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-40Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-40FBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-40RBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-40PBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-40FRBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-40FPBore: ø20 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-40ASBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-40ASFBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-40ASRBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-40ASPBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-40ASFRBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-40ASFPBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-40ATBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-40ATFBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-40ABore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-40AFBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-40BSBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-40BSRBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-40BSPBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-40BTBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-40BTFBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-40BBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-40ASBTBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-40ASBTFBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-40BSATBore: ø20 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-50Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-50FBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-50RBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-50PBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-50FRBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-50FPBore: ø20 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-50ASBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-50ASFBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-50ASRBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-50ASPBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-50ASFRBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-50ASFPBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-50ATBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-50ATFBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-50ABore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-50AFBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-50BSBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-50BSRBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-50BSPBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-50BTBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-50BTFBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-50BBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-50ASBTBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-50ASBTFBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-50BSATBore: ø20 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-75Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-75FBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-75RBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-75PBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-75FRBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-75FPBore: ø20 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-75ASBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-75ASFBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-75ASRBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-75ASPBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-75ASFRBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-75ASFPBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-75ATBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-75ATFBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-75ABore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-75AFBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-75BSBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-75BSRBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-75BSPBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-75BTBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-75BTFBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-75BBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-75ASBTBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-75ASBTFBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-75BSATBore: ø20 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-100Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-100FBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-100RBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-100PBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-100FRBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-100FPBore: ø20 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-100ASBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-100ASFBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-100ASRBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-100ASPBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-100ASFRBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-100ASFPBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-100ATBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-100ATFBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-100ABore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-100AFBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-100BSBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-100BSRBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-100BSPBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-100BTBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-100BTFBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-100BBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-100ASBTBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-100ASBTFBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-100BSATBore: ø20 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-125Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-125FBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-125RBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-125PBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-125FRBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-125FPBore: ø20 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-125ASBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-125ASFBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-125ASRBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-125ASPBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-125ASFRBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-125ASFPBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-125ATBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-125ATFBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-125ABore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-125AFBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-125BSBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-125BSRBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-125BSPBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-125BTBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-125BTFBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-125BBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-125ASBTBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-125ASBTFBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-125BSATBore: ø20 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS20-150Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS20-150FBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS20-150RBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS20-150PBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS20-150FRBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS20-150FPBore: ø20 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS20-150ASBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS20-150ASFBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS20-150ASRBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS20-150ASPBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS20-150ASFRBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS20-150ASFPBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS20-150ATBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS20-150ATFBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS20-150ABore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS20-150AFBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS20-150BSBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS20-150BSRBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS20-150BSPBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS20-150BTBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS20-150BTFBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS20-150BBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS20-150ASBTBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS20-150ASBTFBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS20-150BSATBore: ø20 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-10Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-10FBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-10RBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-10PBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-10FRBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-10FPBore: ø25 mm | Stroke: 10 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-10ASBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-10ASFBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-10ASRBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-10ASPBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-10ASFRBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-10ASFPBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-10ATBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-10ATFBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-10ABore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-10AFBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-10BSBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-10BSRBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-10BSPBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-10BTBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-10BTFBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-10BBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-10ASBTBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-10ASBTFBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-10BSATBore: ø25 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-20Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-20FBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-20RBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-20PBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-20FRBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-20FPBore: ø25 mm | Stroke: 20 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-20ASBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-20ASFBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-20ASRBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-20ASPBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-20ASFRBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-20ASFPBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-20ATBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-20ATFBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-20ABore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-20AFBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-20BSBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-20BSRBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-20BSPBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-20BTBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-20BTFBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-20BBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-20ASBTBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-20ASBTFBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-20BSATBore: ø25 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-30Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-30FBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-30RBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-30PBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-30FRBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-30FPBore: ø25 mm | Stroke: 30 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-30ASBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-30ASFBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-30ASRBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-30ASPBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-30ASFRBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-30ASFPBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-30ATBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-30ATFBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-30ABore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-30AFBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-30BSBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-30BSRBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-30BSPBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-30BTBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-30BTFBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-30BBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-30ASBTBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-30ASBTFBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-30BSATBore: ø25 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-40Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-40FBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-40RBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-40PBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-40FRBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-40FPBore: ø25 mm | Stroke: 40 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-40ASBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-40ASFBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-40ASRBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-40ASPBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-40ASFRBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-40ASFPBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-40ATBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-40ATFBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-40ABore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-40AFBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-40BSBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-40BSRBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-40BSPBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-40BTBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-40BTFBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-40BBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-40ASBTBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-40ASBTFBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-40BSATBore: ø25 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-50Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-50FBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-50RBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-50PBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-50FRBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-50FPBore: ø25 mm | Stroke: 50 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-50ASBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-50ASFBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-50ASRBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-50ASPBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-50ASFRBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-50ASFPBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-50ATBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-50ATFBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-50ABore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-50AFBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-50BSBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-50BSRBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-50BSPBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-50BTBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-50BTFBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-50BBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-50ASBTBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-50ASBTFBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-50BSATBore: ø25 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-75Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-75FBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-75RBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-75PBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-75FRBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-75FPBore: ø25 mm | Stroke: 75 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-75ASBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-75ASFBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-75ASRBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-75ASPBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-75ASFRBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-75ASFPBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-75ATBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-75ATFBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-75ABore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-75AFBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-75BSBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-75BSRBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-75BSPBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-75BTBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-75BTFBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-75BBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-75ASBTBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-75ASBTFBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-75BSATBore: ø25 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-100Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-100FBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-100RBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-100PBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-100FRBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-100FPBore: ø25 mm | Stroke: 100 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-100ASBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-100ASFBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-100ASRBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-100ASPBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-100ASFRBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-100ASFPBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-100ATBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-100ATFBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-100ABore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-100AFBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-100BSBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-100BSRBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-100BSPBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-100BTBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-100BTFBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-100BBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-100ASBTBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-100ASBTFBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-100BSATBore: ø25 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-125Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-125FBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-125RBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-125PBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-125FRBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-125FPBore: ø25 mm | Stroke: 125 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-125ASBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-125ASFBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-125ASRBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-125ASPBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-125ASFRBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-125ASFPBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-125ATBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-125ATFBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-125ABore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-125AFBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-125BSBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-125BSRBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-125BSPBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-125BTBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-125BTFBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-125BBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-125ASBTBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-125ASBTFBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-125BSATBore: ø25 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8
MXS25-150Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Standard | Port: Rc1/8
MXS25-150FBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer | Port: Rc1/8
MXS25-150RBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: End lock | Port: Rc1/8
MXS25-150PBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Axial piping | Port: Rc1/8
MXS25-150FRBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + end lock | Port: Rc1/8
MXS25-150FPBore: ø25 mm | Stroke: 150 mm | Adjuster: None | Function: Buffer + axial piping | Port: Rc1/8
MXS25-150ASBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Standard | Port: Rc1/8
MXS25-150ASFBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer | Port: Rc1/8
MXS25-150ASRBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: End lock | Port: Rc1/8
MXS25-150ASPBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Axial piping | Port: Rc1/8
MXS25-150ASFRBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + end lock | Port: Rc1/8
MXS25-150ASFPBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Function: Buffer + axial piping | Port: Rc1/8
MXS25-150ATBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Standard | Port: Rc1/8
MXS25-150ATFBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Function: Buffer | Port: Rc1/8
MXS25-150ABore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Standard | Port: Rc1/8
MXS25-150AFBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Function: Buffer | Port: Rc1/8
MXS25-150BSBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Standard | Port: Rc1/8
MXS25-150BSRBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: End lock | Port: Rc1/8
MXS25-150BSPBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Function: Axial piping | Port: Rc1/8
MXS25-150BTBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Standard | Port: Rc1/8
MXS25-150BTFBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Function: Buffer | Port: Rc1/8
MXS25-150BBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Function: Standard | Port: Rc1/8
MXS25-150ASBTBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Standard | Port: Rc1/8
MXS25-150ASBTFBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Function: Buffer | Port: Rc1/8
MXS25-150BSATBore: ø25 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Function: Standard | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
