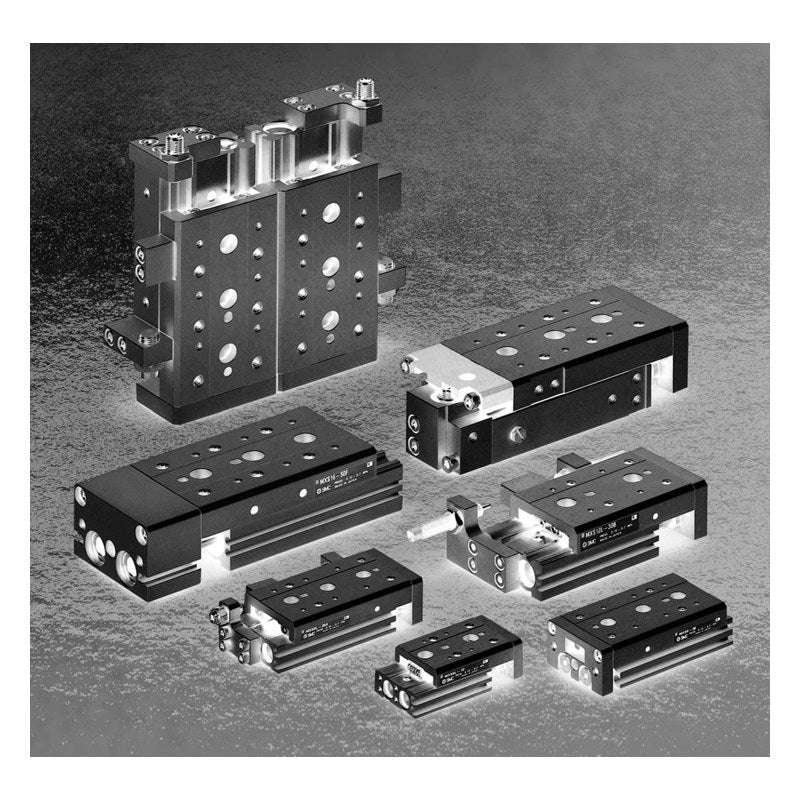

SMC MXS-L Air Slide Table (Symmetric Type, ø6-ø25)

SMC MXS-L Air Slide Table (Symmetric Type, ø6-ø25)

SMC MXSL series symmetric-type air slide table, the mirror-image version of the MXS with the same specifications, in bores ø6 to ø25.

Key features

  • Symmetric (mirror-image) body of the standard MXS: allows close side-by-side installation with less clearance
  • Dual rod construction and cross roller guide, usable in vertical mounting
  • Adjuster options: rubber stopper or shock absorber at extend, retract or both ends (no shock absorber on ø6)
  • No function options (buffer, end lock, axial piping) on the symmetric type
  • Auto switches fit into body side grooves (D-M9, D-A9 types, ordered separately)
  • Port thread M5/M3 (ø6-ø16) or Rc1/8 (ø20, ø25); NPT (TN) and G (TF) for ø20/ø25

Specifications

Fluid Air
Action Double acting, dual rod
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion (standard, with stroke adjuster); shock absorber (option)
Lubrication Not required (non-lube)
Stroke tolerance +1/0 mm
Stroke adjustment range 0 to 5 mm (stroke adjuster)
Source SMC Korea catalog MXS (SMCKR_MXS.pdf), p. 55, 75 (PDF p. 7, 27)
MXS6L-10 Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Port: M3x0.5
MXS6L-10AS Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-10AT Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-10A Bore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-20 Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Port: M3x0.5
MXS6L-20AS Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-20AT Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-20A Bore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-30 Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Port: M3x0.5
MXS6L-30AS Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-30AT Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-30A Bore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-40 Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Port: M3x0.5
MXS6L-40AS Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-40AT Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-40A Bore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-50 Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Port: M3x0.5
MXS6L-50AS Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-50AT Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-50A Bore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS8L-10 Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS8L-10AS Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-10AT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-10A Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-10BS Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-10BT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-10B Bore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-10ASBT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-10BSAT Bore: ø8 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-20 Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS8L-20AS Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-20AT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-20A Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-20BS Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-20BT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-20B Bore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-20ASBT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-20BSAT Bore: ø8 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-30 Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS8L-30AS Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-30AT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-30A Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-30BS Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-30BT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-30B Bore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-30ASBT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-30BSAT Bore: ø8 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-40 Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS8L-40AS Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-40AT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-40A Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-40BS Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-40BT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-40B Bore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-40ASBT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-40BSAT Bore: ø8 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-50 Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS8L-50AS Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-50AT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-50A Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-50BS Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-50BT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-50B Bore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-50ASBT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-50BSAT Bore: ø8 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-75 Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS8L-75AS Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-75AT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-75A Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-75BS Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-75BT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-75B Bore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-75ASBT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-75BSAT Bore: ø8 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-10 Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS12L-10AS Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-10AT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-10A Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-10BS Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-10BT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-10B Bore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-10ASBT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-10BSAT Bore: ø12 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-20 Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS12L-20AS Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-20AT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-20A Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-20BS Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-20BT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-20B Bore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-20ASBT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-20BSAT Bore: ø12 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-30 Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS12L-30AS Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-30AT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-30A Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-30BS Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-30BT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-30B Bore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-30ASBT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-30BSAT Bore: ø12 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-40 Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS12L-40AS Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-40AT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-40A Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-40BS Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-40BT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-40B Bore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-40ASBT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-40BSAT Bore: ø12 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-50 Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS12L-50AS Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-50AT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-50A Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-50BS Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-50BT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-50B Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-50ASBT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-50BSAT Bore: ø12 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-75 Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS12L-75AS Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-75AT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-75A Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-75BS Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-75BT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-75B Bore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-75ASBT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-75BSAT Bore: ø12 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-100 Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Port: M5x0.8
MXS12L-100AS Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-100AT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-100A Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-100BS Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-100BT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-100B Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-100ASBT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-100BSAT Bore: ø12 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-10 Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS16L-10AS Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-10AT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-10A Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-10BS Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-10BT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-10B Bore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-10ASBT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-10BSAT Bore: ø16 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-20 Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS16L-20AS Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-20AT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-20A Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-20BS Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-20BT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-20B Bore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-20ASBT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-20BSAT Bore: ø16 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-30 Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS16L-30AS Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-30AT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-30A Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-30BS Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-30BT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-30B Bore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-30ASBT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-30BSAT Bore: ø16 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-40 Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS16L-40AS Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-40AT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-40A Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-40BS Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-40BT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-40B Bore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-40ASBT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-40BSAT Bore: ø16 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-50 Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS16L-50AS Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-50AT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-50A Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-50BS Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-50BT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-50B Bore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-50ASBT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-50BSAT Bore: ø16 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-75 Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS16L-75AS Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-75AT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-75A Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-75BS Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-75BT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-75B Bore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-75ASBT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-75BSAT Bore: ø16 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-100 Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Port: M5x0.8
MXS16L-100AS Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-100AT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-100A Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-100BS Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-100BT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-100B Bore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-100ASBT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-100BSAT Bore: ø16 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-125 Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Port: M5x0.8
MXS16L-125AS Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-125AT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-125A Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-125BS Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-125BT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-125B Bore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-125ASBT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-125BSAT Bore: ø16 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS20L-10 Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Port: Rc1/8
MXS20L-10AS Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-10AT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-10A Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-10BS Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-10BT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-10B Bore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-10ASBT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-10BSAT Bore: ø20 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-20 Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Port: Rc1/8
MXS20L-20AS Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-20AT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-20A Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-20BS Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-20BT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-20B Bore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-20ASBT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-20BSAT Bore: ø20 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-30 Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Port: Rc1/8
MXS20L-30AS Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-30AT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-30A Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-30BS Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-30BT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-30B Bore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-30ASBT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-30BSAT Bore: ø20 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-40 Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Port: Rc1/8
MXS20L-40AS Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-40AT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-40A Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-40BS Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-40BT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-40B Bore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-40ASBT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-40BSAT Bore: ø20 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-50 Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Port: Rc1/8
MXS20L-50AS Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-50AT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-50A Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-50BS Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-50BT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-50B Bore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-50ASBT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-50BSAT Bore: ø20 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-75 Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Port: Rc1/8
MXS20L-75AS Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-75AT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-75A Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-75BS Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-75BT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-75B Bore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-75ASBT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-75BSAT Bore: ø20 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-100 Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Port: Rc1/8
MXS20L-100AS Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-100AT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-100A Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-100BS Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-100BT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-100B Bore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-100ASBT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-100BSAT Bore: ø20 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-125 Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Port: Rc1/8
MXS20L-125AS Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-125AT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-125A Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-125BS Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-125BT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-125B Bore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-125ASBT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-125BSAT Bore: ø20 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-150 Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Port: Rc1/8
MXS20L-150AS Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-150AT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-150A Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-150BS Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-150BT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-150B Bore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-150ASBT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-150BSAT Bore: ø20 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-10 Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Port: Rc1/8
MXS25L-10AS Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-10AT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-10A Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-10BS Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-10BT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-10B Bore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-10ASBT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-10BSAT Bore: ø25 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-20 Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Port: Rc1/8
MXS25L-20AS Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-20AT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-20A Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-20BS Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-20BT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-20B Bore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-20ASBT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-20BSAT Bore: ø25 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-30 Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Port: Rc1/8
MXS25L-30AS Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-30AT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-30A Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-30BS Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-30BT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-30B Bore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-30ASBT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-30BSAT Bore: ø25 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-40 Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Port: Rc1/8
MXS25L-40AS Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-40AT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-40A Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-40BS Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-40BT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-40B Bore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-40ASBT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-40BSAT Bore: ø25 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-50 Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Port: Rc1/8
MXS25L-50AS Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-50AT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-50A Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-50BS Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-50BT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-50B Bore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-50ASBT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-50BSAT Bore: ø25 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-75 Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Port: Rc1/8
MXS25L-75AS Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-75AT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-75A Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-75BS Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-75BT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-75B Bore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-75ASBT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-75BSAT Bore: ø25 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-100 Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Port: Rc1/8
MXS25L-100AS Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-100AT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-100A Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-100BS Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-100BT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-100B Bore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-100ASBT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-100BSAT Bore: ø25 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-125 Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Port: Rc1/8
MXS25L-125AS Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-125AT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-125A Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-125BS Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-125BT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-125B Bore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-125ASBT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-125BSAT Bore: ø25 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-150 Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Port: Rc1/8
MXS25L-150AS Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-150AT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-150A Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-150BS Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-150BT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-150B Bore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-150ASBT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-150BSAT Bore: ø25 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
Slide TablesSMC
371 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXS-L Air Slide Table (Symmetric Type, ø6-ø25)

Brand SMC·Slide Tables

Available part numbers (371)

MXS6L-10, MXS6L-10AS, MXS6L-10AT, MXS6L-10A, MXS6L-20, MXS6L-20AS, MXS6L-20AT, MXS6L-20A, MXS6L-30, MXS6L-30AS + 361 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXS6L-10Bore: ø6 mm | Stroke: 10 mm | Adjuster: None | Port: M3x0.5
MXS6L-10ASBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-10ATBore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-10ABore: ø6 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-20Bore: ø6 mm | Stroke: 20 mm | Adjuster: None | Port: M3x0.5
MXS6L-20ASBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-20ATBore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-20ABore: ø6 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-30Bore: ø6 mm | Stroke: 30 mm | Adjuster: None | Port: M3x0.5
MXS6L-30ASBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-30ATBore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-30ABore: ø6 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-40Bore: ø6 mm | Stroke: 40 mm | Adjuster: None | Port: M3x0.5
MXS6L-40ASBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-40ATBore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-40ABore: ø6 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS6L-50Bore: ø6 mm | Stroke: 50 mm | Adjuster: None | Port: M3x0.5
MXS6L-50ASBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M3x0.5
MXS6L-50ATBore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M3x0.5
MXS6L-50ABore: ø6 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M3x0.5
MXS8L-10Bore: ø8 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS8L-10ASBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-10ATBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-10ABore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-10BSBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-10BTBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-10BBore: ø8 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-10ASBTBore: ø8 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-10BSATBore: ø8 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-20Bore: ø8 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS8L-20ASBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-20ATBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-20ABore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-20BSBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-20BTBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-20BBore: ø8 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-20ASBTBore: ø8 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-20BSATBore: ø8 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-30Bore: ø8 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS8L-30ASBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-30ATBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-30ABore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-30BSBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-30BTBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-30BBore: ø8 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-30ASBTBore: ø8 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-30BSATBore: ø8 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-40Bore: ø8 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS8L-40ASBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-40ATBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-40ABore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-40BSBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-40BTBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-40BBore: ø8 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-40ASBTBore: ø8 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-40BSATBore: ø8 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-50Bore: ø8 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS8L-50ASBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-50ATBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-50ABore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-50BSBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-50BTBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-50BBore: ø8 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-50ASBTBore: ø8 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-50BSATBore: ø8 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS8L-75Bore: ø8 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS8L-75ASBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS8L-75ATBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS8L-75ABore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS8L-75BSBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS8L-75BTBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS8L-75BBore: ø8 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS8L-75ASBTBore: ø8 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS8L-75BSATBore: ø8 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-10Bore: ø12 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS12L-10ASBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-10ATBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-10ABore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-10BSBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-10BTBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-10BBore: ø12 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-10ASBTBore: ø12 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-10BSATBore: ø12 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-20Bore: ø12 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS12L-20ASBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-20ATBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-20ABore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-20BSBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-20BTBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-20BBore: ø12 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-20ASBTBore: ø12 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-20BSATBore: ø12 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-30Bore: ø12 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS12L-30ASBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-30ATBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-30ABore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-30BSBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-30BTBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-30BBore: ø12 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-30ASBTBore: ø12 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-30BSATBore: ø12 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-40Bore: ø12 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS12L-40ASBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-40ATBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-40ABore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-40BSBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-40BTBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-40BBore: ø12 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-40ASBTBore: ø12 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-40BSATBore: ø12 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-50Bore: ø12 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS12L-50ASBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-50ATBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-50ABore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-50BSBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-50BTBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-50BBore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-50ASBTBore: ø12 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-50BSATBore: ø12 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-75Bore: ø12 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS12L-75ASBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-75ATBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-75ABore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-75BSBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-75BTBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-75BBore: ø12 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-75ASBTBore: ø12 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-75BSATBore: ø12 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS12L-100Bore: ø12 mm | Stroke: 100 mm | Adjuster: None | Port: M5x0.8
MXS12L-100ASBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS12L-100ATBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS12L-100ABore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS12L-100BSBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS12L-100BTBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS12L-100BBore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS12L-100ASBTBore: ø12 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS12L-100BSATBore: ø12 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-10Bore: ø16 mm | Stroke: 10 mm | Adjuster: None | Port: M5x0.8
MXS16L-10ASBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-10ATBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-10ABore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-10BSBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-10BTBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-10BBore: ø16 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-10ASBTBore: ø16 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-10BSATBore: ø16 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-20Bore: ø16 mm | Stroke: 20 mm | Adjuster: None | Port: M5x0.8
MXS16L-20ASBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-20ATBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-20ABore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-20BSBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-20BTBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-20BBore: ø16 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-20ASBTBore: ø16 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-20BSATBore: ø16 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-30Bore: ø16 mm | Stroke: 30 mm | Adjuster: None | Port: M5x0.8
MXS16L-30ASBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-30ATBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-30ABore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-30BSBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-30BTBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-30BBore: ø16 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-30ASBTBore: ø16 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-30BSATBore: ø16 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-40Bore: ø16 mm | Stroke: 40 mm | Adjuster: None | Port: M5x0.8
MXS16L-40ASBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-40ATBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-40ABore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-40BSBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-40BTBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-40BBore: ø16 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-40ASBTBore: ø16 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-40BSATBore: ø16 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-50Bore: ø16 mm | Stroke: 50 mm | Adjuster: None | Port: M5x0.8
MXS16L-50ASBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-50ATBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-50ABore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-50BSBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-50BTBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-50BBore: ø16 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-50ASBTBore: ø16 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-50BSATBore: ø16 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-75Bore: ø16 mm | Stroke: 75 mm | Adjuster: None | Port: M5x0.8
MXS16L-75ASBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-75ATBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-75ABore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-75BSBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-75BTBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-75BBore: ø16 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-75ASBTBore: ø16 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-75BSATBore: ø16 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-100Bore: ø16 mm | Stroke: 100 mm | Adjuster: None | Port: M5x0.8
MXS16L-100ASBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-100ATBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-100ABore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-100BSBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-100BTBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-100BBore: ø16 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-100ASBTBore: ø16 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-100BSATBore: ø16 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS16L-125Bore: ø16 mm | Stroke: 125 mm | Adjuster: None | Port: M5x0.8
MXS16L-125ASBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: M5x0.8
MXS16L-125ATBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: M5x0.8
MXS16L-125ABore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: M5x0.8
MXS16L-125BSBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: M5x0.8
MXS16L-125BTBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: M5x0.8
MXS16L-125BBore: ø16 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: M5x0.8
MXS16L-125ASBTBore: ø16 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: M5x0.8
MXS16L-125BSATBore: ø16 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: M5x0.8
MXS20L-10Bore: ø20 mm | Stroke: 10 mm | Adjuster: None | Port: Rc1/8
MXS20L-10ASBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-10ATBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-10ABore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-10BSBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-10BTBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-10BBore: ø20 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-10ASBTBore: ø20 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-10BSATBore: ø20 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-20Bore: ø20 mm | Stroke: 20 mm | Adjuster: None | Port: Rc1/8
MXS20L-20ASBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-20ATBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-20ABore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-20BSBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-20BTBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-20BBore: ø20 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-20ASBTBore: ø20 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-20BSATBore: ø20 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-30Bore: ø20 mm | Stroke: 30 mm | Adjuster: None | Port: Rc1/8
MXS20L-30ASBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-30ATBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-30ABore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-30BSBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-30BTBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-30BBore: ø20 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-30ASBTBore: ø20 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-30BSATBore: ø20 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-40Bore: ø20 mm | Stroke: 40 mm | Adjuster: None | Port: Rc1/8
MXS20L-40ASBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-40ATBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-40ABore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-40BSBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-40BTBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-40BBore: ø20 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-40ASBTBore: ø20 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-40BSATBore: ø20 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-50Bore: ø20 mm | Stroke: 50 mm | Adjuster: None | Port: Rc1/8
MXS20L-50ASBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-50ATBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-50ABore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-50BSBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-50BTBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-50BBore: ø20 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-50ASBTBore: ø20 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-50BSATBore: ø20 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-75Bore: ø20 mm | Stroke: 75 mm | Adjuster: None | Port: Rc1/8
MXS20L-75ASBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-75ATBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-75ABore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-75BSBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-75BTBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-75BBore: ø20 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-75ASBTBore: ø20 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-75BSATBore: ø20 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-100Bore: ø20 mm | Stroke: 100 mm | Adjuster: None | Port: Rc1/8
MXS20L-100ASBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-100ATBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-100ABore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-100BSBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-100BTBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-100BBore: ø20 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-100ASBTBore: ø20 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-100BSATBore: ø20 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-125Bore: ø20 mm | Stroke: 125 mm | Adjuster: None | Port: Rc1/8
MXS20L-125ASBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-125ATBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-125ABore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-125BSBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-125BTBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-125BBore: ø20 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-125ASBTBore: ø20 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-125BSATBore: ø20 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS20L-150Bore: ø20 mm | Stroke: 150 mm | Adjuster: None | Port: Rc1/8
MXS20L-150ASBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS20L-150ATBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS20L-150ABore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS20L-150BSBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS20L-150BTBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS20L-150BBore: ø20 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS20L-150ASBTBore: ø20 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS20L-150BSATBore: ø20 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-10Bore: ø25 mm | Stroke: 10 mm | Adjuster: None | Port: Rc1/8
MXS25L-10ASBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-10ATBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-10ABore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-10BSBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-10BTBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-10BBore: ø25 mm | Stroke: 10 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-10ASBTBore: ø25 mm | Stroke: 10 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-10BSATBore: ø25 mm | Stroke: 10 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-20Bore: ø25 mm | Stroke: 20 mm | Adjuster: None | Port: Rc1/8
MXS25L-20ASBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-20ATBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-20ABore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-20BSBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-20BTBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-20BBore: ø25 mm | Stroke: 20 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-20ASBTBore: ø25 mm | Stroke: 20 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-20BSATBore: ø25 mm | Stroke: 20 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-30Bore: ø25 mm | Stroke: 30 mm | Adjuster: None | Port: Rc1/8
MXS25L-30ASBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-30ATBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-30ABore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-30BSBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-30BTBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-30BBore: ø25 mm | Stroke: 30 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-30ASBTBore: ø25 mm | Stroke: 30 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-30BSATBore: ø25 mm | Stroke: 30 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-40Bore: ø25 mm | Stroke: 40 mm | Adjuster: None | Port: Rc1/8
MXS25L-40ASBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-40ATBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-40ABore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-40BSBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-40BTBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-40BBore: ø25 mm | Stroke: 40 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-40ASBTBore: ø25 mm | Stroke: 40 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-40BSATBore: ø25 mm | Stroke: 40 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-50Bore: ø25 mm | Stroke: 50 mm | Adjuster: None | Port: Rc1/8
MXS25L-50ASBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-50ATBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-50ABore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-50BSBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-50BTBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-50BBore: ø25 mm | Stroke: 50 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-50ASBTBore: ø25 mm | Stroke: 50 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-50BSATBore: ø25 mm | Stroke: 50 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-75Bore: ø25 mm | Stroke: 75 mm | Adjuster: None | Port: Rc1/8
MXS25L-75ASBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-75ATBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-75ABore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-75BSBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-75BTBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-75BBore: ø25 mm | Stroke: 75 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-75ASBTBore: ø25 mm | Stroke: 75 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-75BSATBore: ø25 mm | Stroke: 75 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-100Bore: ø25 mm | Stroke: 100 mm | Adjuster: None | Port: Rc1/8
MXS25L-100ASBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-100ATBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-100ABore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-100BSBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-100BTBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-100BBore: ø25 mm | Stroke: 100 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-100ASBTBore: ø25 mm | Stroke: 100 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-100BSATBore: ø25 mm | Stroke: 100 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-125Bore: ø25 mm | Stroke: 125 mm | Adjuster: None | Port: Rc1/8
MXS25L-125ASBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-125ATBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-125ABore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-125BSBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-125BTBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-125BBore: ø25 mm | Stroke: 125 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-125ASBTBore: ø25 mm | Stroke: 125 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-125BSATBore: ø25 mm | Stroke: 125 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8
MXS25L-150Bore: ø25 mm | Stroke: 150 mm | Adjuster: None | Port: Rc1/8
MXS25L-150ASBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, extend end | Port: Rc1/8
MXS25L-150ATBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, retract end | Port: Rc1/8
MXS25L-150ABore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper, both ends | Port: Rc1/8
MXS25L-150BSBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, extend end | Port: Rc1/8
MXS25L-150BTBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, retract end | Port: Rc1/8
MXS25L-150BBore: ø25 mm | Stroke: 150 mm | Adjuster: Shock absorber, both ends | Port: Rc1/8
MXS25L-150ASBTBore: ø25 mm | Stroke: 150 mm | Adjuster: Stopper ext. + absorber retr. | Port: Rc1/8
MXS25L-150BSATBore: ø25 mm | Stroke: 150 mm | Adjuster: Absorber ext. + stopper retr. | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
