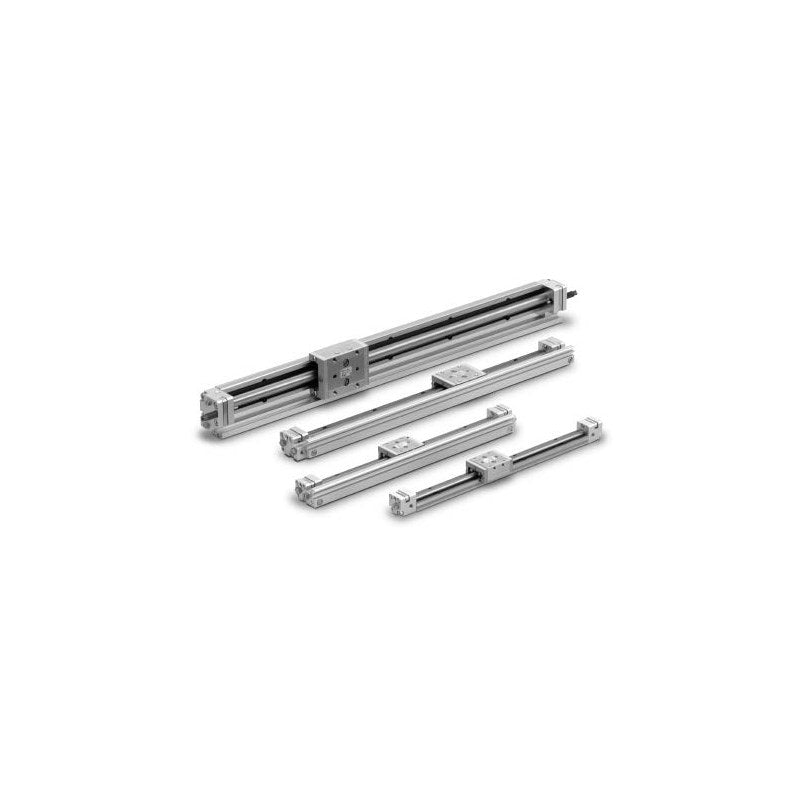

SMC MXY Air Slide Table (Long Stroke, ø6 to ø12)

SMC MXY Air Slide Table (Long Stroke, ø6 to ø12)

SMC MXY series long stroke air slide table with a magnetically coupled rodless cylinder built into the linear guide, ø6 to ø12 mm bore, strokes up to 400 mm.

Key features

  • Long stroke version of the MXP: magnet type rodless cylinder integrated in a U-shaped linear guide rail
  • Light and compact: MXY8-50 is 0.7x the mass of MXW8-50 with 4x the roll moment
  • Adjustment unit: rubber stopper (standard), shock absorber (B, MXY12 only) or metal stopper (C)
  • One-side concentrated piping with switch rail as standard, or without (N, no auto switch mounting)
  • Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
  • Made to order: PTFE (-X7) or food-grade (-X9) grease, long adjust bolt 15/25 mm (-X11/-X12), FKM seals (-X39), rust-resistant guide (-X42)

Specifications

Action Double acting
Fluid Air
Port M5x0.8
Operating pressure 0.2 to 0.55 MPa
Proof pressure 0.83 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 400 mm/s (metal stopper 50 to 200 mm/s)
Cushion Rubber cushion; shock absorber option (MXY12); none with metal stopper
Lubrication Not required (non-lube)
Stroke adjustment range 0 to 5 mm one side (shock absorber 0 to 15 mm)
Stroke length tolerance +1/0 mm
Source SMC Korea catalog MXY (SMCKR_MXY.pdf), p. 478-479 (PDF p. 8-9)
MXY6-50 Bore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY6-50N Bore: ø6 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY6-50C Bore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY6-50CN Bore: ø6 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY6-100 Bore: ø6 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY6-100N Bore: ø6 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY6-100C Bore: ø6 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY6-100CN Bore: ø6 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY6-150 Bore: ø6 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY6-150N Bore: ø6 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY6-150C Bore: ø6 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY6-150CN Bore: ø6 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY6-200 Bore: ø6 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY6-200N Bore: ø6 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY6-200C Bore: ø6 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY6-200CN Bore: ø6 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-50 Bore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-50N Bore: ø8 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-50C Bore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-50CN Bore: ø8 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-100 Bore: ø8 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-100N Bore: ø8 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-100C Bore: ø8 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-100CN Bore: ø8 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-150 Bore: ø8 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-150N Bore: ø8 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-150C Bore: ø8 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-150CN Bore: ø8 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-200 Bore: ø8 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-200N Bore: ø8 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-200C Bore: ø8 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-200CN Bore: ø8 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-250 Bore: ø8 mm | Stroke: 250 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-250N Bore: ø8 mm | Stroke: 250 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-250C Bore: ø8 mm | Stroke: 250 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-250CN Bore: ø8 mm | Stroke: 250 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY8-300 Bore: ø8 mm | Stroke: 300 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY8-300N Bore: ø8 mm | Stroke: 300 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY8-300C Bore: ø8 mm | Stroke: 300 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY8-300CN Bore: ø8 mm | Stroke: 300 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-50 Bore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-50N Bore: ø12 mm | Stroke: 50 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-50B Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-50BN Bore: ø12 mm | Stroke: 50 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-50C Bore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-50CN Bore: ø12 mm | Stroke: 50 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-100 Bore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-100N Bore: ø12 mm | Stroke: 100 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-100B Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-100BN Bore: ø12 mm | Stroke: 100 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-100C Bore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-100CN Bore: ø12 mm | Stroke: 100 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-150 Bore: ø12 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-150N Bore: ø12 mm | Stroke: 150 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-150B Bore: ø12 mm | Stroke: 150 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-150BN Bore: ø12 mm | Stroke: 150 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-150C Bore: ø12 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-150CN Bore: ø12 mm | Stroke: 150 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-200 Bore: ø12 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-200N Bore: ø12 mm | Stroke: 200 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-200B Bore: ø12 mm | Stroke: 200 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-200BN Bore: ø12 mm | Stroke: 200 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-200C Bore: ø12 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-200CN Bore: ø12 mm | Stroke: 200 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-250 Bore: ø12 mm | Stroke: 250 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-250N Bore: ø12 mm | Stroke: 250 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-250B Bore: ø12 mm | Stroke: 250 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-250BN Bore: ø12 mm | Stroke: 250 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-250C Bore: ø12 mm | Stroke: 250 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-250CN Bore: ø12 mm | Stroke: 250 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-300 Bore: ø12 mm | Stroke: 300 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-300N Bore: ø12 mm | Stroke: 300 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-300B Bore: ø12 mm | Stroke: 300 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-300BN Bore: ø12 mm | Stroke: 300 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-300C Bore: ø12 mm | Stroke: 300 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-300CN Bore: ø12 mm | Stroke: 300 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-350 Bore: ø12 mm | Stroke: 350 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-350N Bore: ø12 mm | Stroke: 350 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-350B Bore: ø12 mm | Stroke: 350 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-350BN Bore: ø12 mm | Stroke: 350 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-350C Bore: ø12 mm | Stroke: 350 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-350CN Bore: ø12 mm | Stroke: 350 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
MXY12-400 Bore: ø12 mm | Stroke: 400 mm | Adjuster: Rubber stopper | Piping/rail: One-side piping, switch rail
MXY12-400N Bore: ø12 mm | Stroke: 400 mm | Adjuster: Rubber stopper | Piping/rail: No one-side piping, no rail
MXY12-400B Bore: ø12 mm | Stroke: 400 mm | Adjuster: Shock absorber | Piping/rail: One-side piping, switch rail
MXY12-400BN Bore: ø12 mm | Stroke: 400 mm | Adjuster: Shock absorber | Piping/rail: No one-side piping, no rail
MXY12-400C Bore: ø12 mm | Stroke: 400 mm | Adjuster: Metal stopper | Piping/rail: One-side piping, switch rail
MXY12-400CN Bore: ø12 mm | Stroke: 400 mm | Adjuster: Metal stopper | Piping/rail: No one-side piping, no rail
