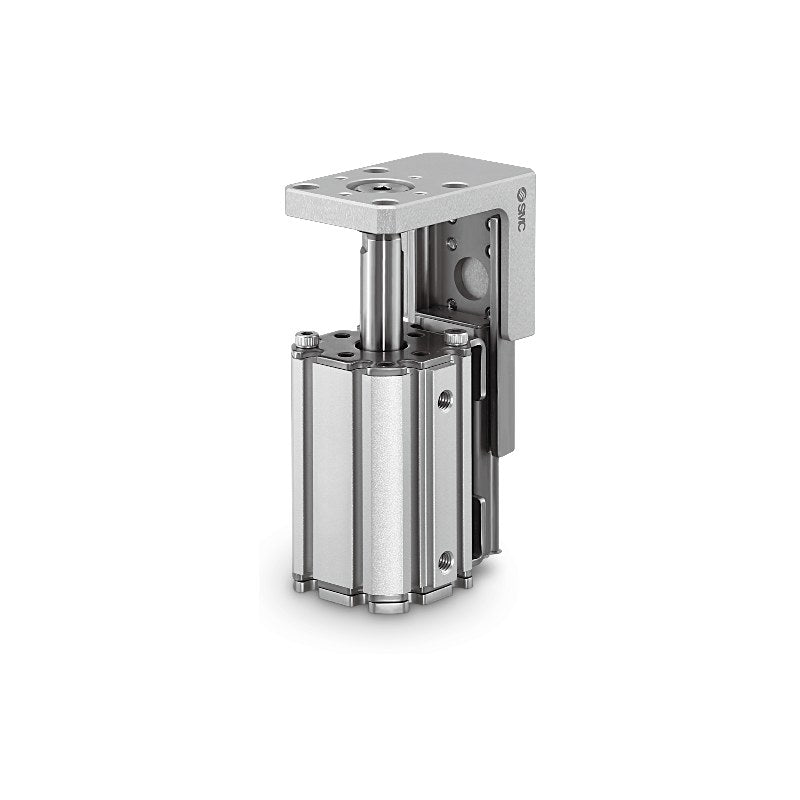

SMC MXZ Compact Cylinder with Linear Guide (ø12-ø25)

SMC MXZ Compact Cylinder with Linear Guide (ø12-ø25)

SMC MXZ series thin compact cylinder with an integrated linear guide for stopping, positioning and clamping light work such as electronic boards, bores ø12 to ø25.

Key features

  • Linear guide built onto a thin cylinder: reduces design and assembly man-hours
  • Compact: 30 mm width and 49.5 mm overall height (ø20, 10 st)
  • Operating port location selectable: front (standard), right (R) or left (L)
  • Through-hole or tapped mounting; mounting bolts (option L, 2 pcs) available
  • Compact auto switches (D-M9 types) mountable on three sides; rubber cushion standard

Specifications

Fluid Air
Action Double acting
Operating pressure 0.1 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature 5 to 60°C
Piston speed (average) 50 to 500 mm/s
Cushion Rubber cushion
Lubrication Not required (non-lube)
Stroke tolerance +1.3/0 mm (no pressure)
Accuracy Tip deflection ±0.02 mm (X/Y)
Source SMC Korea catalog MXZ CAT.KS20-236A (SMCKR_MXZ.pdf), p. 3-4 (PDF p. 4-5)
MXZ12-5 Bore: ø12 mm | Port location: Front | Stroke: 5 mm | Port: M3x0.5
MXZ12-10 Bore: ø12 mm | Port location: Front | Stroke: 10 mm | Port: M3x0.5
MXZ12-15 Bore: ø12 mm | Port location: Front | Stroke: 15 mm | Port: M3x0.5
MXZ12-20 Bore: ø12 mm | Port location: Front | Stroke: 20 mm | Port: M3x0.5
MXZ12-25 Bore: ø12 mm | Port location: Front | Stroke: 25 mm | Port: M3x0.5
MXZ12-30 Bore: ø12 mm | Port location: Front | Stroke: 30 mm | Port: M3x0.5
MXZ12R-5 Bore: ø12 mm | Port location: Right side | Stroke: 5 mm | Port: M3x0.5
MXZ12R-10 Bore: ø12 mm | Port location: Right side | Stroke: 10 mm | Port: M3x0.5
MXZ12R-15 Bore: ø12 mm | Port location: Right side | Stroke: 15 mm | Port: M3x0.5
MXZ12R-20 Bore: ø12 mm | Port location: Right side | Stroke: 20 mm | Port: M3x0.5
MXZ12R-25 Bore: ø12 mm | Port location: Right side | Stroke: 25 mm | Port: M3x0.5
MXZ12R-30 Bore: ø12 mm | Port location: Right side | Stroke: 30 mm | Port: M3x0.5
MXZ12L-5 Bore: ø12 mm | Port location: Left side | Stroke: 5 mm | Port: M3x0.5
MXZ12L-10 Bore: ø12 mm | Port location: Left side | Stroke: 10 mm | Port: M3x0.5
MXZ12L-15 Bore: ø12 mm | Port location: Left side | Stroke: 15 mm | Port: M3x0.5
MXZ12L-20 Bore: ø12 mm | Port location: Left side | Stroke: 20 mm | Port: M3x0.5
MXZ12L-25 Bore: ø12 mm | Port location: Left side | Stroke: 25 mm | Port: M3x0.5
MXZ12L-30 Bore: ø12 mm | Port location: Left side | Stroke: 30 mm | Port: M3x0.5
MXZ16-5 Bore: ø16 mm | Port location: Front | Stroke: 5 mm | Port: M3x0.5
MXZ16-10 Bore: ø16 mm | Port location: Front | Stroke: 10 mm | Port: M3x0.5
MXZ16-15 Bore: ø16 mm | Port location: Front | Stroke: 15 mm | Port: M3x0.5
MXZ16-20 Bore: ø16 mm | Port location: Front | Stroke: 20 mm | Port: M3x0.5
MXZ16-25 Bore: ø16 mm | Port location: Front | Stroke: 25 mm | Port: M3x0.5
MXZ16-30 Bore: ø16 mm | Port location: Front | Stroke: 30 mm | Port: M3x0.5
MXZ16R-5 Bore: ø16 mm | Port location: Right side | Stroke: 5 mm | Port: M3x0.5
MXZ16R-10 Bore: ø16 mm | Port location: Right side | Stroke: 10 mm | Port: M3x0.5
MXZ16R-15 Bore: ø16 mm | Port location: Right side | Stroke: 15 mm | Port: M3x0.5
MXZ16R-20 Bore: ø16 mm | Port location: Right side | Stroke: 20 mm | Port: M3x0.5
MXZ16R-25 Bore: ø16 mm | Port location: Right side | Stroke: 25 mm | Port: M3x0.5
MXZ16R-30 Bore: ø16 mm | Port location: Right side | Stroke: 30 mm | Port: M3x0.5
MXZ16L-5 Bore: ø16 mm | Port location: Left side | Stroke: 5 mm | Port: M3x0.5
MXZ16L-10 Bore: ø16 mm | Port location: Left side | Stroke: 10 mm | Port: M3x0.5
MXZ16L-15 Bore: ø16 mm | Port location: Left side | Stroke: 15 mm | Port: M3x0.5
MXZ16L-20 Bore: ø16 mm | Port location: Left side | Stroke: 20 mm | Port: M3x0.5
MXZ16L-25 Bore: ø16 mm | Port location: Left side | Stroke: 25 mm | Port: M3x0.5
MXZ16L-30 Bore: ø16 mm | Port location: Left side | Stroke: 30 mm | Port: M3x0.5
MXZ20-5 Bore: ø20 mm | Port location: Front | Stroke: 5 mm | Port: M5x0.8
MXZ20-10 Bore: ø20 mm | Port location: Front | Stroke: 10 mm | Port: M5x0.8
MXZ20-15 Bore: ø20 mm | Port location: Front | Stroke: 15 mm | Port: M5x0.8
MXZ20-20 Bore: ø20 mm | Port location: Front | Stroke: 20 mm | Port: M5x0.8
MXZ20-25 Bore: ø20 mm | Port location: Front | Stroke: 25 mm | Port: M5x0.8
MXZ20-30 Bore: ø20 mm | Port location: Front | Stroke: 30 mm | Port: M5x0.8
MXZ20-35 Bore: ø20 mm | Port location: Front | Stroke: 35 mm | Port: M5x0.8
MXZ20-40 Bore: ø20 mm | Port location: Front | Stroke: 40 mm | Port: M5x0.8
MXZ20-45 Bore: ø20 mm | Port location: Front | Stroke: 45 mm | Port: M5x0.8
MXZ20-50 Bore: ø20 mm | Port location: Front | Stroke: 50 mm | Port: M5x0.8
MXZ20R-5 Bore: ø20 mm | Port location: Right side | Stroke: 5 mm | Port: M5x0.8
MXZ20R-10 Bore: ø20 mm | Port location: Right side | Stroke: 10 mm | Port: M5x0.8
MXZ20R-15 Bore: ø20 mm | Port location: Right side | Stroke: 15 mm | Port: M5x0.8
MXZ20R-20 Bore: ø20 mm | Port location: Right side | Stroke: 20 mm | Port: M5x0.8
MXZ20R-25 Bore: ø20 mm | Port location: Right side | Stroke: 25 mm | Port: M5x0.8
MXZ20R-30 Bore: ø20 mm | Port location: Right side | Stroke: 30 mm | Port: M5x0.8
MXZ20R-35 Bore: ø20 mm | Port location: Right side | Stroke: 35 mm | Port: M5x0.8
MXZ20R-40 Bore: ø20 mm | Port location: Right side | Stroke: 40 mm | Port: M5x0.8
MXZ20R-45 Bore: ø20 mm | Port location: Right side | Stroke: 45 mm | Port: M5x0.8
MXZ20R-50 Bore: ø20 mm | Port location: Right side | Stroke: 50 mm | Port: M5x0.8
MXZ20L-5 Bore: ø20 mm | Port location: Left side | Stroke: 5 mm | Port: M5x0.8
MXZ20L-10 Bore: ø20 mm | Port location: Left side | Stroke: 10 mm | Port: M5x0.8
MXZ20L-15 Bore: ø20 mm | Port location: Left side | Stroke: 15 mm | Port: M5x0.8
MXZ20L-20 Bore: ø20 mm | Port location: Left side | Stroke: 20 mm | Port: M5x0.8
MXZ20L-25 Bore: ø20 mm | Port location: Left side | Stroke: 25 mm | Port: M5x0.8
MXZ20L-30 Bore: ø20 mm | Port location: Left side | Stroke: 30 mm | Port: M5x0.8
MXZ20L-35 Bore: ø20 mm | Port location: Left side | Stroke: 35 mm | Port: M5x0.8
MXZ20L-40 Bore: ø20 mm | Port location: Left side | Stroke: 40 mm | Port: M5x0.8
MXZ20L-45 Bore: ø20 mm | Port location: Left side | Stroke: 45 mm | Port: M5x0.8
MXZ20L-50 Bore: ø20 mm | Port location: Left side | Stroke: 50 mm | Port: M5x0.8
MXZ25-5 Bore: ø25 mm | Port location: Front | Stroke: 5 mm | Port: M5x0.8
MXZ25-10 Bore: ø25 mm | Port location: Front | Stroke: 10 mm | Port: M5x0.8
MXZ25-15 Bore: ø25 mm | Port location: Front | Stroke: 15 mm | Port: M5x0.8
MXZ25-20 Bore: ø25 mm | Port location: Front | Stroke: 20 mm | Port: M5x0.8
MXZ25-25 Bore: ø25 mm | Port location: Front | Stroke: 25 mm | Port: M5x0.8
MXZ25-30 Bore: ø25 mm | Port location: Front | Stroke: 30 mm | Port: M5x0.8
MXZ25-35 Bore: ø25 mm | Port location: Front | Stroke: 35 mm | Port: M5x0.8
MXZ25-40 Bore: ø25 mm | Port location: Front | Stroke: 40 mm | Port: M5x0.8
MXZ25-45 Bore: ø25 mm | Port location: Front | Stroke: 45 mm | Port: M5x0.8
MXZ25-50 Bore: ø25 mm | Port location: Front | Stroke: 50 mm | Port: M5x0.8
MXZ25R-5 Bore: ø25 mm | Port location: Right side | Stroke: 5 mm | Port: M5x0.8
MXZ25R-10 Bore: ø25 mm | Port location: Right side | Stroke: 10 mm | Port: M5x0.8
MXZ25R-15 Bore: ø25 mm | Port location: Right side | Stroke: 15 mm | Port: M5x0.8
MXZ25R-20 Bore: ø25 mm | Port location: Right side | Stroke: 20 mm | Port: M5x0.8
MXZ25R-25 Bore: ø25 mm | Port location: Right side | Stroke: 25 mm | Port: M5x0.8
MXZ25R-30 Bore: ø25 mm | Port location: Right side | Stroke: 30 mm | Port: M5x0.8
MXZ25R-35 Bore: ø25 mm | Port location: Right side | Stroke: 35 mm | Port: M5x0.8
MXZ25R-40 Bore: ø25 mm | Port location: Right side | Stroke: 40 mm | Port: M5x0.8
MXZ25R-45 Bore: ø25 mm | Port location: Right side | Stroke: 45 mm | Port: M5x0.8
MXZ25R-50 Bore: ø25 mm | Port location: Right side | Stroke: 50 mm | Port: M5x0.8
MXZ25L-5 Bore: ø25 mm | Port location: Left side | Stroke: 5 mm | Port: M5x0.8
MXZ25L-10 Bore: ø25 mm | Port location: Left side | Stroke: 10 mm | Port: M5x0.8
MXZ25L-15 Bore: ø25 mm | Port location: Left side | Stroke: 15 mm | Port: M5x0.8
MXZ25L-20 Bore: ø25 mm | Port location: Left side | Stroke: 20 mm | Port: M5x0.8
MXZ25L-25 Bore: ø25 mm | Port location: Left side | Stroke: 25 mm | Port: M5x0.8
MXZ25L-30 Bore: ø25 mm | Port location: Left side | Stroke: 30 mm | Port: M5x0.8
MXZ25L-35 Bore: ø25 mm | Port location: Left side | Stroke: 35 mm | Port: M5x0.8
MXZ25L-40 Bore: ø25 mm | Port location: Left side | Stroke: 40 mm | Port: M5x0.8
MXZ25L-45 Bore: ø25 mm | Port location: Left side | Stroke: 45 mm | Port: M5x0.8
MXZ25L-50 Bore: ø25 mm | Port location: Left side | Stroke: 50 mm | Port: M5x0.8
Guided CylindersSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXZ Compact Cylinder with Linear Guide (ø12-ø25)

Brand SMC·Guided Cylinders

Available part numbers (96)

MXZ12-5, MXZ12-10, MXZ12-15, MXZ12-20, MXZ12-25, MXZ12-30, MXZ12R-5, MXZ12R-10, MXZ12R-15, MXZ12R-20 + 86 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXZ12-5Bore: ø12 mm | Port location: Front | Stroke: 5 mm | Port: M3x0.5
MXZ12-10Bore: ø12 mm | Port location: Front | Stroke: 10 mm | Port: M3x0.5
MXZ12-15Bore: ø12 mm | Port location: Front | Stroke: 15 mm | Port: M3x0.5
MXZ12-20Bore: ø12 mm | Port location: Front | Stroke: 20 mm | Port: M3x0.5
MXZ12-25Bore: ø12 mm | Port location: Front | Stroke: 25 mm | Port: M3x0.5
MXZ12-30Bore: ø12 mm | Port location: Front | Stroke: 30 mm | Port: M3x0.5
MXZ12R-5Bore: ø12 mm | Port location: Right side | Stroke: 5 mm | Port: M3x0.5
MXZ12R-10Bore: ø12 mm | Port location: Right side | Stroke: 10 mm | Port: M3x0.5
MXZ12R-15Bore: ø12 mm | Port location: Right side | Stroke: 15 mm | Port: M3x0.5
MXZ12R-20Bore: ø12 mm | Port location: Right side | Stroke: 20 mm | Port: M3x0.5
MXZ12R-25Bore: ø12 mm | Port location: Right side | Stroke: 25 mm | Port: M3x0.5
MXZ12R-30Bore: ø12 mm | Port location: Right side | Stroke: 30 mm | Port: M3x0.5
MXZ12L-5Bore: ø12 mm | Port location: Left side | Stroke: 5 mm | Port: M3x0.5
MXZ12L-10Bore: ø12 mm | Port location: Left side | Stroke: 10 mm | Port: M3x0.5
MXZ12L-15Bore: ø12 mm | Port location: Left side | Stroke: 15 mm | Port: M3x0.5
MXZ12L-20Bore: ø12 mm | Port location: Left side | Stroke: 20 mm | Port: M3x0.5
MXZ12L-25Bore: ø12 mm | Port location: Left side | Stroke: 25 mm | Port: M3x0.5
MXZ12L-30Bore: ø12 mm | Port location: Left side | Stroke: 30 mm | Port: M3x0.5
MXZ16-5Bore: ø16 mm | Port location: Front | Stroke: 5 mm | Port: M3x0.5
MXZ16-10Bore: ø16 mm | Port location: Front | Stroke: 10 mm | Port: M3x0.5
MXZ16-15Bore: ø16 mm | Port location: Front | Stroke: 15 mm | Port: M3x0.5
MXZ16-20Bore: ø16 mm | Port location: Front | Stroke: 20 mm | Port: M3x0.5
MXZ16-25Bore: ø16 mm | Port location: Front | Stroke: 25 mm | Port: M3x0.5
MXZ16-30Bore: ø16 mm | Port location: Front | Stroke: 30 mm | Port: M3x0.5
MXZ16R-5Bore: ø16 mm | Port location: Right side | Stroke: 5 mm | Port: M3x0.5
MXZ16R-10Bore: ø16 mm | Port location: Right side | Stroke: 10 mm | Port: M3x0.5
MXZ16R-15Bore: ø16 mm | Port location: Right side | Stroke: 15 mm | Port: M3x0.5
MXZ16R-20Bore: ø16 mm | Port location: Right side | Stroke: 20 mm | Port: M3x0.5
MXZ16R-25Bore: ø16 mm | Port location: Right side | Stroke: 25 mm | Port: M3x0.5
MXZ16R-30Bore: ø16 mm | Port location: Right side | Stroke: 30 mm | Port: M3x0.5
MXZ16L-5Bore: ø16 mm | Port location: Left side | Stroke: 5 mm | Port: M3x0.5
MXZ16L-10Bore: ø16 mm | Port location: Left side | Stroke: 10 mm | Port: M3x0.5
MXZ16L-15Bore: ø16 mm | Port location: Left side | Stroke: 15 mm | Port: M3x0.5
MXZ16L-20Bore: ø16 mm | Port location: Left side | Stroke: 20 mm | Port: M3x0.5
MXZ16L-25Bore: ø16 mm | Port location: Left side | Stroke: 25 mm | Port: M3x0.5
MXZ16L-30Bore: ø16 mm | Port location: Left side | Stroke: 30 mm | Port: M3x0.5
MXZ20-5Bore: ø20 mm | Port location: Front | Stroke: 5 mm | Port: M5x0.8
MXZ20-10Bore: ø20 mm | Port location: Front | Stroke: 10 mm | Port: M5x0.8
MXZ20-15Bore: ø20 mm | Port location: Front | Stroke: 15 mm | Port: M5x0.8
MXZ20-20Bore: ø20 mm | Port location: Front | Stroke: 20 mm | Port: M5x0.8
MXZ20-25Bore: ø20 mm | Port location: Front | Stroke: 25 mm | Port: M5x0.8
MXZ20-30Bore: ø20 mm | Port location: Front | Stroke: 30 mm | Port: M5x0.8
MXZ20-35Bore: ø20 mm | Port location: Front | Stroke: 35 mm | Port: M5x0.8
MXZ20-40Bore: ø20 mm | Port location: Front | Stroke: 40 mm | Port: M5x0.8
MXZ20-45Bore: ø20 mm | Port location: Front | Stroke: 45 mm | Port: M5x0.8
MXZ20-50Bore: ø20 mm | Port location: Front | Stroke: 50 mm | Port: M5x0.8
MXZ20R-5Bore: ø20 mm | Port location: Right side | Stroke: 5 mm | Port: M5x0.8
MXZ20R-10Bore: ø20 mm | Port location: Right side | Stroke: 10 mm | Port: M5x0.8
MXZ20R-15Bore: ø20 mm | Port location: Right side | Stroke: 15 mm | Port: M5x0.8
MXZ20R-20Bore: ø20 mm | Port location: Right side | Stroke: 20 mm | Port: M5x0.8
MXZ20R-25Bore: ø20 mm | Port location: Right side | Stroke: 25 mm | Port: M5x0.8
MXZ20R-30Bore: ø20 mm | Port location: Right side | Stroke: 30 mm | Port: M5x0.8
MXZ20R-35Bore: ø20 mm | Port location: Right side | Stroke: 35 mm | Port: M5x0.8
MXZ20R-40Bore: ø20 mm | Port location: Right side | Stroke: 40 mm | Port: M5x0.8
MXZ20R-45Bore: ø20 mm | Port location: Right side | Stroke: 45 mm | Port: M5x0.8
MXZ20R-50Bore: ø20 mm | Port location: Right side | Stroke: 50 mm | Port: M5x0.8
MXZ20L-5Bore: ø20 mm | Port location: Left side | Stroke: 5 mm | Port: M5x0.8
MXZ20L-10Bore: ø20 mm | Port location: Left side | Stroke: 10 mm | Port: M5x0.8
MXZ20L-15Bore: ø20 mm | Port location: Left side | Stroke: 15 mm | Port: M5x0.8
MXZ20L-20Bore: ø20 mm | Port location: Left side | Stroke: 20 mm | Port: M5x0.8
MXZ20L-25Bore: ø20 mm | Port location: Left side | Stroke: 25 mm | Port: M5x0.8
MXZ20L-30Bore: ø20 mm | Port location: Left side | Stroke: 30 mm | Port: M5x0.8
MXZ20L-35Bore: ø20 mm | Port location: Left side | Stroke: 35 mm | Port: M5x0.8
MXZ20L-40Bore: ø20 mm | Port location: Left side | Stroke: 40 mm | Port: M5x0.8
MXZ20L-45Bore: ø20 mm | Port location: Left side | Stroke: 45 mm | Port: M5x0.8
MXZ20L-50Bore: ø20 mm | Port location: Left side | Stroke: 50 mm | Port: M5x0.8
MXZ25-5Bore: ø25 mm | Port location: Front | Stroke: 5 mm | Port: M5x0.8
MXZ25-10Bore: ø25 mm | Port location: Front | Stroke: 10 mm | Port: M5x0.8
MXZ25-15Bore: ø25 mm | Port location: Front | Stroke: 15 mm | Port: M5x0.8
MXZ25-20Bore: ø25 mm | Port location: Front | Stroke: 20 mm | Port: M5x0.8
MXZ25-25Bore: ø25 mm | Port location: Front | Stroke: 25 mm | Port: M5x0.8
MXZ25-30Bore: ø25 mm | Port location: Front | Stroke: 30 mm | Port: M5x0.8
MXZ25-35Bore: ø25 mm | Port location: Front | Stroke: 35 mm | Port: M5x0.8
MXZ25-40Bore: ø25 mm | Port location: Front | Stroke: 40 mm | Port: M5x0.8
MXZ25-45Bore: ø25 mm | Port location: Front | Stroke: 45 mm | Port: M5x0.8
MXZ25-50Bore: ø25 mm | Port location: Front | Stroke: 50 mm | Port: M5x0.8
MXZ25R-5Bore: ø25 mm | Port location: Right side | Stroke: 5 mm | Port: M5x0.8
MXZ25R-10Bore: ø25 mm | Port location: Right side | Stroke: 10 mm | Port: M5x0.8
MXZ25R-15Bore: ø25 mm | Port location: Right side | Stroke: 15 mm | Port: M5x0.8
MXZ25R-20Bore: ø25 mm | Port location: Right side | Stroke: 20 mm | Port: M5x0.8
MXZ25R-25Bore: ø25 mm | Port location: Right side | Stroke: 25 mm | Port: M5x0.8
MXZ25R-30Bore: ø25 mm | Port location: Right side | Stroke: 30 mm | Port: M5x0.8
MXZ25R-35Bore: ø25 mm | Port location: Right side | Stroke: 35 mm | Port: M5x0.8
MXZ25R-40Bore: ø25 mm | Port location: Right side | Stroke: 40 mm | Port: M5x0.8
MXZ25R-45Bore: ø25 mm | Port location: Right side | Stroke: 45 mm | Port: M5x0.8
MXZ25R-50Bore: ø25 mm | Port location: Right side | Stroke: 50 mm | Port: M5x0.8
MXZ25L-5Bore: ø25 mm | Port location: Left side | Stroke: 5 mm | Port: M5x0.8
MXZ25L-10Bore: ø25 mm | Port location: Left side | Stroke: 10 mm | Port: M5x0.8
MXZ25L-15Bore: ø25 mm | Port location: Left side | Stroke: 15 mm | Port: M5x0.8
MXZ25L-20Bore: ø25 mm | Port location: Left side | Stroke: 20 mm | Port: M5x0.8
MXZ25L-25Bore: ø25 mm | Port location: Left side | Stroke: 25 mm | Port: M5x0.8
MXZ25L-30Bore: ø25 mm | Port location: Left side | Stroke: 30 mm | Port: M5x0.8
MXZ25L-35Bore: ø25 mm | Port location: Left side | Stroke: 35 mm | Port: M5x0.8
MXZ25L-40Bore: ø25 mm | Port location: Left side | Stroke: 40 mm | Port: M5x0.8
MXZ25L-45Bore: ø25 mm | Port location: Left side | Stroke: 45 mm | Port: M5x0.8
MXZ25L-50Bore: ø25 mm | Port location: Left side | Stroke: 50 mm | Port: M5x0.8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
