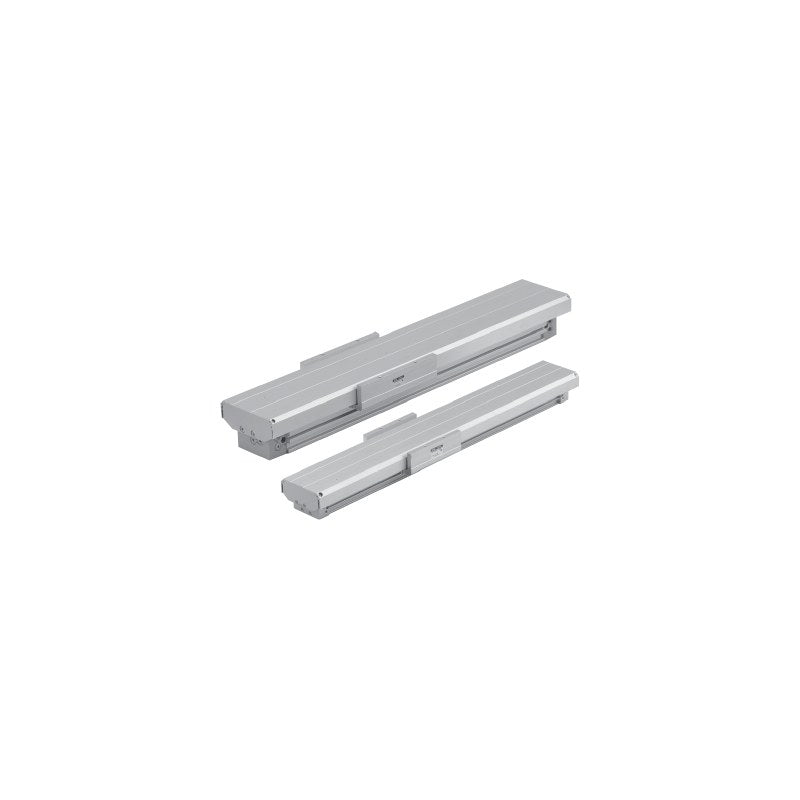

SMC MY1MW/MY1CW Mechanically Jointed Rodless Cylinder (Cover)

SMC MY1-W series mechanically jointed rodless cylinder with protective cover for dust and water resistance, in slide bearing guide (MY1MW) and high precision guide (MY1CW) types, bore 16 to 63 mm.

Key features

Protective cover over the slide table and cylinder for improved dust and water resistance
Guide types: slide bearing guide (MY1MW) or high precision linear guide (MY1CW)
Optional side seal (K) for bores 16 to 40 mm; standard or centralized (G) piping
Standard strokes 100 to 2000 mm; 1 mm increments and long strokes 2001 to 3000 mm (L) on order
Stroke adjusting units (A: adjustment bolt, L: low-load shock absorber + adjustment bolt, with intermediate spacers), auto switches (D-M9, A9 etc.), side supports and -XB22/-XC67 options ordered separately
Port thread Rc (M5 for bores 16 and 20); NPT (TN) and G (TF) also available

Specifications

Fluid	Air
Action	Double acting
Operating pressure	MY1MW 0.2-0.8 MPa (16/20), 0.15-0.8 MPa (25-63); MY1CW 0.15-0.8 MPa (16/20), 0.1-0.8 MPa (25-63)
Proof pressure	1.2 MPa
Ambient and fluid temperature	5 to 60°C
Cushion	Air cushion
Lubrication	Not required (non-lube)
Piston speed	100 to 1000 mm/s (with L unit 100 to 1500 mm/s)
Stroke tolerance	1000 st or less +1.8/0 mm, 1001-3000 st +2.8/0 mm
Max. manufacturable stroke	3000 mm
Source	SMC Korea catalog MY1-W series (SMCKR_MY1__W.pdf), p. 1055, 1066-1067 (PDF p. 1, 12-13)

MY1MW16-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1MW16-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1MW16-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1MW16-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1MW16-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1MW16-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1MW16-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1MW16-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1MW16-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1MW16-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1MW16-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1MW16-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1MW16-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1MW16-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1MW16-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1MW16G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1MW16G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1MW16G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1MW16G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1MW16G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1MW16G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1MW16G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1MW16G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1MW16G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1MW16G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1MW16G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1MW16G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1MW16G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1MW16G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1MW16G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1MWK16-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1MWK16-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1MWK16-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1MWK16-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1MWK16-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1MWK16-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1MWK16-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1MWK16-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1MWK16-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1MWK16-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1MWK16-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1MWK16-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1MWK16-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1MWK16-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1MWK16-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1MWK16G-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1MWK16G-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1MWK16G-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1MWK16G-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1MWK16G-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1MWK16G-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1MWK16G-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1MWK16G-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1MWK16G-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1MWK16G-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1MWK16G-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1MWK16G-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1MWK16G-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1MWK16G-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1MWK16G-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1MW20-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1MW20-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1MW20-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1MW20-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1MW20-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1MW20-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1MW20-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1MW20-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1MW20-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1MW20-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1MW20-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1MW20-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1MW20-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1MW20-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1MW20-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1MW20G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1MW20G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1MW20G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1MW20G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1MW20G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1MW20G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1MW20G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1MW20G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1MW20G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1MW20G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1MW20G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1MW20G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1MW20G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1MW20G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1MW20G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1MWK20-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1MWK20-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1MWK20-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1MWK20-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1MWK20-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1MWK20-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1MWK20-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1MWK20-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1MWK20-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1MWK20-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1MWK20-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1MWK20-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1MWK20-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1MWK20-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1MWK20-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1MWK20G-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1MWK20G-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1MWK20G-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1MWK20G-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1MWK20G-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1MWK20G-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1MWK20G-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1MWK20G-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1MWK20G-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1MWK20G-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1MWK20G-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1MWK20G-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1MWK20G-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1MWK20G-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1MWK20G-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1MW25-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
MY1MW25-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
MY1MW25-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
MY1MW25-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
MY1MW25-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
MY1MW25-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
MY1MW25-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
MY1MW25-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
MY1MW25-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
MY1MW25-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
MY1MW25-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
MY1MW25-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
MY1MW25-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
MY1MW25-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
MY1MW25-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
MY1MW25G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
MY1MW25G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
MY1MW25G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
MY1MW25G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
MY1MW25G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
MY1MW25G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
MY1MW25G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
MY1MW25G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
MY1MW25G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
MY1MW25G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
MY1MW25G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
MY1MW25G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
MY1MW25G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
MY1MW25G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
MY1MW25G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
MY1MWK25-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
MY1MWK25-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
MY1MWK25-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
MY1MWK25-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
MY1MWK25-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
MY1MWK25-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
MY1MWK25-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
MY1MWK25-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
MY1MWK25-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
MY1MWK25-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
MY1MWK25-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
MY1MWK25-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
MY1MWK25-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
MY1MWK25-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
MY1MWK25-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
MY1MWK25G-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
MY1MWK25G-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
MY1MWK25G-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
MY1MWK25G-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
MY1MWK25G-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
MY1MWK25G-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
MY1MWK25G-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
MY1MWK25G-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
MY1MWK25G-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
MY1MWK25G-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
MY1MWK25G-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
MY1MWK25G-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
MY1MWK25G-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
MY1MWK25G-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
MY1MWK25G-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
MY1MW32-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1MW32-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1MW32-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1MW32-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1MW32-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1MW32-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1MW32-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1MW32-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1MW32-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1MW32-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1MW32-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1MW32-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1MW32-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1MW32-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1MW32-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1MW32G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1MW32G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1MW32G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1MW32G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1MW32G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1MW32G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1MW32G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1MW32G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1MW32G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1MW32G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1MW32G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1MW32G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1MW32G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1MW32G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1MW32G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1MWK32-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1MWK32-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1MWK32-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1MWK32-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1MWK32-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1MWK32-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1MWK32-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1MWK32-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1MWK32-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1MWK32-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1MWK32-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1MWK32-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1MWK32-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1MWK32-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1MWK32-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1MWK32G-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1MWK32G-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1MWK32G-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1MWK32G-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1MWK32G-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1MWK32G-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1MWK32G-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1MWK32G-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1MWK32G-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1MWK32G-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1MWK32G-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1MWK32G-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1MWK32G-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1MWK32G-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1MWK32G-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1MW40-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1MW40-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1MW40-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1MW40-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1MW40-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1MW40-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1MW40-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1MW40-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1MW40-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1MW40-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1MW40-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1MW40-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1MW40-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1MW40-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1MW40-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1MW40G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1MW40G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1MW40G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1MW40G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1MW40G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1MW40G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1MW40G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1MW40G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1MW40G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1MW40G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1MW40G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1MW40G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1MW40G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1MW40G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1MW40G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1MWK40-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1MWK40-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1MWK40-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1MWK40-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1MWK40-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1MWK40-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1MWK40-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1MWK40-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1MWK40-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1MWK40-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1MWK40-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1MWK40-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1MWK40-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1MWK40-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1MWK40-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1MWK40G-100		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1MWK40G-200		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1MWK40G-300		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1MWK40G-400		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1MWK40G-500		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1MWK40G-600		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1MWK40G-700		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1MWK40G-800		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1MWK40G-900		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1MWK40G-1000		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1MWK40G-1200		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1MWK40G-1400		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1MWK40G-1600		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1MWK40G-1800		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1MWK40G-2000		Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1MW50-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
MY1MW50-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
MY1MW50-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
MY1MW50-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
MY1MW50-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
MY1MW50-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
MY1MW50-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
MY1MW50-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
MY1MW50-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
MY1MW50-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
MY1MW50-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
MY1MW50-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
MY1MW50-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
MY1MW50-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
MY1MW50-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
MY1MW50G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
MY1MW50G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
MY1MW50G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
MY1MW50G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
MY1MW50G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
MY1MW50G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
MY1MW50G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
MY1MW50G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
MY1MW50G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
MY1MW50G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
MY1MW50G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
MY1MW50G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
MY1MW50G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
MY1MW50G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
MY1MW50G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
MY1MW63-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
MY1MW63-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
MY1MW63-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
MY1MW63-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
MY1MW63-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
MY1MW63-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
MY1MW63-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
MY1MW63-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
MY1MW63-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
MY1MW63-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
MY1MW63-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
MY1MW63-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
MY1MW63-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
MY1MW63-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
MY1MW63-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
MY1MW63G-100		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
MY1MW63G-200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
MY1MW63G-300		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
MY1MW63G-400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
MY1MW63G-500		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
MY1MW63G-600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
MY1MW63G-700		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
MY1MW63G-800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
MY1MW63G-900		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
MY1MW63G-1000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
MY1MW63G-1200		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
MY1MW63G-1400		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
MY1MW63G-1600		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
MY1MW63G-1800		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
MY1MW63G-2000		Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
MY1CW16-100		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1CW16-200		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1CW16-300		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1CW16-400		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1CW16-500		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1CW16-600		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1CW16-700		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1CW16-800		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1CW16-900		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1CW16-1000		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1CW16-1200		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1CW16-1400		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1CW16-1600		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1CW16-1800		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1CW16-2000		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1CW16G-100		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1CW16G-200		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1CW16G-300		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1CW16G-400		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1CW16G-500		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1CW16G-600		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1CW16G-700		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1CW16G-800		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1CW16G-900		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1CW16G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1CW16G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1CW16G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1CW16G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1CW16G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1CW16G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1CWK16-100		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1CWK16-200		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1CWK16-300		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1CWK16-400		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1CWK16-500		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1CWK16-600		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1CWK16-700		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1CWK16-800		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1CWK16-900		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1CWK16-1000		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1CWK16-1200		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1CWK16-1400		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1CWK16-1600		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1CWK16-1800		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1CWK16-2000		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1CWK16G-100		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1CWK16G-200		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1CWK16G-300		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1CWK16G-400		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1CWK16G-500		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1CWK16G-600		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1CWK16G-700		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1CWK16G-800		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1CWK16G-900		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1CWK16G-1000		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1CWK16G-1200		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1CWK16G-1400		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1CWK16G-1600		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1CWK16G-1800		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1CWK16G-2000		Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1CW20-100		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1CW20-200		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1CW20-300		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1CW20-400		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1CW20-500		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1CW20-600		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1CW20-700		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1CW20-800		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1CW20-900		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1CW20-1000		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1CW20-1200		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1CW20-1400		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1CW20-1600		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1CW20-1800		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1CW20-2000		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1CW20G-100		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1CW20G-200		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1CW20G-300		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1CW20G-400		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1CW20G-500		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1CW20G-600		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1CW20G-700		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1CW20G-800		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1CW20G-900		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1CW20G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1CW20G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1CW20G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1CW20G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1CW20G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1CW20G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1CWK20-100		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
MY1CWK20-200		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
MY1CWK20-300		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
MY1CWK20-400		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
MY1CWK20-500		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
MY1CWK20-600		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
MY1CWK20-700		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
MY1CWK20-800		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
MY1CWK20-900		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
MY1CWK20-1000		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
MY1CWK20-1200		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
MY1CWK20-1400		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
MY1CWK20-1600		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
MY1CWK20-1800		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
MY1CWK20-2000		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
MY1CWK20G-100		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
MY1CWK20G-200		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
MY1CWK20G-300		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
MY1CWK20G-400		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
MY1CWK20G-500		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
MY1CWK20G-600		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
MY1CWK20G-700		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
MY1CWK20G-800		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
MY1CWK20G-900		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
MY1CWK20G-1000		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
MY1CWK20G-1200		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
MY1CWK20G-1400		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
MY1CWK20G-1600		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
MY1CWK20G-1800		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
MY1CWK20G-2000		Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
MY1CW25-100		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
MY1CW25-200		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
MY1CW25-300		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
MY1CW25-400		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
MY1CW25-500		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
MY1CW25-600		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
MY1CW25-700		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
MY1CW25-800		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
MY1CW25-900		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
MY1CW25-1000		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
MY1CW25-1200		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
MY1CW25-1400		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
MY1CW25-1600		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
MY1CW25-1800		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
MY1CW25-2000		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
MY1CW25G-100		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
MY1CW25G-200		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
MY1CW25G-300		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
MY1CW25G-400		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
MY1CW25G-500		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
MY1CW25G-600		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
MY1CW25G-700		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
MY1CW25G-800		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
MY1CW25G-900		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
MY1CW25G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
MY1CW25G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
MY1CW25G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
MY1CW25G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
MY1CW25G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
MY1CW25G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
MY1CWK25-100		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
MY1CWK25-200		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
MY1CWK25-300		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
MY1CWK25-400		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
MY1CWK25-500		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
MY1CWK25-600		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
MY1CWK25-700		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
MY1CWK25-800		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
MY1CWK25-900		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
MY1CWK25-1000		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
MY1CWK25-1200		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
MY1CWK25-1400		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
MY1CWK25-1600		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
MY1CWK25-1800		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
MY1CWK25-2000		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
MY1CWK25G-100		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
MY1CWK25G-200		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
MY1CWK25G-300		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
MY1CWK25G-400		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
MY1CWK25G-500		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
MY1CWK25G-600		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
MY1CWK25G-700		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
MY1CWK25G-800		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
MY1CWK25G-900		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
MY1CWK25G-1000		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
MY1CWK25G-1200		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
MY1CWK25G-1400		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
MY1CWK25G-1600		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
MY1CWK25G-1800		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
MY1CWK25G-2000		Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
MY1CW32-100		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1CW32-200		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1CW32-300		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1CW32-400		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1CW32-500		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1CW32-600		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1CW32-700		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1CW32-800		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1CW32-900		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1CW32-1000		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1CW32-1200		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1CW32-1400		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1CW32-1600		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1CW32-1800		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1CW32-2000		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1CW32G-100		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1CW32G-200		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1CW32G-300		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1CW32G-400		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1CW32G-500		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1CW32G-600		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1CW32G-700		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1CW32G-800		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1CW32G-900		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1CW32G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1CW32G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1CW32G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1CW32G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1CW32G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1CW32G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1CWK32-100		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1CWK32-200		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1CWK32-300		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1CWK32-400		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1CWK32-500		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1CWK32-600		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1CWK32-700		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1CWK32-800		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1CWK32-900		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1CWK32-1000		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1CWK32-1200		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1CWK32-1400		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1CWK32-1600		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1CWK32-1800		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1CWK32-2000		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1CWK32G-100		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1CWK32G-200		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1CWK32G-300		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1CWK32G-400		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1CWK32G-500		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1CWK32G-600		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1CWK32G-700		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1CWK32G-800		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1CWK32G-900		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1CWK32G-1000		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1CWK32G-1200		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1CWK32G-1400		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1CWK32G-1600		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1CWK32G-1800		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1CWK32G-2000		Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1CW40-100		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1CW40-200		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1CW40-300		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1CW40-400		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1CW40-500		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1CW40-600		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1CW40-700		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1CW40-800		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1CW40-900		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1CW40-1000		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1CW40-1200		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1CW40-1400		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1CW40-1600		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1CW40-1800		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1CW40-2000		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1CW40G-100		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1CW40G-200		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1CW40G-300		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1CW40G-400		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1CW40G-500		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1CW40G-600		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1CW40G-700		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1CW40G-800		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1CW40G-900		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1CW40G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1CW40G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1CW40G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1CW40G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1CW40G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1CW40G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1CWK40-100		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
MY1CWK40-200		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
MY1CWK40-300		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
MY1CWK40-400		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
MY1CWK40-500		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
MY1CWK40-600		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
MY1CWK40-700		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
MY1CWK40-800		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
MY1CWK40-900		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
MY1CWK40-1000		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
MY1CWK40-1200		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
MY1CWK40-1400		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
MY1CWK40-1600		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
MY1CWK40-1800		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
MY1CWK40-2000		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
MY1CWK40G-100		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
MY1CWK40G-200		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
MY1CWK40G-300		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
MY1CWK40G-400		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
MY1CWK40G-500		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
MY1CWK40G-600		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
MY1CWK40G-700		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
MY1CWK40G-800		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
MY1CWK40G-900		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
MY1CWK40G-1000		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
MY1CWK40G-1200		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
MY1CWK40G-1400		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
MY1CWK40G-1600		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
MY1CWK40G-1800		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
MY1CWK40G-2000		Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
MY1CW50-100		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
MY1CW50-200		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
MY1CW50-300		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
MY1CW50-400		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
MY1CW50-500		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
MY1CW50-600		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
MY1CW50-700		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
MY1CW50-800		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
MY1CW50-900		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
MY1CW50-1000		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
MY1CW50-1200		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
MY1CW50-1400		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
MY1CW50-1600		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
MY1CW50-1800		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
MY1CW50-2000		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
MY1CW50G-100		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
MY1CW50G-200		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
MY1CW50G-300		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
MY1CW50G-400		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
MY1CW50G-500		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
MY1CW50G-600		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
MY1CW50G-700		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
MY1CW50G-800		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
MY1CW50G-900		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
MY1CW50G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
MY1CW50G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
MY1CW50G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
MY1CW50G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
MY1CW50G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
MY1CW50G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
MY1CW63-100		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
MY1CW63-200		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
MY1CW63-300		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
MY1CW63-400		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
MY1CW63-500		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
MY1CW63-600		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
MY1CW63-700		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
MY1CW63-800		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
MY1CW63-900		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
MY1CW63-1000		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
MY1CW63-1200		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
MY1CW63-1400		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
MY1CW63-1600		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
MY1CW63-1800		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
MY1CW63-2000		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
MY1CW63G-100		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
MY1CW63G-200		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
MY1CW63G-300		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
MY1CW63G-400		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
MY1CW63G-500		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
MY1CW63G-600		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
MY1CW63G-700		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
MY1CW63G-800		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
MY1CW63G-900		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
MY1CW63G-1000		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
MY1CW63G-1200		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
MY1CW63G-1400		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
MY1CW63G-1600		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
MY1CW63G-1800		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
MY1CW63G-2000		Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8

Rodless CylindersSMC

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MY1MW/MY1CW Mechanically Jointed Rodless Cylinder (Cover)

Brand SMC·Rodless Cylinders

Available part numbers (720)

MY1MW16-100, MY1MW16-200, MY1MW16-300, MY1MW16-400, MY1MW16-500, MY1MW16-600, MY1MW16-700, MY1MW16-800, MY1MW16-900, MY1MW16-1000 + 710 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MY1MW16-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1MW16-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1MW16-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1MW16-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1MW16-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1MW16-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1MW16-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1MW16-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1MW16-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1MW16-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MW16-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MW16-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MW16-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MW16-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MW16-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MW16G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1MW16G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1MW16G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1MW16G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1MW16G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1MW16G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1MW16G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1MW16G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1MW16G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1MW16G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MW16G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MW16G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MW16G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MW16G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MW16G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MWK16-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1MWK16-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1MWK16-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1MWK16-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1MWK16-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1MWK16-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1MWK16-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1MWK16-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1MWK16-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1MWK16-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MWK16-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MWK16-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MWK16-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MWK16-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MWK16-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MWK16G-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1MWK16G-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1MWK16G-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1MWK16G-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1MWK16G-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1MWK16G-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1MWK16G-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1MWK16G-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1MWK16G-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1MWK16G-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MWK16G-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MWK16G-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MWK16G-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MWK16G-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MWK16G-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MW20-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1MW20-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1MW20-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1MW20-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1MW20-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1MW20-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1MW20-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1MW20-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1MW20-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1MW20-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MW20-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MW20-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MW20-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MW20-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MW20-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MW20G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1MW20G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1MW20G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1MW20G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1MW20G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1MW20G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1MW20G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1MW20G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1MW20G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1MW20G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MW20G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MW20G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MW20G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MW20G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MW20G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MWK20-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1MWK20-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1MWK20-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1MWK20-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1MWK20-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1MWK20-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1MWK20-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1MWK20-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1MWK20-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1MWK20-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MWK20-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MWK20-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MWK20-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MWK20-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MWK20-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MWK20G-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1MWK20G-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1MWK20G-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1MWK20G-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1MWK20G-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1MWK20G-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1MWK20G-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1MWK20G-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1MWK20G-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1MWK20G-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1MWK20G-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1MWK20G-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1MWK20G-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1MWK20G-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1MWK20G-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1MW25-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
	MY1MW25-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
	MY1MW25-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
	MY1MW25-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
	MY1MW25-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
	MY1MW25-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
	MY1MW25-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
	MY1MW25-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
	MY1MW25-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
	MY1MW25-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
	MY1MW25-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
	MY1MW25-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
	MY1MW25-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
	MY1MW25-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
	MY1MW25-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
	MY1MW25G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
	MY1MW25G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
	MY1MW25G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
	MY1MW25G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
	MY1MW25G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
	MY1MW25G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
	MY1MW25G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
	MY1MW25G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
	MY1MW25G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
	MY1MW25G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
	MY1MW25G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
	MY1MW25G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
	MY1MW25G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
	MY1MW25G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
	MY1MW25G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
	MY1MWK25-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
	MY1MWK25-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
	MY1MWK25-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
	MY1MWK25-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
	MY1MWK25-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
	MY1MWK25-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
	MY1MWK25-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
	MY1MWK25-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
	MY1MWK25-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
	MY1MWK25-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
	MY1MWK25-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
	MY1MWK25-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
	MY1MWK25-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
	MY1MWK25-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
	MY1MWK25-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
	MY1MWK25G-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
	MY1MWK25G-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
	MY1MWK25G-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
	MY1MWK25G-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
	MY1MWK25G-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
	MY1MWK25G-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
	MY1MWK25G-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
	MY1MWK25G-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
	MY1MWK25G-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
	MY1MWK25G-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
	MY1MWK25G-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
	MY1MWK25G-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
	MY1MWK25G-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
	MY1MWK25G-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
	MY1MWK25G-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
	MY1MW32-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1MW32-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1MW32-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1MW32-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1MW32-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1MW32-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1MW32-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1MW32-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1MW32-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1MW32-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MW32-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MW32-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MW32-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MW32-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MW32-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MW32G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1MW32G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1MW32G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1MW32G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1MW32G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1MW32G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1MW32G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1MW32G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1MW32G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1MW32G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MW32G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MW32G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MW32G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MW32G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MW32G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MWK32-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1MWK32-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1MWK32-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1MWK32-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1MWK32-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1MWK32-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1MWK32-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1MWK32-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1MWK32-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1MWK32-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MWK32-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MWK32-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MWK32-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MWK32-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MWK32-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MWK32G-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1MWK32G-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1MWK32G-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1MWK32G-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1MWK32G-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1MWK32G-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1MWK32G-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1MWK32G-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1MWK32G-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1MWK32G-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MWK32G-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MWK32G-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MWK32G-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MWK32G-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MWK32G-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MW40-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1MW40-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1MW40-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1MW40-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1MW40-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1MW40-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1MW40-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1MW40-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1MW40-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1MW40-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MW40-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MW40-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MW40-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MW40-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MW40-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MW40G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1MW40G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1MW40G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1MW40G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1MW40G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1MW40G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1MW40G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1MW40G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1MW40G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1MW40G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MW40G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MW40G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MW40G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MW40G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MW40G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MWK40-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1MWK40-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1MWK40-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1MWK40-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1MWK40-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1MWK40-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1MWK40-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1MWK40-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1MWK40-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1MWK40-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MWK40-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MWK40-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MWK40-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MWK40-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MWK40-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MWK40G-100	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1MWK40G-200	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1MWK40G-300	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1MWK40G-400	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1MWK40G-500	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1MWK40G-600	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1MWK40G-700	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1MWK40G-800	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1MWK40G-900	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1MWK40G-1000	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1MWK40G-1200	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1MWK40G-1400	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1MWK40G-1600	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1MWK40G-1800	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1MWK40G-2000	Guide: Slide bearing guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1MW50-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
	MY1MW50-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
	MY1MW50-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
	MY1MW50-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
	MY1MW50-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
	MY1MW50-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
	MY1MW50-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
	MY1MW50-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
	MY1MW50-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
	MY1MW50-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
	MY1MW50-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
	MY1MW50-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
	MY1MW50-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
	MY1MW50-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
	MY1MW50-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
	MY1MW50G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
	MY1MW50G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
	MY1MW50G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
	MY1MW50G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
	MY1MW50G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
	MY1MW50G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
	MY1MW50G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
	MY1MW50G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
	MY1MW50G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
	MY1MW50G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
	MY1MW50G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
	MY1MW50G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
	MY1MW50G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
	MY1MW50G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
	MY1MW50G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
	MY1MW63-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
	MY1MW63-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
	MY1MW63-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
	MY1MW63-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
	MY1MW63-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
	MY1MW63-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
	MY1MW63-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
	MY1MW63-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
	MY1MW63-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
	MY1MW63-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
	MY1MW63-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
	MY1MW63-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
	MY1MW63-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
	MY1MW63-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
	MY1MW63-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
	MY1MW63G-100	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
	MY1MW63G-200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
	MY1MW63G-300	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
	MY1MW63G-400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
	MY1MW63G-500	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
	MY1MW63G-600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
	MY1MW63G-700	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
	MY1MW63G-800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
	MY1MW63G-900	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
	MY1MW63G-1000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
	MY1MW63G-1200	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
	MY1MW63G-1400	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
	MY1MW63G-1600	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
	MY1MW63G-1800	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
	MY1MW63G-2000	Guide: Slide bearing guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
	MY1CW16-100	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1CW16-200	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1CW16-300	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1CW16-400	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1CW16-500	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1CW16-600	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1CW16-700	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1CW16-800	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1CW16-900	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1CW16-1000	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CW16-1200	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CW16-1400	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CW16-1600	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CW16-1800	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CW16-2000	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CW16G-100	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1CW16G-200	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1CW16G-300	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1CW16G-400	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1CW16G-500	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1CW16G-600	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1CW16G-700	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1CW16G-800	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1CW16G-900	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1CW16G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CW16G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CW16G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CW16G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CW16G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CW16G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CWK16-100	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1CWK16-200	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1CWK16-300	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1CWK16-400	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1CWK16-500	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1CWK16-600	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1CWK16-700	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1CWK16-800	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1CWK16-900	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1CWK16-1000	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CWK16-1200	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CWK16-1400	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CWK16-1600	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CWK16-1800	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CWK16-2000	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CWK16G-100	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1CWK16G-200	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1CWK16G-300	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1CWK16G-400	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1CWK16G-500	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1CWK16G-600	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1CWK16G-700	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1CWK16G-800	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1CWK16G-900	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1CWK16G-1000	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CWK16G-1200	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CWK16G-1400	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CWK16G-1600	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CWK16G-1800	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CWK16G-2000	Guide: High precision guide \| Side seal: With \| Bore: 16 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CW20-100	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1CW20-200	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1CW20-300	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1CW20-400	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1CW20-500	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1CW20-600	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1CW20-700	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1CW20-800	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1CW20-900	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1CW20-1000	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CW20-1200	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CW20-1400	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CW20-1600	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CW20-1800	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CW20-2000	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CW20G-100	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1CW20G-200	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1CW20G-300	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1CW20G-400	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1CW20G-500	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1CW20G-600	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1CW20G-700	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1CW20G-800	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1CW20G-900	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1CW20G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CW20G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CW20G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CW20G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CW20G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CW20G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CWK20-100	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 100 mm \| Port: M5x0.8
	MY1CWK20-200	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 200 mm \| Port: M5x0.8
	MY1CWK20-300	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 300 mm \| Port: M5x0.8
	MY1CWK20-400	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 400 mm \| Port: M5x0.8
	MY1CWK20-500	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 500 mm \| Port: M5x0.8
	MY1CWK20-600	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 600 mm \| Port: M5x0.8
	MY1CWK20-700	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 700 mm \| Port: M5x0.8
	MY1CWK20-800	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 800 mm \| Port: M5x0.8
	MY1CWK20-900	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 900 mm \| Port: M5x0.8
	MY1CWK20-1000	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CWK20-1200	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CWK20-1400	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CWK20-1600	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CWK20-1800	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CWK20-2000	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CWK20G-100	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: M5x0.8
	MY1CWK20G-200	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: M5x0.8
	MY1CWK20G-300	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: M5x0.8
	MY1CWK20G-400	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: M5x0.8
	MY1CWK20G-500	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: M5x0.8
	MY1CWK20G-600	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: M5x0.8
	MY1CWK20G-700	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: M5x0.8
	MY1CWK20G-800	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: M5x0.8
	MY1CWK20G-900	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: M5x0.8
	MY1CWK20G-1000	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: M5x0.8
	MY1CWK20G-1200	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: M5x0.8
	MY1CWK20G-1400	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: M5x0.8
	MY1CWK20G-1600	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: M5x0.8
	MY1CWK20G-1800	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: M5x0.8
	MY1CWK20G-2000	Guide: High precision guide \| Side seal: With \| Bore: 20 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: M5x0.8
	MY1CW25-100	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
	MY1CW25-200	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
	MY1CW25-300	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
	MY1CW25-400	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
	MY1CW25-500	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
	MY1CW25-600	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
	MY1CW25-700	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
	MY1CW25-800	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
	MY1CW25-900	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
	MY1CW25-1000	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
	MY1CW25-1200	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
	MY1CW25-1400	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
	MY1CW25-1600	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
	MY1CW25-1800	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
	MY1CW25-2000	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
	MY1CW25G-100	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
	MY1CW25G-200	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
	MY1CW25G-300	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
	MY1CW25G-400	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
	MY1CW25G-500	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
	MY1CW25G-600	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
	MY1CW25G-700	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
	MY1CW25G-800	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
	MY1CW25G-900	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
	MY1CW25G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
	MY1CW25G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
	MY1CW25G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
	MY1CW25G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
	MY1CW25G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
	MY1CW25G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
	MY1CWK25-100	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/8
	MY1CWK25-200	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/8
	MY1CWK25-300	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/8
	MY1CWK25-400	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/8
	MY1CWK25-500	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/8
	MY1CWK25-600	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/8
	MY1CWK25-700	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/8
	MY1CWK25-800	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/8
	MY1CWK25-900	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/8
	MY1CWK25-1000	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/8
	MY1CWK25-1200	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/8
	MY1CWK25-1400	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/8
	MY1CWK25-1600	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/8
	MY1CWK25-1800	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/8
	MY1CWK25-2000	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/8
	MY1CWK25G-100	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/8
	MY1CWK25G-200	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/8
	MY1CWK25G-300	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/8
	MY1CWK25G-400	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/8
	MY1CWK25G-500	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/8
	MY1CWK25G-600	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/8
	MY1CWK25G-700	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/8
	MY1CWK25G-800	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/8
	MY1CWK25G-900	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/8
	MY1CWK25G-1000	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/8
	MY1CWK25G-1200	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/8
	MY1CWK25G-1400	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/8
	MY1CWK25G-1600	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/8
	MY1CWK25G-1800	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/8
	MY1CWK25G-2000	Guide: High precision guide \| Side seal: With \| Bore: 25 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/8
	MY1CW32-100	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1CW32-200	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1CW32-300	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1CW32-400	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1CW32-500	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1CW32-600	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1CW32-700	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1CW32-800	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1CW32-900	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1CW32-1000	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CW32-1200	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CW32-1400	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CW32-1600	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CW32-1800	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CW32-2000	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CW32G-100	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1CW32G-200	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1CW32G-300	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1CW32G-400	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1CW32G-500	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1CW32G-600	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1CW32G-700	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1CW32G-800	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1CW32G-900	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1CW32G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CW32G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CW32G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CW32G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CW32G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CW32G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CWK32-100	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1CWK32-200	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1CWK32-300	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1CWK32-400	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1CWK32-500	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1CWK32-600	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1CWK32-700	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1CWK32-800	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1CWK32-900	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1CWK32-1000	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CWK32-1200	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CWK32-1400	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CWK32-1600	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CWK32-1800	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CWK32-2000	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CWK32G-100	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1CWK32G-200	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1CWK32G-300	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1CWK32G-400	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1CWK32G-500	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1CWK32G-600	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1CWK32G-700	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1CWK32G-800	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1CWK32G-900	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1CWK32G-1000	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CWK32G-1200	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CWK32G-1400	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CWK32G-1600	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CWK32G-1800	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CWK32G-2000	Guide: High precision guide \| Side seal: With \| Bore: 32 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CW40-100	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1CW40-200	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1CW40-300	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1CW40-400	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1CW40-500	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1CW40-600	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1CW40-700	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1CW40-800	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1CW40-900	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1CW40-1000	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CW40-1200	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CW40-1400	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CW40-1600	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CW40-1800	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CW40-2000	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CW40G-100	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1CW40G-200	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1CW40G-300	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1CW40G-400	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1CW40G-500	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1CW40G-600	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1CW40G-700	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1CW40G-800	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1CW40G-900	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1CW40G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CW40G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CW40G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CW40G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CW40G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CW40G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CWK40-100	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc1/4
	MY1CWK40-200	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc1/4
	MY1CWK40-300	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc1/4
	MY1CWK40-400	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc1/4
	MY1CWK40-500	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc1/4
	MY1CWK40-600	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc1/4
	MY1CWK40-700	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc1/4
	MY1CWK40-800	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc1/4
	MY1CWK40-900	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc1/4
	MY1CWK40-1000	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CWK40-1200	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CWK40-1400	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CWK40-1600	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CWK40-1800	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CWK40-2000	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CWK40G-100	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc1/4
	MY1CWK40G-200	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc1/4
	MY1CWK40G-300	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc1/4
	MY1CWK40G-400	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc1/4
	MY1CWK40G-500	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc1/4
	MY1CWK40G-600	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc1/4
	MY1CWK40G-700	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc1/4
	MY1CWK40G-800	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc1/4
	MY1CWK40G-900	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc1/4
	MY1CWK40G-1000	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc1/4
	MY1CWK40G-1200	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc1/4
	MY1CWK40G-1400	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc1/4
	MY1CWK40G-1600	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc1/4
	MY1CWK40G-1800	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc1/4
	MY1CWK40G-2000	Guide: High precision guide \| Side seal: With \| Bore: 40 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc1/4
	MY1CW50-100	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
	MY1CW50-200	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
	MY1CW50-300	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
	MY1CW50-400	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
	MY1CW50-500	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
	MY1CW50-600	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
	MY1CW50-700	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
	MY1CW50-800	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
	MY1CW50-900	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
	MY1CW50-1000	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
	MY1CW50-1200	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
	MY1CW50-1400	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
	MY1CW50-1600	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
	MY1CW50-1800	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
	MY1CW50-2000	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
	MY1CW50G-100	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
	MY1CW50G-200	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
	MY1CW50G-300	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
	MY1CW50G-400	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
	MY1CW50G-500	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
	MY1CW50G-600	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
	MY1CW50G-700	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
	MY1CW50G-800	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
	MY1CW50G-900	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
	MY1CW50G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
	MY1CW50G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
	MY1CW50G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
	MY1CW50G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
	MY1CW50G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
	MY1CW50G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 50 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8
	MY1CW63-100	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 100 mm \| Port: Rc3/8
	MY1CW63-200	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 200 mm \| Port: Rc3/8
	MY1CW63-300	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 300 mm \| Port: Rc3/8
	MY1CW63-400	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 400 mm \| Port: Rc3/8
	MY1CW63-500	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 500 mm \| Port: Rc3/8
	MY1CW63-600	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 600 mm \| Port: Rc3/8
	MY1CW63-700	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 700 mm \| Port: Rc3/8
	MY1CW63-800	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 800 mm \| Port: Rc3/8
	MY1CW63-900	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 900 mm \| Port: Rc3/8
	MY1CW63-1000	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1000 mm \| Port: Rc3/8
	MY1CW63-1200	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1200 mm \| Port: Rc3/8
	MY1CW63-1400	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1400 mm \| Port: Rc3/8
	MY1CW63-1600	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1600 mm \| Port: Rc3/8
	MY1CW63-1800	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 1800 mm \| Port: Rc3/8
	MY1CW63-2000	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Standard \| Stroke: 2000 mm \| Port: Rc3/8
	MY1CW63G-100	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 100 mm \| Port: Rc3/8
	MY1CW63G-200	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 200 mm \| Port: Rc3/8
	MY1CW63G-300	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 300 mm \| Port: Rc3/8
	MY1CW63G-400	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 400 mm \| Port: Rc3/8
	MY1CW63G-500	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 500 mm \| Port: Rc3/8
	MY1CW63G-600	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 600 mm \| Port: Rc3/8
	MY1CW63G-700	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 700 mm \| Port: Rc3/8
	MY1CW63G-800	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 800 mm \| Port: Rc3/8
	MY1CW63G-900	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 900 mm \| Port: Rc3/8
	MY1CW63G-1000	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1000 mm \| Port: Rc3/8
	MY1CW63G-1200	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1200 mm \| Port: Rc3/8
	MY1CW63G-1400	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1400 mm \| Port: Rc3/8
	MY1CW63G-1600	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1600 mm \| Port: Rc3/8
	MY1CW63G-1800	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 1800 mm \| Port: Rc3/8
	MY1CW63G-2000	Guide: High precision guide \| Side seal: Without \| Bore: 63 mm \| Piping: Centralized \| Stroke: 2000 mm \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MY1MW/MY1CW Mechanically Jointed Rodless Cylinder (Cover)
