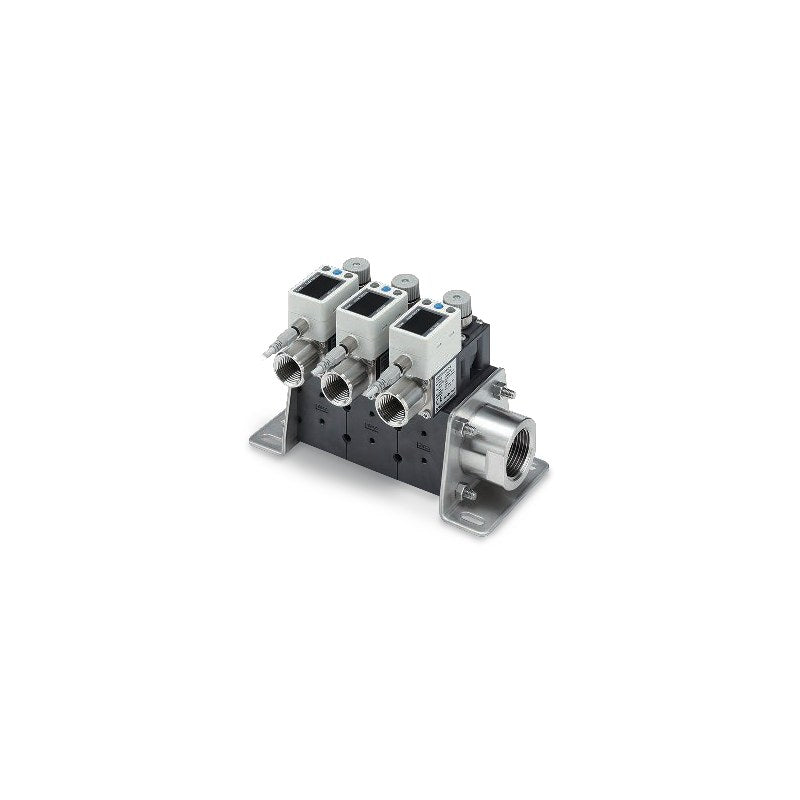

• SMC PF3WS Flow Switch Manifold for Water (Separate Supply Type)
1 1

SMC PF3WS Flow Switch Manifold for Water (Separate Supply Type)

SMC PF3WS Flow Switch Manifold for Water (Separate Supply Type)

SMC PF3WS series separate supply-side manifold for the PF3W flow switch manifold system, 1 to 10 stations, with optional flow adjust and stop valves on each unit.

Key features

  • Supply-side manifold of the separate type system, paired with PF3WR return manifolds
  • 1 to 10 stations (40 L/min: max. 5); supply units carry no flow switch
  • Supply unit: plain, flow adjust valve (S), stop valve (P) or both (W)
  • Main piping both sides open (B), D side closed (D) or U side closed (U); main piping Rc1
  • NPT/G threads available; 3/8 port for 16 L/min and 1/2 port for 40 L/min are made to order

Specifications

Fluid Water, ethylene glycol solution
Operating pressure 0 to 1 MPa
Proof pressure 1.5 MPa
Fluid temperature 0 to 90 C
Enclosure IP65
Main piping Rc1
Standards CE, RoHS
Source SMC Korea catalog CAT.KS100-130A (SMCKR_PF3W_manifold.pdf), p. 9, 11 (PDF p. 10, 12)
PF3WS01B-04-03 Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-S04-03 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-P04-03 Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-W04-03 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-04-03 Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-S04-03 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-P04-03 Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-W04-03 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-04-03 Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-S04-03 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-P04-03 Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-W04-03 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-04-03 Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-S04-03 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-P04-03 Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-W04-03 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-04-03 Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-S04-03 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-P04-03 Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-W04-03 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-04-03 Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-S04-03 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-P04-03 Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-W04-03 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-04-03 Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-S04-03 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-P04-03 Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-W04-03 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-04-03 Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-S04-03 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-P04-03 Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-W04-03 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-04-03 Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-S04-03 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-P04-03 Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-W04-03 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-04-03 Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-S04-03 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-P04-03 Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-W04-03 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-04-03 Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-S04-03 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-P04-03 Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-W04-03 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-04-03 Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-S04-03 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-P04-03 Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-W04-03 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-04-03 Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-S04-03 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-P04-03 Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-W04-03 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-04-03 Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-S04-03 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-P04-03 Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-W04-03 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-04-03 Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-S04-03 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-P04-03 Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-W04-03 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-04-03 Stations: 6 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-S04-03 Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-P04-03 Stations: 6 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-W04-03 Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-04-03 Stations: 6 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-S04-03 Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-P04-03 Stations: 6 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-W04-03 Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-04-03 Stations: 6 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-S04-03 Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-P04-03 Stations: 6 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-W04-03 Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-04-03 Stations: 7 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-S04-03 Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-P04-03 Stations: 7 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-W04-03 Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-04-03 Stations: 7 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-S04-03 Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-P04-03 Stations: 7 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-W04-03 Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-04-03 Stations: 7 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-S04-03 Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-P04-03 Stations: 7 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-W04-03 Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-04-03 Stations: 8 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-S04-03 Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-P04-03 Stations: 8 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-W04-03 Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-04-03 Stations: 8 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-S04-03 Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-P04-03 Stations: 8 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-W04-03 Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-04-03 Stations: 8 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-S04-03 Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-P04-03 Stations: 8 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-W04-03 Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-04-03 Stations: 9 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-S04-03 Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-P04-03 Stations: 9 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-W04-03 Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-04-03 Stations: 9 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-S04-03 Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-P04-03 Stations: 9 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-W04-03 Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-04-03 Stations: 9 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-S04-03 Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-P04-03 Stations: 9 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-W04-03 Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-04-03 Stations: 10 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-S04-03 Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-P04-03 Stations: 10 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-W04-03 Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-04-03 Stations: 10 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-S04-03 Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-P04-03 Stations: 10 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-W04-03 Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-04-03 Stations: 10 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-S04-03 Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-P04-03 Stations: 10 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-W04-03 Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-20-04 Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-S20-04 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-P20-04 Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-W20-04 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-20-04 Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-S20-04 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-P20-04 Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-W20-04 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-20-04 Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-S20-04 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-P20-04 Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-W20-04 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-20-04 Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-S20-04 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-P20-04 Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-W20-04 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-20-04 Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-S20-04 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-P20-04 Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-W20-04 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-20-04 Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-S20-04 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-P20-04 Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-W20-04 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-20-04 Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-S20-04 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-P20-04 Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-W20-04 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-20-04 Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-S20-04 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-P20-04 Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-W20-04 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-20-04 Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-S20-04 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-P20-04 Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-W20-04 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-20-04 Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-S20-04 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-P20-04 Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-W20-04 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-20-04 Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-S20-04 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-P20-04 Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-W20-04 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-20-04 Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-S20-04 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-P20-04 Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-W20-04 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-20-04 Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-S20-04 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-P20-04 Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-W20-04 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-20-04 Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-S20-04 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-P20-04 Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-W20-04 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-20-04 Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-S20-04 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-P20-04 Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-W20-04 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-20-04 Stations: 6 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-S20-04 Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-P20-04 Stations: 6 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-W20-04 Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-20-04 Stations: 6 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-S20-04 Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-P20-04 Stations: 6 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-W20-04 Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-20-04 Stations: 6 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-S20-04 Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-P20-04 Stations: 6 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-W20-04 Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-20-04 Stations: 7 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-S20-04 Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-P20-04 Stations: 7 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-W20-04 Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-20-04 Stations: 7 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-S20-04 Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-P20-04 Stations: 7 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-W20-04 Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-20-04 Stations: 7 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-S20-04 Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-P20-04 Stations: 7 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-W20-04 Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-20-04 Stations: 8 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-S20-04 Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-P20-04 Stations: 8 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-W20-04 Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-20-04 Stations: 8 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-S20-04 Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-P20-04 Stations: 8 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-W20-04 Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-20-04 Stations: 8 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-S20-04 Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-P20-04 Stations: 8 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-W20-04 Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-20-04 Stations: 9 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-S20-04 Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-P20-04 Stations: 9 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-W20-04 Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-20-04 Stations: 9 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-S20-04 Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-P20-04 Stations: 9 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-W20-04 Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-20-04 Stations: 9 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-S20-04 Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-P20-04 Stations: 9 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-W20-04 Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-20-04 Stations: 10 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-S20-04 Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-P20-04 Stations: 10 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-W20-04 Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-20-04 Stations: 10 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-S20-04 Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-P20-04 Stations: 10 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-W20-04 Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-20-04 Stations: 10 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-S20-04 Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-P20-04 Stations: 10 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-W20-04 Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-40-06 Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-S40-06 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-P40-06 Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-W40-06 Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-40-06 Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-S40-06 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-P40-06 Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-W40-06 Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-40-06 Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-S40-06 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-P40-06 Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-W40-06 Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-40-06 Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-S40-06 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-P40-06 Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-W40-06 Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-40-06 Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-S40-06 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-P40-06 Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-W40-06 Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-40-06 Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-S40-06 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-P40-06 Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-W40-06 Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-40-06 Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-S40-06 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-P40-06 Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-W40-06 Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-40-06 Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-S40-06 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-P40-06 Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-W40-06 Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-40-06 Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-S40-06 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-P40-06 Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-W40-06 Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-40-06 Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-S40-06 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-P40-06 Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-W40-06 Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-40-06 Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-S40-06 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-P40-06 Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-W40-06 Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-40-06 Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-S40-06 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-P40-06 Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-W40-06 Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-40-06 Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-S40-06 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-P40-06 Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-W40-06 Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-40-06 Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-S40-06 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-P40-06 Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-W40-06 Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-40-06 Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-S40-06 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-P40-06 Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-W40-06 Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
ManifoldsSMC
300 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PF3WS Flow Switch Manifold for Water (Separate Supply Type)

Brand SMC·Manifolds

Available part numbers (300)

PF3WS01B-04-03, PF3WS01B-S04-03, PF3WS01B-P04-03, PF3WS01B-W04-03, PF3WS01D-04-03, PF3WS01D-S04-03, PF3WS01D-P04-03, PF3WS01D-W04-03, PF3WS01U-04-03, PF3WS01U-S04-03 + 290 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PF3WS01B-04-03Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-S04-03Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-P04-03Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-W04-03Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-04-03Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-S04-03Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-P04-03Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01D-W04-03Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-04-03Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-S04-03Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-P04-03Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01U-W04-03Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-04-03Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-S04-03Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-P04-03Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02B-W04-03Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-04-03Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-S04-03Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-P04-03Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02D-W04-03Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-04-03Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-S04-03Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-P04-03Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS02U-W04-03Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-04-03Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-S04-03Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-P04-03Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03B-W04-03Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-04-03Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-S04-03Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-P04-03Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03D-W04-03Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-04-03Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-S04-03Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-P04-03Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS03U-W04-03Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-04-03Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-S04-03Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-P04-03Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04B-W04-03Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-04-03Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-S04-03Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-P04-03Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04D-W04-03Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-04-03Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-S04-03Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-P04-03Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS04U-W04-03Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-04-03Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-S04-03Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-P04-03Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05B-W04-03Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-04-03Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-S04-03Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-P04-03Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05D-W04-03Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-04-03Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-S04-03Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-P04-03Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS05U-W04-03Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-04-03Stations: 6 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-S04-03Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-P04-03Stations: 6 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06B-W04-03Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-04-03Stations: 6 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-S04-03Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-P04-03Stations: 6 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06D-W04-03Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-04-03Stations: 6 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-S04-03Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-P04-03Stations: 6 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS06U-W04-03Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-04-03Stations: 7 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-S04-03Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-P04-03Stations: 7 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07B-W04-03Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-04-03Stations: 7 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-S04-03Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-P04-03Stations: 7 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07D-W04-03Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-04-03Stations: 7 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-S04-03Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-P04-03Stations: 7 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS07U-W04-03Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-04-03Stations: 8 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-S04-03Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-P04-03Stations: 8 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08B-W04-03Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-04-03Stations: 8 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-S04-03Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-P04-03Stations: 8 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08D-W04-03Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-04-03Stations: 8 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-S04-03Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-P04-03Stations: 8 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS08U-W04-03Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-04-03Stations: 9 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-S04-03Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-P04-03Stations: 9 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09B-W04-03Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-04-03Stations: 9 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-S04-03Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-P04-03Stations: 9 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09D-W04-03Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-04-03Stations: 9 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-S04-03Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-P04-03Stations: 9 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS09U-W04-03Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-04-03Stations: 10 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-S04-03Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-P04-03Stations: 10 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10B-W04-03Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-04-03Stations: 10 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-S04-03Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-P04-03Stations: 10 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10D-W04-03Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-04-03Stations: 10 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-S04-03Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-P04-03Stations: 10 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS10U-W04-03Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 0.5-4 L/min, Rc3/8
PF3WS01B-20-04Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-S20-04Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-P20-04Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-W20-04Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-20-04Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-S20-04Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-P20-04Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01D-W20-04Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-20-04Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-S20-04Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-P20-04Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01U-W20-04Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-20-04Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-S20-04Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-P20-04Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02B-W20-04Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-20-04Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-S20-04Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-P20-04Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02D-W20-04Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-20-04Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-S20-04Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-P20-04Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS02U-W20-04Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-20-04Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-S20-04Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-P20-04Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03B-W20-04Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-20-04Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-S20-04Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-P20-04Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03D-W20-04Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-20-04Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-S20-04Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-P20-04Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS03U-W20-04Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-20-04Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-S20-04Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-P20-04Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04B-W20-04Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-20-04Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-S20-04Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-P20-04Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04D-W20-04Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-20-04Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-S20-04Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-P20-04Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS04U-W20-04Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-20-04Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-S20-04Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-P20-04Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05B-W20-04Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-20-04Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-S20-04Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-P20-04Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05D-W20-04Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-20-04Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-S20-04Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-P20-04Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS05U-W20-04Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-20-04Stations: 6 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-S20-04Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-P20-04Stations: 6 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06B-W20-04Stations: 6 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-20-04Stations: 6 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-S20-04Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-P20-04Stations: 6 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06D-W20-04Stations: 6 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-20-04Stations: 6 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-S20-04Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-P20-04Stations: 6 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS06U-W20-04Stations: 6 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-20-04Stations: 7 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-S20-04Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-P20-04Stations: 7 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07B-W20-04Stations: 7 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-20-04Stations: 7 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-S20-04Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-P20-04Stations: 7 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07D-W20-04Stations: 7 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-20-04Stations: 7 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-S20-04Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-P20-04Stations: 7 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS07U-W20-04Stations: 7 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-20-04Stations: 8 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-S20-04Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-P20-04Stations: 8 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08B-W20-04Stations: 8 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-20-04Stations: 8 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-S20-04Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-P20-04Stations: 8 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08D-W20-04Stations: 8 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-20-04Stations: 8 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-S20-04Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-P20-04Stations: 8 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS08U-W20-04Stations: 8 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-20-04Stations: 9 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-S20-04Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-P20-04Stations: 9 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09B-W20-04Stations: 9 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-20-04Stations: 9 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-S20-04Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-P20-04Stations: 9 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09D-W20-04Stations: 9 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-20-04Stations: 9 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-S20-04Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-P20-04Stations: 9 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS09U-W20-04Stations: 9 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-20-04Stations: 10 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-S20-04Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-P20-04Stations: 10 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10B-W20-04Stations: 10 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-20-04Stations: 10 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-S20-04Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-P20-04Stations: 10 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10D-W20-04Stations: 10 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-20-04Stations: 10 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-S20-04Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-P20-04Stations: 10 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS10U-W20-04Stations: 10 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 2-16 L/min, Rc1/2
PF3WS01B-40-06Stations: 1 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-S40-06Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-P40-06Stations: 1 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01B-W40-06Stations: 1 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-40-06Stations: 1 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-S40-06Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-P40-06Stations: 1 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01D-W40-06Stations: 1 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-40-06Stations: 1 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-S40-06Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-P40-06Stations: 1 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS01U-W40-06Stations: 1 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-40-06Stations: 2 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-S40-06Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-P40-06Stations: 2 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02B-W40-06Stations: 2 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-40-06Stations: 2 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-S40-06Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-P40-06Stations: 2 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02D-W40-06Stations: 2 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-40-06Stations: 2 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-S40-06Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-P40-06Stations: 2 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS02U-W40-06Stations: 2 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-40-06Stations: 3 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-S40-06Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-P40-06Stations: 3 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03B-W40-06Stations: 3 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-40-06Stations: 3 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-S40-06Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-P40-06Stations: 3 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03D-W40-06Stations: 3 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-40-06Stations: 3 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-S40-06Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-P40-06Stations: 3 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS03U-W40-06Stations: 3 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-40-06Stations: 4 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-S40-06Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-P40-06Stations: 4 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04B-W40-06Stations: 4 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-40-06Stations: 4 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-S40-06Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-P40-06Stations: 4 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04D-W40-06Stations: 4 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-40-06Stations: 4 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-S40-06Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-P40-06Stations: 4 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS04U-W40-06Stations: 4 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-40-06Stations: 5 | Main piping: U/D sides open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-S40-06Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-P40-06Stations: 5 | Main piping: U/D sides open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05B-W40-06Stations: 5 | Main piping: U/D sides open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-40-06Stations: 5 | Main piping: U open, D closed | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-S40-06Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-P40-06Stations: 5 | Main piping: U open, D closed | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05D-W40-06Stations: 5 | Main piping: U open, D closed | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-40-06Stations: 5 | Main piping: U closed, D open | Supply unit: Plain unit | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-S40-06Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-P40-06Stations: 5 | Main piping: U closed, D open | Supply unit: Stop valve | Rated flow: 5-40 L/min, Rc3/4
PF3WS05U-W40-06Stations: 5 | Main piping: U closed, D open | Supply unit: Flow adjust + stop valve | Rated flow: 5-40 L/min, Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
