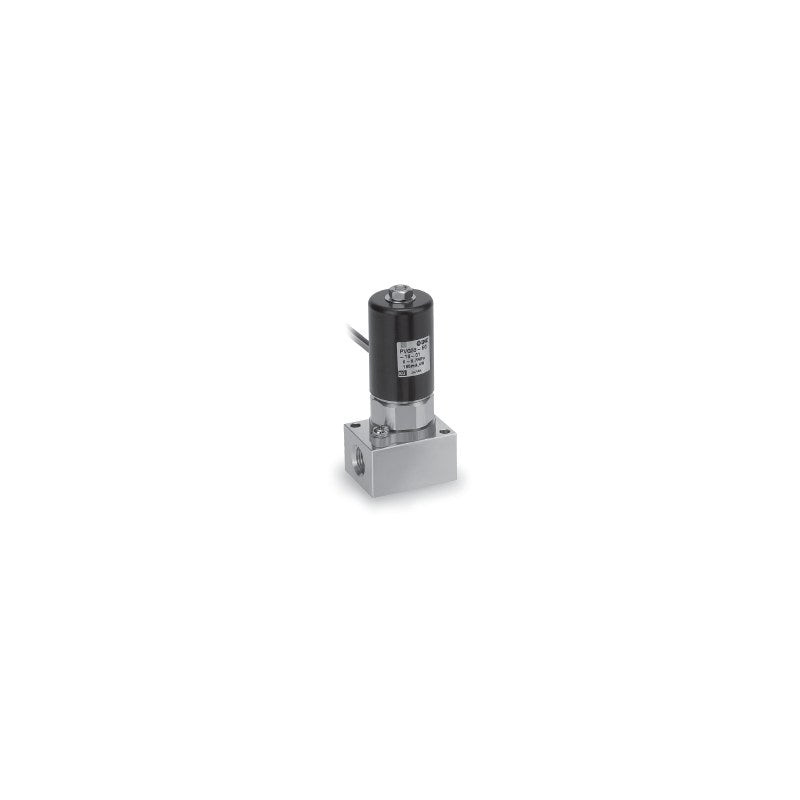

SMC PVQ10 Compact Proportional Solenoid Valve (Base Mounted)

SMC PVQ10 Compact Proportional Solenoid Valve (Base Mounted)

SMC PVQ10 (PVQ13) compact base-mounted proportional solenoid valve that steplessly controls air flow (0 to 6 L/min) in proportion to the applied current.

Key features

  • Direct-operated poppet, N.C., C36 body with FKM seal
  • Four orifice sizes ø0.3 to ø0.8 mm, max. operating pressure differential 0.7 to 0.1 MPa
  • L or M plug connector, with 300 mm lead wire or without connector
  • With M5 sub-plate or without sub-plate (mounting screws included)
  • Applications: blood pressure monitors, handpiece rotation control, vacuum chamber charge/exhaust

Specifications

Fluid Air
Valve type Direct-operated poppet, N.C.
Max. operating pressure 1 MPa
Flow rate 0 to 6 L/min (at max. differential)
Coil current DC24V 0-85 mA, DC12V 0-170 mA
Power consumption Approx. 2 W
Hysteresis / repeatability 10% / 3% or less
Ambient and fluid temperature 0 to 50°C
Body / seal C36 / FKM
Source SMC Korea catalog (SMCKR_PVQ.pdf), p. 1262 (PDF p. 6)
PVQ13-5L-03-M5-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5L-03-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5L-04-M5-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5L-04-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5L-06-M5-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5L-06-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5L-08-M5-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5L-08-A Voltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5LO-03-M5-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5LO-03-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5LO-04-M5-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5LO-04-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5LO-06-M5-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5LO-06-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5LO-08-M5-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5LO-08-A Voltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5M-03-M5-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5M-03-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5M-04-M5-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5M-04-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5M-06-M5-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5M-06-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5M-08-M5-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5M-08-A Voltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5MO-03-M5-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5MO-03-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5MO-04-M5-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5MO-04-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5MO-06-M5-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5MO-06-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5MO-08-M5-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5MO-08-A Voltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6L-03-M5-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6L-03-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6L-04-M5-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6L-04-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6L-06-M5-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6L-06-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6L-08-M5-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6L-08-A Voltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6LO-03-M5-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6LO-03-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6LO-04-M5-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6LO-04-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6LO-06-M5-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6LO-06-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6LO-08-M5-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6LO-08-A Voltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6M-03-M5-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6M-03-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6M-04-M5-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6M-04-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6M-06-M5-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6M-06-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6M-08-M5-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6M-08-A Voltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6MO-03-M5-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6MO-03-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6MO-04-M5-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6MO-04-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6MO-06-M5-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6MO-06-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6MO-08-M5-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6MO-08-A Voltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
Proportional ValvesSMC
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PVQ10 Compact Proportional Solenoid Valve (Base Mounted)

Brand SMC·Proportional Valves

Available part numbers (64)

PVQ13-5L-03-M5-A, PVQ13-5L-03-A, PVQ13-5L-04-M5-A, PVQ13-5L-04-A, PVQ13-5L-06-M5-A, PVQ13-5L-06-A, PVQ13-5L-08-M5-A, PVQ13-5L-08-A, PVQ13-5LO-03-M5-A, PVQ13-5LO-03-A + 54 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PVQ13-5L-03-M5-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5L-03-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5L-04-M5-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5L-04-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5L-06-M5-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5L-06-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5L-08-M5-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5L-08-AVoltage: DC24V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5LO-03-M5-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5LO-03-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5LO-04-M5-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5LO-04-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5LO-06-M5-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5LO-06-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5LO-08-M5-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5LO-08-AVoltage: DC24V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5M-03-M5-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5M-03-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5M-04-M5-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5M-04-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5M-06-M5-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5M-06-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5M-08-M5-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5M-08-AVoltage: DC24V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-5MO-03-M5-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-5MO-03-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-5MO-04-M5-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-5MO-04-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-5MO-06-M5-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-5MO-06-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-5MO-08-M5-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-5MO-08-AVoltage: DC24V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6L-03-M5-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6L-03-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6L-04-M5-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6L-04-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6L-06-M5-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6L-06-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6L-08-M5-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6L-08-AVoltage: DC12V | Electrical entry: L plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6LO-03-M5-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6LO-03-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6LO-04-M5-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6LO-04-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6LO-06-M5-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6LO-06-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6LO-08-M5-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6LO-08-AVoltage: DC12V | Electrical entry: L plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6M-03-M5-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6M-03-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6M-04-M5-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6M-04-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6M-06-M5-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6M-06-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6M-08-M5-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6M-08-AVoltage: DC12V | Electrical entry: M plug, with lead wire | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
PVQ13-6MO-03-M5-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: With sub-plate, M5
PVQ13-6MO-03-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.3 mm (0.7 MPa) | Port: Without sub-plate
PVQ13-6MO-04-M5-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: With sub-plate, M5
PVQ13-6MO-04-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.4 mm (0.45 MPa) | Port: Without sub-plate
PVQ13-6MO-06-M5-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: With sub-plate, M5
PVQ13-6MO-06-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.6 mm (0.2 MPa) | Port: Without sub-plate
PVQ13-6MO-08-M5-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: With sub-plate, M5
PVQ13-6MO-08-AVoltage: DC12V | Electrical entry: M plug, without connector | Orifice (max. diff.): ø0.8 mm (0.1 MPa) | Port: Without sub-plate
