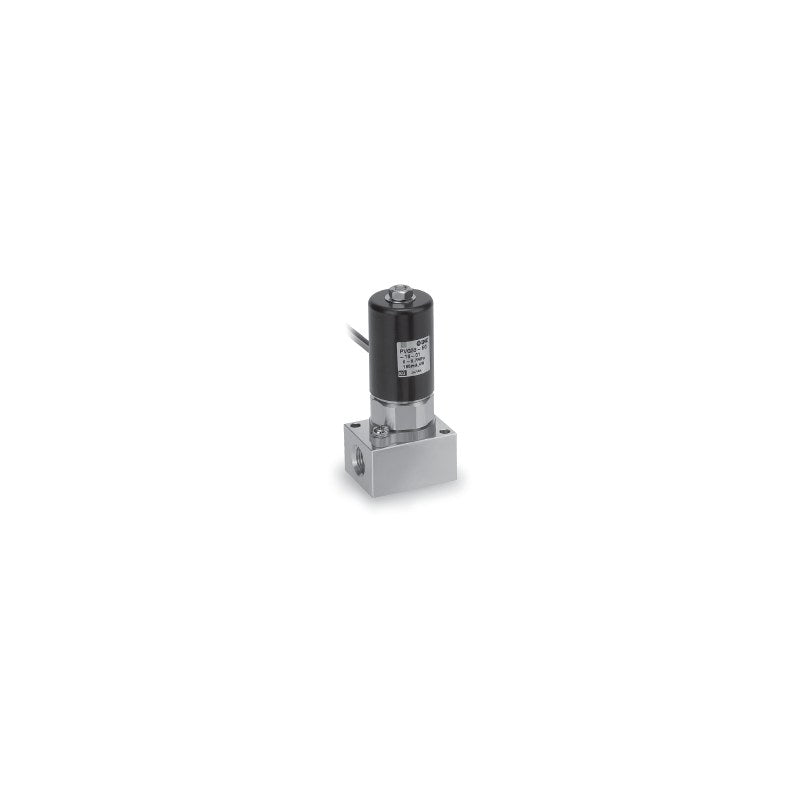

SMC PVQ30 Compact Proportional Solenoid Valve (PVQ31/PVQ33)

SMC PVQ30 Compact Proportional Solenoid Valve (PVQ31/PVQ33)

SMC PVQ30 compact proportional solenoid valve that steplessly controls air flow (0 to 100 L/min) in proportion to the applied current, in direct piping (PVQ31) and base-mounted (PVQ33) types.

Key features

  • Direct-operated poppet, N.C., grommet lead wire, FKM seal
  • Three orifice sizes ø1.6, ø2.3 and ø4 mm
  • Body C37 (standard) or stainless steel (H); life 25 million cycles
  • Rc1/8 ports; G/NPT/NPTF sub-plate threads and foot bracket (F, PVQ31) on order
  • Applications: air blow, chip removal, drying and workpiece transfer

Specifications

Fluid Air
Valve type Direct-operated poppet, N.C.
Max. operating pressure 1 MPa
Flow rate 0 to 100 L/min (ø1.6, ø2.3), 0 to 75 L/min (ø4)
Coil current DC24V 0-165 mA, DC12V 0-330 mA
Power consumption Approx. 4 W
Hysteresis 10% or less (ø4: 13% or less)
Repeatability 3% or less
Ambient and fluid temperature 0 to 50°C
Enclosure IP40
Source SMC Korea catalog (SMCKR_PVQ.pdf), p. 1265 (PDF p. 9)
PVQ31-5G-16-01 Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-5G-16-01-H Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-5G-16 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-5G-16-01 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-5G-16-01-H Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
PVQ31-5G-23-01 Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-5G-23-01-H Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-5G-23 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-5G-23-01 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-5G-23-01-H Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
PVQ31-5G-40-01 Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-5G-40-01-H Piping: Direct piping (PVQ31) | Voltage: DC24V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-5G-40 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-5G-40-01 Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-5G-40-01-H Piping: Base mounted (PVQ33) | Voltage: DC24V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
PVQ31-6G-16-01 Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-6G-16-01-H Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-6G-16 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-6G-16-01 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-6G-16-01-H Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø1.6 mm (0.7 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
PVQ31-6G-23-01 Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-6G-23-01-H Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-6G-23 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-6G-23-01 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-6G-23-01-H Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø2.3 mm (0.35 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
PVQ31-6G-40-01 Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Rc1/8 | Body material: C37
PVQ31-6G-40-01-H Piping: Direct piping (PVQ31) | Voltage: DC12V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Rc1/8 | Body material: Stainless steel
PVQ33-6G-40 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Without sub-plate | Body material: C37
PVQ33-6G-40-01 Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Sub-plate Rc1/8 | Body material: C37
PVQ33-6G-40-01-H Piping: Base mounted (PVQ33) | Voltage: DC12V | Orifice (max. diff.): ø4 mm (0.12 MPa) | Port: Sub-plate Rc1/8 | Body material: Stainless steel
