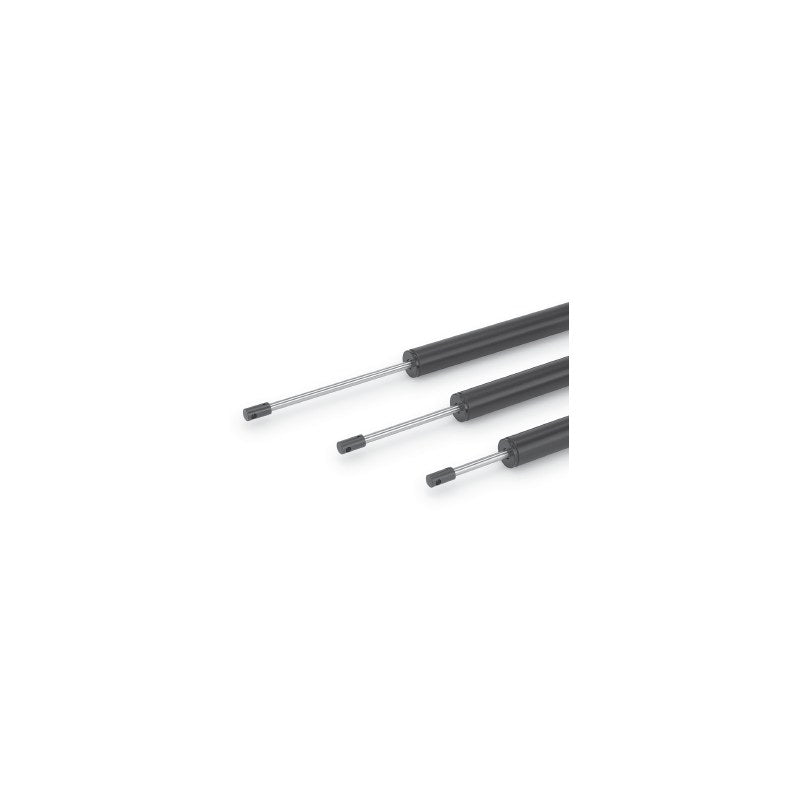

SMC RB-ADA Hydraulic Damper (Extension / Compression, Adjustable)

SMC RB-ADA series hydraulic adjustable damper with clevis mounting that controls speed on extension, compression or both, in 50, 100 and 150 mm strokes.

Key features

Speed control on extension only (TP), compression only (PC) or both sides (TC) by cartridge selection
Clevis mounting; mechanically connected to the moving load to control its speed rather than stop it
Speed adjustment dial with about 180° range (scale 0 to 8) and locking screw; hex wrench supplied
No internal gas or spring: the rod stays where it is stopped when the load is removed
Typical uses: anti-swing of conveyed loads, lid closing control, drilling feed control

Specifications

Operating temperature	-10 to 80°C
Max. thrust (extension)	2000 N
Max. thrust (compression)	2000 N (505), 1670 N (510), 1335 N (515)
Max. energy per hour	73450 J/Hr (505) to 118650 J/Hr (515)
Mass	300 g (505) to 445 g (515)
Allowable eccentric angle	5° (clevis fixed)
Source	SMC Korea catalog RB-LROEM/RB-OEM/RB-ADA (SMCKR_RB-OEM.pdf), p. 1335-1337 (PDF p. 17-19)

RB-ADA505MTC		Stroke: 50 mm \| Extension side: Adjustable \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 2000 N
RB-ADA505MTP		Stroke: 50 mm \| Extension side: Adjustable \| Compression side: Free flow (no adj.) \| Max. force ext/comp: 2000 N / 2000 N
RB-ADA505MPC		Stroke: 50 mm \| Extension side: Free flow (no adj.) \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 2000 N
RB-ADA510MTC		Stroke: 100 mm \| Extension side: Adjustable \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 1670 N
RB-ADA510MTP		Stroke: 100 mm \| Extension side: Adjustable \| Compression side: Free flow (no adj.) \| Max. force ext/comp: 2000 N / 1670 N
RB-ADA510MPC		Stroke: 100 mm \| Extension side: Free flow (no adj.) \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 1670 N
RB-ADA515MTC		Stroke: 150 mm \| Extension side: Adjustable \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 1335 N
RB-ADA515MTP		Stroke: 150 mm \| Extension side: Adjustable \| Compression side: Free flow (no adj.) \| Max. force ext/comp: 2000 N / 1335 N
RB-ADA515MPC		Stroke: 150 mm \| Extension side: Free flow (no adj.) \| Compression side: Adjustable \| Max. force ext/comp: 2000 N / 1335 N

Shock AbsorbersSMC

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RB-ADA Hydraulic Damper (Extension / Compression, Adjustable)

Brand SMC·Shock Absorbers

Available part numbers (9)

RB-ADA505MTC, RB-ADA505MTP, RB-ADA505MPC, RB-ADA510MTC, RB-ADA510MTP, RB-ADA510MPC, RB-ADA515MTC, RB-ADA515MTP, RB-ADA515MPC

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
