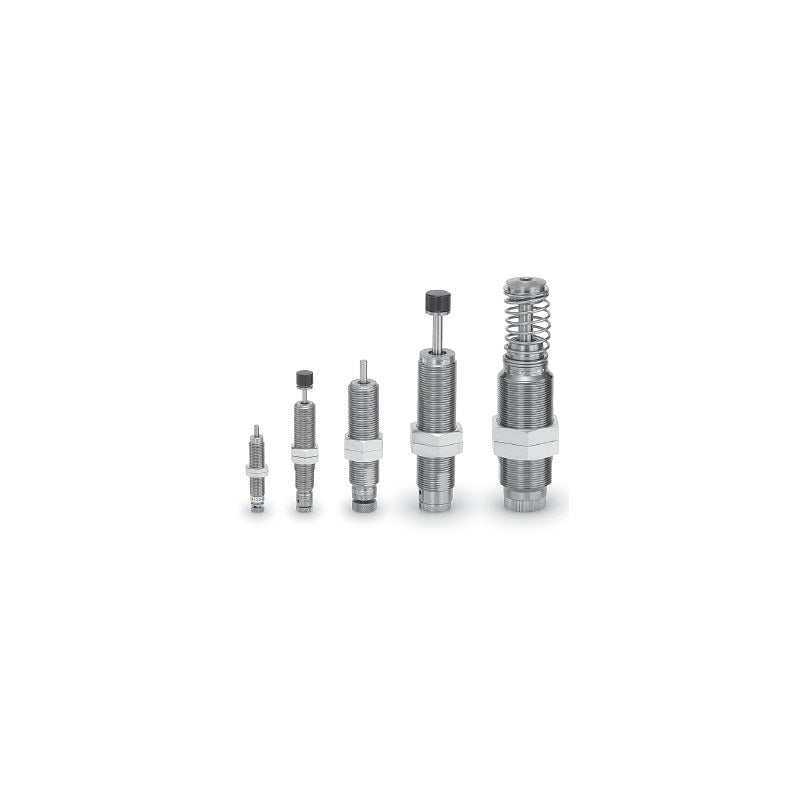

SMC RB-OEM / RB-LROEM Adjustable Shock Absorber (M10 to M85)

SMC RB-OEM / RB-LROEM Adjustable Shock Absorber (M10 to M85)

SMC RB-OEM (standard) and RB-LROEM (low-speed) adjustable shock absorbers with built-in orifice adjustment, from M10 small sizes to M85 large sizes.

Key features

  • Orifice opening adjustment allows tuning to the collision speed; manufactured by ENIDINE, sold by SMC Korea
  • Small series M10 to M36 (0.1M to 1.25M×2) and refreshed large XT series M42/M64 with about 1.6x absorbed energy
  • Low-speed type RB-LROEM for 0.08 m/s and up; standard type RB-OEM for 0.3 m/s and up
  • Cap-attached version (B) listed; caps cannot be fitted afterwards to 0.1M to 1.0MF models
  • Options ordered as suffixes: stop collar (S), 3 jam nuts (J), lock collar (L), rectangular (R) / square (F) flange for large sizes

Specifications

Collision speed RB-LROEM 0.08 to 2.0 m/s; RB-OEM 0.3 to 4.3 m/s (by size)
Temperature range -10 to 80°C
Max. absorbed energy 3.8 J (0.1M) to 7300 J (3.0M×6.5)
Stroke 7 mm to 165 mm
Adjustment Adjustment dial with lock screw
Allowable eccentric angle (linear impact) 3°
Replacement parts Cap, jam nut, stop collar, lock collar, flanges (RB-OEM + size)
Source SMC Korea catalog RB-LROEM/RB-OEM/RB-ADA (SMCKR_RB-OEM.pdf), p. 1319-1330 (PDF p. 1-3, 7-8, 11-12)
RB-LROEM0.1M Type: Low speed (RB-LROEM) | Thread: M10x1.0 | Stroke: 7 mm | Max. energy: 3.8 J | Cap: None
RB-LROEM0.1MB Type: Low speed (RB-LROEM) | Thread: M10x1.0 | Stroke: 7 mm | Max. energy: 3.8 J | Cap: Cap attached (B)
RB-LROEM0.15M Type: Low speed (RB-LROEM) | Thread: M12x1.0 | Stroke: 10 mm | Max. energy: 5.5 J | Cap: None
RB-LROEM0.15MB Type: Low speed (RB-LROEM) | Thread: M12x1.0 | Stroke: 10 mm | Max. energy: 5.5 J | Cap: Cap attached (B)
RB-LROEM0.25M Type: Low speed (RB-LROEM) | Thread: M14x1.5 | Stroke: 10 mm | Max. energy: 5.9 J | Cap: None
RB-LROEM0.25MB Type: Low speed (RB-LROEM) | Thread: M14x1.5 | Stroke: 10 mm | Max. energy: 5.9 J | Cap: Cap attached (B)
RB-LROEM0.35M Type: Low speed (RB-LROEM) | Thread: M16x1.5 | Stroke: 12 mm | Max. energy: 16.6 J | Cap: None
RB-LROEM0.35MB Type: Low speed (RB-LROEM) | Thread: M16x1.5 | Stroke: 12 mm | Max. energy: 16.6 J | Cap: Cap attached (B)
RB-LROEM0.5M Type: Low speed (RB-LROEM) | Thread: M20x1.5 | Stroke: 12 mm | Max. energy: 29.4 J | Cap: None
RB-LROEM0.5MB Type: Low speed (RB-LROEM) | Thread: M20x1.5 | Stroke: 12 mm | Max. energy: 29.4 J | Cap: Cap attached (B)
RB-LROEM1.0MF Type: Low speed (RB-LROEM) | Thread: M25x1.5 | Stroke: 25 mm | Max. energy: 74 J | Cap: None
RB-LROEM1.0MFB Type: Low speed (RB-LROEM) | Thread: M25x1.5 | Stroke: 25 mm | Max. energy: 74 J | Cap: Cap attached (B)
RB-LROEM1.25M×1 Type: Low speed (RB-LROEM) | Thread: M36x1.5 | Stroke: 25 mm | Max. energy: 192 J | Cap: None
RB-LROEM1.25M×2 Type: Low speed (RB-LROEM) | Thread: M36x1.5 | Stroke: 50 mm | Max. energy: 384 J | Cap: None
RB-OEM0.25M Type: Standard (RB-OEM) | Thread: M14x1.5 | Stroke: 10 mm | Max. energy: 5.9 J | Cap: None
RB-OEM0.25MB Type: Standard (RB-OEM) | Thread: M14x1.5 | Stroke: 10 mm | Max. energy: 5.9 J | Cap: Cap attached (B)
RB-OEM0.5M Type: Standard (RB-OEM) | Thread: M20x1.5 | Stroke: 12 mm | Max. energy: 29.4 J | Cap: None
RB-OEM0.5MB Type: Standard (RB-OEM) | Thread: M20x1.5 | Stroke: 12 mm | Max. energy: 29.4 J | Cap: Cap attached (B)
RB-OEM1.0MF Type: Standard (RB-OEM) | Thread: M25x1.5 | Stroke: 25 mm | Max. energy: 74 J | Cap: None
RB-OEM1.0MFB Type: Standard (RB-OEM) | Thread: M25x1.5 | Stroke: 25 mm | Max. energy: 74 J | Cap: Cap attached (B)
RB-OEM1.25M×1 Type: Standard (RB-OEM) | Thread: M36x1.5 | Stroke: 25 mm | Max. energy: 192 J | Cap: None
RB-OEM1.25M×2 Type: Standard (RB-OEM) | Thread: M36x1.5 | Stroke: 50 mm | Max. energy: 384 J | Cap: None
RB-LROEMXT1.5M×1 Type: Low speed (RB-LROEM) | Thread: M42x1.5 | Stroke: 25 mm | Max. energy: 425 J | Cap: None
RB-LROEMXT1.5M×1B Type: Low speed (RB-LROEM) | Thread: M42x1.5 | Stroke: 25 mm | Max. energy: 425 J | Cap: Cap attached (B)
RB-LROEMXT1.5M×2 Type: Low speed (RB-LROEM) | Thread: M42x1.5 | Stroke: 50 mm | Max. energy: 850 J | Cap: None
RB-LROEMXT1.5M×2B Type: Low speed (RB-LROEM) | Thread: M42x1.5 | Stroke: 50 mm | Max. energy: 850 J | Cap: Cap attached (B)
RB-LROEMXT2.0M×2 Type: Low speed (RB-LROEM) | Thread: M64x2.0 | Stroke: 50 mm | Max. energy: 2260 J | Cap: None
RB-LROEMXT2.0M×2B Type: Low speed (RB-LROEM) | Thread: M64x2.0 | Stroke: 50 mm | Max. energy: 2260 J | Cap: Cap attached (B)
RB-OEMXT1.5M×1 Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 25 mm | Max. energy: 425 J | Cap: None
RB-OEMXT1.5M×1B Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 25 mm | Max. energy: 425 J | Cap: Cap attached (B)
RB-OEMXT1.5M×2 Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 50 mm | Max. energy: 850 J | Cap: None
RB-OEMXT1.5M×2B Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 50 mm | Max. energy: 850 J | Cap: Cap attached (B)
RB-OEMXT1.5M×3 Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 75 mm | Max. energy: 1300 J | Cap: None
RB-OEMXT1.5M×3B Type: Standard (RB-OEM) | Thread: M42x1.5 | Stroke: 75 mm | Max. energy: 1300 J | Cap: Cap attached (B)
RB-OEMXT2.0M×2 Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 50 mm | Max. energy: 2260 J | Cap: None
RB-OEMXT2.0M×2B Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 50 mm | Max. energy: 2260 J | Cap: Cap attached (B)
RB-OEMXT2.0M×4 Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 100 mm | Max. energy: 4520 J | Cap: None
RB-OEMXT2.0M×4B Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 100 mm | Max. energy: 4520 J | Cap: Cap attached (B)
RB-OEMXT2.0M×6 Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 150 mm | Max. energy: 6780 J | Cap: None
RB-OEMXT2.0M×6B Type: Standard (RB-OEM) | Thread: M64x2.0 | Stroke: 150 mm | Max. energy: 6780 J | Cap: Cap attached (B)
RB-OEM3.0M×2 Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 50 mm | Max. energy: 2300 J | Cap: None
RB-OEM3.0M×2B Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 50 mm | Max. energy: 2300 J | Cap: Cap attached (B)
RB-OEM3.0M×3.5 Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 90 mm | Max. energy: 4000 J | Cap: None
RB-OEM3.0M×3.5B Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 90 mm | Max. energy: 4000 J | Cap: Cap attached (B)
RB-OEM3.0M×5 Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 125 mm | Max. energy: 5700 J | Cap: None
RB-OEM3.0M×5B Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 125 mm | Max. energy: 5700 J | Cap: Cap attached (B)
RB-OEM3.0M×6.5 Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 165 mm | Max. energy: 7300 J | Cap: None
RB-OEM3.0M×6.5B Type: Standard (RB-OEM) | Thread: M85x2.0 | Stroke: 165 mm | Max. energy: 7300 J | Cap: Cap attached (B)
