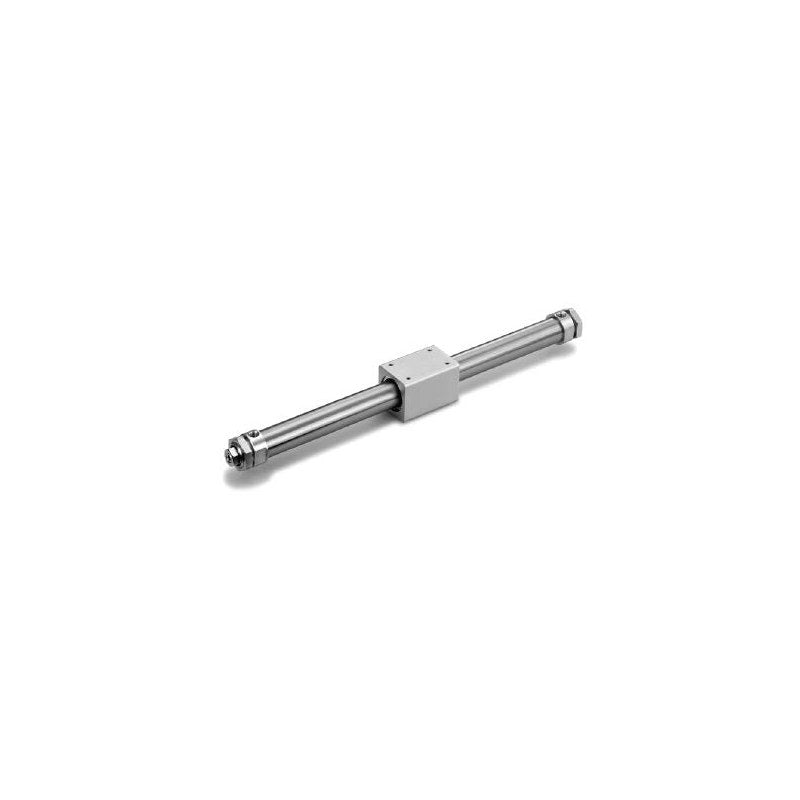

SMC REA Sine Rodless Cylinder (Basic Type, ø25 to ø63)

SMC REA series magnetically coupled sine rodless cylinder, basic type, ø25 to ø63 mm bore, with a sine-curve cushion that gives smooth acceleration and deceleration at up to 300 mm/s.

Key features

Cushion packing on the piston gives sine-curve acceleration/deceleration for shock-free transfer of fragile workpieces
Basic type without guide: the load is guided by a separate external guide and connected to the external slider
Magnetic coupling between piston and external slider; no rod, compact overall length
Rc port thread standard; NPT (TN) and G (TF) available as suffixes
Made-to-order: helical insert threads (X168), additional mounting taps (X206), external non-lube (X210/X324), long stroke (XB11), magnet-attracted shielding (XC24), floating joint (XC57)
Intermediate strokes available in 1 mm increments

Specifications

Fluid	Air
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.18 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 300 mm/s
Lubrication	Not required (non-lube)
Stroke tolerance	0-250 st: +1.0/0, 251-1000 st: +1.4/0, 1001 st-: +1.8/0 mm
Port thread	Rc (standard)
Cushion	Air cushion (non-adjustable)
Source	SMC Korea catalog REA/REB Series (SMCKR_REA.pdf), p. 29-38 (PDF pp. 7-16)

REA25-200		Bore: ø25 mm \| Stroke: 200 mm \| Holding force: 363 N
REA25-250		Bore: ø25 mm \| Stroke: 250 mm \| Holding force: 363 N
REA25-300		Bore: ø25 mm \| Stroke: 300 mm \| Holding force: 363 N
REA25-350		Bore: ø25 mm \| Stroke: 350 mm \| Holding force: 363 N
REA25-400		Bore: ø25 mm \| Stroke: 400 mm \| Holding force: 363 N
REA25-450		Bore: ø25 mm \| Stroke: 450 mm \| Holding force: 363 N
REA25-500		Bore: ø25 mm \| Stroke: 500 mm \| Holding force: 363 N
REA25-600		Bore: ø25 mm \| Stroke: 600 mm \| Holding force: 363 N
REA25-700		Bore: ø25 mm \| Stroke: 700 mm \| Holding force: 363 N
REA25-800		Bore: ø25 mm \| Stroke: 800 mm \| Holding force: 363 N
REA32-200		Bore: ø32 mm \| Stroke: 200 mm \| Holding force: 588 N
REA32-250		Bore: ø32 mm \| Stroke: 250 mm \| Holding force: 588 N
REA32-300		Bore: ø32 mm \| Stroke: 300 mm \| Holding force: 588 N
REA32-350		Bore: ø32 mm \| Stroke: 350 mm \| Holding force: 588 N
REA32-400		Bore: ø32 mm \| Stroke: 400 mm \| Holding force: 588 N
REA32-450		Bore: ø32 mm \| Stroke: 450 mm \| Holding force: 588 N
REA32-500		Bore: ø32 mm \| Stroke: 500 mm \| Holding force: 588 N
REA32-600		Bore: ø32 mm \| Stroke: 600 mm \| Holding force: 588 N
REA32-700		Bore: ø32 mm \| Stroke: 700 mm \| Holding force: 588 N
REA32-800		Bore: ø32 mm \| Stroke: 800 mm \| Holding force: 588 N
REA40-200		Bore: ø40 mm \| Stroke: 200 mm \| Holding force: 922 N
REA40-250		Bore: ø40 mm \| Stroke: 250 mm \| Holding force: 922 N
REA40-300		Bore: ø40 mm \| Stroke: 300 mm \| Holding force: 922 N
REA40-350		Bore: ø40 mm \| Stroke: 350 mm \| Holding force: 922 N
REA40-400		Bore: ø40 mm \| Stroke: 400 mm \| Holding force: 922 N
REA40-450		Bore: ø40 mm \| Stroke: 450 mm \| Holding force: 922 N
REA40-500		Bore: ø40 mm \| Stroke: 500 mm \| Holding force: 922 N
REA40-600		Bore: ø40 mm \| Stroke: 600 mm \| Holding force: 922 N
REA40-700		Bore: ø40 mm \| Stroke: 700 mm \| Holding force: 922 N
REA40-800		Bore: ø40 mm \| Stroke: 800 mm \| Holding force: 922 N
REA40-900		Bore: ø40 mm \| Stroke: 900 mm \| Holding force: 922 N
REA40-1000		Bore: ø40 mm \| Stroke: 1000 mm \| Holding force: 922 N
REA50-200		Bore: ø50 mm \| Stroke: 200 mm \| Holding force: 1470 N
REA50-250		Bore: ø50 mm \| Stroke: 250 mm \| Holding force: 1470 N
REA50-300		Bore: ø50 mm \| Stroke: 300 mm \| Holding force: 1470 N
REA50-350		Bore: ø50 mm \| Stroke: 350 mm \| Holding force: 1470 N
REA50-400		Bore: ø50 mm \| Stroke: 400 mm \| Holding force: 1470 N
REA50-450		Bore: ø50 mm \| Stroke: 450 mm \| Holding force: 1470 N
REA50-500		Bore: ø50 mm \| Stroke: 500 mm \| Holding force: 1470 N
REA50-600		Bore: ø50 mm \| Stroke: 600 mm \| Holding force: 1470 N
REA50-700		Bore: ø50 mm \| Stroke: 700 mm \| Holding force: 1470 N
REA50-800		Bore: ø50 mm \| Stroke: 800 mm \| Holding force: 1470 N
REA50-900		Bore: ø50 mm \| Stroke: 900 mm \| Holding force: 1470 N
REA50-1000		Bore: ø50 mm \| Stroke: 1000 mm \| Holding force: 1470 N
REA63-200		Bore: ø63 mm \| Stroke: 200 mm \| Holding force: 2260 N
REA63-250		Bore: ø63 mm \| Stroke: 250 mm \| Holding force: 2260 N
REA63-300		Bore: ø63 mm \| Stroke: 300 mm \| Holding force: 2260 N
REA63-350		Bore: ø63 mm \| Stroke: 350 mm \| Holding force: 2260 N
REA63-400		Bore: ø63 mm \| Stroke: 400 mm \| Holding force: 2260 N
REA63-450		Bore: ø63 mm \| Stroke: 450 mm \| Holding force: 2260 N
REA63-500		Bore: ø63 mm \| Stroke: 500 mm \| Holding force: 2260 N
REA63-600		Bore: ø63 mm \| Stroke: 600 mm \| Holding force: 2260 N
REA63-700		Bore: ø63 mm \| Stroke: 700 mm \| Holding force: 2260 N
REA63-800		Bore: ø63 mm \| Stroke: 800 mm \| Holding force: 2260 N
REA63-900		Bore: ø63 mm \| Stroke: 900 mm \| Holding force: 2260 N
REA63-1000		Bore: ø63 mm \| Stroke: 1000 mm \| Holding force: 2260 N
