SMC REAH/REAHT Sine Rodless Cylinder (Linear Guide, ø10 to ø32)

SMC REAH/REAHT Sine Rodless Cylinder (Linear Guide, ø10 to ø32)

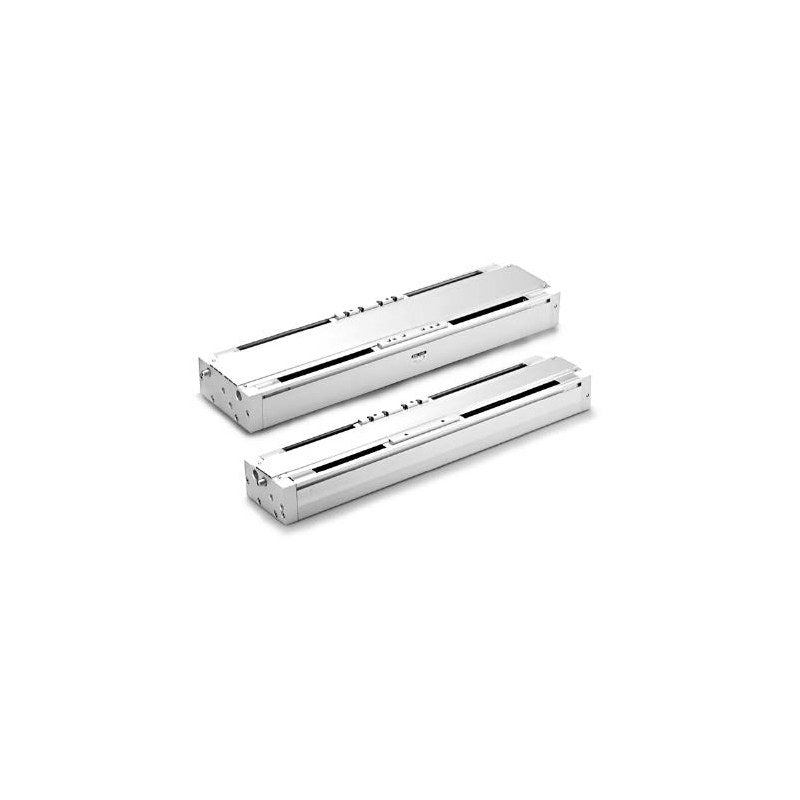

SMC REAH/REAHT series sine rodless cylinder with integrated linear guide (1-axis REAH ø10 to ø25, 2-axis REAHT ø25/ø32) for high loads and moments at up to 300 mm/s.

Key features

  • Sine-curve cushion for smooth start and soft stop; suited to pick-and-place and high-moment loads
  • Linear guide on a rigid track base: 1-axis (REAH) or 2-axis (REAHT) for higher allowable moment
  • Centralized piping; top cover and dust cover protect the interior; stroke adjustment at both ends
  • Built-in auto switch magnet; auto switches D-Y59/Y69/Y7 (solid state) and D-Z7/Z80 (reed) ordered as a suffix (e.g. -Y7BW)
  • NPT (TN) and G (TF) port threads as suffixes; helical insert threads (X168) and intermediate stroke spacer (XB10) on order

Specifications

Fluid Air
Action Double acting
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 70 to 300 mm/s
Lubrication Not required (non-lube)
Stroke tolerance 0 to +1.8 mm
Piping Centralized piping
Source SMC Korea catalog REA/REB Series (SMCKR_REA.pdf), p. 79-94 (PDF pp. 57-72)
REAH10-150 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 150 mm | Holding force: 53.9 N | Port: M5x0.8
REAH10-200 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 200 mm | Holding force: 53.9 N | Port: M5x0.8
REAH10-300 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 300 mm | Holding force: 53.9 N | Port: M5x0.8
REAH15-150 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 150 mm | Holding force: 137 N | Port: M5x0.8
REAH15-200 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 200 mm | Holding force: 137 N | Port: M5x0.8
REAH15-300 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 300 mm | Holding force: 137 N | Port: M5x0.8
REAH15-400 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 400 mm | Holding force: 137 N | Port: M5x0.8
REAH15-500 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 500 mm | Holding force: 137 N | Port: M5x0.8
REAH20-200 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 200 mm | Holding force: 231 N | Port: Rc1/8
REAH20-300 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 300 mm | Holding force: 231 N | Port: Rc1/8
REAH20-400 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 400 mm | Holding force: 231 N | Port: Rc1/8
REAH20-500 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 500 mm | Holding force: 231 N | Port: Rc1/8
REAH20-600 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 600 mm | Holding force: 231 N | Port: Rc1/8
REAH25-200 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Holding force: 363 N | Port: Rc1/8
REAH25-300 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Holding force: 363 N | Port: Rc1/8
REAH25-400 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Holding force: 363 N | Port: Rc1/8
REAH25-500 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Holding force: 363 N | Port: Rc1/8
REAH25-600 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Holding force: 363 N | Port: Rc1/8
REAH25-800 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-200 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-300 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-400 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-500 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-600 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-800 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Holding force: 363 N | Port: Rc1/8
REAHT25-1000 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 1000 mm | Holding force: 363 N | Port: Rc1/8
REAHT32-200 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 200 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-300 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 300 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-400 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 400 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-500 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 500 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-600 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 600 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-800 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 800 mm | Holding force: 588 N | Port: Rc1/8
REAHT32-1000 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 1000 mm | Holding force: 588 N | Port: Rc1/8
