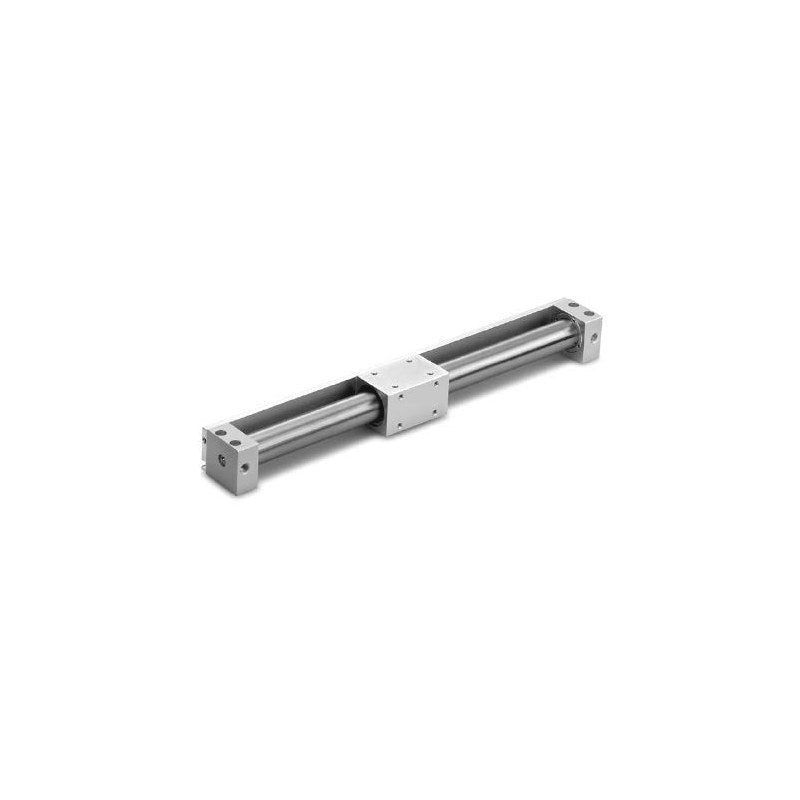

SMC REAR Sine Rodless Cylinder (Direct Mount Type, ø10 to ø40)

SMC REAR Sine Rodless Cylinder (Direct Mount Type, ø10 to ø40)

SMC REAR series magnetically coupled sine rodless cylinder, direct mount type, ø10 to ø40 mm bore, with sine-curve cushioning for smooth transfer at up to 300 mm/s.

Key features

  • Sine-curve cushion for smooth start and soft stop of fragile workpieces
  • Direct mount body; supplied with or without an auto switch rail (suffix N = without rail)
  • With switch rail the cylinder has a built-in auto switch magnet; ø15 has the magnet even without rail
  • ø20 switch-ready versions: blank = for reed switches, M = for solid-state switches (no switch fitted)
  • Auto switches D-M9N/P/B, M9W, M9A, A96, A93, A90 ordered as a suffix (e.g. -M9BW), shipped unmounted
  • M thread port (ø10, ø15) or Rc port (ø20 to ø40) standard; NPT (TN) and G (TF) as suffixes; floating joint (XC57) made to order

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.18 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 300 mm/s
Lubrication Not required (non-lube)
Stroke tolerance 0-250 st: +1.0/0, 251-1000 st: +1.4/0, 1001 st-: +1.8/0 mm
Cushion Air cushion (non-adjustable)
Source SMC Korea catalog REA/REB Series (SMCKR_REA.pdf), p. 39-50 (PDF pp. 17-28)
REAR10-150 Bore: ø10 mm | Stroke: 150 mm | Switch rail: With rail | Holding force: 53.9 N | Port: M thread
REAR10-150N Bore: ø10 mm | Stroke: 150 mm | Switch rail: Without rail | Holding force: 53.9 N | Port: M thread
REAR10-200 Bore: ø10 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 53.9 N | Port: M thread
REAR10-200N Bore: ø10 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 53.9 N | Port: M thread
REAR10-250 Bore: ø10 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 53.9 N | Port: M thread
REAR10-250N Bore: ø10 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 53.9 N | Port: M thread
REAR10-300 Bore: ø10 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 53.9 N | Port: M thread
REAR10-300N Bore: ø10 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 53.9 N | Port: M thread
REAR15-150 Bore: ø15 mm | Stroke: 150 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-150N Bore: ø15 mm | Stroke: 150 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-200 Bore: ø15 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-200N Bore: ø15 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-250 Bore: ø15 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-250N Bore: ø15 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-300 Bore: ø15 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-300N Bore: ø15 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-350 Bore: ø15 mm | Stroke: 350 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-350N Bore: ø15 mm | Stroke: 350 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-400 Bore: ø15 mm | Stroke: 400 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-400N Bore: ø15 mm | Stroke: 400 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-450 Bore: ø15 mm | Stroke: 450 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-450N Bore: ø15 mm | Stroke: 450 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR15-500 Bore: ø15 mm | Stroke: 500 mm | Switch rail: With rail | Holding force: 137 N | Port: M thread
REAR15-500N Bore: ø15 mm | Stroke: 500 mm | Switch rail: Without rail | Holding force: 137 N | Port: M thread
REAR20-200 Bore: ø20 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-200-M Bore: ø20 mm | Stroke: 200 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-200N Bore: ø20 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-250 Bore: ø20 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-250-M Bore: ø20 mm | Stroke: 250 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-250N Bore: ø20 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-300 Bore: ø20 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-300-M Bore: ø20 mm | Stroke: 300 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-300N Bore: ø20 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-350 Bore: ø20 mm | Stroke: 350 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-350-M Bore: ø20 mm | Stroke: 350 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-350N Bore: ø20 mm | Stroke: 350 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-400 Bore: ø20 mm | Stroke: 400 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-400-M Bore: ø20 mm | Stroke: 400 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-400N Bore: ø20 mm | Stroke: 400 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-450 Bore: ø20 mm | Stroke: 450 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-450-M Bore: ø20 mm | Stroke: 450 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-450N Bore: ø20 mm | Stroke: 450 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-500 Bore: ø20 mm | Stroke: 500 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-500-M Bore: ø20 mm | Stroke: 500 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-500N Bore: ø20 mm | Stroke: 500 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-600 Bore: ø20 mm | Stroke: 600 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-600-M Bore: ø20 mm | Stroke: 600 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-600N Bore: ø20 mm | Stroke: 600 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-700 Bore: ø20 mm | Stroke: 700 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-700-M Bore: ø20 mm | Stroke: 700 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-700N Bore: ø20 mm | Stroke: 700 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR20-800 Bore: ø20 mm | Stroke: 800 mm | Switch rail: With rail | Holding force: 231 N | Port: Rc
REAR20-800-M Bore: ø20 mm | Stroke: 800 mm | Switch rail: With rail, solid-state magnet | Holding force: 231 N | Port: Rc
REAR20-800N Bore: ø20 mm | Stroke: 800 mm | Switch rail: Without rail | Holding force: 231 N | Port: Rc
REAR25-200 Bore: ø25 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-200N Bore: ø25 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-250 Bore: ø25 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-250N Bore: ø25 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-300 Bore: ø25 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-300N Bore: ø25 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-350 Bore: ø25 mm | Stroke: 350 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-350N Bore: ø25 mm | Stroke: 350 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-400 Bore: ø25 mm | Stroke: 400 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-400N Bore: ø25 mm | Stroke: 400 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-450 Bore: ø25 mm | Stroke: 450 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-450N Bore: ø25 mm | Stroke: 450 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-500 Bore: ø25 mm | Stroke: 500 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-500N Bore: ø25 mm | Stroke: 500 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-600 Bore: ø25 mm | Stroke: 600 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-600N Bore: ø25 mm | Stroke: 600 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-700 Bore: ø25 mm | Stroke: 700 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-700N Bore: ø25 mm | Stroke: 700 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR25-800 Bore: ø25 mm | Stroke: 800 mm | Switch rail: With rail | Holding force: 363 N | Port: Rc
REAR25-800N Bore: ø25 mm | Stroke: 800 mm | Switch rail: Without rail | Holding force: 363 N | Port: Rc
REAR32-200 Bore: ø32 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-200N Bore: ø32 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-250 Bore: ø32 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-250N Bore: ø32 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-300 Bore: ø32 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-300N Bore: ø32 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-350 Bore: ø32 mm | Stroke: 350 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-350N Bore: ø32 mm | Stroke: 350 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-400 Bore: ø32 mm | Stroke: 400 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-400N Bore: ø32 mm | Stroke: 400 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-450 Bore: ø32 mm | Stroke: 450 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-450N Bore: ø32 mm | Stroke: 450 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-500 Bore: ø32 mm | Stroke: 500 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-500N Bore: ø32 mm | Stroke: 500 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-600 Bore: ø32 mm | Stroke: 600 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-600N Bore: ø32 mm | Stroke: 600 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-700 Bore: ø32 mm | Stroke: 700 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-700N Bore: ø32 mm | Stroke: 700 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR32-800 Bore: ø32 mm | Stroke: 800 mm | Switch rail: With rail | Holding force: 588 N | Port: Rc
REAR32-800N Bore: ø32 mm | Stroke: 800 mm | Switch rail: Without rail | Holding force: 588 N | Port: Rc
REAR40-200 Bore: ø40 mm | Stroke: 200 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-200N Bore: ø40 mm | Stroke: 200 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-250 Bore: ø40 mm | Stroke: 250 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-250N Bore: ø40 mm | Stroke: 250 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-300 Bore: ø40 mm | Stroke: 300 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-300N Bore: ø40 mm | Stroke: 300 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-350 Bore: ø40 mm | Stroke: 350 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-350N Bore: ø40 mm | Stroke: 350 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-400 Bore: ø40 mm | Stroke: 400 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-400N Bore: ø40 mm | Stroke: 400 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-450 Bore: ø40 mm | Stroke: 450 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-450N Bore: ø40 mm | Stroke: 450 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-500 Bore: ø40 mm | Stroke: 500 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-500N Bore: ø40 mm | Stroke: 500 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-600 Bore: ø40 mm | Stroke: 600 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-600N Bore: ø40 mm | Stroke: 600 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-700 Bore: ø40 mm | Stroke: 700 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-700N Bore: ø40 mm | Stroke: 700 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-800 Bore: ø40 mm | Stroke: 800 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-800N Bore: ø40 mm | Stroke: 800 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-900 Bore: ø40 mm | Stroke: 900 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-900N Bore: ø40 mm | Stroke: 900 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
REAR40-1000 Bore: ø40 mm | Stroke: 1000 mm | Switch rail: With rail | Holding force: 922 N | Port: Rc
REAR40-1000N Bore: ø40 mm | Stroke: 1000 mm | Switch rail: Without rail | Holding force: 922 N | Port: Rc
