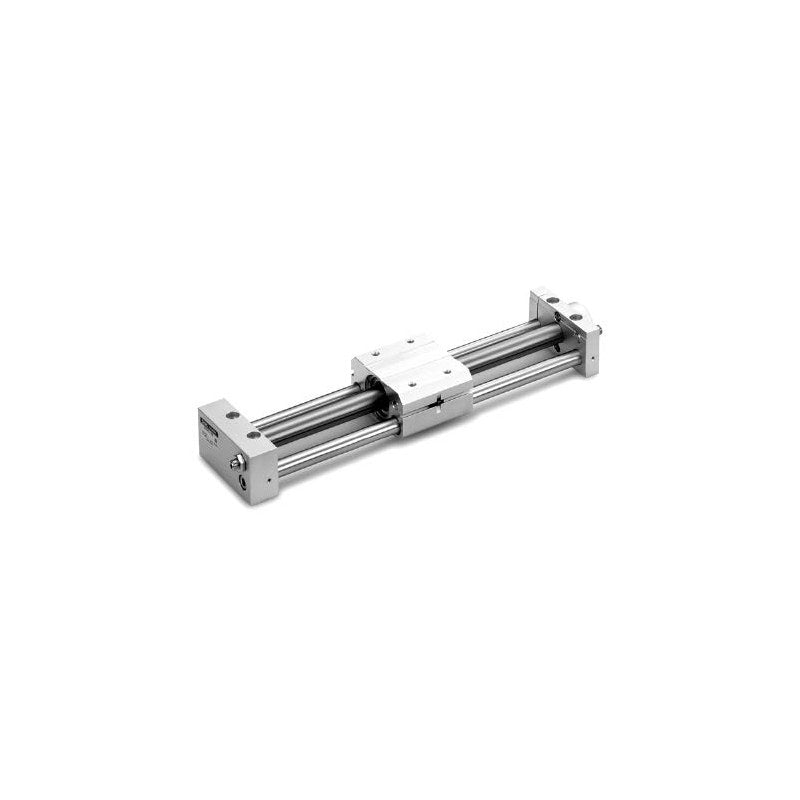

SMC REAS Sine Rodless Cylinder (Slider, Slide Bearing, ø10 to ø40)

SMC REAS Sine Rodless Cylinder (Slider, Slide Bearing, ø10 to ø40)

SMC REAS series magnetically coupled sine rodless cylinder, slider type with slide bearing guide, ø10 to ø40 mm bore, for smooth load transfer at up to 300 mm/s.

Key features

  • Sine-curve cushion for smooth start and soft stop of fragile workpieces
  • Integrated slide block guided on two shafts with slide bearing for direct load mounting
  • Built-in auto switch magnet; auto switches D-F7/J79 (solid state) and D-A7/A8 (reed) series ordered as a suffix (e.g. -J79W)
  • Stroke adjustment at both ends via adjusting bolts
  • M thread port (ø10, ø15) or Rc port (ø20 to ø40) standard; NPT (TN) and G (TF) as suffixes
  • Made-to-order: helical insert threads (X168), external non-lube (X210/X324), auto switch rails on both sides (X431)

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.18 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 300 mm/s
Lubrication Not required (non-lube)
Guide Slide bearing
Stroke tolerance 0-250 st: +1.0/0, 251-1000 st: +1.4/0, 1001 st-: +1.8/0 mm
Cushion Air cushion (non-adjustable)
Source SMC Korea catalog REA/REB Series (SMCKR_REA.pdf), p. 51-63 (PDF pp. 29-41)
REAS10-150 Bore: ø10 mm | Stroke: 150 mm | Holding force: 53.9 N | Port: M thread
REAS10-200 Bore: ø10 mm | Stroke: 200 mm | Holding force: 53.9 N | Port: M thread
REAS10-250 Bore: ø10 mm | Stroke: 250 mm | Holding force: 53.9 N | Port: M thread
REAS10-300 Bore: ø10 mm | Stroke: 300 mm | Holding force: 53.9 N | Port: M thread
REAS15-150 Bore: ø15 mm | Stroke: 150 mm | Holding force: 137 N | Port: M thread
REAS15-200 Bore: ø15 mm | Stroke: 200 mm | Holding force: 137 N | Port: M thread
REAS15-250 Bore: ø15 mm | Stroke: 250 mm | Holding force: 137 N | Port: M thread
REAS15-300 Bore: ø15 mm | Stroke: 300 mm | Holding force: 137 N | Port: M thread
REAS15-350 Bore: ø15 mm | Stroke: 350 mm | Holding force: 137 N | Port: M thread
REAS15-400 Bore: ø15 mm | Stroke: 400 mm | Holding force: 137 N | Port: M thread
REAS15-450 Bore: ø15 mm | Stroke: 450 mm | Holding force: 137 N | Port: M thread
REAS15-500 Bore: ø15 mm | Stroke: 500 mm | Holding force: 137 N | Port: M thread
REAS20-200 Bore: ø20 mm | Stroke: 200 mm | Holding force: 231 N | Port: Rc
REAS20-250 Bore: ø20 mm | Stroke: 250 mm | Holding force: 231 N | Port: Rc
REAS20-300 Bore: ø20 mm | Stroke: 300 mm | Holding force: 231 N | Port: Rc
REAS20-350 Bore: ø20 mm | Stroke: 350 mm | Holding force: 231 N | Port: Rc
REAS20-400 Bore: ø20 mm | Stroke: 400 mm | Holding force: 231 N | Port: Rc
REAS20-450 Bore: ø20 mm | Stroke: 450 mm | Holding force: 231 N | Port: Rc
REAS20-500 Bore: ø20 mm | Stroke: 500 mm | Holding force: 231 N | Port: Rc
REAS20-600 Bore: ø20 mm | Stroke: 600 mm | Holding force: 231 N | Port: Rc
REAS20-700 Bore: ø20 mm | Stroke: 700 mm | Holding force: 231 N | Port: Rc
REAS20-800 Bore: ø20 mm | Stroke: 800 mm | Holding force: 231 N | Port: Rc
REAS25-200 Bore: ø25 mm | Stroke: 200 mm | Holding force: 363 N | Port: Rc
REAS25-250 Bore: ø25 mm | Stroke: 250 mm | Holding force: 363 N | Port: Rc
REAS25-300 Bore: ø25 mm | Stroke: 300 mm | Holding force: 363 N | Port: Rc
REAS25-350 Bore: ø25 mm | Stroke: 350 mm | Holding force: 363 N | Port: Rc
REAS25-400 Bore: ø25 mm | Stroke: 400 mm | Holding force: 363 N | Port: Rc
REAS25-450 Bore: ø25 mm | Stroke: 450 mm | Holding force: 363 N | Port: Rc
REAS25-500 Bore: ø25 mm | Stroke: 500 mm | Holding force: 363 N | Port: Rc
REAS25-600 Bore: ø25 mm | Stroke: 600 mm | Holding force: 363 N | Port: Rc
REAS25-700 Bore: ø25 mm | Stroke: 700 mm | Holding force: 363 N | Port: Rc
REAS25-800 Bore: ø25 mm | Stroke: 800 mm | Holding force: 363 N | Port: Rc
REAS32-200 Bore: ø32 mm | Stroke: 200 mm | Holding force: 588 N | Port: Rc
REAS32-250 Bore: ø32 mm | Stroke: 250 mm | Holding force: 588 N | Port: Rc
REAS32-300 Bore: ø32 mm | Stroke: 300 mm | Holding force: 588 N | Port: Rc
REAS32-350 Bore: ø32 mm | Stroke: 350 mm | Holding force: 588 N | Port: Rc
REAS32-400 Bore: ø32 mm | Stroke: 400 mm | Holding force: 588 N | Port: Rc
REAS32-450 Bore: ø32 mm | Stroke: 450 mm | Holding force: 588 N | Port: Rc
REAS32-500 Bore: ø32 mm | Stroke: 500 mm | Holding force: 588 N | Port: Rc
REAS32-600 Bore: ø32 mm | Stroke: 600 mm | Holding force: 588 N | Port: Rc
REAS32-700 Bore: ø32 mm | Stroke: 700 mm | Holding force: 588 N | Port: Rc
REAS32-800 Bore: ø32 mm | Stroke: 800 mm | Holding force: 588 N | Port: Rc
REAS40-200 Bore: ø40 mm | Stroke: 200 mm | Holding force: 922 N | Port: Rc
REAS40-250 Bore: ø40 mm | Stroke: 250 mm | Holding force: 922 N | Port: Rc
REAS40-300 Bore: ø40 mm | Stroke: 300 mm | Holding force: 922 N | Port: Rc
REAS40-350 Bore: ø40 mm | Stroke: 350 mm | Holding force: 922 N | Port: Rc
REAS40-400 Bore: ø40 mm | Stroke: 400 mm | Holding force: 922 N | Port: Rc
REAS40-450 Bore: ø40 mm | Stroke: 450 mm | Holding force: 922 N | Port: Rc
REAS40-500 Bore: ø40 mm | Stroke: 500 mm | Holding force: 922 N | Port: Rc
REAS40-600 Bore: ø40 mm | Stroke: 600 mm | Holding force: 922 N | Port: Rc
REAS40-700 Bore: ø40 mm | Stroke: 700 mm | Holding force: 922 N | Port: Rc
REAS40-800 Bore: ø40 mm | Stroke: 800 mm | Holding force: 922 N | Port: Rc
REAS40-900 Bore: ø40 mm | Stroke: 900 mm | Holding force: 922 N | Port: Rc
REAS40-1000 Bore: ø40 mm | Stroke: 1000 mm | Holding force: 922 N | Port: Rc
