SMC REBH/REBHT Sine Rodless Cylinder (Linear Guide, 600 mm/s)

SMC REBH/REBHT Sine Rodless Cylinder (Linear Guide, 600 mm/s)

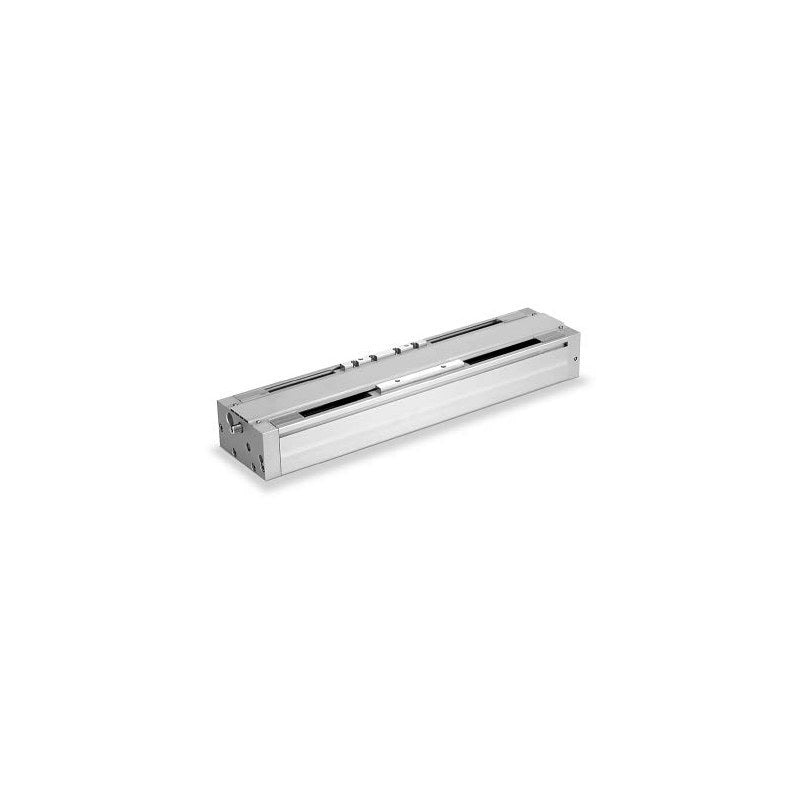

SMC REBH/REBHT series high-speed sine rodless cylinder with integrated linear guide (1-axis REBH ø15/ø25, 2-axis REBHT ø25/ø32), up to 600 mm/s.

Key features

  • Max. speed 600 mm/s with sine-curve cushion for fast, shock-free pick-and-place
  • Linear guide on a rigid track base: 1-axis (REBH) or 2-axis (REBHT) for higher allowable moment
  • Centralized piping; top cover and dust cover; stroke adjustment at both ends
  • Built-in auto switch magnet; auto switches D-Y59/Y69/Y7 (solid state) and D-Z7/Z80 (reed) ordered as a suffix (e.g. -Y59A)
  • NPT (TN) and G (TF) port threads as suffixes; helical insert threads (X168) and intermediate stroke spacer (XB10) on order

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 70 to 600 mm/s
Lubrication Not required (non-lube)
Stroke tolerance 0 to +1.8 mm
Piping Centralized piping
Source SMC Korea catalog REA/REB Series (SMCKR_REA.pdf), p. 107-124 (PDF pp. 85-101)
REBH15-150 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 150 mm | Holding force: 137 N | Port: M5x0.8
REBH15-200 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 200 mm | Holding force: 137 N | Port: M5x0.8
REBH15-300 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 300 mm | Holding force: 137 N | Port: M5x0.8
REBH15-400 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 400 mm | Holding force: 137 N | Port: M5x0.8
REBH15-500 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 500 mm | Holding force: 137 N | Port: M5x0.8
REBH25-200 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Holding force: 363 N | Port: Rc1/8
REBH25-300 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Holding force: 363 N | Port: Rc1/8
REBH25-400 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Holding force: 363 N | Port: Rc1/8
REBH25-500 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Holding force: 363 N | Port: Rc1/8
REBH25-600 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Holding force: 363 N | Port: Rc1/8
REBH25-800 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-200 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-300 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-400 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-500 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-600 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-800 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Holding force: 363 N | Port: Rc1/8
REBHT25-1000 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 1000 mm | Holding force: 363 N | Port: Rc1/8
REBHT32-200 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 200 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-300 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 300 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-400 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 400 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-500 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 500 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-600 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 600 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-800 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 800 mm | Holding force: 588 N | Port: Rc1/8
REBHT32-1000 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 1000 mm | Holding force: 588 N | Port: Rc1/8
