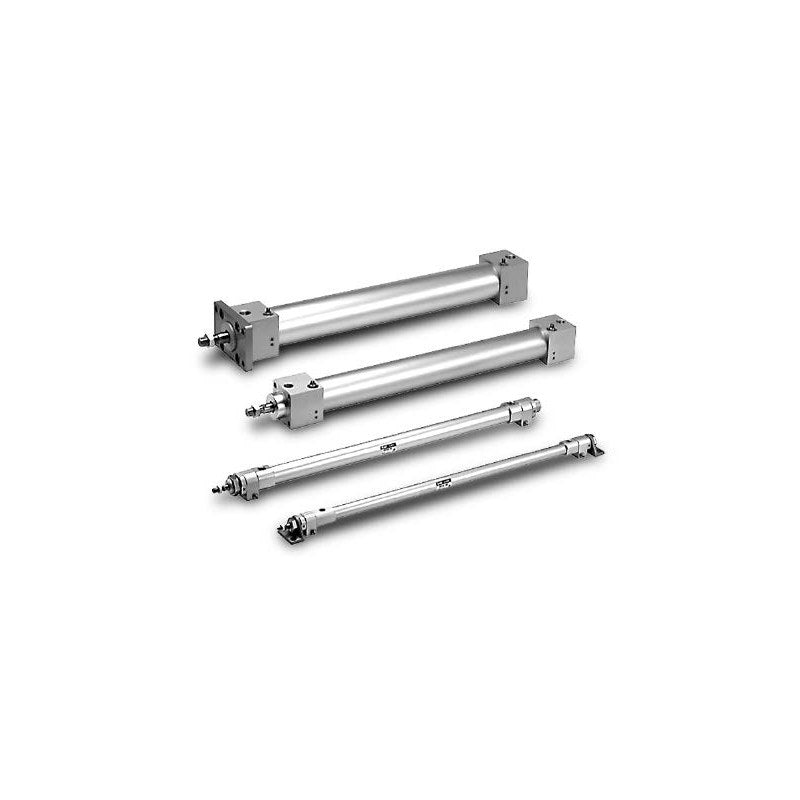

SMC RHC High Power Cylinder (ø20 to ø100)

SMC RHC High Power Cylinder (ø20 to ø100)

SMC RHC series high power cylinder for high speed (up to 3000 mm/s) light loads and medium speed heavy loads, with 10 to 20 times the energy absorption of general cylinders, ø20 to ø100 mm bore.

Key features

  • Relief valve type air cushion with long cushion ring and strong cushion packing for large kinetic energy absorption
  • Enlarged supply/exhaust port orifice for high speed drive up to 3000 mm/s
  • Built-in magnet as standard for auto switches (D-M9, A9, H7, C7, B5, G5 and others ordered as suffix)
  • Mounting: basic (B), axial foot (L), rod flange (F), head flange (G)
  • NPT port (TN), auto switch mounting brackets and made-to-order -XC3, -XC6, -XC93 are ordered as suffixes
  • Listed strokes are representative: recommended min. 250 mm, standard up to 700 to 1500 mm by bore, any stroke orderable

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 3000 mm/s
Cushion Air cushion, effective cushion stroke 80 mm
Max. absorbed energy ø20 7 J to ø100 196 J
Port thread Rc (NPT on order)
Lubrication Not required (non-lube)
Stroke tolerance up to 1000 st +1.4/0 mm; 1001 to 1500 st +1.8/0 mm
Source SMC Korea catalog RHC Series (SMCKR_RHC.pdf), p. 359-379 (PDF p. 1-21, How to Order PDF p. 7-8)
RHCB20-250 Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm
RHCB20-300 Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm
RHCB20-350 Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm
RHCB20-400 Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm
RHCB20-450 Mounting: Basic | Bore: ø20 mm | Stroke: 450 mm
RHCB20-500 Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm
RHCB20-600 Mounting: Basic | Bore: ø20 mm | Stroke: 600 mm
RHCB20-700 Mounting: Basic | Bore: ø20 mm | Stroke: 700 mm
RHCB25-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm
RHCB25-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm
RHCB25-350 Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm
RHCB25-400 Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm
RHCB25-450 Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm
RHCB25-500 Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm
RHCB25-600 Mounting: Basic | Bore: ø25 mm | Stroke: 600 mm
RHCB25-700 Mounting: Basic | Bore: ø25 mm | Stroke: 700 mm
RHCB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm
RHCB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm
RHCB32-350 Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm
RHCB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm
RHCB32-450 Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm
RHCB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm
RHCB32-600 Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm
RHCB32-700 Mounting: Basic | Bore: ø32 mm | Stroke: 700 mm
RHCB32-800 Mounting: Basic | Bore: ø32 mm | Stroke: 800 mm
RHCB32-900 Mounting: Basic | Bore: ø32 mm | Stroke: 900 mm
RHCB32-1000 Mounting: Basic | Bore: ø32 mm | Stroke: 1000 mm
RHCB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm
RHCB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm
RHCB40-350 Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm
RHCB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm
RHCB40-450 Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm
RHCB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm
RHCB40-600 Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm
RHCB40-700 Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm
RHCB40-800 Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm
RHCB40-900 Mounting: Basic | Bore: ø40 mm | Stroke: 900 mm
RHCB40-1000 Mounting: Basic | Bore: ø40 mm | Stroke: 1000 mm
RHCB50-250 Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm
RHCB50-300 Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm
RHCB50-350 Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm
RHCB50-400 Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm
RHCB50-450 Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm
RHCB50-500 Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm
RHCB50-600 Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm
RHCB50-700 Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm
RHCB50-800 Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm
RHCB50-900 Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm
RHCB50-1000 Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm
RHCB50-1100 Mounting: Basic | Bore: ø50 mm | Stroke: 1100 mm
RHCB50-1200 Mounting: Basic | Bore: ø50 mm | Stroke: 1200 mm
RHCB63-250 Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm
RHCB63-300 Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm
RHCB63-350 Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm
RHCB63-400 Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm
RHCB63-450 Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm
RHCB63-500 Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm
RHCB63-600 Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm
RHCB63-700 Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm
RHCB63-800 Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm
RHCB63-900 Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm
RHCB63-1000 Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm
RHCB63-1100 Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm
RHCB63-1200 Mounting: Basic | Bore: ø63 mm | Stroke: 1200 mm
RHCB80-250 Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm
RHCB80-300 Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm
RHCB80-350 Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm
RHCB80-400 Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm
RHCB80-450 Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm
RHCB80-500 Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm
RHCB80-600 Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm
RHCB80-700 Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm
RHCB80-800 Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm
RHCB80-900 Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm
RHCB80-1000 Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm
RHCB80-1100 Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm
RHCB80-1200 Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm
RHCB80-1300 Mounting: Basic | Bore: ø80 mm | Stroke: 1300 mm
RHCB80-1400 Mounting: Basic | Bore: ø80 mm | Stroke: 1400 mm
RHCB100-250 Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm
RHCB100-300 Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm
RHCB100-350 Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm
RHCB100-400 Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm
RHCB100-450 Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm
RHCB100-500 Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm
RHCB100-600 Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm
RHCB100-700 Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm
RHCB100-800 Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm
RHCB100-900 Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm
RHCB100-1000 Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm
RHCB100-1100 Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm
RHCB100-1200 Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm
RHCB100-1300 Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm
RHCB100-1400 Mounting: Basic | Bore: ø100 mm | Stroke: 1400 mm
RHCB100-1500 Mounting: Basic | Bore: ø100 mm | Stroke: 1500 mm
RHCL20-250 Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm
RHCL20-300 Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm
RHCL20-350 Mounting: Axial foot | Bore: ø20 mm | Stroke: 350 mm
RHCL20-400 Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm
RHCL20-450 Mounting: Axial foot | Bore: ø20 mm | Stroke: 450 mm
RHCL20-500 Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm
RHCL20-600 Mounting: Axial foot | Bore: ø20 mm | Stroke: 600 mm
RHCL20-700 Mounting: Axial foot | Bore: ø20 mm | Stroke: 700 mm
RHCL25-250 Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm
RHCL25-300 Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm
RHCL25-350 Mounting: Axial foot | Bore: ø25 mm | Stroke: 350 mm
RHCL25-400 Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm
RHCL25-450 Mounting: Axial foot | Bore: ø25 mm | Stroke: 450 mm
RHCL25-500 Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm
RHCL25-600 Mounting: Axial foot | Bore: ø25 mm | Stroke: 600 mm
RHCL25-700 Mounting: Axial foot | Bore: ø25 mm | Stroke: 700 mm
RHCL32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm
RHCL32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm
RHCL32-350 Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm
RHCL32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm
RHCL32-450 Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm
RHCL32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm
RHCL32-600 Mounting: Axial foot | Bore: ø32 mm | Stroke: 600 mm
RHCL32-700 Mounting: Axial foot | Bore: ø32 mm | Stroke: 700 mm
RHCL32-800 Mounting: Axial foot | Bore: ø32 mm | Stroke: 800 mm
RHCL32-900 Mounting: Axial foot | Bore: ø32 mm | Stroke: 900 mm
RHCL32-1000 Mounting: Axial foot | Bore: ø32 mm | Stroke: 1000 mm
RHCL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm
RHCL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm
RHCL40-350 Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm
RHCL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm
RHCL40-450 Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm
RHCL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm
RHCL40-600 Mounting: Axial foot | Bore: ø40 mm | Stroke: 600 mm
RHCL40-700 Mounting: Axial foot | Bore: ø40 mm | Stroke: 700 mm
RHCL40-800 Mounting: Axial foot | Bore: ø40 mm | Stroke: 800 mm
RHCL40-900 Mounting: Axial foot | Bore: ø40 mm | Stroke: 900 mm
RHCL40-1000 Mounting: Axial foot | Bore: ø40 mm | Stroke: 1000 mm
RHCL50-250 Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm
RHCL50-300 Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm
RHCL50-350 Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm
RHCL50-400 Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm
RHCL50-450 Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm
RHCL50-500 Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm
RHCL50-600 Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm
RHCL50-700 Mounting: Axial foot | Bore: ø50 mm | Stroke: 700 mm
RHCL50-800 Mounting: Axial foot | Bore: ø50 mm | Stroke: 800 mm
RHCL50-900 Mounting: Axial foot | Bore: ø50 mm | Stroke: 900 mm
RHCL50-1000 Mounting: Axial foot | Bore: ø50 mm | Stroke: 1000 mm
RHCL50-1100 Mounting: Axial foot | Bore: ø50 mm | Stroke: 1100 mm
RHCL50-1200 Mounting: Axial foot | Bore: ø50 mm | Stroke: 1200 mm
RHCL63-250 Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm
RHCL63-300 Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm
RHCL63-350 Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm
RHCL63-400 Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm
RHCL63-450 Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm
RHCL63-500 Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm
RHCL63-600 Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm
RHCL63-700 Mounting: Axial foot | Bore: ø63 mm | Stroke: 700 mm
RHCL63-800 Mounting: Axial foot | Bore: ø63 mm | Stroke: 800 mm
RHCL63-900 Mounting: Axial foot | Bore: ø63 mm | Stroke: 900 mm
RHCL63-1000 Mounting: Axial foot | Bore: ø63 mm | Stroke: 1000 mm
RHCL63-1100 Mounting: Axial foot | Bore: ø63 mm | Stroke: 1100 mm
RHCL63-1200 Mounting: Axial foot | Bore: ø63 mm | Stroke: 1200 mm
RHCL80-250 Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm
RHCL80-300 Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm
RHCL80-350 Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm
RHCL80-400 Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm
RHCL80-450 Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm
RHCL80-500 Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm
RHCL80-600 Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm
RHCL80-700 Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm
RHCL80-800 Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm
RHCL80-900 Mounting: Axial foot | Bore: ø80 mm | Stroke: 900 mm
RHCL80-1000 Mounting: Axial foot | Bore: ø80 mm | Stroke: 1000 mm
RHCL80-1100 Mounting: Axial foot | Bore: ø80 mm | Stroke: 1100 mm
RHCL80-1200 Mounting: Axial foot | Bore: ø80 mm | Stroke: 1200 mm
RHCL80-1300 Mounting: Axial foot | Bore: ø80 mm | Stroke: 1300 mm
RHCL80-1400 Mounting: Axial foot | Bore: ø80 mm | Stroke: 1400 mm
RHCL100-250 Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm
RHCL100-300 Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm
RHCL100-350 Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm
RHCL100-400 Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm
RHCL100-450 Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm
RHCL100-500 Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm
RHCL100-600 Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm
RHCL100-700 Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm
RHCL100-800 Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm
RHCL100-900 Mounting: Axial foot | Bore: ø100 mm | Stroke: 900 mm
RHCL100-1000 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1000 mm
RHCL100-1100 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1100 mm
RHCL100-1200 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1200 mm
RHCL100-1300 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1300 mm
RHCL100-1400 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1400 mm
RHCL100-1500 Mounting: Axial foot | Bore: ø100 mm | Stroke: 1500 mm
RHCF20-250 Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm
RHCF20-300 Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm
RHCF20-350 Mounting: Rod flange | Bore: ø20 mm | Stroke: 350 mm
RHCF20-400 Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm
RHCF20-450 Mounting: Rod flange | Bore: ø20 mm | Stroke: 450 mm
RHCF20-500 Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm
RHCF20-600 Mounting: Rod flange | Bore: ø20 mm | Stroke: 600 mm
RHCF20-700 Mounting: Rod flange | Bore: ø20 mm | Stroke: 700 mm
RHCF25-250 Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm
RHCF25-300 Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm
RHCF25-350 Mounting: Rod flange | Bore: ø25 mm | Stroke: 350 mm
RHCF25-400 Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm
RHCF25-450 Mounting: Rod flange | Bore: ø25 mm | Stroke: 450 mm
RHCF25-500 Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm
RHCF25-600 Mounting: Rod flange | Bore: ø25 mm | Stroke: 600 mm
RHCF25-700 Mounting: Rod flange | Bore: ø25 mm | Stroke: 700 mm
RHCF32-250 Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm
RHCF32-300 Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm
RHCF32-350 Mounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm
RHCF32-400 Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm
RHCF32-450 Mounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm
RHCF32-500 Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm
RHCF32-600 Mounting: Rod flange | Bore: ø32 mm | Stroke: 600 mm
RHCF32-700 Mounting: Rod flange | Bore: ø32 mm | Stroke: 700 mm
RHCF32-800 Mounting: Rod flange | Bore: ø32 mm | Stroke: 800 mm
RHCF32-900 Mounting: Rod flange | Bore: ø32 mm | Stroke: 900 mm
RHCF32-1000 Mounting: Rod flange | Bore: ø32 mm | Stroke: 1000 mm
RHCF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm
RHCF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm
RHCF40-350 Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm
RHCF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm
RHCF40-450 Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm
RHCF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm
RHCF40-600 Mounting: Rod flange | Bore: ø40 mm | Stroke: 600 mm
RHCF40-700 Mounting: Rod flange | Bore: ø40 mm | Stroke: 700 mm
RHCF40-800 Mounting: Rod flange | Bore: ø40 mm | Stroke: 800 mm
RHCF40-900 Mounting: Rod flange | Bore: ø40 mm | Stroke: 900 mm
RHCF40-1000 Mounting: Rod flange | Bore: ø40 mm | Stroke: 1000 mm
RHCF50-250 Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm
RHCF50-300 Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm
RHCF50-350 Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm
RHCF50-400 Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm
RHCF50-450 Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm
RHCF50-500 Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm
RHCF50-600 Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm
RHCF50-700 Mounting: Rod flange | Bore: ø50 mm | Stroke: 700 mm
RHCF50-800 Mounting: Rod flange | Bore: ø50 mm | Stroke: 800 mm
RHCF50-900 Mounting: Rod flange | Bore: ø50 mm | Stroke: 900 mm
RHCF50-1000 Mounting: Rod flange | Bore: ø50 mm | Stroke: 1000 mm
RHCF50-1100 Mounting: Rod flange | Bore: ø50 mm | Stroke: 1100 mm
RHCF50-1200 Mounting: Rod flange | Bore: ø50 mm | Stroke: 1200 mm
RHCF63-250 Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm
RHCF63-300 Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm
RHCF63-350 Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm
RHCF63-400 Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm
RHCF63-450 Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm
RHCF63-500 Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm
RHCF63-600 Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm
RHCF63-700 Mounting: Rod flange | Bore: ø63 mm | Stroke: 700 mm
RHCF63-800 Mounting: Rod flange | Bore: ø63 mm | Stroke: 800 mm
RHCF63-900 Mounting: Rod flange | Bore: ø63 mm | Stroke: 900 mm
RHCF63-1000 Mounting: Rod flange | Bore: ø63 mm | Stroke: 1000 mm
RHCF63-1100 Mounting: Rod flange | Bore: ø63 mm | Stroke: 1100 mm
RHCF63-1200 Mounting: Rod flange | Bore: ø63 mm | Stroke: 1200 mm
RHCF80-250 Mounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm
RHCF80-300 Mounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm
RHCF80-350 Mounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm
RHCF80-400 Mounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm
RHCF80-450 Mounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm
RHCF80-500 Mounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm
RHCF80-600 Mounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm
RHCF80-700 Mounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm
RHCF80-800 Mounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm
RHCF80-900 Mounting: Rod flange | Bore: ø80 mm | Stroke: 900 mm
RHCF80-1000 Mounting: Rod flange | Bore: ø80 mm | Stroke: 1000 mm
RHCF80-1100 Mounting: Rod flange | Bore: ø80 mm | Stroke: 1100 mm
RHCF80-1200 Mounting: Rod flange | Bore: ø80 mm | Stroke: 1200 mm
RHCF80-1300 Mounting: Rod flange | Bore: ø80 mm | Stroke: 1300 mm
RHCF80-1400 Mounting: Rod flange | Bore: ø80 mm | Stroke: 1400 mm
RHCF100-250 Mounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm
RHCF100-300 Mounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm
RHCF100-350 Mounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm
RHCF100-400 Mounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm
RHCF100-450 Mounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm
RHCF100-500 Mounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm
RHCF100-600 Mounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm
RHCF100-700 Mounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm
RHCF100-800 Mounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm
RHCF100-900 Mounting: Rod flange | Bore: ø100 mm | Stroke: 900 mm
RHCF100-1000 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1000 mm
RHCF100-1100 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1100 mm
RHCF100-1200 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1200 mm
RHCF100-1300 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1300 mm
RHCF100-1400 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1400 mm
RHCF100-1500 Mounting: Rod flange | Bore: ø100 mm | Stroke: 1500 mm
RHCG20-250 Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm
RHCG20-300 Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm
RHCG20-350 Mounting: Head flange | Bore: ø20 mm | Stroke: 350 mm
RHCG20-400 Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm
RHCG20-450 Mounting: Head flange | Bore: ø20 mm | Stroke: 450 mm
RHCG20-500 Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm
RHCG20-600 Mounting: Head flange | Bore: ø20 mm | Stroke: 600 mm
RHCG20-700 Mounting: Head flange | Bore: ø20 mm | Stroke: 700 mm
RHCG25-250 Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm
RHCG25-300 Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm
RHCG25-350 Mounting: Head flange | Bore: ø25 mm | Stroke: 350 mm
RHCG25-400 Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm
RHCG25-450 Mounting: Head flange | Bore: ø25 mm | Stroke: 450 mm
RHCG25-500 Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm
RHCG25-600 Mounting: Head flange | Bore: ø25 mm | Stroke: 600 mm
RHCG25-700 Mounting: Head flange | Bore: ø25 mm | Stroke: 700 mm
RHCG32-250 Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm
RHCG32-300 Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm
RHCG32-350 Mounting: Head flange | Bore: ø32 mm | Stroke: 350 mm
RHCG32-400 Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm
RHCG32-450 Mounting: Head flange | Bore: ø32 mm | Stroke: 450 mm
RHCG32-500 Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm
RHCG32-600 Mounting: Head flange | Bore: ø32 mm | Stroke: 600 mm
RHCG32-700 Mounting: Head flange | Bore: ø32 mm | Stroke: 700 mm
RHCG32-800 Mounting: Head flange | Bore: ø32 mm | Stroke: 800 mm
RHCG32-900 Mounting: Head flange | Bore: ø32 mm | Stroke: 900 mm
RHCG32-1000 Mounting: Head flange | Bore: ø32 mm | Stroke: 1000 mm
RHCG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm
RHCG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm
RHCG40-350 Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm
RHCG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm
RHCG40-450 Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm
RHCG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm
RHCG40-600 Mounting: Head flange | Bore: ø40 mm | Stroke: 600 mm
RHCG40-700 Mounting: Head flange | Bore: ø40 mm | Stroke: 700 mm
RHCG40-800 Mounting: Head flange | Bore: ø40 mm | Stroke: 800 mm
RHCG40-900 Mounting: Head flange | Bore: ø40 mm | Stroke: 900 mm
RHCG40-1000 Mounting: Head flange | Bore: ø40 mm | Stroke: 1000 mm
RHCG50-250 Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm
RHCG50-300 Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm
RHCG50-350 Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm
RHCG50-400 Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm
RHCG50-450 Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm
RHCG50-500 Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm
RHCG50-600 Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm
RHCG50-700 Mounting: Head flange | Bore: ø50 mm | Stroke: 700 mm
RHCG50-800 Mounting: Head flange | Bore: ø50 mm | Stroke: 800 mm
RHCG50-900 Mounting: Head flange | Bore: ø50 mm | Stroke: 900 mm
RHCG50-1000 Mounting: Head flange | Bore: ø50 mm | Stroke: 1000 mm
RHCG50-1100 Mounting: Head flange | Bore: ø50 mm | Stroke: 1100 mm
RHCG50-1200 Mounting: Head flange | Bore: ø50 mm | Stroke: 1200 mm
RHCG63-250 Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm
RHCG63-300 Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm
RHCG63-350 Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm
RHCG63-400 Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm
RHCG63-450 Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm
RHCG63-500 Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm
RHCG63-600 Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm
RHCG63-700 Mounting: Head flange | Bore: ø63 mm | Stroke: 700 mm
RHCG63-800 Mounting: Head flange | Bore: ø63 mm | Stroke: 800 mm
RHCG63-900 Mounting: Head flange | Bore: ø63 mm | Stroke: 900 mm
RHCG63-1000 Mounting: Head flange | Bore: ø63 mm | Stroke: 1000 mm
RHCG63-1100 Mounting: Head flange | Bore: ø63 mm | Stroke: 1100 mm
RHCG63-1200 Mounting: Head flange | Bore: ø63 mm | Stroke: 1200 mm
RHCG80-250 Mounting: Head flange | Bore: ø80 mm | Stroke: 250 mm
RHCG80-300 Mounting: Head flange | Bore: ø80 mm | Stroke: 300 mm
RHCG80-350 Mounting: Head flange | Bore: ø80 mm | Stroke: 350 mm
RHCG80-400 Mounting: Head flange | Bore: ø80 mm | Stroke: 400 mm
RHCG80-450 Mounting: Head flange | Bore: ø80 mm | Stroke: 450 mm
RHCG80-500 Mounting: Head flange | Bore: ø80 mm | Stroke: 500 mm
RHCG80-600 Mounting: Head flange | Bore: ø80 mm | Stroke: 600 mm
RHCG80-700 Mounting: Head flange | Bore: ø80 mm | Stroke: 700 mm
RHCG80-800 Mounting: Head flange | Bore: ø80 mm | Stroke: 800 mm
RHCG80-900 Mounting: Head flange | Bore: ø80 mm | Stroke: 900 mm
RHCG80-1000 Mounting: Head flange | Bore: ø80 mm | Stroke: 1000 mm
RHCG80-1100 Mounting: Head flange | Bore: ø80 mm | Stroke: 1100 mm
RHCG80-1200 Mounting: Head flange | Bore: ø80 mm | Stroke: 1200 mm
RHCG80-1300 Mounting: Head flange | Bore: ø80 mm | Stroke: 1300 mm
RHCG80-1400 Mounting: Head flange | Bore: ø80 mm | Stroke: 1400 mm
RHCG100-250 Mounting: Head flange | Bore: ø100 mm | Stroke: 250 mm
RHCG100-300 Mounting: Head flange | Bore: ø100 mm | Stroke: 300 mm
RHCG100-350 Mounting: Head flange | Bore: ø100 mm | Stroke: 350 mm
RHCG100-400 Mounting: Head flange | Bore: ø100 mm | Stroke: 400 mm
RHCG100-450 Mounting: Head flange | Bore: ø100 mm | Stroke: 450 mm
RHCG100-500 Mounting: Head flange | Bore: ø100 mm | Stroke: 500 mm
RHCG100-600 Mounting: Head flange | Bore: ø100 mm | Stroke: 600 mm
RHCG100-700 Mounting: Head flange | Bore: ø100 mm | Stroke: 700 mm
RHCG100-800 Mounting: Head flange | Bore: ø100 mm | Stroke: 800 mm
RHCG100-900 Mounting: Head flange | Bore: ø100 mm | Stroke: 900 mm
RHCG100-1000 Mounting: Head flange | Bore: ø100 mm | Stroke: 1000 mm
RHCG100-1100 Mounting: Head flange | Bore: ø100 mm | Stroke: 1100 mm
RHCG100-1200 Mounting: Head flange | Bore: ø100 mm | Stroke: 1200 mm
RHCG100-1300 Mounting: Head flange | Bore: ø100 mm | Stroke: 1300 mm
RHCG100-1400 Mounting: Head flange | Bore: ø100 mm | Stroke: 1400 mm
RHCG100-1500 Mounting: Head flange | Bore: ø100 mm | Stroke: 1500 mm
Standard CylindersSMC
380 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RHC High Power Cylinder (ø20 to ø100)

Brand SMC·Standard Cylinders

Available part numbers (380)

RHCB20-250, RHCB20-300, RHCB20-350, RHCB20-400, RHCB20-450, RHCB20-500, RHCB20-600, RHCB20-700, RHCB25-250, RHCB25-300 + 370 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RHCB20-250Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm
RHCB20-300Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm
RHCB20-350Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm
RHCB20-400Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm
RHCB20-450Mounting: Basic | Bore: ø20 mm | Stroke: 450 mm
RHCB20-500Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm
RHCB20-600Mounting: Basic | Bore: ø20 mm | Stroke: 600 mm
RHCB20-700Mounting: Basic | Bore: ø20 mm | Stroke: 700 mm
RHCB25-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm
RHCB25-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm
RHCB25-350Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm
RHCB25-400Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm
RHCB25-450Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm
RHCB25-500Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm
RHCB25-600Mounting: Basic | Bore: ø25 mm | Stroke: 600 mm
RHCB25-700Mounting: Basic | Bore: ø25 mm | Stroke: 700 mm
RHCB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm
RHCB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm
RHCB32-350Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm
RHCB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm
RHCB32-450Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm
RHCB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm
RHCB32-600Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm
RHCB32-700Mounting: Basic | Bore: ø32 mm | Stroke: 700 mm
RHCB32-800Mounting: Basic | Bore: ø32 mm | Stroke: 800 mm
RHCB32-900Mounting: Basic | Bore: ø32 mm | Stroke: 900 mm
RHCB32-1000Mounting: Basic | Bore: ø32 mm | Stroke: 1000 mm
RHCB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm
RHCB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm
RHCB40-350Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm
RHCB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm
RHCB40-450Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm
RHCB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm
RHCB40-600Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm
RHCB40-700Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm
RHCB40-800Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm
RHCB40-900Mounting: Basic | Bore: ø40 mm | Stroke: 900 mm
RHCB40-1000Mounting: Basic | Bore: ø40 mm | Stroke: 1000 mm
RHCB50-250Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm
RHCB50-300Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm
RHCB50-350Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm
RHCB50-400Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm
RHCB50-450Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm
RHCB50-500Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm
RHCB50-600Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm
RHCB50-700Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm
RHCB50-800Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm
RHCB50-900Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm
RHCB50-1000Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm
RHCB50-1100Mounting: Basic | Bore: ø50 mm | Stroke: 1100 mm
RHCB50-1200Mounting: Basic | Bore: ø50 mm | Stroke: 1200 mm
RHCB63-250Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm
RHCB63-300Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm
RHCB63-350Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm
RHCB63-400Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm
RHCB63-450Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm
RHCB63-500Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm
RHCB63-600Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm
RHCB63-700Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm
RHCB63-800Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm
RHCB63-900Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm
RHCB63-1000Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm
RHCB63-1100Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm
RHCB63-1200Mounting: Basic | Bore: ø63 mm | Stroke: 1200 mm
RHCB80-250Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm
RHCB80-300Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm
RHCB80-350Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm
RHCB80-400Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm
RHCB80-450Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm
RHCB80-500Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm
RHCB80-600Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm
RHCB80-700Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm
RHCB80-800Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm
RHCB80-900Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm
RHCB80-1000Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm
RHCB80-1100Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm
RHCB80-1200Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm
RHCB80-1300Mounting: Basic | Bore: ø80 mm | Stroke: 1300 mm
RHCB80-1400Mounting: Basic | Bore: ø80 mm | Stroke: 1400 mm
RHCB100-250Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm
RHCB100-300Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm
RHCB100-350Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm
RHCB100-400Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm
RHCB100-450Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm
RHCB100-500Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm
RHCB100-600Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm
RHCB100-700Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm
RHCB100-800Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm
RHCB100-900Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm
RHCB100-1000Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm
RHCB100-1100Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm
RHCB100-1200Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm
RHCB100-1300Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm
RHCB100-1400Mounting: Basic | Bore: ø100 mm | Stroke: 1400 mm
RHCB100-1500Mounting: Basic | Bore: ø100 mm | Stroke: 1500 mm
RHCL20-250Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm
RHCL20-300Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm
RHCL20-350Mounting: Axial foot | Bore: ø20 mm | Stroke: 350 mm
RHCL20-400Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm
RHCL20-450Mounting: Axial foot | Bore: ø20 mm | Stroke: 450 mm
RHCL20-500Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm
RHCL20-600Mounting: Axial foot | Bore: ø20 mm | Stroke: 600 mm
RHCL20-700Mounting: Axial foot | Bore: ø20 mm | Stroke: 700 mm
RHCL25-250Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm
RHCL25-300Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm
RHCL25-350Mounting: Axial foot | Bore: ø25 mm | Stroke: 350 mm
RHCL25-400Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm
RHCL25-450Mounting: Axial foot | Bore: ø25 mm | Stroke: 450 mm
RHCL25-500Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm
RHCL25-600Mounting: Axial foot | Bore: ø25 mm | Stroke: 600 mm
RHCL25-700Mounting: Axial foot | Bore: ø25 mm | Stroke: 700 mm
RHCL32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm
RHCL32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm
RHCL32-350Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm
RHCL32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm
RHCL32-450Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm
RHCL32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm
RHCL32-600Mounting: Axial foot | Bore: ø32 mm | Stroke: 600 mm
RHCL32-700Mounting: Axial foot | Bore: ø32 mm | Stroke: 700 mm
RHCL32-800Mounting: Axial foot | Bore: ø32 mm | Stroke: 800 mm
RHCL32-900Mounting: Axial foot | Bore: ø32 mm | Stroke: 900 mm
RHCL32-1000Mounting: Axial foot | Bore: ø32 mm | Stroke: 1000 mm
RHCL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm
RHCL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm
RHCL40-350Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm
RHCL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm
RHCL40-450Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm
RHCL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm
RHCL40-600Mounting: Axial foot | Bore: ø40 mm | Stroke: 600 mm
RHCL40-700Mounting: Axial foot | Bore: ø40 mm | Stroke: 700 mm
RHCL40-800Mounting: Axial foot | Bore: ø40 mm | Stroke: 800 mm
RHCL40-900Mounting: Axial foot | Bore: ø40 mm | Stroke: 900 mm
RHCL40-1000Mounting: Axial foot | Bore: ø40 mm | Stroke: 1000 mm
RHCL50-250Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm
RHCL50-300Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm
RHCL50-350Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm
RHCL50-400Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm
RHCL50-450Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm
RHCL50-500Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm
RHCL50-600Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm
RHCL50-700Mounting: Axial foot | Bore: ø50 mm | Stroke: 700 mm
RHCL50-800Mounting: Axial foot | Bore: ø50 mm | Stroke: 800 mm
RHCL50-900Mounting: Axial foot | Bore: ø50 mm | Stroke: 900 mm
RHCL50-1000Mounting: Axial foot | Bore: ø50 mm | Stroke: 1000 mm
RHCL50-1100Mounting: Axial foot | Bore: ø50 mm | Stroke: 1100 mm
RHCL50-1200Mounting: Axial foot | Bore: ø50 mm | Stroke: 1200 mm
RHCL63-250Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm
RHCL63-300Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm
RHCL63-350Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm
RHCL63-400Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm
RHCL63-450Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm
RHCL63-500Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm
RHCL63-600Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm
RHCL63-700Mounting: Axial foot | Bore: ø63 mm | Stroke: 700 mm
RHCL63-800Mounting: Axial foot | Bore: ø63 mm | Stroke: 800 mm
RHCL63-900Mounting: Axial foot | Bore: ø63 mm | Stroke: 900 mm
RHCL63-1000Mounting: Axial foot | Bore: ø63 mm | Stroke: 1000 mm
RHCL63-1100Mounting: Axial foot | Bore: ø63 mm | Stroke: 1100 mm
RHCL63-1200Mounting: Axial foot | Bore: ø63 mm | Stroke: 1200 mm
RHCL80-250Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm
RHCL80-300Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm
RHCL80-350Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm
RHCL80-400Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm
RHCL80-450Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm
RHCL80-500Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm
RHCL80-600Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm
RHCL80-700Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm
RHCL80-800Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm
RHCL80-900Mounting: Axial foot | Bore: ø80 mm | Stroke: 900 mm
RHCL80-1000Mounting: Axial foot | Bore: ø80 mm | Stroke: 1000 mm
RHCL80-1100Mounting: Axial foot | Bore: ø80 mm | Stroke: 1100 mm
RHCL80-1200Mounting: Axial foot | Bore: ø80 mm | Stroke: 1200 mm
RHCL80-1300Mounting: Axial foot | Bore: ø80 mm | Stroke: 1300 mm
RHCL80-1400Mounting: Axial foot | Bore: ø80 mm | Stroke: 1400 mm
RHCL100-250Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm
RHCL100-300Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm
RHCL100-350Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm
RHCL100-400Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm
RHCL100-450Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm
RHCL100-500Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm
RHCL100-600Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm
RHCL100-700Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm
RHCL100-800Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm
RHCL100-900Mounting: Axial foot | Bore: ø100 mm | Stroke: 900 mm
RHCL100-1000Mounting: Axial foot | Bore: ø100 mm | Stroke: 1000 mm
RHCL100-1100Mounting: Axial foot | Bore: ø100 mm | Stroke: 1100 mm
RHCL100-1200Mounting: Axial foot | Bore: ø100 mm | Stroke: 1200 mm
RHCL100-1300Mounting: Axial foot | Bore: ø100 mm | Stroke: 1300 mm
RHCL100-1400Mounting: Axial foot | Bore: ø100 mm | Stroke: 1400 mm
RHCL100-1500Mounting: Axial foot | Bore: ø100 mm | Stroke: 1500 mm
RHCF20-250Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm
RHCF20-300Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm
RHCF20-350Mounting: Rod flange | Bore: ø20 mm | Stroke: 350 mm
RHCF20-400Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm
RHCF20-450Mounting: Rod flange | Bore: ø20 mm | Stroke: 450 mm
RHCF20-500Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm
RHCF20-600Mounting: Rod flange | Bore: ø20 mm | Stroke: 600 mm
RHCF20-700Mounting: Rod flange | Bore: ø20 mm | Stroke: 700 mm
RHCF25-250Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm
RHCF25-300Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm
RHCF25-350Mounting: Rod flange | Bore: ø25 mm | Stroke: 350 mm
RHCF25-400Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm
RHCF25-450Mounting: Rod flange | Bore: ø25 mm | Stroke: 450 mm
RHCF25-500Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm
RHCF25-600Mounting: Rod flange | Bore: ø25 mm | Stroke: 600 mm
RHCF25-700Mounting: Rod flange | Bore: ø25 mm | Stroke: 700 mm
RHCF32-250Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm
RHCF32-300Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm
RHCF32-350Mounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm
RHCF32-400Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm
RHCF32-450Mounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm
RHCF32-500Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm
RHCF32-600Mounting: Rod flange | Bore: ø32 mm | Stroke: 600 mm
RHCF32-700Mounting: Rod flange | Bore: ø32 mm | Stroke: 700 mm
RHCF32-800Mounting: Rod flange | Bore: ø32 mm | Stroke: 800 mm
RHCF32-900Mounting: Rod flange | Bore: ø32 mm | Stroke: 900 mm
RHCF32-1000Mounting: Rod flange | Bore: ø32 mm | Stroke: 1000 mm
RHCF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm
RHCF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm
RHCF40-350Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm
RHCF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm
RHCF40-450Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm
RHCF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm
RHCF40-600Mounting: Rod flange | Bore: ø40 mm | Stroke: 600 mm
RHCF40-700Mounting: Rod flange | Bore: ø40 mm | Stroke: 700 mm
RHCF40-800Mounting: Rod flange | Bore: ø40 mm | Stroke: 800 mm
RHCF40-900Mounting: Rod flange | Bore: ø40 mm | Stroke: 900 mm
RHCF40-1000Mounting: Rod flange | Bore: ø40 mm | Stroke: 1000 mm
RHCF50-250Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm
RHCF50-300Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm
RHCF50-350Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm
RHCF50-400Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm
RHCF50-450Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm
RHCF50-500Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm
RHCF50-600Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm
RHCF50-700Mounting: Rod flange | Bore: ø50 mm | Stroke: 700 mm
RHCF50-800Mounting: Rod flange | Bore: ø50 mm | Stroke: 800 mm
RHCF50-900Mounting: Rod flange | Bore: ø50 mm | Stroke: 900 mm
RHCF50-1000Mounting: Rod flange | Bore: ø50 mm | Stroke: 1000 mm
RHCF50-1100Mounting: Rod flange | Bore: ø50 mm | Stroke: 1100 mm
RHCF50-1200Mounting: Rod flange | Bore: ø50 mm | Stroke: 1200 mm
RHCF63-250Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm
RHCF63-300Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm
RHCF63-350Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm
RHCF63-400Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm
RHCF63-450Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm
RHCF63-500Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm
RHCF63-600Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm
RHCF63-700Mounting: Rod flange | Bore: ø63 mm | Stroke: 700 mm
RHCF63-800Mounting: Rod flange | Bore: ø63 mm | Stroke: 800 mm
RHCF63-900Mounting: Rod flange | Bore: ø63 mm | Stroke: 900 mm
RHCF63-1000Mounting: Rod flange | Bore: ø63 mm | Stroke: 1000 mm
RHCF63-1100Mounting: Rod flange | Bore: ø63 mm | Stroke: 1100 mm
RHCF63-1200Mounting: Rod flange | Bore: ø63 mm | Stroke: 1200 mm
RHCF80-250Mounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm
RHCF80-300Mounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm
RHCF80-350Mounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm
RHCF80-400Mounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm
RHCF80-450Mounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm
RHCF80-500Mounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm
RHCF80-600Mounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm
RHCF80-700Mounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm
RHCF80-800Mounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm
RHCF80-900Mounting: Rod flange | Bore: ø80 mm | Stroke: 900 mm
RHCF80-1000Mounting: Rod flange | Bore: ø80 mm | Stroke: 1000 mm
RHCF80-1100Mounting: Rod flange | Bore: ø80 mm | Stroke: 1100 mm
RHCF80-1200Mounting: Rod flange | Bore: ø80 mm | Stroke: 1200 mm
RHCF80-1300Mounting: Rod flange | Bore: ø80 mm | Stroke: 1300 mm
RHCF80-1400Mounting: Rod flange | Bore: ø80 mm | Stroke: 1400 mm
RHCF100-250Mounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm
RHCF100-300Mounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm
RHCF100-350Mounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm
RHCF100-400Mounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm
RHCF100-450Mounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm
RHCF100-500Mounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm
RHCF100-600Mounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm
RHCF100-700Mounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm
RHCF100-800Mounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm
RHCF100-900Mounting: Rod flange | Bore: ø100 mm | Stroke: 900 mm
RHCF100-1000Mounting: Rod flange | Bore: ø100 mm | Stroke: 1000 mm
RHCF100-1100Mounting: Rod flange | Bore: ø100 mm | Stroke: 1100 mm
RHCF100-1200Mounting: Rod flange | Bore: ø100 mm | Stroke: 1200 mm
RHCF100-1300Mounting: Rod flange | Bore: ø100 mm | Stroke: 1300 mm
RHCF100-1400Mounting: Rod flange | Bore: ø100 mm | Stroke: 1400 mm
RHCF100-1500Mounting: Rod flange | Bore: ø100 mm | Stroke: 1500 mm
RHCG20-250Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm
RHCG20-300Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm
RHCG20-350Mounting: Head flange | Bore: ø20 mm | Stroke: 350 mm
RHCG20-400Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm
RHCG20-450Mounting: Head flange | Bore: ø20 mm | Stroke: 450 mm
RHCG20-500Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm
RHCG20-600Mounting: Head flange | Bore: ø20 mm | Stroke: 600 mm
RHCG20-700Mounting: Head flange | Bore: ø20 mm | Stroke: 700 mm
RHCG25-250Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm
RHCG25-300Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm
RHCG25-350Mounting: Head flange | Bore: ø25 mm | Stroke: 350 mm
RHCG25-400Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm
RHCG25-450Mounting: Head flange | Bore: ø25 mm | Stroke: 450 mm
RHCG25-500Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm
RHCG25-600Mounting: Head flange | Bore: ø25 mm | Stroke: 600 mm
RHCG25-700Mounting: Head flange | Bore: ø25 mm | Stroke: 700 mm
RHCG32-250Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm
RHCG32-300Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm
RHCG32-350Mounting: Head flange | Bore: ø32 mm | Stroke: 350 mm
RHCG32-400Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm
RHCG32-450Mounting: Head flange | Bore: ø32 mm | Stroke: 450 mm
RHCG32-500Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm
RHCG32-600Mounting: Head flange | Bore: ø32 mm | Stroke: 600 mm
RHCG32-700Mounting: Head flange | Bore: ø32 mm | Stroke: 700 mm
RHCG32-800Mounting: Head flange | Bore: ø32 mm | Stroke: 800 mm
RHCG32-900Mounting: Head flange | Bore: ø32 mm | Stroke: 900 mm
RHCG32-1000Mounting: Head flange | Bore: ø32 mm | Stroke: 1000 mm
RHCG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm
RHCG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm
RHCG40-350Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm
RHCG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm
RHCG40-450Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm
RHCG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm
RHCG40-600Mounting: Head flange | Bore: ø40 mm | Stroke: 600 mm
RHCG40-700Mounting: Head flange | Bore: ø40 mm | Stroke: 700 mm
RHCG40-800Mounting: Head flange | Bore: ø40 mm | Stroke: 800 mm
RHCG40-900Mounting: Head flange | Bore: ø40 mm | Stroke: 900 mm
RHCG40-1000Mounting: Head flange | Bore: ø40 mm | Stroke: 1000 mm
RHCG50-250Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm
RHCG50-300Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm
RHCG50-350Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm
RHCG50-400Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm
RHCG50-450Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm
RHCG50-500Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm
RHCG50-600Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm
RHCG50-700Mounting: Head flange | Bore: ø50 mm | Stroke: 700 mm
RHCG50-800Mounting: Head flange | Bore: ø50 mm | Stroke: 800 mm
RHCG50-900Mounting: Head flange | Bore: ø50 mm | Stroke: 900 mm
RHCG50-1000Mounting: Head flange | Bore: ø50 mm | Stroke: 1000 mm
RHCG50-1100Mounting: Head flange | Bore: ø50 mm | Stroke: 1100 mm
RHCG50-1200Mounting: Head flange | Bore: ø50 mm | Stroke: 1200 mm
RHCG63-250Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm
RHCG63-300Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm
RHCG63-350Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm
RHCG63-400Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm
RHCG63-450Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm
RHCG63-500Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm
RHCG63-600Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm
RHCG63-700Mounting: Head flange | Bore: ø63 mm | Stroke: 700 mm
RHCG63-800Mounting: Head flange | Bore: ø63 mm | Stroke: 800 mm
RHCG63-900Mounting: Head flange | Bore: ø63 mm | Stroke: 900 mm
RHCG63-1000Mounting: Head flange | Bore: ø63 mm | Stroke: 1000 mm
RHCG63-1100Mounting: Head flange | Bore: ø63 mm | Stroke: 1100 mm
RHCG63-1200Mounting: Head flange | Bore: ø63 mm | Stroke: 1200 mm
RHCG80-250Mounting: Head flange | Bore: ø80 mm | Stroke: 250 mm
RHCG80-300Mounting: Head flange | Bore: ø80 mm | Stroke: 300 mm
RHCG80-350Mounting: Head flange | Bore: ø80 mm | Stroke: 350 mm
RHCG80-400Mounting: Head flange | Bore: ø80 mm | Stroke: 400 mm
RHCG80-450Mounting: Head flange | Bore: ø80 mm | Stroke: 450 mm
RHCG80-500Mounting: Head flange | Bore: ø80 mm | Stroke: 500 mm
RHCG80-600Mounting: Head flange | Bore: ø80 mm | Stroke: 600 mm
RHCG80-700Mounting: Head flange | Bore: ø80 mm | Stroke: 700 mm
RHCG80-800Mounting: Head flange | Bore: ø80 mm | Stroke: 800 mm
RHCG80-900Mounting: Head flange | Bore: ø80 mm | Stroke: 900 mm
RHCG80-1000Mounting: Head flange | Bore: ø80 mm | Stroke: 1000 mm
RHCG80-1100Mounting: Head flange | Bore: ø80 mm | Stroke: 1100 mm
RHCG80-1200Mounting: Head flange | Bore: ø80 mm | Stroke: 1200 mm
RHCG80-1300Mounting: Head flange | Bore: ø80 mm | Stroke: 1300 mm
RHCG80-1400Mounting: Head flange | Bore: ø80 mm | Stroke: 1400 mm
RHCG100-250Mounting: Head flange | Bore: ø100 mm | Stroke: 250 mm
RHCG100-300Mounting: Head flange | Bore: ø100 mm | Stroke: 300 mm
RHCG100-350Mounting: Head flange | Bore: ø100 mm | Stroke: 350 mm
RHCG100-400Mounting: Head flange | Bore: ø100 mm | Stroke: 400 mm
RHCG100-450Mounting: Head flange | Bore: ø100 mm | Stroke: 450 mm
RHCG100-500Mounting: Head flange | Bore: ø100 mm | Stroke: 500 mm
RHCG100-600Mounting: Head flange | Bore: ø100 mm | Stroke: 600 mm
RHCG100-700Mounting: Head flange | Bore: ø100 mm | Stroke: 700 mm
RHCG100-800Mounting: Head flange | Bore: ø100 mm | Stroke: 800 mm
RHCG100-900Mounting: Head flange | Bore: ø100 mm | Stroke: 900 mm
RHCG100-1000Mounting: Head flange | Bore: ø100 mm | Stroke: 1000 mm
RHCG100-1100Mounting: Head flange | Bore: ø100 mm | Stroke: 1100 mm
RHCG100-1200Mounting: Head flange | Bore: ø100 mm | Stroke: 1200 mm
RHCG100-1300Mounting: Head flange | Bore: ø100 mm | Stroke: 1300 mm
RHCG100-1400Mounting: Head flange | Bore: ø100 mm | Stroke: 1400 mm
RHCG100-1500Mounting: Head flange | Bore: ø100 mm | Stroke: 1500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
