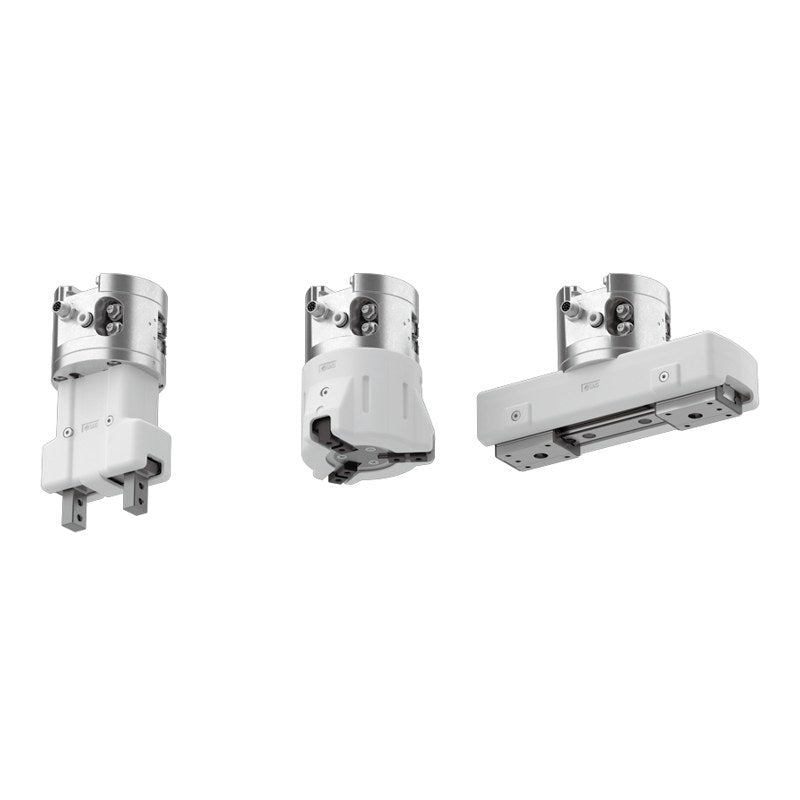

SMC RMTM Manual Tool Changer (One-Push / Clamp Type)

SMC RMTM Manual Tool Changer (One-Push / Clamp Type)

SMC RMTM manual tool changer for quick hand-tool exchange on collaborative robots, in a tool-free one-push type (RMTM1) and a two-bolt clamp type (RMTM2).

Key features

  • RMTM1 one-push type: tool attached or removed by pressing the push button, no tools required
  • RMTM2 clamp type: tool fixed with two clamper bolts (M5x25, 2.7 to 3.3 N·m)
  • Small and light: 18.5 mm / 16 mm height, 137 g (main + tool plate)
  • Main plate and tool plate ordered separately; T2 tool plate mounts directly on RMH series co-robot grippers
  • Low-head hex socket bolts and positioning pin included with each plate

Specifications

Mounting standard ISO9409-1-50-4-M6
Repeatability ±0.01 mm (RMTM1), ±0.02 mm (RMTM2)
Allowable moment / torque 20 N·m (RMTM1), 60 N·m (RMTM2)
Operating temperature 0 to 60°C (no freezing)
Mass Main plate 84 g / 99 g; tool plate 38 to 58 g
Source SMC Korea leaflet RMTM Series (SMCKR_RMTM.pdf), p. 1-2
RMTM1-M1-X101 Type: One-push (RMTM1) | Part: Main plate | Interface: ISO9409-1-50-4-M6 | Max. payload: 10 kg
RMTM1-T1-X101 Type: One-push (RMTM1) | Part: Tool plate T1 | Interface: ISO9409-1-50-4-M6 | Max. payload: 10 kg
RMTM1-T2-X101 Type: One-push (RMTM1) | Part: Tool plate T2 | Interface: RMH gripper compatible | Max. payload: 10 kg
RMTM2-4T1 Type: Clamp (RMTM2) | Part: Tool plate T1 | Interface: ISO9409-1-50-4-M6 | Max. payload: 20 kg
RMTM2-4T2 Type: Clamp (RMTM2) | Part: Tool plate T2 | Interface: RMH gripper compatible | Max. payload: 20 kg
Robot ToolingSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RMTM Manual Tool Changer (One-Push / Clamp Type)

Brand SMC·Robot Tooling

Available part numbers (5)

RMTM1-M1-X101, RMTM1-T1-X101, RMTM1-T2-X101, RMTM2-4T1, RMTM2-4T2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RMTM1-M1-X101Type: One-push (RMTM1) | Part: Main plate | Interface: ISO9409-1-50-4-M6 | Max. payload: 10 kg
RMTM1-T1-X101Type: One-push (RMTM1) | Part: Tool plate T1 | Interface: ISO9409-1-50-4-M6 | Max. payload: 10 kg
RMTM1-T2-X101Type: One-push (RMTM1) | Part: Tool plate T2 | Interface: RMH gripper compatible | Max. payload: 10 kg
RMTM2-4T1Type: Clamp (RMTM2) | Part: Tool plate T1 | Interface: ISO9409-1-50-4-M6 | Max. payload: 20 kg
RMTM2-4T2Type: Clamp (RMTM2) | Part: Tool plate T2 | Interface: RMH gripper compatible | Max. payload: 20 kg
