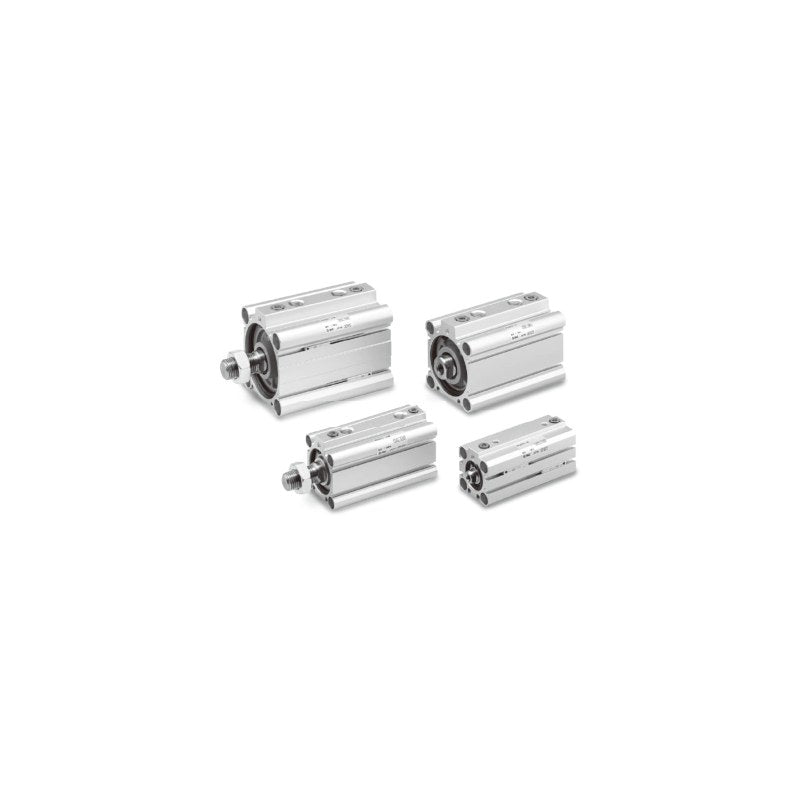

SMC RQ Compact Cylinder with Air Cushion (ø20 to ø100)

SMC RQ series double-acting compact cylinder with a unique cushion-ring-free air cushion, ø20 to ø100, for shock and noise reduction at stroke end without losing the short body of a thin cylinder.

Key features

Air cushion without cushion ring keeps overall length short; about 3 times the allowable kinetic energy of rubber-bumper CQS/CQ2
Metal contact at stroke end improves repeatability of stop position versus rubber bumper
Seven mounting styles: through-hole, both ends tapped (ø32 to ø100), foot, compact foot, rod/head flange, double clevis
RDQ type has a built-in magnet for D-M9, D-A9 and D-P3DWA auto switches (ordered as suffix)
Port thread: M thread (ø20, ø25), Rc (ø32 to ø100); NPT/G (TN/TF), made-to-order -XA, -XC4, -XC35 available

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (no magnet), -10 to 60°C (magnet)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Effective cushion length	5.8 to 8 mm (by bore)
Stroke tolerance	+1.0/0 mm
Cushion	Air cushion
Source	SMC Korea catalog RQ Series (SMCKR_RQ.pdf), p. 1039-1040 (PDF p. 5-6)

RQB20-15		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQB20-15M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQB20-20		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQB20-20M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQB20-25		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQB20-25M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQB20-30		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB20-30M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB20-40		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB20-40M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB20-50		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB20-50M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL20-15		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQL20-15M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQL20-20		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQL20-20M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQL20-25		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQL20-25M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQL20-30		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL20-30M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL20-40		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL20-40M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL20-50		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL20-50M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC20-15		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQLC20-15M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQLC20-20		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQLC20-20M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQLC20-25		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQLC20-25M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQLC20-30		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC20-30M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC20-40		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC20-40M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC20-50		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC20-50M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF20-15		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQF20-15M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQF20-20		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQF20-20M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQF20-25		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQF20-25M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQF20-30		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF20-30M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF20-40		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF20-40M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF20-50		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF20-50M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG20-15		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQG20-15M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQG20-20		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQG20-20M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQG20-25		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQG20-25M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQG20-30		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG20-30M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG20-40		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG20-40M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG20-50		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG20-50M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD20-15		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQD20-15M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQD20-20		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQD20-20M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQD20-25		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQD20-25M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQD20-30		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD20-30M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD20-40		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD20-40M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD20-50		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD20-50M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB25-15		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQB25-15M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQB25-20		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQB25-20M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQB25-25		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQB25-25M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQB25-30		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB25-30M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB25-40		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB25-40M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB25-50		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB25-50M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL25-15		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQL25-15M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQL25-20		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQL25-20M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQL25-25		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQL25-25M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQL25-30		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL25-30M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL25-40		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL25-40M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL25-50		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL25-50M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC25-15		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQLC25-15M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQLC25-20		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQLC25-20M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQLC25-25		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQLC25-25M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQLC25-30		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC25-30M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC25-40		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC25-40M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC25-50		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC25-50M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF25-15		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQF25-15M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQF25-20		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQF25-20M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQF25-25		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQF25-25M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQF25-30		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF25-30M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF25-40		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF25-40M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF25-50		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF25-50M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG25-15		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQG25-15M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQG25-20		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQG25-20M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQG25-25		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQG25-25M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQG25-30		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG25-30M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG25-40		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG25-40M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG25-50		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG25-50M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD25-15		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
RQD25-15M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
RQD25-20		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQD25-20M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQD25-25		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQD25-25M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQD25-30		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD25-30M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD25-40		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD25-40M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD25-50		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD25-50M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB32-20		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQB32-20M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQB32-25		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQB32-25M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQB32-30		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB32-30M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB32-40		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB32-40M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB32-50		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB32-50M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB32-75		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB32-75M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB32-100		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB32-100M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA32-20		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQA32-20M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQA32-25		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQA32-25M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQA32-30		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQA32-30M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQA32-40		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA32-40M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA32-50		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA32-50M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA32-75		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA32-75M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA32-100		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA32-100M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL32-20		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQL32-20M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQL32-25		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQL32-25M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQL32-30		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL32-30M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL32-40		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL32-40M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL32-50		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL32-50M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL32-75		Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL32-75M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL32-100		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL32-100M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC32-20		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQLC32-20M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQLC32-25		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQLC32-25M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQLC32-30		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC32-30M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC32-40		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC32-40M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC32-50		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC32-50M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC32-75		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC32-75M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC32-100		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC32-100M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF32-20		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQF32-20M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQF32-25		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQF32-25M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQF32-30		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF32-30M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF32-40		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF32-40M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF32-50		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF32-50M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF32-75		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF32-75M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF32-100		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF32-100M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG32-20		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQG32-20M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQG32-25		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQG32-25M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQG32-30		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG32-30M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG32-40		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG32-40M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG32-50		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG32-50M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG32-75		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG32-75M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG32-100		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG32-100M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD32-20		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQD32-20M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQD32-25		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQD32-25M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQD32-30		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD32-30M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD32-40		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD32-40M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD32-50		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD32-50M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD32-75		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD32-75M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD32-100		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD32-100M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQB40-20		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQB40-20M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQB40-25		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQB40-25M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQB40-30		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB40-30M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB40-40		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB40-40M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB40-50		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB40-50M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB40-75		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB40-75M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB40-100		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB40-100M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA40-20		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQA40-20M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQA40-25		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQA40-25M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQA40-30		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQA40-30M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQA40-40		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA40-40M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA40-50		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA40-50M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA40-75		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA40-75M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA40-100		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA40-100M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL40-20		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQL40-20M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQL40-25		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQL40-25M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQL40-30		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL40-30M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL40-40		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL40-40M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL40-50		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL40-50M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL40-75		Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL40-75M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL40-100		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL40-100M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC40-20		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQLC40-20M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQLC40-25		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQLC40-25M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQLC40-30		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC40-30M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC40-40		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC40-40M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC40-50		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC40-50M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC40-75		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC40-75M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC40-100		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC40-100M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF40-20		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQF40-20M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQF40-25		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQF40-25M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQF40-30		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF40-30M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF40-40		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF40-40M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF40-50		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF40-50M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF40-75		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF40-75M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF40-100		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF40-100M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG40-20		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQG40-20M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQG40-25		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQG40-25M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQG40-30		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG40-30M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG40-40		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG40-40M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG40-50		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG40-50M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG40-75		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG40-75M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG40-100		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG40-100M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD40-20		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
RQD40-20M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
RQD40-25		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
RQD40-25M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
RQD40-30		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD40-30M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD40-40		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD40-40M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD40-50		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD40-50M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD40-75		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD40-75M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD40-100		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD40-100M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQB50-30		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB50-30M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB50-40		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB50-40M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB50-50		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB50-50M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB50-75		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB50-75M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB50-100		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB50-100M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA50-30		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQA50-30M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQA50-40		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA50-40M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA50-50		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA50-50M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA50-75		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA50-75M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA50-100		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA50-100M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL50-30		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL50-30M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL50-40		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL50-40M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL50-50		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL50-50M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL50-75		Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL50-75M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL50-100		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL50-100M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC50-30		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC50-30M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC50-40		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC50-40M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC50-50		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC50-50M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC50-75		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC50-75M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC50-100		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC50-100M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF50-30		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF50-30M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF50-40		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF50-40M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF50-50		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF50-50M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF50-75		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF50-75M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF50-100		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF50-100M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG50-30		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG50-30M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG50-40		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG50-40M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG50-50		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG50-50M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG50-75		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG50-75M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG50-100		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG50-100M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD50-30		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD50-30M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD50-40		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD50-40M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD50-50		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD50-50M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD50-75		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD50-75M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD50-100		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD50-100M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQB63-30		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQB63-30M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQB63-40		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB63-40M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB63-50		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB63-50M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB63-75		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB63-75M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB63-100		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB63-100M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA63-30		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQA63-30M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQA63-40		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA63-40M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA63-50		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA63-50M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA63-75		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA63-75M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA63-100		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA63-100M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL63-30		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQL63-30M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQL63-40		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL63-40M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL63-50		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL63-50M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL63-75		Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL63-75M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL63-100		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL63-100M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC63-30		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQLC63-30M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQLC63-40		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC63-40M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC63-50		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC63-50M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC63-75		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC63-75M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC63-100		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC63-100M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF63-30		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQF63-30M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQF63-40		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF63-40M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF63-50		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF63-50M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF63-75		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF63-75M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF63-100		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF63-100M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG63-30		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQG63-30M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQG63-40		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG63-40M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG63-50		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG63-50M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG63-75		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG63-75M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG63-100		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG63-100M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD63-30		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
RQD63-30M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
RQD63-40		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD63-40M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD63-50		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD63-50M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD63-75		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD63-75M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD63-100		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD63-100M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQB80-40		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB80-40M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB80-50		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB80-50M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB80-75		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB80-75M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB80-100		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB80-100M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA80-40		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA80-40M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA80-50		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA80-50M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA80-75		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA80-75M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA80-100		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA80-100M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL80-40		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL80-40M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL80-50		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL80-50M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL80-75		Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL80-75M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL80-100		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL80-100M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC80-40		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC80-40M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC80-50		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC80-50M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC80-75		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC80-75M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC80-100		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC80-100M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF80-40		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF80-40M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF80-50		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF80-50M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF80-75		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF80-75M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF80-100		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF80-100M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG80-40		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG80-40M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG80-50		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG80-50M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG80-75		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG80-75M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG80-100		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG80-100M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD80-40		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD80-40M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD80-50		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD80-50M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD80-75		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD80-75M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD80-100		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD80-100M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQB100-40		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQB100-40M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQB100-50		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQB100-50M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQB100-75		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQB100-75M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQB100-100		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQB100-100M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA100-40		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQA100-40M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQA100-50		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQA100-50M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQA100-75		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA100-75M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA100-100		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA100-100M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL100-40		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQL100-40M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQL100-50		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQL100-50M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQL100-75		Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL100-75M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL100-100		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL100-100M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC100-40		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQLC100-40M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQLC100-50		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQLC100-50M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQLC100-75		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC100-75M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC100-100		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC100-100M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF100-40		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQF100-40M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQF100-50		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQF100-50M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQF100-75		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF100-75M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF100-100		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF100-100M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG100-40		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQG100-40M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQG100-50		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQG100-50M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQG100-75		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG100-75M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG100-100		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG100-100M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD100-40		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
RQD100-40M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
RQD100-50		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
RQD100-50M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
RQD100-75		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD100-75M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD100-100		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD100-100M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RDQB20-15		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-15M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB20-20		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-20M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB20-25		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-25M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB20-30		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-30M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB20-40		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-40M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB20-50		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB20-50M		Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-15		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-15M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-20		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-20M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-25		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-25M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-30		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-30M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-40		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-40M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-50		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-50M		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-15		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-15M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-20		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-20M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-25		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-25M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-30		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-30M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-40		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-40M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-50		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-50M		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-15		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-15M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-20		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-20M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-25		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-25M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-30		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-30M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-40		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-40M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-50		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-50M		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-15		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-15M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-20		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-20M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-25		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-25M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-30		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-30M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-40		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-40M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-50		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-50M		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-15		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-15M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-20		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-20M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-25		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-25M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-30		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-30M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-40		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-40M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-50		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-50M		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-15		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-15M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-20		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-20M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-25		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-25M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-30		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-30M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-40		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-40M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB25-50		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB25-50M		Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-15		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-15M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-20		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-20M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-25		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-25M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-30		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-30M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-40		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-40M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-50		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-50M		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-15		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-15M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-20		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-20M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-25		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-25M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-30		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-30M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-40		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-40M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-50		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-50M		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-15		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-15M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-20		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-20M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-25		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-25M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-30		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-30M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-40		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-40M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-50		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-50M		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-15		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-15M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-20		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-20M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-25		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-25M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-30		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-30M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-40		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-40M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-50		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-50M		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-15		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-15M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-20		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-20M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-25		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-25M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-30		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-30M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-40		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-40M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-50		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-50M		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-20		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-20M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-25		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-25M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-30		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-30M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-40		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-40M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-50		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-50M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-75		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-75M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB32-100		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB32-100M		Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-20		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-20M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-25		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-25M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-30		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-30M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-40		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-40M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-50		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-50M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-75		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-75M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-100		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-100M		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-20		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-20M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-25		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-25M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-30		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-30M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-40		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-40M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-50		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-50M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-75		Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-75M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-100		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-100M		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-20		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-20M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-25		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-25M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-30		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-30M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-40		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-40M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-50		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-50M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-75		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-75M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-100		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-100M		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-20		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-20M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-25		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-25M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-30		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-30M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-40		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-40M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-50		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-50M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-75		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-75M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-100		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-100M		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-20		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-20M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-25		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-25M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-30		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-30M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-40		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-40M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-50		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-50M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-75		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-75M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-100		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-100M		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-20		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-20M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-25		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-25M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-30		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-30M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-40		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-40M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-50		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-50M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-75		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-75M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-100		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-100M		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-20		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-20M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-25		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-25M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-30		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-30M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-40		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-40M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-50		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-50M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-75		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-75M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB40-100		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB40-100M		Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-20		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-20M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-25		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-25M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-30		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-30M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-40		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-40M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-50		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-50M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-75		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-75M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-100		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-100M		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-20		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-20M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-25		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-25M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-30		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-30M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-40		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-40M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-50		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-50M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-75		Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-75M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-100		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-100M		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-20		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-20M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-25		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-25M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-30		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-30M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-40		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-40M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-50		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-50M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-75		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-75M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-100		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-100M		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-20		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-20M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-25		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-25M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-30		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-30M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-40		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-40M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-50		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-50M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-75		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-75M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-100		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-100M		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-20		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-20M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-25		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-25M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-30		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-30M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-40		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-40M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-50		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-50M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-75		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-75M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-100		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-100M		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-20		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-20M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-25		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-25M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-30		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-30M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-40		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-40M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-50		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-50M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-75		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-75M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-100		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-100M		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB50-30		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB50-30M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB50-40		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB50-40M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB50-50		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB50-50M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB50-75		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB50-75M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB50-100		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB50-100M		Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-30		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-30M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-40		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-40M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-50		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-50M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-75		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-75M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-100		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-100M		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-30		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-30M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-40		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-40M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-50		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-50M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-75		Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-75M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-100		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-100M		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-30		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-30M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-40		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-40M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-50		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-50M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-75		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-75M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-100		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-100M		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-30		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-30M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-40		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-40M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-50		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-50M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-75		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-75M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-100		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-100M		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-30		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-30M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-40		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-40M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-50		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-50M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-75		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-75M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-100		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-100M		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-30		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-30M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-40		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-40M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-50		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-50M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-75		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-75M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-100		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-100M		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB63-30		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB63-30M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB63-40		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB63-40M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB63-50		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB63-50M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB63-75		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB63-75M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB63-100		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB63-100M		Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-30		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-30M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-40		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-40M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-50		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-50M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-75		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-75M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-100		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-100M		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-30		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-30M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-40		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-40M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-50		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-50M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-75		Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-75M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-100		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-100M		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-30		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-30M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-40		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-40M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-50		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-50M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-75		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-75M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-100		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-100M		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-30		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-30M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-40		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-40M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-50		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-50M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-75		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-75M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-100		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-100M		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-30		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-30M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-40		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-40M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-50		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-50M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-75		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-75M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-100		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-100M		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-30		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-30M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-40		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-40M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-50		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-50M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-75		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-75M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-100		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-100M		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB80-40		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB80-40M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB80-50		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB80-50M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB80-75		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB80-75M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB80-100		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB80-100M		Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-40		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-40M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-50		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-50M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-75		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-75M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-100		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-100M		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-40		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-40M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-50		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-50M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-75		Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-75M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-100		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-100M		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-40		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-40M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-50		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-50M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-75		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-75M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-100		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-100M		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-40		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-40M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-50		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-50M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-75		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-75M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-100		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-100M		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-40		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-40M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-50		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-50M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-75		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-75M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-100		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-100M		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-40		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-40M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-50		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-50M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-75		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-75M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-100		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-100M		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB100-40		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB100-40M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB100-50		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB100-50M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB100-75		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB100-75M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQB100-100		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQB100-100M		Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-40		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-40M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-50		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-50M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-75		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-75M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-100		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-100M		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-40		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-40M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-50		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-50M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-75		Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-75M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-100		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-100M		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-40		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-40M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-50		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-50M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-75		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-75M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-100		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-100M		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-40		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-40M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-50		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-50M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-75		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-75M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-100		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-100M		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-40		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-40M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-50		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-50M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-75		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-75M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-100		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-100M		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-40		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-40M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-50		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-50M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-75		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-75M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-100		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-100M		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in

Compact CylindersSMC

1184 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RQ Compact Cylinder with Air Cushion (ø20 to ø100)

Brand SMC·Compact Cylinders

Available part numbers (1184)

RQB20-15, RQB20-15M, RQB20-20, RQB20-20M, RQB20-25, RQB20-25M, RQB20-30, RQB20-30M, RQB20-40, RQB20-40M + 1174 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RQB20-15	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQB20-15M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQB20-20	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQB20-20M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQB20-25	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQB20-25M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQB20-30	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB20-30M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB20-40	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB20-40M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB20-50	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB20-50M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL20-15	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQL20-15M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQL20-20	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQL20-20M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQL20-25	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQL20-25M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQL20-30	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL20-30M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL20-40	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL20-40M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL20-50	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL20-50M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-15	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-15M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-20	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-20M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-25	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-25M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-30	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-30M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-40	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-40M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-50	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-50M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF20-15	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQF20-15M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQF20-20	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQF20-20M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQF20-25	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQF20-25M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQF20-30	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF20-30M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF20-40	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF20-40M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF20-50	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF20-50M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG20-15	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQG20-15M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQG20-20	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQG20-20M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQG20-25	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQG20-25M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQG20-30	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG20-30M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG20-40	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG20-40M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG20-50	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG20-50M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD20-15	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQD20-15M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQD20-20	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQD20-20M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQD20-25	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQD20-25M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQD20-30	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD20-30M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD20-40	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD20-40M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD20-50	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD20-50M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB25-15	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQB25-15M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQB25-20	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQB25-20M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQB25-25	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQB25-25M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQB25-30	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB25-30M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB25-40	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB25-40M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB25-50	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB25-50M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL25-15	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQL25-15M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQL25-20	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQL25-20M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQL25-25	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQL25-25M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQL25-30	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL25-30M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL25-40	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL25-40M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL25-50	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL25-50M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-15	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-15M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-20	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-20M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-25	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-25M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-30	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-30M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-40	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-40M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-50	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-50M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF25-15	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQF25-15M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQF25-20	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQF25-20M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQF25-25	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQF25-25M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQF25-30	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF25-30M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF25-40	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF25-40M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF25-50	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF25-50M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG25-15	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQG25-15M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQG25-20	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQG25-20M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQG25-25	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQG25-25M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQG25-30	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG25-30M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG25-40	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG25-40M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG25-50	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG25-50M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD25-15	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: None
	RQD25-15M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: None
	RQD25-20	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQD25-20M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQD25-25	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQD25-25M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQD25-30	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD25-30M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD25-40	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD25-40M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD25-50	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD25-50M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB32-20	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQB32-20M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQB32-25	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQB32-25M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQB32-30	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB32-30M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB32-40	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB32-40M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB32-50	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB32-50M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB32-75	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB32-75M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB32-100	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB32-100M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA32-20	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQA32-20M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQA32-25	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQA32-25M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQA32-30	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQA32-30M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQA32-40	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA32-40M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA32-50	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA32-50M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA32-75	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA32-75M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA32-100	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA32-100M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL32-20	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQL32-20M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQL32-25	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQL32-25M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQL32-30	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL32-30M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL32-40	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL32-40M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL32-50	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL32-50M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL32-75	Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL32-75M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL32-100	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL32-100M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-20	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-20M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-25	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-25M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-30	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-30M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-40	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-40M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-50	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-50M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-75	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-75M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-100	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-100M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF32-20	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQF32-20M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQF32-25	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQF32-25M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQF32-30	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF32-30M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF32-40	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF32-40M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF32-50	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF32-50M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF32-75	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF32-75M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF32-100	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF32-100M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG32-20	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQG32-20M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQG32-25	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQG32-25M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQG32-30	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG32-30M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG32-40	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG32-40M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG32-50	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG32-50M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG32-75	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG32-75M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG32-100	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG32-100M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD32-20	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQD32-20M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQD32-25	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQD32-25M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQD32-30	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD32-30M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD32-40	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD32-40M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD32-50	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD32-50M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD32-75	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD32-75M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD32-100	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD32-100M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQB40-20	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQB40-20M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQB40-25	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQB40-25M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQB40-30	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB40-30M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB40-40	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB40-40M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB40-50	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB40-50M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB40-75	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB40-75M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB40-100	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB40-100M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA40-20	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQA40-20M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQA40-25	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQA40-25M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQA40-30	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQA40-30M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQA40-40	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA40-40M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA40-50	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA40-50M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA40-75	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA40-75M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA40-100	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA40-100M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL40-20	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQL40-20M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQL40-25	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQL40-25M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQL40-30	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL40-30M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL40-40	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL40-40M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL40-50	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL40-50M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL40-75	Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL40-75M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL40-100	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL40-100M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-20	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-20M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-25	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-25M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-30	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-30M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-40	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-40M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-50	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-50M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-75	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-75M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-100	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-100M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF40-20	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQF40-20M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQF40-25	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQF40-25M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQF40-30	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF40-30M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF40-40	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF40-40M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF40-50	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF40-50M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF40-75	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF40-75M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF40-100	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF40-100M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG40-20	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQG40-20M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQG40-25	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQG40-25M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQG40-30	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG40-30M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG40-40	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG40-40M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG40-50	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG40-50M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG40-75	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG40-75M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG40-100	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG40-100M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD40-20	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: None
	RQD40-20M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: None
	RQD40-25	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: None
	RQD40-25M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: None
	RQD40-30	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD40-30M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD40-40	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD40-40M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD40-50	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD40-50M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD40-75	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD40-75M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD40-100	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD40-100M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQB50-30	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB50-30M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB50-40	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB50-40M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB50-50	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB50-50M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB50-75	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB50-75M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB50-100	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB50-100M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA50-30	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQA50-30M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQA50-40	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA50-40M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA50-50	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA50-50M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA50-75	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA50-75M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA50-100	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA50-100M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL50-30	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL50-30M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL50-40	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL50-40M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL50-50	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL50-50M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL50-75	Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL50-75M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL50-100	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL50-100M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-30	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-30M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-40	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-40M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-50	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-50M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-75	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-75M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-100	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-100M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF50-30	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF50-30M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF50-40	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF50-40M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF50-50	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF50-50M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF50-75	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF50-75M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF50-100	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF50-100M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG50-30	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG50-30M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG50-40	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG50-40M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG50-50	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG50-50M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG50-75	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG50-75M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG50-100	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG50-100M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD50-30	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD50-30M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD50-40	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD50-40M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD50-50	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD50-50M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD50-75	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD50-75M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD50-100	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD50-100M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQB63-30	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQB63-30M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQB63-40	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB63-40M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB63-50	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB63-50M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB63-75	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB63-75M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB63-100	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB63-100M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA63-30	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQA63-30M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQA63-40	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA63-40M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA63-50	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA63-50M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA63-75	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA63-75M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA63-100	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA63-100M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL63-30	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQL63-30M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQL63-40	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL63-40M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL63-50	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL63-50M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL63-75	Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL63-75M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL63-100	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL63-100M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-30	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-30M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-40	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-40M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-50	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-50M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-75	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-75M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-100	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-100M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF63-30	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQF63-30M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQF63-40	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF63-40M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF63-50	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF63-50M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF63-75	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF63-75M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF63-100	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF63-100M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG63-30	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQG63-30M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQG63-40	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG63-40M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG63-50	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG63-50M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG63-75	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG63-75M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG63-100	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG63-100M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD63-30	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: None
	RQD63-30M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: None
	RQD63-40	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD63-40M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD63-50	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD63-50M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD63-75	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD63-75M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD63-100	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD63-100M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQB80-40	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB80-40M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB80-50	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB80-50M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB80-75	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB80-75M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB80-100	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB80-100M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA80-40	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA80-40M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA80-50	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA80-50M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA80-75	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA80-75M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA80-100	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA80-100M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL80-40	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL80-40M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL80-50	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL80-50M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL80-75	Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL80-75M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL80-100	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL80-100M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-40	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-40M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-50	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-50M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-75	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-75M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-100	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-100M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF80-40	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF80-40M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF80-50	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF80-50M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF80-75	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF80-75M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF80-100	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF80-100M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG80-40	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG80-40M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG80-50	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG80-50M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG80-75	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG80-75M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG80-100	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG80-100M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD80-40	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD80-40M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD80-50	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD80-50M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD80-75	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD80-75M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD80-100	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD80-100M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQB100-40	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQB100-40M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQB100-50	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQB100-50M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQB100-75	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQB100-75M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQB100-100	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQB100-100M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA100-40	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQA100-40M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQA100-50	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQA100-50M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQA100-75	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA100-75M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA100-100	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA100-100M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL100-40	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQL100-40M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQL100-50	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQL100-50M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQL100-75	Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL100-75M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL100-100	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL100-100M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-40	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-40M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-50	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-50M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-75	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-75M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-100	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-100M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF100-40	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQF100-40M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQF100-50	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQF100-50M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQF100-75	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF100-75M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF100-100	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF100-100M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG100-40	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQG100-40M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQG100-50	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQG100-50M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQG100-75	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG100-75M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG100-100	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG100-100M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD100-40	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: None
	RQD100-40M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: None
	RQD100-50	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: None
	RQD100-50M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: None
	RQD100-75	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD100-75M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD100-100	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD100-100M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RDQB20-15	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-15M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB20-20	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-20M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB20-25	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-25M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB20-30	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-30M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB20-40	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-40M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB20-50	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB20-50M	Bore: ø20 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-15	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-15M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-20	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-20M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-25	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-25M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-30	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-30M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-40	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-40M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-50	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-50M	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-15	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-15M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-20	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-20M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-25	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-25M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-30	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-30M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-40	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-40M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-50	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-50M	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-15	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-15M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-20	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-20M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-25	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-25M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-30	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-30M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-40	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-40M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-50	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-50M	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-15	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-15M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-20	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-20M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-25	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-25M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-30	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-30M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-40	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-40M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-50	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-50M	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-15	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-15M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-20	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-20M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-25	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-25M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-30	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-30M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-40	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-40M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-50	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-50M	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-15	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-15M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-20	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-20M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-25	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-25M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-30	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-30M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-40	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-40M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB25-50	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB25-50M	Bore: ø25 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-15	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-15M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-20	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-20M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-25	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-25M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-30	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-30M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-40	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-40M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-50	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-50M	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-15	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-15M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-20	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-20M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-25	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-25M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-30	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-30M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-40	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-40M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-50	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-50M	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-15	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-15M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-20	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-20M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-25	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-25M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-30	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-30M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-40	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-40M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-50	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-50M	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-15	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-15M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-20	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-20M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-25	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-25M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-30	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-30M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-40	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-40M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-50	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-50M	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-15	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-15M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-20	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-20M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-25	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-25M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-30	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-30M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-40	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-40M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-50	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-50M	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-20	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-20M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-25	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-25M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-30	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-30M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-40	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-40M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-50	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-50M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-75	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-75M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB32-100	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB32-100M	Bore: ø32 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-20	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-20M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-25	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-25M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-30	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-30M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-40	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-40M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-50	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-50M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-75	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-75M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-100	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-100M	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-20	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-20M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-25	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-25M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-30	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-30M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-40	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-40M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-50	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-50M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-75	Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-75M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-100	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-100M	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-20	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-20M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-25	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-25M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-30	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-30M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-40	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-40M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-50	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-50M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-75	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-75M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-100	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-100M	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-20	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-20M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-25	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-25M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-30	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-30M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-40	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-40M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-50	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-50M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-75	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-75M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-100	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-100M	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-20	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-20M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-25	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-25M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-30	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-30M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-40	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-40M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-50	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-50M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-75	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-75M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-100	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-100M	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-20	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-20M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-25	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-25M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-30	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-30M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-40	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-40M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-50	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-50M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-75	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-75M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-100	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-100M	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-20	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-20M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-25	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-25M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-30	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-30M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-40	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-40M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-50	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-50M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-75	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-75M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB40-100	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB40-100M	Bore: ø40 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-20	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-20M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-25	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-25M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-30	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-30M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-40	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-40M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-50	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-50M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-75	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-75M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-100	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-100M	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-20	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-20M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-25	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-25M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-30	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-30M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-40	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-40M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-50	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-50M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-75	Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-75M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-100	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-100M	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-20	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-20M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-25	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-25M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-30	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-30M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-40	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-40M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-50	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-50M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-75	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-75M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-100	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-100M	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-20	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-20M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-25	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-25M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-30	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-30M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-40	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-40M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-50	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-50M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-75	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-75M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-100	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-100M	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-20	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-20M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-25	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-25M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-30	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-30M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-40	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-40M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-50	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-50M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-75	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-75M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-100	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-100M	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-20	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-20M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-25	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-25M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-30	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-30M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-40	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-40M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-50	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-50M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-75	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-75M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-100	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-100M	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB50-30	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB50-30M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB50-40	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB50-40M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB50-50	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB50-50M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB50-75	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB50-75M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB50-100	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB50-100M	Bore: ø50 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-30	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-30M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-40	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-40M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-50	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-50M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-75	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-75M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-100	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-100M	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-30	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-30M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-40	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-40M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-50	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-50M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-75	Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-75M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-100	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-100M	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-30	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-30M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-40	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-40M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-50	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-50M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-75	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-75M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-100	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-100M	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-30	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-30M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-40	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-40M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-50	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-50M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-75	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-75M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-100	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-100M	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-30	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-30M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-40	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-40M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-50	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-50M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-75	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-75M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-100	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-100M	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-30	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-30M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-40	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-40M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-50	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-50M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-75	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-75M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-100	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-100M	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB63-30	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB63-30M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB63-40	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB63-40M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB63-50	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB63-50M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB63-75	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB63-75M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB63-100	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB63-100M	Bore: ø63 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-30	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-30M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-40	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-40M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-50	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-50M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-75	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-75M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-100	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-100M	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-30	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-30M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-40	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-40M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-50	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-50M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-75	Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-75M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-100	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-100M	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-30	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-30M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-40	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-40M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-50	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-50M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-75	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-75M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-100	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-100M	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-30	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-30M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-40	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-40M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-50	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-50M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-75	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-75M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-100	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-100M	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-30	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-30M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-40	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-40M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-50	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-50M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-75	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-75M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-100	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-100M	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-30	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-30M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-40	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-40M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-50	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-50M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-75	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-75M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-100	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-100M	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB80-40	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB80-40M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB80-50	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB80-50M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB80-75	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB80-75M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB80-100	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB80-100M	Bore: ø80 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-40	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-40M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-50	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-50M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-75	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-75M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-100	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-100M	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-40	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-40M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-50	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-50M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-75	Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-75M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-100	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-100M	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-40	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-40M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-50	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-50M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-75	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-75M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-100	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-100M	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-40	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-40M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-50	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-50M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-75	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-75M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-100	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-100M	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-40	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-40M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-50	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-50M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-75	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-75M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-100	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-100M	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-40	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-40M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-50	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-50M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-75	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-75M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-100	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-100M	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB100-40	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB100-40M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB100-50	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB100-50M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB100-75	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB100-75M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQB100-100	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQB100-100M	Bore: ø100 mm \| Mounting: Through-hole \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-40	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-40M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-50	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-50M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-75	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-75M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-100	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-100M	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-40	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-40M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-50	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-50M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-75	Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-75M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-100	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-100M	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-40	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-40M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-50	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-50M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-75	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-75M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-100	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-100M	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-40	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-40M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-50	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-50M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-75	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-75M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-100	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-100M	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-40	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-40M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-50	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-50M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-75	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-75M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-100	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-100M	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-40	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-40M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-50	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-50M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-75	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-75M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-100	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-100M	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC RQ Compact Cylinder with Air Cushion (ø20 to ø100)
