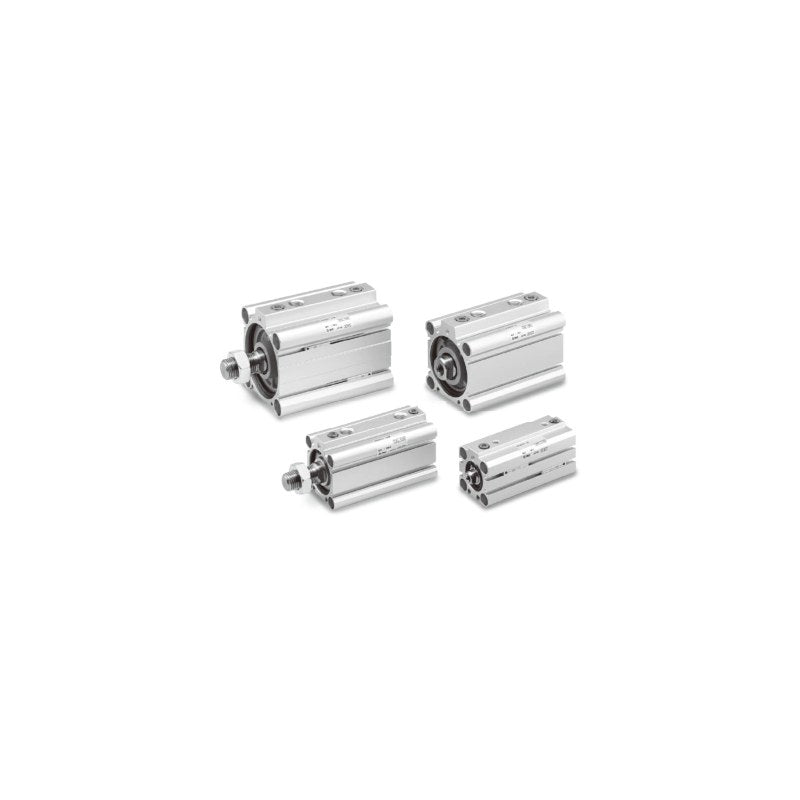

SMC RQ Compact Cylinder with Air Cushion (Long Stroke, ø20-ø100)

SMC RQ series long stroke compact cylinder with air cushion plus rubber bumper (C), ø20 to ø100, strokes 75 to 200 mm (ø20, ø25) and 125 to 300 mm (ø32 to ø100).

Key features

Long stroke version of the RQ air cushion compact cylinder; C symbol = with rubber bumper
Cushion-ring-free air cushion design keeps the thin-cylinder body short
Mounting: both ends tapped (standard), foot, compact foot, rod flange, head flange, double clevis (no through-hole type)
RDQ type has a built-in magnet for auto switches (ordered as suffix, e.g. -M9BW)
Port thread: M thread (ø20, ø25), Rc (ø32 to ø100); NPT/G (TN/TF) available

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (no magnet), -10 to 60°C (magnet)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Effective cushion length	5.8 to 8 mm (by bore)
Stroke tolerance	+1.4/0 mm
Cushion	Air cushion and rubber bumper
Source	SMC Korea catalog RQ Series (SMCKR_RQ.pdf), p. 1053-2 to 1053-3 (PDF p. 21-22)

RQA20-75C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA20-75CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA20-100C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA20-100CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA20-125C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA20-125CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA20-150C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA20-150CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA20-175C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA20-175CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA20-200C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA20-200CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL20-75C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL20-75CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL20-100C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL20-100CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL20-125C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL20-125CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL20-150C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL20-150CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL20-175C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL20-175CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL20-200C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL20-200CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC20-75C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC20-75CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC20-100C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC20-100CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC20-125C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC20-125CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC20-150C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC20-150CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC20-175C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC20-175CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC20-200C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC20-200CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF20-75C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF20-75CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF20-100C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF20-100CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF20-125C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF20-125CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF20-150C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF20-150CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF20-175C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF20-175CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF20-200C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF20-200CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG20-75C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG20-75CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG20-100C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG20-100CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG20-125C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG20-125CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG20-150C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG20-150CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG20-175C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG20-175CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG20-200C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG20-200CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD20-75C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD20-75CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD20-100C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD20-100CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD20-125C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD20-125CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD20-150C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD20-150CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD20-175C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD20-175CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD20-200C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD20-200CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA25-75C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQA25-75CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQA25-100C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQA25-100CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQA25-125C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA25-125CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA25-150C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA25-150CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA25-175C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA25-175CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA25-200C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA25-200CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL25-75C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQL25-75CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQL25-100C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQL25-100CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQL25-125C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL25-125CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL25-150C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL25-150CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL25-175C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL25-175CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL25-200C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL25-200CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC25-75C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQLC25-75CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQLC25-100C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQLC25-100CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQLC25-125C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC25-125CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC25-150C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC25-150CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC25-175C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC25-175CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC25-200C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC25-200CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF25-75C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQF25-75CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQF25-100C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQF25-100CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQF25-125C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF25-125CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF25-150C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF25-150CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF25-175C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF25-175CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF25-200C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF25-200CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG25-75C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQG25-75CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQG25-100C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQG25-100CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQG25-125C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG25-125CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG25-150C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG25-150CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG25-175C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG25-175CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG25-200C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG25-200CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD25-75C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
RQD25-75CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
RQD25-100C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
RQD25-100CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
RQD25-125C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD25-125CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD25-150C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD25-150CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD25-175C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD25-175CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD25-200C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD25-200CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA32-125C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA32-125CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA32-150C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA32-150CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA32-175C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA32-175CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA32-200C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA32-200CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA32-250C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA32-250CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA32-300C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA32-300CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL32-125C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL32-125CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL32-150C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL32-150CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL32-175C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL32-175CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL32-200C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL32-200CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL32-250C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL32-250CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL32-300C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL32-300CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC32-125C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC32-125CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC32-150C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC32-150CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC32-175C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC32-175CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC32-200C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC32-200CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC32-250C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC32-250CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC32-300C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC32-300CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF32-125C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF32-125CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF32-150C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF32-150CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF32-175C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF32-175CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF32-200C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF32-200CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF32-250C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF32-250CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF32-300C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF32-300CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG32-125C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG32-125CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG32-150C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG32-150CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG32-175C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG32-175CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG32-200C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG32-200CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG32-250C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG32-250CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG32-300C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG32-300CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD32-125C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD32-125CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD32-150C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD32-150CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD32-175C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD32-175CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD32-200C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD32-200CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD32-250C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD32-250CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD32-300C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD32-300CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQA40-125C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA40-125CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA40-150C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA40-150CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA40-175C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA40-175CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA40-200C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA40-200CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA40-250C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA40-250CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA40-300C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA40-300CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL40-125C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL40-125CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL40-150C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL40-150CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL40-175C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL40-175CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL40-200C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL40-200CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL40-250C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL40-250CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL40-300C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL40-300CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC40-125C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC40-125CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC40-150C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC40-150CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC40-175C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC40-175CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC40-200C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC40-200CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC40-250C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC40-250CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC40-300C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC40-300CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF40-125C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF40-125CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF40-150C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF40-150CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF40-175C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF40-175CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF40-200C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF40-200CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF40-250C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF40-250CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF40-300C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF40-300CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG40-125C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG40-125CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG40-150C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG40-150CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG40-175C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG40-175CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG40-200C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG40-200CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG40-250C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG40-250CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG40-300C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG40-300CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD40-125C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD40-125CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD40-150C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD40-150CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD40-175C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD40-175CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD40-200C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD40-200CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD40-250C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD40-250CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD40-300C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD40-300CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQA50-125C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA50-125CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA50-150C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA50-150CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA50-175C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA50-175CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA50-200C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA50-200CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA50-250C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA50-250CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA50-300C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA50-300CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL50-125C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL50-125CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL50-150C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL50-150CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL50-175C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL50-175CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL50-200C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL50-200CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL50-250C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL50-250CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL50-300C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL50-300CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC50-125C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC50-125CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC50-150C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC50-150CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC50-175C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC50-175CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC50-200C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC50-200CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC50-250C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC50-250CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC50-300C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC50-300CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF50-125C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF50-125CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF50-150C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF50-150CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF50-175C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF50-175CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF50-200C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF50-200CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF50-250C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF50-250CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF50-300C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF50-300CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG50-125C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG50-125CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG50-150C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG50-150CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG50-175C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG50-175CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG50-200C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG50-200CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG50-250C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG50-250CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG50-300C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG50-300CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD50-125C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD50-125CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD50-150C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD50-150CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD50-175C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD50-175CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD50-200C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD50-200CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD50-250C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD50-250CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD50-300C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD50-300CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQA63-125C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA63-125CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA63-150C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA63-150CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA63-175C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA63-175CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA63-200C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA63-200CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA63-250C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA63-250CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA63-300C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA63-300CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL63-125C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL63-125CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL63-150C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL63-150CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL63-175C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL63-175CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL63-200C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL63-200CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL63-250C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL63-250CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL63-300C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL63-300CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC63-125C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC63-125CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC63-150C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC63-150CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC63-175C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC63-175CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC63-200C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC63-200CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC63-250C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC63-250CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC63-300C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC63-300CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF63-125C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF63-125CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF63-150C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF63-150CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF63-175C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF63-175CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF63-200C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF63-200CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF63-250C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF63-250CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF63-300C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF63-300CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG63-125C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG63-125CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG63-150C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG63-150CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG63-175C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG63-175CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG63-200C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG63-200CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG63-250C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG63-250CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG63-300C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG63-300CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD63-125C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD63-125CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD63-150C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD63-150CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD63-175C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD63-175CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD63-200C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD63-200CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD63-250C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD63-250CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD63-300C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD63-300CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQA80-125C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA80-125CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA80-150C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA80-150CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA80-175C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA80-175CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA80-200C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA80-200CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA80-250C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA80-250CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA80-300C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA80-300CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL80-125C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL80-125CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL80-150C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL80-150CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL80-175C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL80-175CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL80-200C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL80-200CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL80-250C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL80-250CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL80-300C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL80-300CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC80-125C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC80-125CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC80-150C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC80-150CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC80-175C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC80-175CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC80-200C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC80-200CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC80-250C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC80-250CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC80-300C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC80-300CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF80-125C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF80-125CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF80-150C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF80-150CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF80-175C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF80-175CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF80-200C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF80-200CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF80-250C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF80-250CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF80-300C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF80-300CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG80-125C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG80-125CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG80-150C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG80-150CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG80-175C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG80-175CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG80-200C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG80-200CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG80-250C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG80-250CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG80-300C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG80-300CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD80-125C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD80-125CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD80-150C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD80-150CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD80-175C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD80-175CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD80-200C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD80-200CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD80-250C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD80-250CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD80-300C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD80-300CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQA100-125C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQA100-125CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQA100-150C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQA100-150CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQA100-175C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQA100-175CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQA100-200C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQA100-200CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQA100-250C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQA100-250CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQA100-300C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQA100-300CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQL100-125C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQL100-125CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQL100-150C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQL100-150CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQL100-175C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQL100-175CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQL100-200C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQL100-200CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQL100-250C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQL100-250CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQL100-300C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQL100-300CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQLC100-125C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQLC100-125CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQLC100-150C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQLC100-150CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQLC100-175C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQLC100-175CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQLC100-200C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQLC100-200CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQLC100-250C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQLC100-250CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQLC100-300C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQLC100-300CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQF100-125C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQF100-125CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQF100-150C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQF100-150CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQF100-175C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQF100-175CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQF100-200C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQF100-200CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQF100-250C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQF100-250CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQF100-300C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQF100-300CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQG100-125C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQG100-125CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQG100-150C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQG100-150CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQG100-175C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQG100-175CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQG100-200C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQG100-200CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQG100-250C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQG100-250CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQG100-300C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQG100-300CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RQD100-125C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
RQD100-125CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
RQD100-150C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
RQD100-150CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
RQD100-175C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
RQD100-175CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
RQD100-200C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
RQD100-200CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
RQD100-250C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
RQD100-250CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
RQD100-300C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
RQD100-300CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
RDQA20-75C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-75CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA20-100C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-100CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA20-125C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-125CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA20-150C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-150CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA20-175C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-175CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA20-200C		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA20-200CM		Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-75C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-75CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-100C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-100CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-125C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-125CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-150C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-150CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-175C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-175CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL20-200C		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL20-200CM		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-75C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-75CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-100C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-100CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-125C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-125CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-150C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-150CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-175C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-175CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC20-200C		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC20-200CM		Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-75C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-75CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-100C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-100CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-125C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-125CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-150C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-150CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-175C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-175CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF20-200C		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF20-200CM		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-75C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-75CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-100C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-100CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-125C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-125CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-150C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-150CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-175C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-175CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG20-200C		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG20-200CM		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-75C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-75CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-100C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-100CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-125C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-125CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-150C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-150CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-175C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-175CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD20-200C		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD20-200CM		Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-75C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-75CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-100C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-100CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-125C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-125CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-150C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-150CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-175C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-175CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA25-200C		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA25-200CM		Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-75C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-75CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-100C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-100CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-125C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-125CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-150C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-150CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-175C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-175CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL25-200C		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL25-200CM		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-75C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-75CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-100C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-100CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-125C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-125CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-150C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-150CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-175C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-175CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC25-200C		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC25-200CM		Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-75C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-75CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-100C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-100CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-125C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-125CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-150C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-150CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-175C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-175CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF25-200C		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF25-200CM		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-75C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-75CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-100C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-100CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-125C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-125CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-150C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-150CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-175C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-175CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG25-200C		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG25-200CM		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-75C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-75CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-100C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-100CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-125C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-125CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-150C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-150CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-175C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-175CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD25-200C		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD25-200CM		Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-125C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-125CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-150C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-150CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-175C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-175CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-200C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-200CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-250C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-250CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA32-300C		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA32-300CM		Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-125C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-125CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-150C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-150CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-175C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-175CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-200C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-200CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-250C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-250CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL32-300C		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL32-300CM		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-125C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-125CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-150C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-150CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-175C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-175CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-200C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-200CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-250C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-250CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC32-300C		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC32-300CM		Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-125C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-125CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-150C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-150CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-175C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-175CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-200C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-200CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-250C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-250CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF32-300C		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF32-300CM		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-125C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-125CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-150C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-150CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-175C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-175CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-200C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-200CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-250C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-250CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG32-300C		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG32-300CM		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-125C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-125CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-150C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-150CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-175C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-175CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-200C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-200CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-250C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-250CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD32-300C		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD32-300CM		Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-125C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-125CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-150C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-150CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-175C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-175CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-200C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-200CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-250C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-250CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA40-300C		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA40-300CM		Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-125C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-125CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-150C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-150CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-175C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-175CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-200C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-200CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-250C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-250CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL40-300C		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL40-300CM		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-125C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-125CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-150C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-150CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-175C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-175CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-200C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-200CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-250C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-250CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC40-300C		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC40-300CM		Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-125C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-125CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-150C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-150CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-175C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-175CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-200C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-200CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-250C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-250CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF40-300C		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF40-300CM		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-125C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-125CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-150C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-150CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-175C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-175CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-200C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-200CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-250C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-250CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG40-300C		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG40-300CM		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-125C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-125CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-150C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-150CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-175C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-175CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-200C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-200CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-250C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-250CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD40-300C		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD40-300CM		Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-125C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-125CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-150C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-150CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-175C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-175CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-200C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-200CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-250C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-250CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA50-300C		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA50-300CM		Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-125C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-125CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-150C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-150CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-175C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-175CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-200C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-200CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-250C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-250CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL50-300C		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL50-300CM		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-125C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-125CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-150C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-150CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-175C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-175CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-200C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-200CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-250C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-250CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC50-300C		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC50-300CM		Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-125C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-125CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-150C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-150CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-175C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-175CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-200C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-200CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-250C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-250CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF50-300C		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF50-300CM		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-125C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-125CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-150C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-150CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-175C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-175CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-200C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-200CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-250C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-250CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG50-300C		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG50-300CM		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-125C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-125CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-150C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-150CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-175C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-175CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-200C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-200CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-250C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-250CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD50-300C		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD50-300CM		Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-125C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-125CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-150C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-150CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-175C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-175CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-200C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-200CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-250C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-250CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA63-300C		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA63-300CM		Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-125C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-125CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-150C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-150CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-175C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-175CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-200C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-200CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-250C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-250CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL63-300C		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL63-300CM		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-125C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-125CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-150C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-150CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-175C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-175CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-200C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-200CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-250C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-250CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC63-300C		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC63-300CM		Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-125C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-125CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-150C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-150CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-175C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-175CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-200C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-200CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-250C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-250CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF63-300C		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF63-300CM		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-125C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-125CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-150C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-150CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-175C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-175CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-200C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-200CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-250C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-250CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG63-300C		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG63-300CM		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-125C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-125CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-150C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-150CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-175C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-175CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-200C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-200CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-250C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-250CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD63-300C		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD63-300CM		Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-125C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-125CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-150C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-150CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-175C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-175CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-200C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-200CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-250C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-250CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA80-300C		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA80-300CM		Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-125C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-125CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-150C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-150CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-175C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-175CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-200C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-200CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-250C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-250CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL80-300C		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL80-300CM		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-125C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-125CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-150C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-150CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-175C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-175CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-200C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-200CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-250C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-250CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC80-300C		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC80-300CM		Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-125C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-125CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-150C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-150CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-175C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-175CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-200C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-200CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-250C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-250CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF80-300C		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF80-300CM		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-125C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-125CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-150C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-150CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-175C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-175CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-200C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-200CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-250C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-250CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG80-300C		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG80-300CM		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-125C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-125CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-150C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-150CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-175C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-175CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-200C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-200CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-250C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-250CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD80-300C		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD80-300CM		Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-125C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-125CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-150C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-150CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-175C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-175CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-200C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-200CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-250C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-250CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQA100-300C		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQA100-300CM		Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-125C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-125CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-150C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-150CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-175C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-175CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-200C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-200CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-250C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-250CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQL100-300C		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQL100-300CM		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-125C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-125CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-150C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-150CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-175C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-175CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-200C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-200CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-250C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-250CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQLC100-300C		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQLC100-300CM		Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-125C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-125CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-150C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-150CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-175C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-175CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-200C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-200CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-250C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-250CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQF100-300C		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQF100-300CM		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-125C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-125CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-150C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-150CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-175C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-175CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-200C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-200CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-250C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-250CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQG100-300C		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQG100-300CM		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-125C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-125CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-150C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-150CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-175C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-175CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-200C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-200CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-250C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-250CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
RDQD100-300C		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
RDQD100-300CM		Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in

Compact CylindersSMC

1152 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RQ Compact Cylinder with Air Cushion (Long Stroke, ø20-ø100)

Brand SMC·Compact Cylinders

Available part numbers (1152)

RQA20-75C, RQA20-75CM, RQA20-100C, RQA20-100CM, RQA20-125C, RQA20-125CM, RQA20-150C, RQA20-150CM, RQA20-175C, RQA20-175CM + 1142 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RQA20-75C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA20-75CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA20-100C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA20-100CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA20-125C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA20-125CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA20-150C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA20-150CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA20-175C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA20-175CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA20-200C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA20-200CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL20-75C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL20-75CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL20-100C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL20-100CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL20-125C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL20-125CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL20-150C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL20-150CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL20-175C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL20-175CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL20-200C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL20-200CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-75C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-75CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-100C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-100CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-125C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-125CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-150C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-150CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-175C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-175CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC20-200C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC20-200CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF20-75C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF20-75CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF20-100C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF20-100CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF20-125C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF20-125CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF20-150C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF20-150CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF20-175C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF20-175CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF20-200C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF20-200CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG20-75C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG20-75CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG20-100C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG20-100CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG20-125C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG20-125CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG20-150C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG20-150CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG20-175C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG20-175CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG20-200C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG20-200CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD20-75C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD20-75CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD20-100C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD20-100CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD20-125C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD20-125CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD20-150C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD20-150CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD20-175C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD20-175CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD20-200C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD20-200CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA25-75C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQA25-75CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQA25-100C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQA25-100CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQA25-125C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA25-125CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA25-150C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA25-150CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA25-175C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA25-175CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA25-200C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA25-200CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL25-75C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQL25-75CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQL25-100C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQL25-100CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQL25-125C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL25-125CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL25-150C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL25-150CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL25-175C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL25-175CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL25-200C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL25-200CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-75C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-75CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-100C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-100CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-125C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-125CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-150C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-150CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-175C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-175CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC25-200C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC25-200CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF25-75C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQF25-75CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQF25-100C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQF25-100CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQF25-125C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF25-125CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF25-150C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF25-150CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF25-175C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF25-175CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF25-200C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF25-200CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG25-75C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQG25-75CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQG25-100C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQG25-100CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQG25-125C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG25-125CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG25-150C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG25-150CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG25-175C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG25-175CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG25-200C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG25-200CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD25-75C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: None
	RQD25-75CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: None
	RQD25-100C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: None
	RQD25-100CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: None
	RQD25-125C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD25-125CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD25-150C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD25-150CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD25-175C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD25-175CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD25-200C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD25-200CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA32-125C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA32-125CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA32-150C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA32-150CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA32-175C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA32-175CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA32-200C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA32-200CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA32-250C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA32-250CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA32-300C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA32-300CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL32-125C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL32-125CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL32-150C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL32-150CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL32-175C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL32-175CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL32-200C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL32-200CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL32-250C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL32-250CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL32-300C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL32-300CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-125C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-125CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-150C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-150CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-175C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-175CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-200C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-200CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-250C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-250CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC32-300C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC32-300CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF32-125C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF32-125CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF32-150C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF32-150CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF32-175C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF32-175CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF32-200C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF32-200CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF32-250C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF32-250CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF32-300C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF32-300CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG32-125C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG32-125CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG32-150C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG32-150CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG32-175C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG32-175CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG32-200C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG32-200CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG32-250C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG32-250CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG32-300C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG32-300CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD32-125C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD32-125CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD32-150C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD32-150CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD32-175C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD32-175CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD32-200C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD32-200CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD32-250C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD32-250CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD32-300C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD32-300CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQA40-125C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA40-125CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA40-150C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA40-150CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA40-175C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA40-175CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA40-200C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA40-200CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA40-250C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA40-250CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA40-300C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA40-300CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL40-125C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL40-125CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL40-150C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL40-150CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL40-175C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL40-175CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL40-200C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL40-200CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL40-250C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL40-250CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL40-300C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL40-300CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-125C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-125CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-150C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-150CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-175C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-175CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-200C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-200CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-250C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-250CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC40-300C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC40-300CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF40-125C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF40-125CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF40-150C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF40-150CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF40-175C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF40-175CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF40-200C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF40-200CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF40-250C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF40-250CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF40-300C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF40-300CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG40-125C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG40-125CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG40-150C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG40-150CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG40-175C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG40-175CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG40-200C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG40-200CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG40-250C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG40-250CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG40-300C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG40-300CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD40-125C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD40-125CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD40-150C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD40-150CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD40-175C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD40-175CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD40-200C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD40-200CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD40-250C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD40-250CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD40-300C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD40-300CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQA50-125C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA50-125CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA50-150C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA50-150CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA50-175C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA50-175CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA50-200C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA50-200CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA50-250C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA50-250CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA50-300C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA50-300CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL50-125C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL50-125CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL50-150C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL50-150CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL50-175C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL50-175CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL50-200C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL50-200CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL50-250C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL50-250CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL50-300C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL50-300CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-125C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-125CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-150C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-150CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-175C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-175CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-200C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-200CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-250C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-250CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC50-300C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC50-300CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF50-125C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF50-125CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF50-150C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF50-150CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF50-175C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF50-175CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF50-200C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF50-200CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF50-250C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF50-250CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF50-300C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF50-300CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG50-125C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG50-125CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG50-150C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG50-150CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG50-175C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG50-175CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG50-200C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG50-200CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG50-250C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG50-250CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG50-300C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG50-300CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD50-125C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD50-125CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD50-150C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD50-150CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD50-175C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD50-175CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD50-200C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD50-200CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD50-250C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD50-250CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD50-300C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD50-300CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQA63-125C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA63-125CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA63-150C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA63-150CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA63-175C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA63-175CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA63-200C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA63-200CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA63-250C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA63-250CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA63-300C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA63-300CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL63-125C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL63-125CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL63-150C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL63-150CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL63-175C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL63-175CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL63-200C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL63-200CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL63-250C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL63-250CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL63-300C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL63-300CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-125C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-125CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-150C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-150CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-175C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-175CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-200C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-200CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-250C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-250CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC63-300C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC63-300CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF63-125C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF63-125CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF63-150C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF63-150CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF63-175C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF63-175CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF63-200C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF63-200CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF63-250C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF63-250CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF63-300C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF63-300CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG63-125C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG63-125CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG63-150C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG63-150CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG63-175C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG63-175CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG63-200C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG63-200CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG63-250C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG63-250CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG63-300C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG63-300CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD63-125C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD63-125CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD63-150C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD63-150CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD63-175C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD63-175CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD63-200C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD63-200CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD63-250C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD63-250CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD63-300C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD63-300CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQA80-125C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA80-125CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA80-150C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA80-150CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA80-175C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA80-175CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA80-200C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA80-200CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA80-250C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA80-250CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA80-300C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA80-300CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL80-125C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL80-125CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL80-150C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL80-150CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL80-175C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL80-175CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL80-200C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL80-200CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL80-250C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL80-250CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL80-300C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL80-300CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-125C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-125CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-150C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-150CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-175C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-175CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-200C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-200CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-250C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-250CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC80-300C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC80-300CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF80-125C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF80-125CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF80-150C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF80-150CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF80-175C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF80-175CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF80-200C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF80-200CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF80-250C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF80-250CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF80-300C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF80-300CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG80-125C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG80-125CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG80-150C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG80-150CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG80-175C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG80-175CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG80-200C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG80-200CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG80-250C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG80-250CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG80-300C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG80-300CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD80-125C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD80-125CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD80-150C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD80-150CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD80-175C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD80-175CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD80-200C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD80-200CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD80-250C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD80-250CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD80-300C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD80-300CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQA100-125C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQA100-125CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQA100-150C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQA100-150CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQA100-175C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQA100-175CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQA100-200C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQA100-200CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQA100-250C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQA100-250CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQA100-300C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQA100-300CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQL100-125C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQL100-125CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQL100-150C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQL100-150CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQL100-175C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQL100-175CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQL100-200C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQL100-200CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQL100-250C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQL100-250CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQL100-300C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQL100-300CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-125C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-125CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-150C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-150CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-175C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-175CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-200C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-200CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-250C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-250CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQLC100-300C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQLC100-300CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQF100-125C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQF100-125CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQF100-150C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQF100-150CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQF100-175C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQF100-175CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQF100-200C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQF100-200CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQF100-250C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQF100-250CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQF100-300C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQF100-300CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQG100-125C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQG100-125CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQG100-150C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQG100-150CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQG100-175C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQG100-175CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQG100-200C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQG100-200CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQG100-250C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQG100-250CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQG100-300C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQG100-300CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RQD100-125C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: None
	RQD100-125CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: None
	RQD100-150C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: None
	RQD100-150CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: None
	RQD100-175C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: None
	RQD100-175CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: None
	RQD100-200C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: None
	RQD100-200CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: None
	RQD100-250C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: None
	RQD100-250CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: None
	RQD100-300C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: None
	RQD100-300CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: None
	RDQA20-75C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-75CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA20-100C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-100CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA20-125C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-125CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA20-150C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-150CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA20-175C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-175CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA20-200C	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA20-200CM	Bore: ø20 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-75C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-75CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-100C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-100CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-125C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-125CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-150C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-150CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-175C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-175CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL20-200C	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL20-200CM	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-75C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-75CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-100C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-100CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-125C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-125CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-150C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-150CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-175C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-175CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC20-200C	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC20-200CM	Bore: ø20 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-75C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-75CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-100C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-100CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-125C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-125CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-150C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-150CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-175C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-175CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF20-200C	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF20-200CM	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-75C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-75CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-100C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-100CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-125C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-125CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-150C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-150CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-175C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-175CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG20-200C	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG20-200CM	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-75C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-75CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-100C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-100CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-125C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-125CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-150C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-150CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-175C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-175CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD20-200C	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD20-200CM	Bore: ø20 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-75C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-75CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-100C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-100CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-125C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-125CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-150C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-150CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-175C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-175CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA25-200C	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA25-200CM	Bore: ø25 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-75C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-75CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-100C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-100CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-125C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-125CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-150C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-150CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-175C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-175CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL25-200C	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL25-200CM	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-75C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-75CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-100C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-100CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-125C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-125CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-150C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-150CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-175C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-175CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC25-200C	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC25-200CM	Bore: ø25 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-75C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-75CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-100C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-100CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-125C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-125CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-150C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-150CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-175C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-175CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF25-200C	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF25-200CM	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-75C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-75CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-100C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-100CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-125C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-125CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-150C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-150CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-175C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-175CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG25-200C	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG25-200CM	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-75C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-75CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-100C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-100CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-125C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-125CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-150C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-150CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-175C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-175CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD25-200C	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD25-200CM	Bore: ø25 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-125C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-125CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-150C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-150CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-175C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-175CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-200C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-200CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-250C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-250CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA32-300C	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA32-300CM	Bore: ø32 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-125C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-125CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-150C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-150CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-175C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-175CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-200C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-200CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-250C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-250CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL32-300C	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL32-300CM	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-125C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-125CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-150C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-150CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-175C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-175CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-200C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-200CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-250C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-250CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC32-300C	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC32-300CM	Bore: ø32 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-125C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-125CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-150C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-150CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-175C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-175CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-200C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-200CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-250C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-250CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF32-300C	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF32-300CM	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-125C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-125CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-150C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-150CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-175C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-175CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-200C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-200CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-250C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-250CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG32-300C	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG32-300CM	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-125C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-125CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-150C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-150CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-175C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-175CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-200C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-200CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-250C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-250CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD32-300C	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD32-300CM	Bore: ø32 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-125C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-125CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-150C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-150CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-175C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-175CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-200C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-200CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-250C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-250CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA40-300C	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA40-300CM	Bore: ø40 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-125C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-125CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-150C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-150CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-175C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-175CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-200C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-200CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-250C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-250CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL40-300C	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL40-300CM	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-125C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-125CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-150C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-150CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-175C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-175CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-200C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-200CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-250C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-250CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC40-300C	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC40-300CM	Bore: ø40 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-125C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-125CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-150C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-150CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-175C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-175CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-200C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-200CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-250C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-250CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF40-300C	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF40-300CM	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-125C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-125CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-150C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-150CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-175C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-175CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-200C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-200CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-250C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-250CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG40-300C	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG40-300CM	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-125C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-125CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-150C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-150CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-175C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-175CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-200C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-200CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-250C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-250CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD40-300C	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD40-300CM	Bore: ø40 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-125C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-125CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-150C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-150CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-175C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-175CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-200C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-200CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-250C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-250CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA50-300C	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA50-300CM	Bore: ø50 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-125C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-125CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-150C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-150CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-175C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-175CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-200C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-200CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-250C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-250CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL50-300C	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL50-300CM	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-125C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-125CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-150C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-150CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-175C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-175CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-200C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-200CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-250C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-250CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC50-300C	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC50-300CM	Bore: ø50 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-125C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-125CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-150C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-150CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-175C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-175CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-200C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-200CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-250C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-250CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF50-300C	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF50-300CM	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-125C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-125CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-150C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-150CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-175C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-175CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-200C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-200CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-250C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-250CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG50-300C	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG50-300CM	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-125C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-125CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-150C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-150CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-175C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-175CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-200C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-200CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-250C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-250CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD50-300C	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD50-300CM	Bore: ø50 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-125C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-125CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-150C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-150CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-175C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-175CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-200C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-200CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-250C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-250CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA63-300C	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA63-300CM	Bore: ø63 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-125C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-125CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-150C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-150CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-175C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-175CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-200C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-200CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-250C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-250CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL63-300C	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL63-300CM	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-125C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-125CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-150C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-150CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-175C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-175CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-200C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-200CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-250C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-250CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC63-300C	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC63-300CM	Bore: ø63 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-125C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-125CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-150C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-150CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-175C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-175CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-200C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-200CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-250C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-250CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF63-300C	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF63-300CM	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-125C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-125CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-150C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-150CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-175C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-175CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-200C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-200CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-250C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-250CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG63-300C	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG63-300CM	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-125C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-125CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-150C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-150CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-175C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-175CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-200C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-200CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-250C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-250CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD63-300C	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD63-300CM	Bore: ø63 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-125C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-125CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-150C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-150CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-175C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-175CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-200C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-200CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-250C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-250CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA80-300C	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA80-300CM	Bore: ø80 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-125C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-125CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-150C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-150CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-175C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-175CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-200C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-200CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-250C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-250CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL80-300C	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL80-300CM	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-125C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-125CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-150C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-150CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-175C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-175CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-200C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-200CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-250C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-250CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC80-300C	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC80-300CM	Bore: ø80 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-125C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-125CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-150C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-150CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-175C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-175CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-200C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-200CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-250C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-250CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF80-300C	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF80-300CM	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-125C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-125CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-150C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-150CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-175C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-175CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-200C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-200CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-250C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-250CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG80-300C	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG80-300CM	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-125C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-125CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-150C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-150CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-175C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-175CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-200C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-200CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-250C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-250CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD80-300C	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD80-300CM	Bore: ø80 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-125C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-125CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-150C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-150CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-175C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-175CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-200C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-200CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-250C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-250CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQA100-300C	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQA100-300CM	Bore: ø100 mm \| Mounting: Both ends tapped \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-125C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-125CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-150C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-150CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-175C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-175CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-200C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-200CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-250C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-250CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQL100-300C	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQL100-300CM	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-125C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-125CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-150C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-150CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-175C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-175CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-200C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-200CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-250C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-250CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQLC100-300C	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQLC100-300CM	Bore: ø100 mm \| Mounting: Compact foot \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-125C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-125CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-150C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-150CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-175C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-175CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-200C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-200CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-250C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-250CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQF100-300C	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQF100-300CM	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-125C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-125CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-150C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-150CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-175C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-175CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-200C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-200CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-250C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-250CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQG100-300C	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQG100-300CM	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-125C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-125CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 125 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-150C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-150CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 150 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-175C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-175CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 175 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-200C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-200CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 200 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-250C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-250CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 250 mm \| Rod end: Male thread \| Magnet: Built-in
	RDQD100-300C	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Female thread \| Magnet: Built-in
	RDQD100-300CM	Bore: ø100 mm \| Mounting: Double clevis \| Stroke: 300 mm \| Rod end: Male thread \| Magnet: Built-in

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC RQ Compact Cylinder with Air Cushion (Long Stroke, ø20-ø100)
