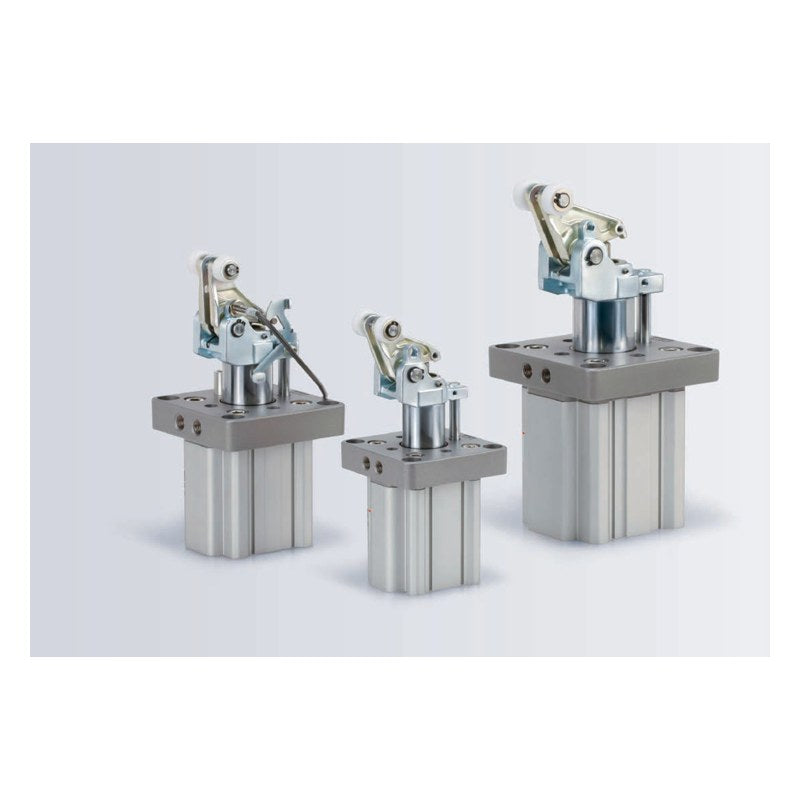

SMC RS2H Heavy Duty Stopper Cylinder (ø50 to ø80)

SMC RS2H series heavy-duty stopper cylinder with a built-in adjustable shock absorber lever, ø50, ø63 and ø80 mm, for smoothly stopping heavy pallets on conveyor lines.

Key features

Adjustable shock absorber built into the lever: rotate the dial to change the absorption to suit the load; replaceable by loosening one set screw
Up to 22% lighter and up to 9 mm shorter than the previous model (RS2H63-30)
Resin (L) or carbon steel (M) roller; piping on flange side or axial (A)
Options (combinable, order D, C, S): lock mechanism, cancel cap, lever detection proximity switch (Omron E2E-X2D1-N); four lever/port position relations
Built-in magnet for D-M9, D-A9 and D-P3DWA auto switches (ordered as suffix)
Made to order: high-resistance shock absorber (-X2464, ø50), shock absorber with scraper (-X2541), lock release (-XC102); spare shock absorbers RS2H-R50/R63/R80

Specifications

Rod end	Lever with built-in shock absorber
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Lubrication	Not required (non-lube)
Cushion	Rubber cushion
Stroke length tolerance	+1.4/0 mm
Mounting	Flange
Standard stroke	30 mm (ø50, ø63), 40 mm (ø80)
Port	Rc1/8 (ø50), Rc1/4 (ø63, ø80)
Source	SMC Korea catalog RS2H (SMCKR_RS2H.pdf), p. 642-643

RS2H50-30DL		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50-30DL-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50-30DL-P		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50-30DL-R		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50-30DL-D		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50-30DL-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50-30DL-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50-30DL-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50-30DL-C		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30DL-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50-30DL-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50-30DL-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50-30DL-S		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30DL-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30DL-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50-30DL-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50-30DL-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30DL-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30DL-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30DL-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30DL-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30DL-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30DL-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30DL-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30DL-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30DL-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30DL-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30DL-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30DL-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30DL-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30DL-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30DL-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50-30DM		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50-30DM-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50-30DM-P		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50-30DM-R		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50-30DM-D		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50-30DM-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50-30DM-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50-30DM-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50-30DM-C		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30DM-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50-30DM-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50-30DM-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50-30DM-S		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30DM-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30DM-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50-30DM-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50-30DM-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30DM-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30DM-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30DM-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30DM-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30DM-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30DM-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30DM-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30DM-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30DM-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30DM-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30DM-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30DM-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30DM-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30DM-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30DM-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50-30BL		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50-30BL-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50-30BL-P		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50-30BL-R		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50-30BL-D		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50-30BL-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50-30BL-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50-30BL-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50-30BL-C		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30BL-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50-30BL-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50-30BL-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50-30BL-S		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30BL-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30BL-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50-30BL-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50-30BL-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30BL-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30BL-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30BL-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30BL-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30BL-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30BL-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30BL-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30BL-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30BL-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30BL-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30BL-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30BL-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30BL-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30BL-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30BL-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50-30BM		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50-30BM-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50-30BM-P		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50-30BM-R		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50-30BM-D		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50-30BM-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50-30BM-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50-30BM-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50-30BM-C		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30BM-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50-30BM-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50-30BM-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50-30BM-S		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30BM-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30BM-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50-30BM-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50-30BM-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30BM-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30BM-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30BM-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30BM-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30BM-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30BM-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30BM-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30BM-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30BM-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30BM-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30BM-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30BM-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30BM-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30BM-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30BM-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50-30TL		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50-30TL-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50-30TL-P		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50-30TL-R		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50-30TL-D		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50-30TL-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50-30TL-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50-30TL-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50-30TL-C		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30TL-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50-30TL-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50-30TL-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50-30TL-S		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30TL-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30TL-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50-30TL-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50-30TL-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30TL-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30TL-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30TL-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30TL-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30TL-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30TL-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30TL-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30TL-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30TL-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30TL-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30TL-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30TL-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30TL-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30TL-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30TL-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50-30TM		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50-30TM-Q		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50-30TM-P		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50-30TM-R		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50-30TM-D		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50-30TM-DQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50-30TM-DP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50-30TM-DR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50-30TM-C		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50-30TM-CQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50-30TM-CP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50-30TM-CR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50-30TM-S		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50-30TM-SQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50-30TM-SP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50-30TM-SR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50-30TM-DC		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50-30TM-DCQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50-30TM-DCP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50-30TM-DCR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50-30TM-DS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50-30TM-DSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50-30TM-DSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50-30TM-DSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50-30TM-CS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50-30TM-CSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50-30TM-CSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50-30TM-CSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50-30TM-DCS		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50-30TM-DCSQ		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50-30TM-DCSP		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50-30TM-DCSR		Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30DL		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50A-30DL-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50A-30DL-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50A-30DL-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50A-30DL-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50A-30DL-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50A-30DL-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50A-30DL-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50A-30DL-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30DL-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30DL-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50A-30DL-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50A-30DL-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30DL-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30DL-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30DL-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30DL-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30DL-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30DL-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30DL-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30DL-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30DL-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30DL-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30DL-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30DL-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30DL-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30DL-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30DL-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30DL-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30DL-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30DL-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30DL-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30DM		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50A-30DM-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50A-30DM-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50A-30DM-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50A-30DM-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50A-30DM-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50A-30DM-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50A-30DM-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50A-30DM-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30DM-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30DM-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50A-30DM-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50A-30DM-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30DM-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30DM-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30DM-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30DM-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30DM-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30DM-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30DM-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30DM-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30DM-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30DM-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30DM-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30DM-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30DM-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30DM-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30DM-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30DM-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30DM-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30DM-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30DM-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30BL		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50A-30BL-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50A-30BL-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50A-30BL-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50A-30BL-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50A-30BL-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50A-30BL-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50A-30BL-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50A-30BL-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30BL-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30BL-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50A-30BL-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50A-30BL-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30BL-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30BL-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30BL-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30BL-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30BL-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30BL-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30BL-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30BL-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30BL-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30BL-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30BL-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30BL-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30BL-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30BL-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30BL-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30BL-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30BL-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30BL-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30BL-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30BM		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50A-30BM-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50A-30BM-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50A-30BM-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50A-30BM-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50A-30BM-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50A-30BM-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50A-30BM-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50A-30BM-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30BM-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30BM-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50A-30BM-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50A-30BM-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30BM-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30BM-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30BM-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30BM-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30BM-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30BM-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30BM-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30BM-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30BM-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30BM-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30BM-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30BM-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30BM-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30BM-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30BM-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30BM-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30BM-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30BM-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30BM-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30TL		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H50A-30TL-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H50A-30TL-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H50A-30TL-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H50A-30TL-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H50A-30TL-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H50A-30TL-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H50A-30TL-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H50A-30TL-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30TL-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30TL-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H50A-30TL-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H50A-30TL-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30TL-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30TL-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30TL-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30TL-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30TL-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30TL-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30TL-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30TL-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30TL-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30TL-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30TL-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30TL-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30TL-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30TL-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30TL-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30TL-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30TL-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30TL-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30TL-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H50A-30TM		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H50A-30TM-Q		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H50A-30TM-P		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H50A-30TM-R		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H50A-30TM-D		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H50A-30TM-DQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H50A-30TM-DP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H50A-30TM-DR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H50A-30TM-C		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H50A-30TM-CQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H50A-30TM-CP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H50A-30TM-CR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H50A-30TM-S		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H50A-30TM-SQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H50A-30TM-SP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H50A-30TM-SR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H50A-30TM-DC		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H50A-30TM-DCQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H50A-30TM-DCP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H50A-30TM-DCR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H50A-30TM-DS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H50A-30TM-DSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H50A-30TM-DSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H50A-30TM-DSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H50A-30TM-CS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30TM-CSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H50A-30TM-CSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H50A-30TM-CSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H50A-30TM-DCS		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H50A-30TM-DCSQ		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H50A-30TM-DCSP		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H50A-30TM-DCSR		Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30DL		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63-30DL-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63-30DL-P		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63-30DL-R		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63-30DL-D		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63-30DL-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63-30DL-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63-30DL-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63-30DL-C		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30DL-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63-30DL-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63-30DL-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63-30DL-S		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30DL-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30DL-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63-30DL-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63-30DL-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30DL-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30DL-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30DL-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30DL-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30DL-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30DL-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30DL-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30DL-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30DL-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30DL-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30DL-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30DL-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30DL-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30DL-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30DL-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30DM		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63-30DM-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63-30DM-P		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63-30DM-R		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63-30DM-D		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63-30DM-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63-30DM-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63-30DM-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63-30DM-C		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30DM-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63-30DM-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63-30DM-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63-30DM-S		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30DM-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30DM-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63-30DM-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63-30DM-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30DM-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30DM-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30DM-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30DM-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30DM-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30DM-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30DM-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30DM-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30DM-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30DM-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30DM-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30DM-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30DM-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30DM-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30DM-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30BL		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63-30BL-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63-30BL-P		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63-30BL-R		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63-30BL-D		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63-30BL-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63-30BL-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63-30BL-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63-30BL-C		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30BL-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63-30BL-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63-30BL-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63-30BL-S		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30BL-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30BL-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63-30BL-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63-30BL-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30BL-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30BL-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30BL-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30BL-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30BL-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30BL-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30BL-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30BL-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30BL-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30BL-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30BL-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30BL-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30BL-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30BL-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30BL-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30BM		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63-30BM-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63-30BM-P		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63-30BM-R		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63-30BM-D		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63-30BM-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63-30BM-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63-30BM-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63-30BM-C		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30BM-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63-30BM-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63-30BM-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63-30BM-S		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30BM-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30BM-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63-30BM-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63-30BM-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30BM-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30BM-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30BM-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30BM-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30BM-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30BM-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30BM-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30BM-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30BM-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30BM-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30BM-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30BM-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30BM-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30BM-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30BM-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30TL		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63-30TL-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63-30TL-P		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63-30TL-R		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63-30TL-D		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63-30TL-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63-30TL-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63-30TL-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63-30TL-C		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30TL-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63-30TL-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63-30TL-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63-30TL-S		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30TL-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30TL-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63-30TL-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63-30TL-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30TL-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30TL-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30TL-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30TL-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30TL-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30TL-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30TL-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30TL-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30TL-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30TL-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30TL-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30TL-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30TL-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30TL-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30TL-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63-30TM		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63-30TM-Q		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63-30TM-P		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63-30TM-R		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63-30TM-D		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63-30TM-DQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63-30TM-DP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63-30TM-DR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63-30TM-C		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63-30TM-CQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63-30TM-CP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63-30TM-CR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63-30TM-S		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63-30TM-SQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63-30TM-SP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63-30TM-SR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63-30TM-DC		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63-30TM-DCQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63-30TM-DCP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63-30TM-DCR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63-30TM-DS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63-30TM-DSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63-30TM-DSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63-30TM-DSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63-30TM-CS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63-30TM-CSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63-30TM-CSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63-30TM-CSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63-30TM-DCS		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63-30TM-DCSQ		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63-30TM-DCSP		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63-30TM-DCSR		Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30DL		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63A-30DL-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63A-30DL-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63A-30DL-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63A-30DL-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63A-30DL-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63A-30DL-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63A-30DL-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63A-30DL-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30DL-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30DL-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63A-30DL-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63A-30DL-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30DL-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30DL-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30DL-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30DL-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30DL-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30DL-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30DL-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30DL-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30DL-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30DL-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30DL-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30DL-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30DL-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30DL-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30DL-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30DL-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30DL-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30DL-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30DL-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30DM		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63A-30DM-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63A-30DM-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63A-30DM-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63A-30DM-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63A-30DM-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63A-30DM-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63A-30DM-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63A-30DM-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30DM-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30DM-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63A-30DM-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63A-30DM-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30DM-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30DM-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30DM-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30DM-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30DM-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30DM-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30DM-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30DM-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30DM-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30DM-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30DM-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30DM-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30DM-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30DM-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30DM-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30DM-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30DM-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30DM-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30DM-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30BL		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63A-30BL-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63A-30BL-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63A-30BL-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63A-30BL-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63A-30BL-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63A-30BL-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63A-30BL-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63A-30BL-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30BL-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30BL-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63A-30BL-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63A-30BL-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30BL-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30BL-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30BL-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30BL-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30BL-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30BL-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30BL-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30BL-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30BL-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30BL-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30BL-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30BL-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30BL-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30BL-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30BL-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30BL-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30BL-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30BL-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30BL-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30BM		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63A-30BM-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63A-30BM-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63A-30BM-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63A-30BM-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63A-30BM-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63A-30BM-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63A-30BM-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63A-30BM-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30BM-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30BM-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63A-30BM-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63A-30BM-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30BM-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30BM-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30BM-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30BM-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30BM-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30BM-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30BM-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30BM-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30BM-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30BM-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30BM-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30BM-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30BM-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30BM-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30BM-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30BM-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30BM-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30BM-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30BM-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30TL		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H63A-30TL-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H63A-30TL-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H63A-30TL-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H63A-30TL-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H63A-30TL-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H63A-30TL-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H63A-30TL-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H63A-30TL-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30TL-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30TL-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H63A-30TL-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H63A-30TL-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30TL-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30TL-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30TL-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30TL-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30TL-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30TL-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30TL-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30TL-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30TL-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30TL-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30TL-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30TL-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30TL-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30TL-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30TL-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30TL-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30TL-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30TL-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30TL-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H63A-30TM		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H63A-30TM-Q		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H63A-30TM-P		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H63A-30TM-R		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H63A-30TM-D		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H63A-30TM-DQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H63A-30TM-DP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H63A-30TM-DR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H63A-30TM-C		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H63A-30TM-CQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H63A-30TM-CP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H63A-30TM-CR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H63A-30TM-S		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H63A-30TM-SQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H63A-30TM-SP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H63A-30TM-SR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H63A-30TM-DC		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H63A-30TM-DCQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H63A-30TM-DCP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H63A-30TM-DCR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H63A-30TM-DS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H63A-30TM-DSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H63A-30TM-DSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H63A-30TM-DSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H63A-30TM-CS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30TM-CSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H63A-30TM-CSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H63A-30TM-CSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H63A-30TM-DCS		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H63A-30TM-DCSQ		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H63A-30TM-DCSP		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H63A-30TM-DCSR		Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40DL		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80-40DL-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80-40DL-P		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80-40DL-R		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80-40DL-D		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80-40DL-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80-40DL-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80-40DL-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80-40DL-C		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40DL-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80-40DL-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80-40DL-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80-40DL-S		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40DL-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40DL-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80-40DL-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80-40DL-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40DL-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40DL-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40DL-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40DL-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40DL-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40DL-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40DL-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40DL-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40DL-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40DL-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40DL-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40DL-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40DL-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40DL-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40DL-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40DM		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80-40DM-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80-40DM-P		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80-40DM-R		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80-40DM-D		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80-40DM-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80-40DM-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80-40DM-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80-40DM-C		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40DM-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80-40DM-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80-40DM-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80-40DM-S		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40DM-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40DM-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80-40DM-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80-40DM-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40DM-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40DM-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40DM-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40DM-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40DM-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40DM-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40DM-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40DM-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40DM-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40DM-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40DM-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40DM-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40DM-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40DM-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40DM-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40BL		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80-40BL-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80-40BL-P		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80-40BL-R		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80-40BL-D		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80-40BL-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80-40BL-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80-40BL-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80-40BL-C		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40BL-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80-40BL-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80-40BL-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80-40BL-S		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40BL-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40BL-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80-40BL-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80-40BL-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40BL-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40BL-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40BL-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40BL-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40BL-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40BL-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40BL-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40BL-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40BL-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40BL-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40BL-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40BL-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40BL-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40BL-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40BL-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40BM		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80-40BM-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80-40BM-P		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80-40BM-R		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80-40BM-D		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80-40BM-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80-40BM-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80-40BM-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80-40BM-C		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40BM-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80-40BM-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80-40BM-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80-40BM-S		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40BM-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40BM-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80-40BM-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80-40BM-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40BM-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40BM-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40BM-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40BM-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40BM-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40BM-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40BM-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40BM-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40BM-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40BM-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40BM-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40BM-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40BM-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40BM-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40BM-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40TL		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80-40TL-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80-40TL-P		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80-40TL-R		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80-40TL-D		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80-40TL-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80-40TL-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80-40TL-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80-40TL-C		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40TL-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80-40TL-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80-40TL-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80-40TL-S		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40TL-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40TL-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80-40TL-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80-40TL-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40TL-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40TL-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40TL-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40TL-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40TL-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40TL-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40TL-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40TL-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40TL-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40TL-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40TL-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40TL-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40TL-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40TL-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40TL-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80-40TM		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80-40TM-Q		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80-40TM-P		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80-40TM-R		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80-40TM-D		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80-40TM-DQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80-40TM-DP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80-40TM-DR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80-40TM-C		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80-40TM-CQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80-40TM-CP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80-40TM-CR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80-40TM-S		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80-40TM-SQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80-40TM-SP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80-40TM-SR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80-40TM-DC		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80-40TM-DCQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80-40TM-DCP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80-40TM-DCR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80-40TM-DS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80-40TM-DSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80-40TM-DSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80-40TM-DSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80-40TM-CS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80-40TM-CSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80-40TM-CSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80-40TM-CSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80-40TM-DCS		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80-40TM-DCSQ		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80-40TM-DCSP		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80-40TM-DCSR		Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40DL		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80A-40DL-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80A-40DL-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80A-40DL-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80A-40DL-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80A-40DL-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80A-40DL-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80A-40DL-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80A-40DL-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40DL-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40DL-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80A-40DL-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80A-40DL-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40DL-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40DL-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40DL-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40DL-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40DL-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40DL-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40DL-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40DL-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40DL-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40DL-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40DL-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40DL-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40DL-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40DL-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40DL-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40DL-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40DL-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40DL-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40DL-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40DM		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80A-40DM-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80A-40DM-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80A-40DM-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80A-40DM-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80A-40DM-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80A-40DM-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80A-40DM-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80A-40DM-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40DM-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40DM-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80A-40DM-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80A-40DM-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40DM-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40DM-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40DM-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40DM-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40DM-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40DM-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40DM-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40DM-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40DM-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40DM-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40DM-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40DM-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40DM-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40DM-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40DM-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40DM-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40DM-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40DM-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40DM-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40BL		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80A-40BL-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80A-40BL-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80A-40BL-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80A-40BL-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80A-40BL-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80A-40BL-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80A-40BL-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80A-40BL-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40BL-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40BL-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80A-40BL-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80A-40BL-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40BL-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40BL-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40BL-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40BL-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40BL-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40BL-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40BL-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40BL-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40BL-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40BL-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40BL-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40BL-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40BL-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40BL-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40BL-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40BL-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40BL-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40BL-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40BL-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40BM		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80A-40BM-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80A-40BM-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80A-40BM-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80A-40BM-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80A-40BM-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80A-40BM-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80A-40BM-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80A-40BM-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40BM-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40BM-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80A-40BM-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80A-40BM-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40BM-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40BM-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40BM-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40BM-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40BM-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40BM-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40BM-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40BM-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40BM-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40BM-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40BM-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40BM-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40BM-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40BM-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40BM-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40BM-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40BM-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40BM-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40BM-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40TL		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
RS2H80A-40TL-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
RS2H80A-40TL-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
RS2H80A-40TL-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
RS2H80A-40TL-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
RS2H80A-40TL-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
RS2H80A-40TL-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
RS2H80A-40TL-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
RS2H80A-40TL-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40TL-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40TL-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
RS2H80A-40TL-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
RS2H80A-40TL-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40TL-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40TL-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40TL-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40TL-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40TL-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40TL-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40TL-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40TL-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40TL-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40TL-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40TL-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40TL-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40TL-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40TL-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40TL-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40TL-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40TL-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40TL-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40TL-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
RS2H80A-40TM		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
RS2H80A-40TM-Q		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
RS2H80A-40TM-P		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
RS2H80A-40TM-R		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
RS2H80A-40TM-D		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
RS2H80A-40TM-DQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
RS2H80A-40TM-DP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
RS2H80A-40TM-DR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
RS2H80A-40TM-C		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
RS2H80A-40TM-CQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
RS2H80A-40TM-CP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
RS2H80A-40TM-CR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
RS2H80A-40TM-S		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
RS2H80A-40TM-SQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
RS2H80A-40TM-SP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
RS2H80A-40TM-SR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
RS2H80A-40TM-DC		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
RS2H80A-40TM-DCQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
RS2H80A-40TM-DCP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
RS2H80A-40TM-DCR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
RS2H80A-40TM-DS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
RS2H80A-40TM-DSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
RS2H80A-40TM-DSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
RS2H80A-40TM-DSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
RS2H80A-40TM-CS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40TM-CSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
RS2H80A-40TM-CSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
RS2H80A-40TM-CSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
RS2H80A-40TM-DCS		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
RS2H80A-40TM-DCSQ		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
RS2H80A-40TM-DCSP		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
RS2H80A-40TM-DCSR		Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R

Compact CylindersSMC

1152 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RS2H Heavy Duty Stopper Cylinder (ø50 to ø80)

Brand SMC·Compact Cylinders

Available part numbers (1152)

RS2H50-30DL, RS2H50-30DL-Q, RS2H50-30DL-P, RS2H50-30DL-R, RS2H50-30DL-D, RS2H50-30DL-DQ, RS2H50-30DL-DP, RS2H50-30DL-DR, RS2H50-30DL-C, RS2H50-30DL-CQ + 1142 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RS2H50-30DL	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50-30DL-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50-30DL-P	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50-30DL-R	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50-30DL-D	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50-30DL-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50-30DL-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50-30DL-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50-30DL-C	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30DL-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30DL-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50-30DL-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50-30DL-S	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30DL-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30DL-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30DL-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30DL-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30DL-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30DL-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30DL-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30DL-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30DL-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30DL-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30DL-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30DL-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30DL-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30DL-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30DL-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30DL-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30DL-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30DL-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30DL-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50-30DM	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50-30DM-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50-30DM-P	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50-30DM-R	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50-30DM-D	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50-30DM-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50-30DM-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50-30DM-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50-30DM-C	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30DM-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30DM-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50-30DM-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50-30DM-S	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30DM-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30DM-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30DM-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30DM-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30DM-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30DM-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30DM-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30DM-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30DM-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30DM-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30DM-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30DM-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30DM-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30DM-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30DM-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30DM-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30DM-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30DM-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30DM-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50-30BL	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50-30BL-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50-30BL-P	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50-30BL-R	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50-30BL-D	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50-30BL-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50-30BL-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50-30BL-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50-30BL-C	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30BL-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30BL-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50-30BL-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50-30BL-S	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30BL-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30BL-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30BL-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30BL-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30BL-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30BL-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30BL-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30BL-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30BL-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30BL-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30BL-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30BL-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30BL-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30BL-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30BL-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30BL-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30BL-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30BL-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30BL-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50-30BM	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50-30BM-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50-30BM-P	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50-30BM-R	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50-30BM-D	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50-30BM-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50-30BM-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50-30BM-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50-30BM-C	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30BM-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30BM-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50-30BM-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50-30BM-S	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30BM-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30BM-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30BM-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30BM-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30BM-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30BM-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30BM-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30BM-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30BM-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30BM-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30BM-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30BM-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30BM-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30BM-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30BM-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30BM-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30BM-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30BM-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30BM-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50-30TL	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50-30TL-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50-30TL-P	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50-30TL-R	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50-30TL-D	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50-30TL-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50-30TL-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50-30TL-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50-30TL-C	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30TL-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30TL-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50-30TL-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50-30TL-S	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30TL-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30TL-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30TL-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30TL-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30TL-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30TL-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30TL-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30TL-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30TL-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30TL-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30TL-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30TL-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30TL-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30TL-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30TL-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30TL-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30TL-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30TL-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30TL-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50-30TM	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50-30TM-Q	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50-30TM-P	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50-30TM-R	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50-30TM-D	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50-30TM-DQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50-30TM-DP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50-30TM-DR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50-30TM-C	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50-30TM-CQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50-30TM-CP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50-30TM-CR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50-30TM-S	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50-30TM-SQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50-30TM-SP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50-30TM-SR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50-30TM-DC	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50-30TM-DCQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50-30TM-DCP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50-30TM-DCR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50-30TM-DS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50-30TM-DSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50-30TM-DSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50-30TM-DSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50-30TM-CS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30TM-CSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50-30TM-CSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50-30TM-CSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50-30TM-DCS	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50-30TM-DCSQ	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50-30TM-DCSP	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50-30TM-DCSR	Bore: ø50 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30DL	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50A-30DL-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50A-30DL-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50A-30DL-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50A-30DL-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50A-30DL-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50A-30DL-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50A-30DL-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50A-30DL-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30DL-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30DL-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30DL-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30DL-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30DL-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30DL-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30DL-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30DL-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30DL-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30DL-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30DL-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30DL-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30DL-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30DL-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30DL-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30DL-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30DL-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30DL-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30DL-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30DL-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30DL-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30DL-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30DL-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30DM	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50A-30DM-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50A-30DM-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50A-30DM-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50A-30DM-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50A-30DM-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50A-30DM-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50A-30DM-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50A-30DM-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30DM-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30DM-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30DM-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30DM-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30DM-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30DM-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30DM-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30DM-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30DM-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30DM-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30DM-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30DM-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30DM-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30DM-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30DM-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30DM-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30DM-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30DM-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30DM-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30DM-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30DM-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30DM-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30DM-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30BL	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50A-30BL-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50A-30BL-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50A-30BL-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50A-30BL-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50A-30BL-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50A-30BL-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50A-30BL-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50A-30BL-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30BL-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30BL-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30BL-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30BL-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30BL-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30BL-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30BL-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30BL-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30BL-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30BL-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30BL-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30BL-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30BL-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30BL-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30BL-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30BL-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30BL-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30BL-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30BL-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30BL-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30BL-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30BL-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30BL-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30BM	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50A-30BM-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50A-30BM-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50A-30BM-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50A-30BM-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50A-30BM-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50A-30BM-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50A-30BM-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50A-30BM-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30BM-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30BM-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30BM-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30BM-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30BM-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30BM-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30BM-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30BM-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30BM-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30BM-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30BM-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30BM-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30BM-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30BM-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30BM-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30BM-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30BM-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30BM-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30BM-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30BM-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30BM-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30BM-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30BM-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30TL	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H50A-30TL-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H50A-30TL-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H50A-30TL-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H50A-30TL-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H50A-30TL-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H50A-30TL-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H50A-30TL-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H50A-30TL-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30TL-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30TL-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30TL-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30TL-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30TL-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30TL-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30TL-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30TL-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30TL-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30TL-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30TL-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30TL-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30TL-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30TL-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30TL-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30TL-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30TL-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30TL-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30TL-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30TL-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30TL-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30TL-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30TL-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H50A-30TM	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H50A-30TM-Q	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H50A-30TM-P	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H50A-30TM-R	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H50A-30TM-D	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H50A-30TM-DQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H50A-30TM-DP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H50A-30TM-DR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H50A-30TM-C	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H50A-30TM-CQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H50A-30TM-CP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H50A-30TM-CR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H50A-30TM-S	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H50A-30TM-SQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H50A-30TM-SP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H50A-30TM-SR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H50A-30TM-DC	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H50A-30TM-DCQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H50A-30TM-DCP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H50A-30TM-DCR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H50A-30TM-DS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H50A-30TM-DSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H50A-30TM-DSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H50A-30TM-DSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H50A-30TM-CS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30TM-CSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30TM-CSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H50A-30TM-CSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H50A-30TM-DCS	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H50A-30TM-DCSQ	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H50A-30TM-DCSP	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H50A-30TM-DCSR	Bore: ø50 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30DL	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63-30DL-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63-30DL-P	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63-30DL-R	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63-30DL-D	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63-30DL-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63-30DL-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63-30DL-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63-30DL-C	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30DL-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30DL-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63-30DL-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63-30DL-S	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30DL-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30DL-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30DL-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30DL-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30DL-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30DL-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30DL-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30DL-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30DL-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30DL-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30DL-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30DL-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30DL-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30DL-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30DL-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30DL-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30DL-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30DL-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30DL-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30DM	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63-30DM-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63-30DM-P	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63-30DM-R	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63-30DM-D	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63-30DM-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63-30DM-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63-30DM-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63-30DM-C	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30DM-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30DM-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63-30DM-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63-30DM-S	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30DM-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30DM-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30DM-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30DM-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30DM-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30DM-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30DM-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30DM-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30DM-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30DM-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30DM-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30DM-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30DM-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30DM-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30DM-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30DM-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30DM-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30DM-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30DM-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30BL	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63-30BL-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63-30BL-P	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63-30BL-R	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63-30BL-D	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63-30BL-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63-30BL-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63-30BL-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63-30BL-C	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30BL-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30BL-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63-30BL-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63-30BL-S	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30BL-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30BL-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30BL-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30BL-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30BL-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30BL-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30BL-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30BL-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30BL-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30BL-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30BL-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30BL-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30BL-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30BL-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30BL-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30BL-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30BL-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30BL-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30BL-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30BM	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63-30BM-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63-30BM-P	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63-30BM-R	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63-30BM-D	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63-30BM-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63-30BM-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63-30BM-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63-30BM-C	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30BM-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30BM-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63-30BM-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63-30BM-S	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30BM-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30BM-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30BM-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30BM-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30BM-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30BM-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30BM-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30BM-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30BM-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30BM-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30BM-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30BM-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30BM-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30BM-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30BM-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30BM-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30BM-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30BM-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30BM-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30TL	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63-30TL-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63-30TL-P	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63-30TL-R	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63-30TL-D	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63-30TL-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63-30TL-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63-30TL-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63-30TL-C	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30TL-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30TL-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63-30TL-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63-30TL-S	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30TL-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30TL-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30TL-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30TL-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30TL-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30TL-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30TL-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30TL-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30TL-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30TL-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30TL-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30TL-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30TL-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30TL-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30TL-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30TL-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30TL-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30TL-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30TL-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63-30TM	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63-30TM-Q	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63-30TM-P	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63-30TM-R	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63-30TM-D	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63-30TM-DQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63-30TM-DP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63-30TM-DR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63-30TM-C	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63-30TM-CQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63-30TM-CP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63-30TM-CR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63-30TM-S	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63-30TM-SQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63-30TM-SP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63-30TM-SR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63-30TM-DC	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63-30TM-DCQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63-30TM-DCP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63-30TM-DCR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63-30TM-DS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63-30TM-DSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63-30TM-DSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63-30TM-DSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63-30TM-CS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30TM-CSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63-30TM-CSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63-30TM-CSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63-30TM-DCS	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63-30TM-DCSQ	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63-30TM-DCSP	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63-30TM-DCSR	Bore: ø63 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30DL	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63A-30DL-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63A-30DL-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63A-30DL-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63A-30DL-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63A-30DL-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63A-30DL-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63A-30DL-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63A-30DL-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30DL-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30DL-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30DL-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30DL-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30DL-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30DL-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30DL-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30DL-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30DL-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30DL-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30DL-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30DL-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30DL-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30DL-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30DL-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30DL-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30DL-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30DL-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30DL-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30DL-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30DL-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30DL-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30DL-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30DM	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63A-30DM-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63A-30DM-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63A-30DM-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63A-30DM-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63A-30DM-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63A-30DM-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63A-30DM-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63A-30DM-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30DM-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30DM-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30DM-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30DM-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30DM-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30DM-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30DM-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30DM-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30DM-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30DM-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30DM-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30DM-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30DM-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30DM-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30DM-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30DM-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30DM-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30DM-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30DM-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30DM-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30DM-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30DM-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30DM-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30BL	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63A-30BL-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63A-30BL-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63A-30BL-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63A-30BL-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63A-30BL-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63A-30BL-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63A-30BL-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63A-30BL-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30BL-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30BL-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30BL-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30BL-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30BL-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30BL-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30BL-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30BL-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30BL-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30BL-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30BL-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30BL-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30BL-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30BL-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30BL-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30BL-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30BL-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30BL-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30BL-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30BL-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30BL-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30BL-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30BL-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30BM	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63A-30BM-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63A-30BM-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63A-30BM-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63A-30BM-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63A-30BM-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63A-30BM-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63A-30BM-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63A-30BM-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30BM-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30BM-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30BM-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30BM-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30BM-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30BM-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30BM-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30BM-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30BM-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30BM-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30BM-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30BM-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30BM-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30BM-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30BM-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30BM-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30BM-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30BM-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30BM-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30BM-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30BM-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30BM-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30BM-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30TL	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H63A-30TL-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H63A-30TL-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H63A-30TL-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H63A-30TL-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H63A-30TL-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H63A-30TL-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H63A-30TL-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H63A-30TL-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30TL-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30TL-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30TL-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30TL-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30TL-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30TL-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30TL-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30TL-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30TL-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30TL-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30TL-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30TL-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30TL-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30TL-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30TL-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30TL-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30TL-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30TL-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30TL-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30TL-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30TL-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30TL-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30TL-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H63A-30TM	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H63A-30TM-Q	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H63A-30TM-P	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H63A-30TM-R	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H63A-30TM-D	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H63A-30TM-DQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H63A-30TM-DP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H63A-30TM-DR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H63A-30TM-C	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H63A-30TM-CQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H63A-30TM-CP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H63A-30TM-CR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H63A-30TM-S	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H63A-30TM-SQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H63A-30TM-SP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H63A-30TM-SR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H63A-30TM-DC	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H63A-30TM-DCQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H63A-30TM-DCP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H63A-30TM-DCR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H63A-30TM-DS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H63A-30TM-DSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H63A-30TM-DSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H63A-30TM-DSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H63A-30TM-CS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30TM-CSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30TM-CSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H63A-30TM-CSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H63A-30TM-DCS	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H63A-30TM-DCSQ	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H63A-30TM-DCSP	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H63A-30TM-DCSR	Bore: ø63 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40DL	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80-40DL-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80-40DL-P	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80-40DL-R	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80-40DL-D	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80-40DL-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80-40DL-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80-40DL-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80-40DL-C	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40DL-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40DL-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80-40DL-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80-40DL-S	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40DL-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40DL-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40DL-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40DL-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40DL-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40DL-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40DL-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40DL-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40DL-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40DL-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40DL-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40DL-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40DL-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40DL-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40DL-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40DL-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40DL-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40DL-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40DL-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40DM	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80-40DM-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80-40DM-P	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80-40DM-R	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80-40DM-D	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80-40DM-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80-40DM-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80-40DM-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80-40DM-C	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40DM-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40DM-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80-40DM-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80-40DM-S	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40DM-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40DM-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40DM-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40DM-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40DM-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40DM-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40DM-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40DM-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40DM-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40DM-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40DM-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40DM-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40DM-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40DM-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40DM-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40DM-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40DM-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40DM-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40DM-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40BL	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80-40BL-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80-40BL-P	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80-40BL-R	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80-40BL-D	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80-40BL-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80-40BL-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80-40BL-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80-40BL-C	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40BL-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40BL-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80-40BL-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80-40BL-S	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40BL-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40BL-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40BL-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40BL-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40BL-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40BL-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40BL-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40BL-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40BL-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40BL-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40BL-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40BL-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40BL-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40BL-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40BL-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40BL-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40BL-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40BL-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40BL-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40BM	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80-40BM-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80-40BM-P	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80-40BM-R	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80-40BM-D	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80-40BM-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80-40BM-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80-40BM-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80-40BM-C	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40BM-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40BM-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80-40BM-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80-40BM-S	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40BM-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40BM-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40BM-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40BM-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40BM-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40BM-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40BM-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40BM-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40BM-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40BM-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40BM-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40BM-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40BM-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40BM-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40BM-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40BM-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40BM-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40BM-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40BM-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40TL	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80-40TL-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80-40TL-P	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80-40TL-R	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80-40TL-D	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80-40TL-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80-40TL-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80-40TL-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80-40TL-C	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40TL-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40TL-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80-40TL-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80-40TL-S	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40TL-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40TL-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40TL-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40TL-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40TL-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40TL-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40TL-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40TL-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40TL-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40TL-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40TL-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40TL-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40TL-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40TL-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40TL-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40TL-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40TL-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40TL-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40TL-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80-40TM	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80-40TM-Q	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80-40TM-P	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80-40TM-R	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80-40TM-D	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80-40TM-DQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80-40TM-DP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80-40TM-DR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80-40TM-C	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80-40TM-CQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80-40TM-CP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80-40TM-CR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80-40TM-S	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80-40TM-SQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80-40TM-SP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80-40TM-SR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80-40TM-DC	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80-40TM-DCQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80-40TM-DCP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80-40TM-DCR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80-40TM-DS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80-40TM-DSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80-40TM-DSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80-40TM-DSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80-40TM-CS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40TM-CSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80-40TM-CSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80-40TM-CSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80-40TM-DCS	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80-40TM-DCSQ	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80-40TM-DCSP	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80-40TM-DCSR	Bore: ø80 mm \| Piping: Flange side \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40DL	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80A-40DL-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80A-40DL-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80A-40DL-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80A-40DL-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80A-40DL-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80A-40DL-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80A-40DL-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80A-40DL-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40DL-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40DL-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40DL-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40DL-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40DL-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40DL-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40DL-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40DL-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40DL-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40DL-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40DL-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40DL-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40DL-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40DL-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40DL-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40DL-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40DL-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40DL-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40DL-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40DL-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40DL-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40DL-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40DL-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40DM	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80A-40DM-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80A-40DM-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80A-40DM-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80A-40DM-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80A-40DM-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80A-40DM-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80A-40DM-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80A-40DM-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40DM-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40DM-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40DM-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40DM-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40DM-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40DM-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40DM-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40DM-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40DM-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40DM-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40DM-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40DM-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40DM-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40DM-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40DM-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40DM-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40DM-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40DM-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40DM-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40DM-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40DM-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40DM-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40DM-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40BL	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80A-40BL-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80A-40BL-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80A-40BL-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80A-40BL-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80A-40BL-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80A-40BL-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80A-40BL-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80A-40BL-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40BL-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40BL-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40BL-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40BL-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40BL-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40BL-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40BL-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40BL-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40BL-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40BL-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40BL-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40BL-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40BL-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40BL-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40BL-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40BL-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40BL-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40BL-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40BL-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40BL-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40BL-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40BL-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40BL-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40BM	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80A-40BM-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80A-40BM-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80A-40BM-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80A-40BM-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80A-40BM-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80A-40BM-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80A-40BM-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80A-40BM-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40BM-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40BM-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40BM-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40BM-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40BM-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40BM-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40BM-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40BM-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40BM-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40BM-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40BM-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40BM-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40BM-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40BM-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40BM-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40BM-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40BM-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40BM-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40BM-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40BM-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40BM-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40BM-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40BM-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Double acting, spring \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40TL	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Standard
	RS2H80A-40TL-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: Q
	RS2H80A-40TL-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: P
	RS2H80A-40TL-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: None \| Lever port position: R
	RS2H80A-40TL-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Standard
	RS2H80A-40TL-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: Q
	RS2H80A-40TL-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: P
	RS2H80A-40TL-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock \| Lever port position: R
	RS2H80A-40TL-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40TL-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40TL-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40TL-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40TL-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40TL-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40TL-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40TL-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40TL-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40TL-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40TL-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40TL-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40TL-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40TL-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40TL-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40TL-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40TL-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40TL-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40TL-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40TL-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40TL-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40TL-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40TL-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40TL-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Resin \| Option: Lock + cancel cap + lever switch \| Lever port position: R
	RS2H80A-40TM	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Standard
	RS2H80A-40TM-Q	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: Q
	RS2H80A-40TM-P	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: P
	RS2H80A-40TM-R	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: None \| Lever port position: R
	RS2H80A-40TM-D	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Standard
	RS2H80A-40TM-DQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: Q
	RS2H80A-40TM-DP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: P
	RS2H80A-40TM-DR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock \| Lever port position: R
	RS2H80A-40TM-C	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Standard
	RS2H80A-40TM-CQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: Q
	RS2H80A-40TM-CP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: P
	RS2H80A-40TM-CR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap \| Lever port position: R
	RS2H80A-40TM-S	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Standard
	RS2H80A-40TM-SQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: Q
	RS2H80A-40TM-SP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: P
	RS2H80A-40TM-SR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lever detection switch \| Lever port position: R
	RS2H80A-40TM-DC	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Standard
	RS2H80A-40TM-DCQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: Q
	RS2H80A-40TM-DCP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: P
	RS2H80A-40TM-DCR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap \| Lever port position: R
	RS2H80A-40TM-DS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Standard
	RS2H80A-40TM-DSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: Q
	RS2H80A-40TM-DSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: P
	RS2H80A-40TM-DSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + lever switch \| Lever port position: R
	RS2H80A-40TM-CS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40TM-CSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40TM-CSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: P
	RS2H80A-40TM-CSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Cancel cap + lever switch \| Lever port position: R
	RS2H80A-40TM-DCS	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Standard
	RS2H80A-40TM-DCSQ	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: Q
	RS2H80A-40TM-DCSP	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: P
	RS2H80A-40TM-DCSR	Bore: ø80 mm \| Piping: Axial (tube) \| Action: Single acting, retract \| Roller: Carbon steel \| Option: Lock + cancel cap + lever switch \| Lever port position: R

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC RS2H Heavy Duty Stopper Cylinder (ø50 to ø80)
