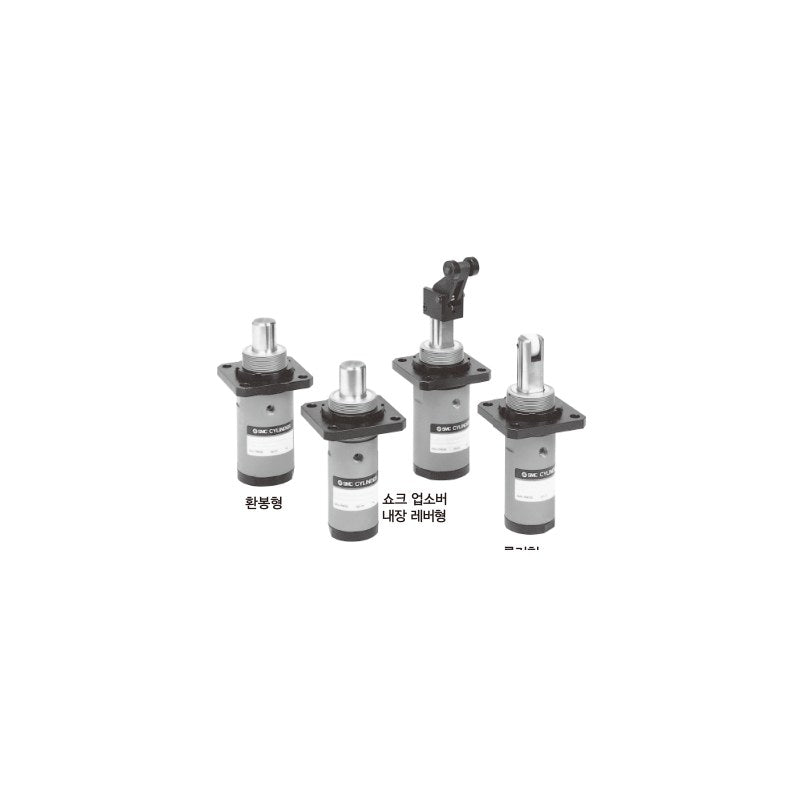

SMC RSG Stopper Cylinder (Adjustable Height, Flange, ø40/ø50)

SMC RSG Stopper Cylinder (Adjustable Height, Flange, ø40/ø50)

SMC RSG series flange-mounted stopper cylinder with adjustable installation height for conveyor lines, ø40 and ø50 mm, with round, chamfered, roller and lever rod ends, with or without a built-in magnet (RSDG).

Key features

  • Flange mounting allows the installation height to be adjusted
  • Rod end shapes: round bar, chamfered, roller, and lever with shock absorber (non-adjustable, adjustable, cancel cap, lock mechanism, lock + cancel cap)
  • Double acting, double acting with built-in spring, or single acting spring-retract operation
  • Rc1/8 ports standard; NPT (TN), G (TF) and one-touch fitting (F, ø6/ø4 for ø40, ø8/ø6 for ø50) port options
  • D-M9, D-A9, D-H7, D-C7 and other auto switches available with RSDG (ordered as suffix)
  • Made to order: rod end change (-XA), special port position (-XC3)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch (no freezing)
Lubrication Not required (non-lube)
Cushion Rubber cushion
Stroke length tolerance +1.4/0 mm
Mounting Flange
Port Rc1/8
Source SMC Korea catalog RSQ/RSG (SMCKR_RSQ_RSG.pdf), p. 622-623
RSG40-20D Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-20DK Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-20DR Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-20DL Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20DB Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-20DC Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20DD Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20DE Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-20B Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-20BK Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-20BR Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-20BL Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20BB Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-20BC Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20BD Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20BE Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-20T Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-20TK Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-20TR Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-20TL Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20TB Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-20TC Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20TD Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20TE Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25D Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-25DK Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-25DR Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-25DL Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25DB Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-25DC Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25DD Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25DE Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25B Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-25BK Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-25BR Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-25BL Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25BB Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-25BC Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25BD Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25BE Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25T Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-25TK Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-25TR Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-25TL Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25TB Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-25TC Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25TD Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25TE Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30D Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-30DK Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-30DR Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-30DL Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30DB Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-30DC Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30DD Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30DE Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30B Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-30BK Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-30BR Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-30BL Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30BB Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-30BC Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30BD Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30BE Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30T Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-30TK Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-30TR Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-30TL Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30TB Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-30TC Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30TD Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30TE Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20D Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-20DK Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-20DR Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-20DL Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20DB Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-20DC Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20DD Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20DE Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20B Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-20BK Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-20BR Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-20BL Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20BB Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-20BC Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20BD Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20BE Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20T Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-20TK Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-20TR Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-20TL Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20TB Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-20TC Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20TD Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20TE Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25D Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-25DK Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-25DR Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-25DL Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25DB Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-25DC Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25DD Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25DE Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25B Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-25BK Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-25BR Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-25BL Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25BB Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-25BC Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25BD Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25BE Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25T Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-25TK Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-25TR Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-25TL Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25TB Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-25TC Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25TD Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25TE Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30D Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-30DK Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-30DR Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-30DL Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30DB Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-30DC Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30DD Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30DE Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30B Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-30BK Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-30BR Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-30BL Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30BB Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-30BC Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30BD Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30BE Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30T Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-30TK Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-30TR Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-30TL Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30TB Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-30TC Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30TD Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30TE Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSDG40-20D Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-20DK Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-20DR Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-20DL Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20DB Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20DC Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20DD Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20DE Bore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-20B Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-20BK Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-20BR Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-20BL Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20BB Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20BC Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20BD Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20BE Bore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-20T Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-20TK Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-20TR Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-20TL Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20TB Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20TC Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20TD Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20TE Bore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25D Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-25DK Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-25DR Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-25DL Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25DB Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25DC Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25DD Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25DE Bore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25B Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-25BK Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-25BR Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-25BL Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25BB Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25BC Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25BD Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25BE Bore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25T Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-25TK Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-25TR Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-25TL Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25TB Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25TC Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25TD Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25TE Bore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30D Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-30DK Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-30DR Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-30DL Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30DB Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30DC Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30DD Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30DE Bore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30B Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-30BK Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-30BR Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-30BL Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30BB Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30BC Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30BD Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30BE Bore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30T Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-30TK Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-30TR Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-30TL Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30TB Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30TC Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30TD Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30TE Bore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20D Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-20DK Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-20DR Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-20DL Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20DB Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20DC Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20DD Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20DE Bore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20B Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-20BK Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-20BR Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-20BL Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20BB Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20BC Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20BD Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20BE Bore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20T Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-20TK Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-20TR Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-20TL Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20TB Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20TC Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20TD Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20TE Bore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25D Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-25DK Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-25DR Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-25DL Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25DB Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25DC Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25DD Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25DE Bore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25B Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-25BK Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-25BR Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-25BL Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25BB Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25BC Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25BD Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25BE Bore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25T Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-25TK Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-25TR Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-25TL Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25TB Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25TC Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25TD Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25TE Bore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30D Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-30DK Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-30DR Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-30DL Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30DB Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30DC Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30DD Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30DE Bore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30B Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-30BK Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-30BR Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-30BL Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30BB Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30BC Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30BD Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30BE Bore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30T Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-30TK Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-30TR Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-30TL Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30TB Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30TC Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30TD Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30TE Bore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
Compact CylindersSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RSG Stopper Cylinder (Adjustable Height, Flange, ø40/ø50)

Brand SMC·Compact Cylinders

Available part numbers (288)

RSG40-20D, RSG40-20DK, RSG40-20DR, RSG40-20DL, RSG40-20DB, RSG40-20DC, RSG40-20DD, RSG40-20DE, RSG40-20B, RSG40-20BK + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSG40-20DBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-20DKBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-20DRBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-20DLBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20DBBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-20DCBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20DDBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20DEBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-20BBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-20BKBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-20BRBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-20BLBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20BBBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-20BCBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20BDBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20BEBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-20TBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-20TKBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-20TRBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-20TLBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-20TBBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-20TCBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-20TDBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-20TEBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25DBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-25DKBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-25DRBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-25DLBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25DBBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-25DCBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25DDBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25DEBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25BBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-25BKBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-25BRBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-25BLBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25BBBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-25BCBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25BDBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25BEBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-25TBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-25TKBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-25TRBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-25TLBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-25TBBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-25TCBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-25TDBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-25TEBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30DBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG40-30DKBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG40-30DRBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG40-30DLBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30DBBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG40-30DCBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30DDBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30DEBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30BBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG40-30BKBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG40-30BRBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG40-30BLBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30BBBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG40-30BCBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30BDBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30BEBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG40-30TBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG40-30TKBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG40-30TRBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG40-30TLBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG40-30TBBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG40-30TCBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG40-30TDBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG40-30TEBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20DBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-20DKBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-20DRBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-20DLBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20DBBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-20DCBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20DDBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20DEBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20BBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-20BKBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-20BRBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-20BLBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20BBBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-20BCBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20BDBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20BEBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-20TBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-20TKBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-20TRBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-20TLBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-20TBBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-20TCBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-20TDBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-20TEBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25DBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-25DKBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-25DRBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-25DLBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25DBBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-25DCBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25DDBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25DEBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25BBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-25BKBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-25BRBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-25BLBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25BBBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-25BCBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25BDBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25BEBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-25TBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-25TKBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-25TRBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-25TLBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-25TBBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-25TCBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-25TDBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-25TEBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30DBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: No
RSG50-30DKBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: No
RSG50-30DRBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: No
RSG50-30DLBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30DBBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: No
RSG50-30DCBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30DDBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30DEBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30BBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: No
RSG50-30BKBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: No
RSG50-30BRBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: No
RSG50-30BLBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30BBBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: No
RSG50-30BCBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30BDBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30BEBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSG50-30TBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: No
RSG50-30TKBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: No
RSG50-30TRBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: No
RSG50-30TLBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: No
RSG50-30TBBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: No
RSG50-30TCBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: No
RSG50-30TDBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: No
RSG50-30TEBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: No
RSDG40-20DBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-20DKBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-20DRBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-20DLBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20DBBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20DCBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20DDBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20DEBore: ø40 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-20BBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-20BKBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-20BRBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-20BLBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20BBBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20BCBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20BDBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20BEBore: ø40 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-20TBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-20TKBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-20TRBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-20TLBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-20TBBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-20TCBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-20TDBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-20TEBore: ø40 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25DBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-25DKBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-25DRBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-25DLBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25DBBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25DCBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25DDBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25DEBore: ø40 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25BBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-25BKBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-25BRBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-25BLBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25BBBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25BCBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25BDBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25BEBore: ø40 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-25TBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-25TKBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-25TRBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-25TLBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-25TBBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-25TCBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-25TDBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-25TEBore: ø40 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30DBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG40-30DKBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG40-30DRBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG40-30DLBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30DBBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30DCBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30DDBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30DEBore: ø40 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30BBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG40-30BKBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG40-30BRBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG40-30BLBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30BBBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30BCBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30BDBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30BEBore: ø40 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG40-30TBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG40-30TKBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG40-30TRBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG40-30TLBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG40-30TBBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG40-30TCBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG40-30TDBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG40-30TEBore: ø40 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20DBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-20DKBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-20DRBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-20DLBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20DBBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20DCBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20DDBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20DEBore: ø50 mm | Stroke: 20 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20BBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-20BKBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-20BRBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-20BLBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20BBBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20BCBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20BDBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20BEBore: ø50 mm | Stroke: 20 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-20TBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-20TKBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-20TRBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-20TLBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-20TBBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-20TCBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-20TDBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-20TEBore: ø50 mm | Stroke: 20 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25DBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-25DKBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-25DRBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-25DLBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25DBBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25DCBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25DDBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25DEBore: ø50 mm | Stroke: 25 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25BBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-25BKBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-25BRBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-25BLBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25BBBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25BCBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25BDBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25BEBore: ø50 mm | Stroke: 25 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-25TBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-25TKBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-25TRBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-25TLBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-25TBBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-25TCBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-25TDBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-25TEBore: ø50 mm | Stroke: 25 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30DBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Round bar | Magnet: Yes
RSDG50-30DKBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Chamfered | Magnet: Yes
RSDG50-30DRBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Roller | Magnet: Yes
RSDG50-30DLBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30DBBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30DCBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30DDBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30DEBore: ø50 mm | Stroke: 30 mm | Action: Double acting | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30BBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Round bar | Magnet: Yes
RSDG50-30BKBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Chamfered | Magnet: Yes
RSDG50-30BRBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Roller | Magnet: Yes
RSDG50-30BLBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30BBBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30BCBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30BDBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30BEBore: ø50 mm | Stroke: 30 mm | Action: Double acting, spring | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes
RSDG50-30TBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Round bar | Magnet: Yes
RSDG50-30TKBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Chamfered | Magnet: Yes
RSDG50-30TRBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Roller | Magnet: Yes
RSDG50-30TLBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (non-adjustable) | Magnet: Yes
RSDG50-30TBBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adjustable) | Magnet: Yes
RSDG50-30TCBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), cancel cap | Magnet: Yes
RSDG50-30TDBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock mechanism | Magnet: Yes
RSDG50-30TEBore: ø50 mm | Stroke: 30 mm | Action: Single acting, retract | Rod end: Lever (adj.), lock + cancel cap | Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
