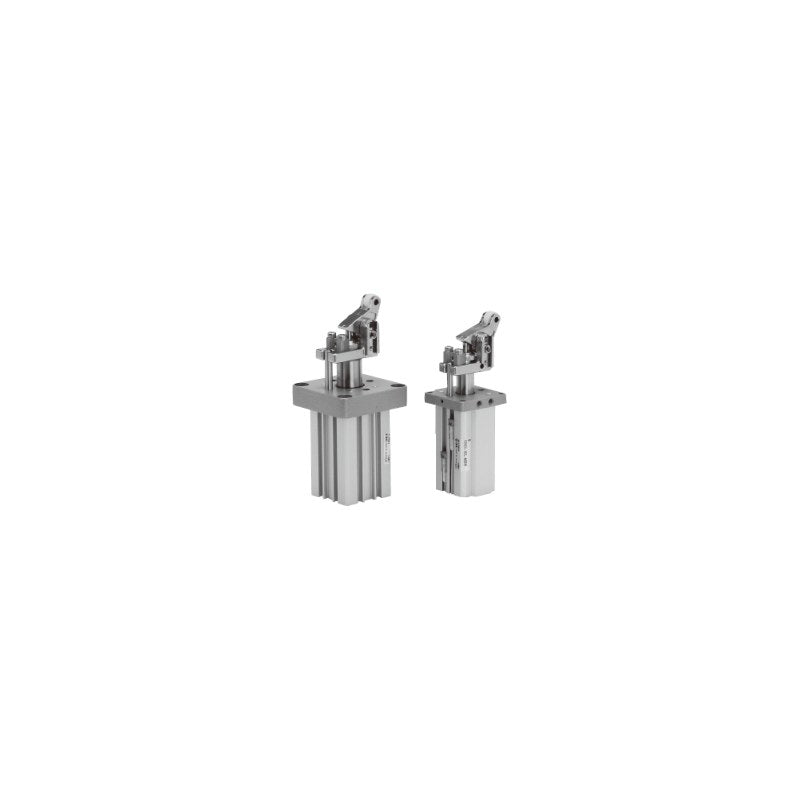

SMC RSH Stopper Cylinder with Shock Absorber (ø20, ø32)

SMC RSH Stopper Cylinder with Shock Absorber (ø20, ø32)

SMC RSH series compact stopper cylinder with a built-in adjustable shock absorber lever, ø20 and ø32 mm, for smoothly stopping pallets on conveyor lines.

Key features

  • Built-in shock absorber: rotate the adjusting dial to set absorbed energy to the load
  • Easy shock absorber replacement by separating the stopper and adjusting dial
  • Resin (L) or carbon steel (M) roller
  • Options (combinable, order D, C, S): lock mechanism, cancel cap, lever detection switch (Omron E2E-S05S12-WC-C1 2M)
  • Built-in magnet for D-M9 and D-Z7/Z80 auto switches (ordered as suffix)
  • M5 port (ø20) or Rc1/8 port (ø32) standard; NPT (TN) and G (TF) for ø32

Specifications

Rod end Lever with built-in shock absorber
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Lubrication Not required (non-lube)
Cushion Rubber cushion
Stroke length tolerance +1.4/0 mm
Mounting Flange
Port M5 x 0.8 (ø20), Rc1/8 (ø32)
Mass 0.41 kg (ø20), 0.75 kg (ø32)
Source SMC Korea catalog RSH (SMCKR_RSH.pdf), p. 656-657
RSH20-15DL Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: None
RSH20-15DL-D Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Lock
RSH20-15DL-C Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Cancel cap
RSH20-15DL-S Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Lever detection switch
RSH20-15DL-DC Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Lock + cancel cap
RSH20-15DL-DS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Lock + lever switch
RSH20-15DL-CS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Cancel cap + lever switch
RSH20-15DL-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH20-15DM Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: None
RSH20-15DM-D Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Lock
RSH20-15DM-C Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Cancel cap
RSH20-15DM-S Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Lever detection switch
RSH20-15DM-DC Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + cancel cap
RSH20-15DM-DS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + lever switch
RSH20-15DM-CS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH20-15DM-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
RSH20-15BL Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: None
RSH20-15BL-D Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Lock
RSH20-15BL-C Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Cancel cap
RSH20-15BL-S Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Lever detection switch
RSH20-15BL-DC Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + cancel cap
RSH20-15BL-DS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + lever switch
RSH20-15BL-CS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Cancel cap + lever switch
RSH20-15BL-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH20-15BM Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: None
RSH20-15BM-D Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock
RSH20-15BM-C Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Cancel cap
RSH20-15BM-S Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lever detection switch
RSH20-15BM-DC Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + cancel cap
RSH20-15BM-DS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + lever switch
RSH20-15BM-CS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH20-15BM-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
RSH20-15TL Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: None
RSH20-15TL-D Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Lock
RSH20-15TL-C Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Cancel cap
RSH20-15TL-S Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Lever detection switch
RSH20-15TL-DC Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + cancel cap
RSH20-15TL-DS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + lever switch
RSH20-15TL-CS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Cancel cap + lever switch
RSH20-15TL-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH20-15TM Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: None
RSH20-15TM-D Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock
RSH20-15TM-C Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Cancel cap
RSH20-15TM-S Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lever detection switch
RSH20-15TM-DC Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + cancel cap
RSH20-15TM-DS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + lever switch
RSH20-15TM-CS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH20-15TM-DCS Bore: ø20 mm | Stroke: 15 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
RSH32-20DL Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: None
RSH32-20DL-D Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Lock
RSH32-20DL-C Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Cancel cap
RSH32-20DL-S Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Lever detection switch
RSH32-20DL-DC Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Lock + cancel cap
RSH32-20DL-DS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Lock + lever switch
RSH32-20DL-CS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Cancel cap + lever switch
RSH32-20DL-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH32-20DM Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: None
RSH32-20DM-D Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Lock
RSH32-20DM-C Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Cancel cap
RSH32-20DM-S Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Lever detection switch
RSH32-20DM-DC Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + cancel cap
RSH32-20DM-DS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + lever switch
RSH32-20DM-CS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH32-20DM-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
RSH32-20BL Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: None
RSH32-20BL-D Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Lock
RSH32-20BL-C Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Cancel cap
RSH32-20BL-S Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Lever detection switch
RSH32-20BL-DC Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + cancel cap
RSH32-20BL-DS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + lever switch
RSH32-20BL-CS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Cancel cap + lever switch
RSH32-20BL-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH32-20BM Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: None
RSH32-20BM-D Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock
RSH32-20BM-C Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Cancel cap
RSH32-20BM-S Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lever detection switch
RSH32-20BM-DC Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + cancel cap
RSH32-20BM-DS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + lever switch
RSH32-20BM-CS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH32-20BM-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Double acting, spring | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
RSH32-20TL Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: None
RSH32-20TL-D Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Lock
RSH32-20TL-C Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Cancel cap
RSH32-20TL-S Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Lever detection switch
RSH32-20TL-DC Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + cancel cap
RSH32-20TL-DS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + lever switch
RSH32-20TL-CS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Cancel cap + lever switch
RSH32-20TL-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Resin | Option: Lock + cancel cap + lever switch
RSH32-20TM Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: None
RSH32-20TM-D Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock
RSH32-20TM-C Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Cancel cap
RSH32-20TM-S Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lever detection switch
RSH32-20TM-DC Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + cancel cap
RSH32-20TM-DS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + lever switch
RSH32-20TM-CS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Cancel cap + lever switch
RSH32-20TM-DCS Bore: ø32 mm | Stroke: 20 mm | Action: Single acting, retract | Roller: Carbon steel | Option: Lock + cancel cap + lever switch
Compact CylindersSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC RSH Stopper Cylinder with Shock Absorber (ø20, ø32)

Brand SMC·Compact Cylinders

Available part numbers (96)

RSH20-15DL, RSH20-15DL-D, RSH20-15DL-C, RSH20-15DL-S, RSH20-15DL-DC, RSH20-15DL-DS, RSH20-15DL-CS, RSH20-15DL-DCS, RSH20-15DM, RSH20-15DM-D + 86 more — see full table ↓
