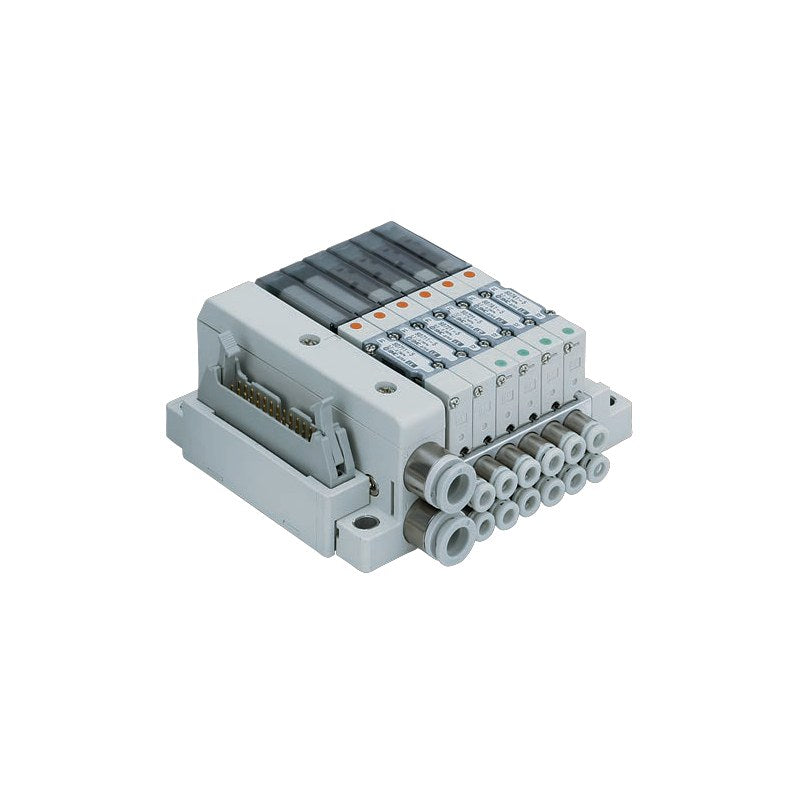

SMC S0700 5-Port Solenoid Valve (Plug-in Type, Base Mounted)

SMC S0700 5-Port Solenoid Valve (Plug-in Type, Base Mounted)

SMC S0700 series 7 mm-class plug-in 5-port solenoid valves for the slim compact integrated base (S07x1) or the plug-in split base manifold (S07x0).

Key features

  • Valve for slim compact integrated base manifold SS0751 (S07x1) or plug-in split base manifold SS0750 (S07x0)
  • Switching: 2-position single/double and 4-position dual 3-port (N.C.+N.C., N.O.+N.O., N.C.+N.O.)
  • Low power consumption 0.35 W (DC24V); flow rate C 0.39 dm³/(s·bar), drives cylinders up to approx. ø25 at 300 mm/s
  • External pilot (R) available for 2-position valves only
  • Manifold kits: D-sub (F), flat cable (P), lead wire, multi-connector and serial transmission (EX180, EX260, EX600, EX510) ordered with the manifold base
  • Cylinder ports C2 to C4 / N1, N3 and P/R ports C6, C8 / N7, N9 are selected on the manifold base part number

Specifications

Fluid Air
Valve construction Rubber seal
Operating pressure 0.2 to 0.7 MPa
Ambient and fluid temperature -10 to 50°C
Max. operating frequency 5 Hz
Pilot exhaust Common exhaust (external pilot: individual)
Manual override Push type
Lubrication Not required
Impact/vibration resistance 100/30 m/s²
Enclosure IP40
Power consumption DC0.35 W (15 mA) at DC24V
Source SMC Korea catalog S0700 Plug-in type (SMCKR_S0700_plugin.pdf), p. 965, 970, 981, 1007 (PDF p. 1, 6, 17, 41)
S0711-5 Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: Internal | Voltage: DC24V
S0711-6 Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: Internal | Voltage: DC12V
S0711R-5 Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC24V
S0711R-6 Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC12V
S0721-5 Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: Internal | Voltage: DC24V
S0721-6 Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: Internal | Voltage: DC12V
S0721R-5 Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC24V
S0721R-6 Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC12V
S07A1-5 Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC24V
S07A1-6 Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC12V
S07B1-5 Base type: Slim compact integrated base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC24V
S07B1-6 Base type: Slim compact integrated base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC12V
S07C1-5 Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC24V
S07C1-6 Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC12V
S0710-5 Base type: Plug-in split base | Switching: 2-pos single | Pilot: Internal | Voltage: DC24V
S0710-6 Base type: Plug-in split base | Switching: 2-pos single | Pilot: Internal | Voltage: DC12V
S0710R-5 Base type: Plug-in split base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC24V
S0710R-6 Base type: Plug-in split base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC12V
S0720-5 Base type: Plug-in split base | Switching: 2-pos double | Pilot: Internal | Voltage: DC24V
S0720-6 Base type: Plug-in split base | Switching: 2-pos double | Pilot: Internal | Voltage: DC12V
S0720R-5 Base type: Plug-in split base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC24V
S0720R-6 Base type: Plug-in split base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC12V
S07A0-5 Base type: Plug-in split base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC24V
S07A0-6 Base type: Plug-in split base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC12V
S07B0-5 Base type: Plug-in split base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC24V
S07B0-6 Base type: Plug-in split base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC12V
S07C0-5 Base type: Plug-in split base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC24V
S07C0-6 Base type: Plug-in split base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC12V
5-Port Solenoid ValvesSMC
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC S0700 5-Port Solenoid Valve (Plug-in Type, Base Mounted)

Brand SMC·5-Port Solenoid Valves

Available part numbers (28)

S0711-5, S0711-6, S0711R-5, S0711R-6, S0721-5, S0721-6, S0721R-5, S0721R-6, S07A1-5, S07A1-6 + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S0711-5Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: Internal | Voltage: DC24V
S0711-6Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: Internal | Voltage: DC12V
S0711R-5Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC24V
S0711R-6Base type: Slim compact integrated base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC12V
S0721-5Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: Internal | Voltage: DC24V
S0721-6Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: Internal | Voltage: DC12V
S0721R-5Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC24V
S0721R-6Base type: Slim compact integrated base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC12V
S07A1-5Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC24V
S07A1-6Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC12V
S07B1-5Base type: Slim compact integrated base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC24V
S07B1-6Base type: Slim compact integrated base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC12V
S07C1-5Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC24V
S07C1-6Base type: Slim compact integrated base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC12V
S0710-5Base type: Plug-in split base | Switching: 2-pos single | Pilot: Internal | Voltage: DC24V
S0710-6Base type: Plug-in split base | Switching: 2-pos single | Pilot: Internal | Voltage: DC12V
S0710R-5Base type: Plug-in split base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC24V
S0710R-6Base type: Plug-in split base | Switching: 2-pos single | Pilot: External (R) | Voltage: DC12V
S0720-5Base type: Plug-in split base | Switching: 2-pos double | Pilot: Internal | Voltage: DC24V
S0720-6Base type: Plug-in split base | Switching: 2-pos double | Pilot: Internal | Voltage: DC12V
S0720R-5Base type: Plug-in split base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC24V
S0720R-6Base type: Plug-in split base | Switching: 2-pos double | Pilot: External (R) | Voltage: DC12V
S07A0-5Base type: Plug-in split base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC24V
S07A0-6Base type: Plug-in split base | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Pilot: Internal | Voltage: DC12V
S07B0-5Base type: Plug-in split base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC24V
S07B0-6Base type: Plug-in split base | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Pilot: Internal | Voltage: DC12V
S07C0-5Base type: Plug-in split base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC24V
S07C0-6Base type: Plug-in split base | Switching: Dual 3-port N.C./N.O. | Pilot: Internal | Voltage: DC12V
