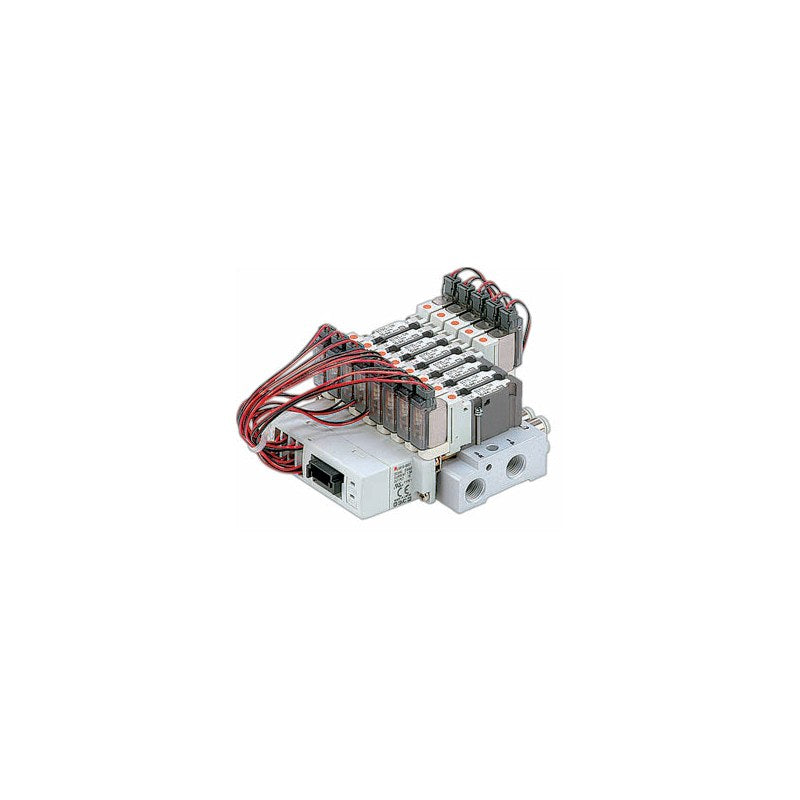

SMC S0700 5-Port Solenoid Valve (Plug-lead Type, Single Unit)

SMC S0700 5-Port Solenoid Valve (Plug-lead Type, Single Unit)

SMC S0700 series plug-lead 5-port solenoid valves as single units, body ported with one-touch fittings (S07x6) or base mounted with optional M5 sub-plate (S07x5).

Key features

  • Direct piping (S07x6) with ø2/ø4 one-touch fittings on P, E, A and B ports, or base piping (S07x5) with or without M5 sub-plate
  • Switching: 2-position single/double, 3-position closed center and 4-position dual 3-port (N.C.+N.C., N.O.+N.O., N.C.+N.O.)
  • Electrical entry: grommet (G), M plug connector with 300 mm lead (M) or without lead (MO), M types with lamp/surge suppressor
  • Direct piping version available with built-in exhaust silencer (S, approx. 20 dB(A) noise reduction) or external pilot (R)
  • Inch fittings (N1, N3) available on order; manifolds SS0752 (direct piping) and SS0755 (base piping, C kit or EX510 S kit) ordered separately
  • Power consumption 0.35 W (DC24V)

Specifications

Fluid Air
Valve construction Rubber seal
Operating pressure 0.2 to 0.7 MPa
Ambient and fluid temperature -10 to 50°C
Max. operating frequency 5 Hz
Pilot exhaust Individual exhaust
Manual override Push type
Lubrication Not required
Impact/vibration resistance 100/30 m/s²
Enclosure IP40
Flow rate C [dm³/(s·bar)] Direct piping single 0.62 (2-pos), 0.54 (3-pos), 0.58 (dual 3-port)
Source SMC Korea catalog S0700 Plug-lead type (SMCKR_S0700_pluglead.pdf), p. 1051-1059 (PDF p. 5-13)
S0716-5G-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716-5G-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716-5M-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716-5M-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716-5MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716-5MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716-6G-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716-6G-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716-6M-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716-6M-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716-6MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716-6MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716S-5G-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716S-5G-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716S-5M-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716S-5M-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716S-5MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716S-5MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716S-6G-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716S-6G-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716S-6M-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716S-6M-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716S-6MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716S-6MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716R-5G-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716R-5G-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716R-5M-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716R-5M-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716R-5MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716R-5MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716R-6G-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716R-6G-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716R-6M-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716R-6M-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716R-6MO-C2 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716R-6MO-C4 Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726-5G-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726-5G-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726-5M-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726-5M-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726-5MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726-5MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726-6G-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726-6G-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726-6M-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726-6M-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726-6MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726-6MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726S-5G-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726S-5G-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726S-5M-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726S-5M-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726S-5MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726S-5MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726S-6G-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726S-6G-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726S-6M-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726S-6M-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726S-6MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726S-6MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726R-5G-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726R-5G-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726R-5M-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726R-5M-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726R-5MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726R-5MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726R-6G-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726R-6G-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726R-6M-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726R-6M-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726R-6MO-C2 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726R-6MO-C4 Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736-5G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736-5G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736-5M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736-5M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736-5MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736-5MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736-6G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736-6G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736-6M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736-6M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736-6MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736-6MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736S-5G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736S-5G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736S-5M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736S-5M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736S-5MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736S-5MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736S-6G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736S-6G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736S-6M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736S-6M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736S-6MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736S-6MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736R-5G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736R-5G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736R-5M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736R-5M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736R-5MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736R-5MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736R-6G-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736R-6G-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736R-6M-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736R-6M-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736R-6MO-C2 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736R-6MO-C4 Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6S-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6S-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6S-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6S-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6S-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6S-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6S-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6S-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6S-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6S-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6S-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6S-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6S-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6S-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6S-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6S-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6S-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6S-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6S-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6S-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6S-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6S-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6S-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6S-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6S-5G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6S-5G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6S-5M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6S-5M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6S-5MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6S-5MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6S-6G-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6S-6G-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6S-6M-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6S-6M-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6S-6MO-C2 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6S-6MO-C4 Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0715-5G Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715-5G-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715-5M Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715-5M-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715-5MO Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715-5MO-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715-6G Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715-6G-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715-6M Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715-6M-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715-6MO Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715-6MO-M5 Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715R-5G Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715R-5G-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715R-5M Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715R-5M-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715R-5MO Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715R-5MO-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715R-6G Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715R-6G-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715R-6M Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715R-6M-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715R-6MO Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715R-6MO-M5 Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725-5G Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725-5G-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725-5M Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725-5M-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725-5MO Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725-5MO-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725-6G Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725-6G-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725-6M Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725-6M-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725-6MO Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725-6MO-M5 Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725R-5G Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725R-5G-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725R-5M Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725R-5M-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725R-5MO Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725R-5MO-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725R-6G Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725R-6G-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725R-6M Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725R-6M-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725R-6MO Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725R-6MO-M5 Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735-5G Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735-5G-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735-5M Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735-5M-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735-5MO Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735-5MO-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735-6G Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735-6G-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735-6M Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735-6M-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735-6MO Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735-6MO-M5 Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735R-5G Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735R-5G-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735R-5M Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735R-5M-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735R-5MO Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735R-5MO-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735R-6G Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735R-6G-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735R-6M Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735R-6M-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735R-6MO Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735R-6MO-M5 Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07A5-5G Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07A5-5G-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07A5-5M Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07A5-5M-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07A5-5MO Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07A5-5MO-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07A5-6G Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07A5-6G-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07A5-6M Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07A5-6M-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07A5-6MO Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07A5-6MO-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07B5-5G Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07B5-5G-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07B5-5M Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07B5-5M-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07B5-5MO Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07B5-5MO-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07B5-6G Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07B5-6G-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07B5-6M Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07B5-6M-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07B5-6MO Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07B5-6MO-M5 Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07C5-5G Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07C5-5G-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07C5-5M Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07C5-5M-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07C5-5MO Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07C5-5MO-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07C5-6G Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07C5-6G-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07C5-6M Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07C5-6M-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07C5-6MO Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07C5-6MO-M5 Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
5-Port Solenoid ValvesSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC S0700 5-Port Solenoid Valve (Plug-lead Type, Single Unit)

Brand SMC·5-Port Solenoid Valves

Available part numbers (288)

S0716-5G-C2, S0716-5G-C4, S0716-5M-C2, S0716-5M-C4, S0716-5MO-C2, S0716-5MO-C4, S0716-6G-C2, S0716-6G-C4, S0716-6M-C2, S0716-6M-C4 + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S0716-5G-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716-5G-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716-5M-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716-5M-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716-5MO-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716-5MO-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716-6G-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716-6G-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716-6M-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716-6M-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716-6MO-C2Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716-6MO-C4Piping: Direct piping | Switching: 2-pos single | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716S-5G-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716S-5G-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716S-5M-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716S-5M-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716S-5MO-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716S-5MO-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716S-6G-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716S-6G-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716S-6M-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716S-6M-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716S-6MO-C2Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716S-6MO-C4Piping: Direct piping | Switching: 2-pos single | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716R-5G-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716R-5G-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716R-5M-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716R-5M-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716R-5MO-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716R-5MO-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0716R-6G-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0716R-6G-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0716R-6M-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0716R-6M-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0716R-6MO-C2Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0716R-6MO-C4Piping: Direct piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726-5G-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726-5G-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726-5M-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726-5M-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726-5MO-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726-5MO-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726-6G-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726-6G-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726-6M-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726-6M-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726-6MO-C2Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726-6MO-C4Piping: Direct piping | Switching: 2-pos double | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726S-5G-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726S-5G-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726S-5M-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726S-5M-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726S-5MO-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726S-5MO-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726S-6G-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726S-6G-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726S-6M-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726S-6M-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726S-6MO-C2Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726S-6MO-C4Piping: Direct piping | Switching: 2-pos double | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726R-5G-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726R-5G-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726R-5M-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726R-5M-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726R-5MO-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726R-5MO-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0726R-6G-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0726R-6G-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0726R-6M-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0726R-6M-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0726R-6MO-C2Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0726R-6MO-C4Piping: Direct piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736-5G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736-5G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736-5M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736-5M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736-5MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736-5MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736-6G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736-6G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736-6M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736-6M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736-6MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736-6MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736S-5G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736S-5G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736S-5M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736S-5M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736S-5MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736S-5MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736S-6G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736S-6G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736S-6M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736S-6M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736S-6MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736S-6MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736R-5G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736R-5G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736R-5M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736R-5M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736R-5MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736R-5MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0736R-6G-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S0736R-6G-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S0736R-6M-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S0736R-6M-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S0736R-6MO-C2Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S0736R-6MO-C4Piping: Direct piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6-5G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6-5G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6-5M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6-5M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6-6G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6-6G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6-6M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6-6M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6S-5G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6S-5G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6S-5M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6S-5M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6S-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6S-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07A6S-6G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07A6S-6G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07A6S-6M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07A6S-6M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07A6S-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07A6S-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6-5G-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6-5G-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6-5M-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6-5M-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6-6G-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6-6G-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6-6M-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6-6M-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6S-5G-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6S-5G-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6S-5M-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6S-5M-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6S-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6S-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07B6S-6G-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07B6S-6G-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07B6S-6M-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07B6S-6M-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07B6S-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07B6S-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6-5G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6-5G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6-5M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6-5M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6-6G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6-6G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6-6M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6-6M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: One-touch EXH fitting | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6S-5G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6S-5G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6S-5M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6S-5M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6S-5MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6S-5MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S07C6S-6G-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø2
S07C6S-6G-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: One-touch fitting ø4
S07C6S-6M-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø2
S07C6S-6M-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: One-touch fitting ø4
S07C6S-6MO-C2Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø2
S07C6S-6MO-C4Piping: Direct piping | Switching: Dual 3-port N.C./N.O. | Function: Built-in silencer (S) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: One-touch fitting ø4
S0715-5GPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715-5G-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715-5MPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715-5M-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715-5MOPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715-5MO-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715-6GPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715-6G-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715-6MPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715-6M-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715-6MOPiping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715-6MO-M5Piping: Base piping | Switching: 2-pos single | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715R-5GPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715R-5G-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715R-5MPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715R-5M-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715R-5MOPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715R-5MO-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0715R-6GPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0715R-6G-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0715R-6MPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0715R-6M-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0715R-6MOPiping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0715R-6MO-M5Piping: Base piping | Switching: 2-pos single | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725-5GPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725-5G-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725-5MPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725-5M-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725-5MOPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725-5MO-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725-6GPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725-6G-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725-6MPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725-6M-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725-6MOPiping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725-6MO-M5Piping: Base piping | Switching: 2-pos double | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725R-5GPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725R-5G-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725R-5MPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725R-5M-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725R-5MOPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725R-5MO-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0725R-6GPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0725R-6G-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0725R-6MPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0725R-6M-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0725R-6MOPiping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0725R-6MO-M5Piping: Base piping | Switching: 2-pos double | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735-5GPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735-5G-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735-5MPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735-5M-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735-5MOPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735-5MO-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735-6GPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735-6G-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735-6MPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735-6M-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735-6MOPiping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735-6MO-M5Piping: Base piping | Switching: 3-pos closed center | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735R-5GPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735R-5G-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735R-5MPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735R-5M-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735R-5MOPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735R-5MO-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S0735R-6GPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S0735R-6G-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S0735R-6MPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S0735R-6M-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S0735R-6MOPiping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S0735R-6MO-M5Piping: Base piping | Switching: 3-pos closed center | Function: External pilot (R) | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07A5-5GPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07A5-5G-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07A5-5MPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07A5-5M-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07A5-5MOPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07A5-5MO-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07A5-6GPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07A5-6G-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07A5-6MPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07A5-6M-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07A5-6MOPiping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07A5-6MO-M5Piping: Base piping | Switching: Dual 3-port N.C./N.C. (exh. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07B5-5GPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07B5-5G-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07B5-5MPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07B5-5M-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07B5-5MOPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07B5-5MO-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07B5-6GPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07B5-6G-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07B5-6MPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07B5-6M-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07B5-6MOPiping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07B5-6MO-M5Piping: Base piping | Switching: Dual 3-port N.O./N.O. (pres. ctr) | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07C5-5GPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: No sub-plate
S07C5-5G-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07C5-5MPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07C5-5M-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07C5-5MOPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07C5-5MO-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC24V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8
S07C5-6GPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: No sub-plate
S07C5-6G-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: Grommet (G) | Port: Sub-plate M5x0.8
S07C5-6MPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: No sub-plate
S07C5-6M-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, 300mm lead (M) | Port: Sub-plate M5x0.8
S07C5-6MOPiping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: No sub-plate
S07C5-6MO-M5Piping: Base piping | Switching: Dual 3-port N.C./N.O. | Function: Standard | Voltage: DC12V | Electrical entry: M plug connector, no lead (MO) | Port: Sub-plate M5x0.8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
