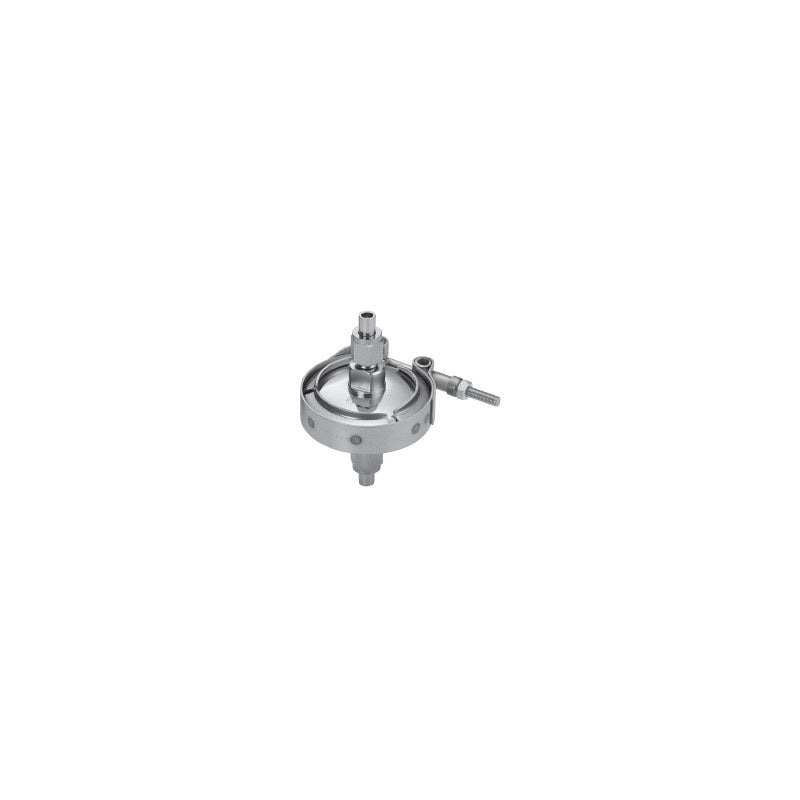

SMC SFA Clean Gas Filter (Cartridge Type, Disk, 0.01 um)

SMC SFA Clean Gas Filter (Cartridge Type, Disk, 0.01 um)

SMC SFA100/200/300 series clean gas filter, disk type with replaceable PTFE membrane cartridge element (0.01 um, 99.99%), for precise filtration of compressed air and nitrogen in electronics manufacturing.

Key features

  • PTFE membrane element cartridged with polyester holders and FKM gaskets; element replaceable
  • Three sizes: rated flow 26, 70 and 140 L/min (ANR) at 0.7 MPa inlet and 0.02 MPa pressure drop
  • SUS316 case electropolished inside and outside
  • Rc1/4, TSJ1/4 (tube swage joint) or UOJ1/4 (union O-ring joint) connection; NPT1/4 also available
  • Cleaned, assembled, inspected and double-bagged (antistatic) in a clean room

Specifications

Fluid Air, nitrogen
Operating pressure Max. 0.99 MPa, vacuum 1.3x10-6 kPa
Operating temperature 5 to 80 C
Element differential pressure Max. 0.1 MPa
Element reverse differential pressure Max. 0.05 MPa
Filtration 0.01 um (99.99% capture)
Case material SUS316 (electropolished)
Seal FKM
Packaging Antistatic sealed double bag
Source SMC Korea catalog SF Series (SMCKR_SFA_SFB_SFC.pdf), p. 405-407 (PDF p. 5-7)
SFA100-02 Size: SFA100 | Connection: Rc1/4 female | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA102-02 Size: SFA100 | Connection: TSJ1/4 swage joint | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA103-02 Size: SFA100 | Connection: UOJ1/4 O-ring union | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA200-02 Size: SFA200 | Connection: Rc1/4 female | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA202-02 Size: SFA200 | Connection: TSJ1/4 swage joint | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA203-02 Size: SFA200 | Connection: UOJ1/4 O-ring union | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA300-02 Size: SFA300 | Connection: Rc1/4 female | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
SFA302-02 Size: SFA300 | Connection: TSJ1/4 swage joint | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
SFA303-02 Size: SFA300 | Connection: UOJ1/4 O-ring union | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
FiltersSMC
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SFA Clean Gas Filter (Cartridge Type, Disk, 0.01 um)

Brand SMC·Filters

Available part numbers (9)

SFA100-02, SFA102-02, SFA103-02, SFA200-02, SFA202-02, SFA203-02, SFA300-02, SFA302-02, SFA303-02

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFA100-02Size: SFA100 | Connection: Rc1/4 female | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA102-02Size: SFA100 | Connection: TSJ1/4 swage joint | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA103-02Size: SFA100 | Connection: UOJ1/4 O-ring union | Rated flow: 26 L/min (ANR) | Element: ED001S-X10V
SFA200-02Size: SFA200 | Connection: Rc1/4 female | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA202-02Size: SFA200 | Connection: TSJ1/4 swage joint | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA203-02Size: SFA200 | Connection: UOJ1/4 O-ring union | Rated flow: 70 L/min (ANR) | Element: ED101S-X10V
SFA300-02Size: SFA300 | Connection: Rc1/4 female | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
SFA302-02Size: SFA300 | Connection: TSJ1/4 swage joint | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
SFA303-02Size: SFA300 | Connection: UOJ1/4 O-ring union | Rated flow: 140 L/min (ANR) | Element: ED201S-X10V
