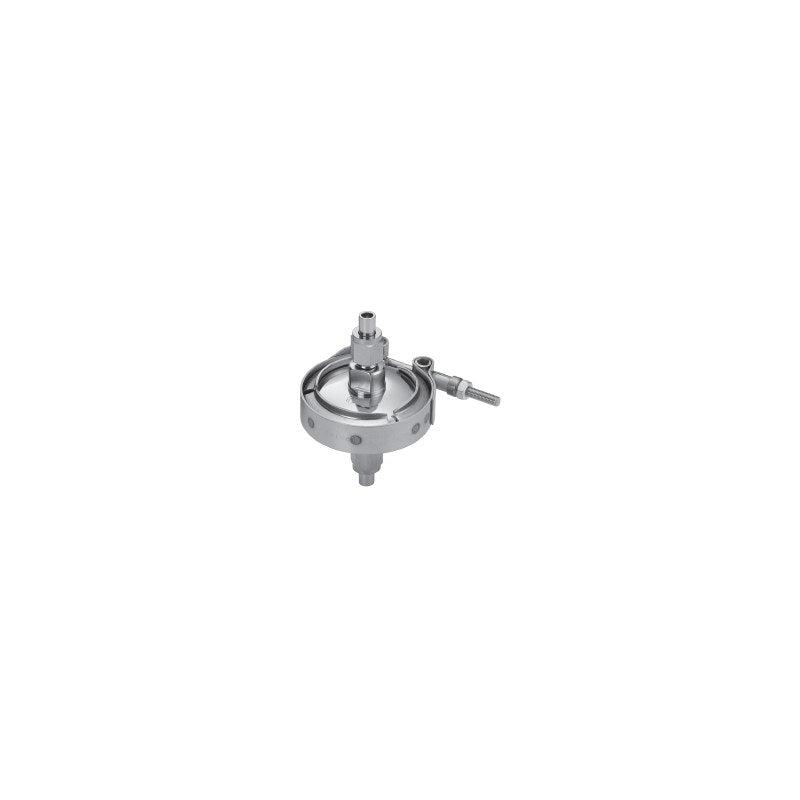

SMC SFB Clean Gas Filter and Strainer (Straight Type)

SMC SFB Clean Gas Filter and Strainer (Straight Type)

SMC SFB series straight-type clean gas filters for compressed air and nitrogen: SFB100 cartridge PTFE membrane filter, SFB200 120 um sintered SUS316 strainer and SFB300 non-reusable high-purity filter for semiconductor processes.

Key features

  • SFB100: replaceable PTFE membrane cartridge (0.01 um, 99.99%), fluororesin holder and FKM gasket, 45 L/min
  • SFB200: clean gas strainer with 120 um SUS316 sintered metal element to protect regulators, 400 L/min
  • SFB300: non-reusable all-SUS316 filter, 5 to 120 C, helium leak 4.0x10-9 Pa m3/s or less; URJ metal gasket union available
  • SUS316 case and cover electropolished inside and outside; bracket standard
  • Made to order: aluminum case (X8), non-standard strainer ratings 1 to 100 um (X40); NPT1/4 also available

Specifications

Fluid Air, nitrogen
Operating pressure Max. 0.99 MPa, vacuum 1.3x10-6 kPa
Operating temperature 5 to 80 C (SFB300 5 to 120 C)
Filtration 0.01 um (99.99%); SFB200 nominal 120 um
Element differential pressure Max. 0.5 MPa (SFB200 1.0 MPa)
Case and cover material SUS316 (electropolished)
Seal FKM (SFB100/200)
Bracket Standard
Packaging Antistatic sealed double bag
Source SMC Korea catalog SF Series (SMCKR_SFA_SFB_SFC.pdf), p. 408-414 (PDF p. 8-14)
SFB100-02 Type: Cartridge filter, 0.01 um | Connection: Rc1/4 female | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB102-02 Type: Cartridge filter, 0.01 um | Connection: TSJ1/4 swage joint | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB103-02 Type: Cartridge filter, 0.01 um | Connection: UOJ1/4 O-ring union | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB104-M5 Type: Cartridge filter, 0.01 um | Connection: M5 female | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB200-02 Type: Strainer, 120 um sintered | Connection: Rc1/4 female | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB202-02 Type: Strainer, 120 um sintered | Connection: TSJ1/4 swage joint | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB203-02 Type: Strainer, 120 um sintered | Connection: UOJ1/4 O-ring union | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB300-02 Type: Non-reusable, short, 0.01 um | Connection: Rc1/4 female | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB302-02 Type: Non-reusable, short, 0.01 um | Connection: TSJ1/4 swage joint | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB305-02 Type: Non-reusable, short, 0.01 um | Connection: URJ1/4 ring union | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB315-02 Type: Non-reusable, long, 0.01 um | Connection: URJ1/4 ring union | Rated flow: 45 L/min (ANR) | Element: Not replaceable
FiltersSMC
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SFB Clean Gas Filter and Strainer (Straight Type)

Brand SMC·Filters

Available part numbers (11)

SFB100-02, SFB102-02, SFB103-02, SFB104-M5, SFB200-02, SFB202-02, SFB203-02, SFB300-02, SFB302-02, SFB305-02 + 1 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFB100-02Type: Cartridge filter, 0.01 um | Connection: Rc1/4 female | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB102-02Type: Cartridge filter, 0.01 um | Connection: TSJ1/4 swage joint | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB103-02Type: Cartridge filter, 0.01 um | Connection: UOJ1/4 O-ring union | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB104-M5Type: Cartridge filter, 0.01 um | Connection: M5 female | Rated flow: 45 L/min (ANR) | Element: ED301S-X10V
SFB200-02Type: Strainer, 120 um sintered | Connection: Rc1/4 female | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB202-02Type: Strainer, 120 um sintered | Connection: TSJ1/4 swage joint | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB203-02Type: Strainer, 120 um sintered | Connection: UOJ1/4 O-ring union | Rated flow: 400 L/min (ANR) | Element: ES001S-120V
SFB300-02Type: Non-reusable, short, 0.01 um | Connection: Rc1/4 female | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB302-02Type: Non-reusable, short, 0.01 um | Connection: TSJ1/4 swage joint | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB305-02Type: Non-reusable, short, 0.01 um | Connection: URJ1/4 ring union | Rated flow: 45 L/min (ANR) | Element: Not replaceable
SFB315-02Type: Non-reusable, long, 0.01 um | Connection: URJ1/4 ring union | Rated flow: 45 L/min (ANR) | Element: Not replaceable
