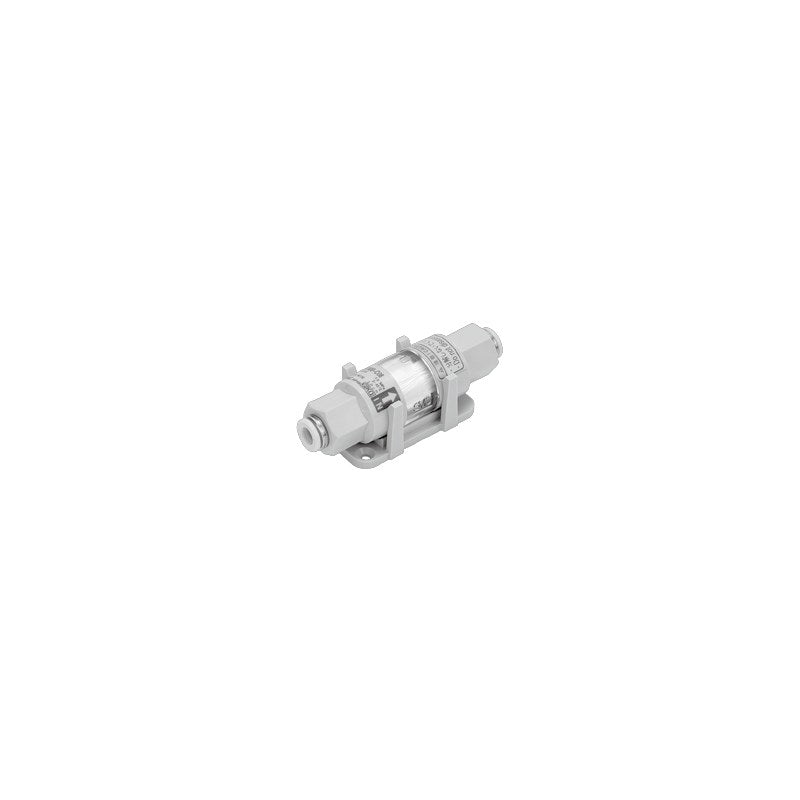

SMC SFD Clean Air Filter (Hollow Fiber Element, 0.01 um)

SMC SFD Clean Air Filter (Hollow Fiber Element, 0.01 um)

SMC SFD series clean air filter with a hollow fiber membrane element giving 0.01 um filtration (99.99% capture) for clean blow and clean room air at up to 500 L/min (ANR).

Key features

  • Hollow fiber membrane element: filtration 0.01 um, 99.99% capture efficiency
  • Low initial pressure drop: 0.03 MPa at 0.7 MPa inlet and max. flow
  • In-line body with built-in KP clean one-touch fittings (o4 to o12) or Rc1/4 female thread
  • Resin case standard; aluminum (1) and stainless steel (2) cases and SFD101/102 are made to order
  • Bracket option B for SFD100/110; SFD200 has a bracket as standard; NPT1/4 and G1/4 threads also available

Specifications

Fluid Air, nitrogen
Filtration 0.01 um (99.99% capture)
Operating pressure range -100 kPa to 1.0 MPa (nitrogen 0.99 MPa)
Operating temperature 5 to 45 C
Initial pressure drop 0.03 MPa (inlet 0.7 MPa, max. flow)
Element differential pressure resistance 0.5 MPa
Proof pressure 1.5 MPa
Case material Resin (standard)
Element life 1 year or when pressure drop reaches 0.1 MPa
Replacement element SFD-EL200 (SFD200)
Source SMC Korea catalog SFD Series (SMCKR_SFD.pdf), p. 423, 427 (PDF p. 1, 5)
SFD100-C04 Model: SFD100 | Connection: One-touch fitting dia. 4 | Max. flow: ~100 L/min (ANR)
SFD100-C06 Model: SFD100 | Connection: One-touch fitting dia. 6 | Max. flow: ~100 L/min (ANR)
SFD100-C08 Model: SFD100 | Connection: One-touch fitting dia. 8 | Max. flow: ~100 L/min (ANR)
SFD100-02 Model: SFD100 | Connection: Rc1/4 female thread | Max. flow: ~100 L/min (ANR)
SFD110-C04 Model: SFD110 | Connection: One-touch fitting dia. 4 | Max. flow: ~120 L/min (ANR)
SFD110-C06 Model: SFD110 | Connection: One-touch fitting dia. 6 | Max. flow: ~120 L/min (ANR)
SFD110-C08 Model: SFD110 | Connection: One-touch fitting dia. 8 | Max. flow: ~120 L/min (ANR)
SFD110-02 Model: SFD110 | Connection: Rc1/4 female thread | Max. flow: ~120 L/min (ANR)
SFD200-C08 Model: SFD200 | Connection: One-touch fitting dia. 8 | Max. flow: ~500 L/min (ANR)
SFD200-C10 Model: SFD200 | Connection: One-touch fitting dia. 10 | Max. flow: ~500 L/min (ANR)
SFD200-C12 Model: SFD200 | Connection: One-touch fitting dia. 12 | Max. flow: ~500 L/min (ANR)
SFD200-02 Model: SFD200 | Connection: Rc1/4 female thread | Max. flow: ~500 L/min (ANR)
FiltersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SFD Clean Air Filter (Hollow Fiber Element, 0.01 um)

Brand SMC·Filters

Available part numbers (12)

SFD100-C04, SFD100-C06, SFD100-C08, SFD100-02, SFD110-C04, SFD110-C06, SFD110-C08, SFD110-02, SFD200-C08, SFD200-C10 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFD100-C04Model: SFD100 | Connection: One-touch fitting dia. 4 | Max. flow: ~100 L/min (ANR)
SFD100-C06Model: SFD100 | Connection: One-touch fitting dia. 6 | Max. flow: ~100 L/min (ANR)
SFD100-C08Model: SFD100 | Connection: One-touch fitting dia. 8 | Max. flow: ~100 L/min (ANR)
SFD100-02Model: SFD100 | Connection: Rc1/4 female thread | Max. flow: ~100 L/min (ANR)
SFD110-C04Model: SFD110 | Connection: One-touch fitting dia. 4 | Max. flow: ~120 L/min (ANR)
SFD110-C06Model: SFD110 | Connection: One-touch fitting dia. 6 | Max. flow: ~120 L/min (ANR)
SFD110-C08Model: SFD110 | Connection: One-touch fitting dia. 8 | Max. flow: ~120 L/min (ANR)
SFD110-02Model: SFD110 | Connection: Rc1/4 female thread | Max. flow: ~120 L/min (ANR)
SFD200-C08Model: SFD200 | Connection: One-touch fitting dia. 8 | Max. flow: ~500 L/min (ANR)
SFD200-C10Model: SFD200 | Connection: One-touch fitting dia. 10 | Max. flow: ~500 L/min (ANR)
SFD200-C12Model: SFD200 | Connection: One-touch fitting dia. 12 | Max. flow: ~500 L/min (ANR)
SFD200-02Model: SFD200 | Connection: Rc1/4 female thread | Max. flow: ~500 L/min (ANR)
