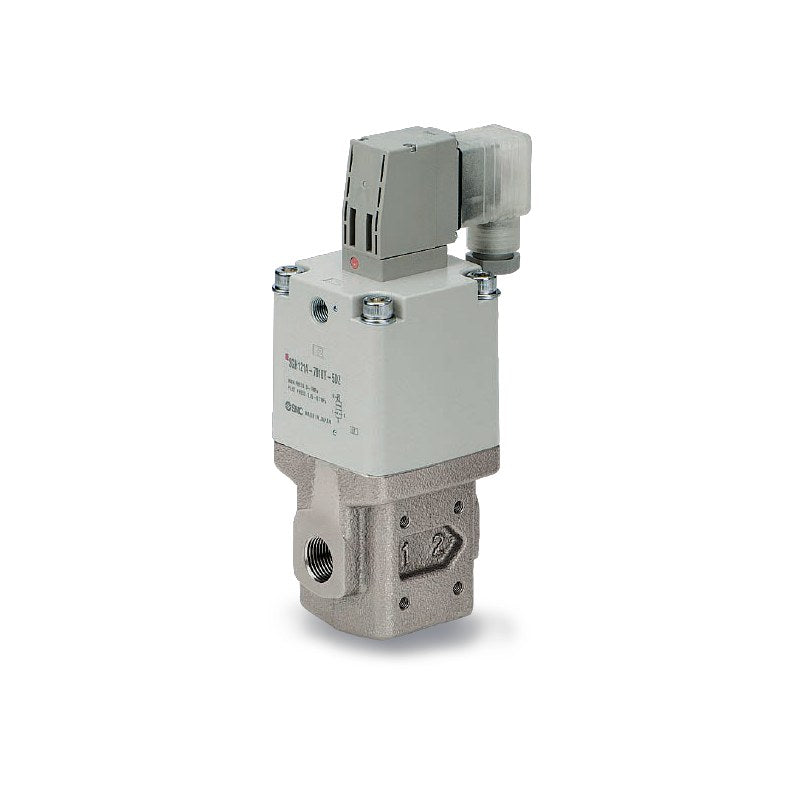

SMC SGH High-Pressure Coolant Valve (2/3-Port, 3 to 14 MPa)

SMC SGH series high-pressure coolant valve for 3, 7, 10 and 14 MPa coolant, in 2-port and 3-port (including reverse pressure) types, air operated (SGHA) or external pilot solenoid.

Key features

Poppet valve with metal seal; service life 3 million cycles and water hammer reduced approx. 20% (2-port, vs. VNH)
2-port N.C./N.O. 7 MPa, 2-port N.C. 10/14 MPa (SGH100, VO307 pilot), 3-port and 3-port reverse pressure 3/7 MPa
Low power 0.35 W pilot valve V116 (3/7 MPa); NBR or FKM seal; Rc3/8 to Rc1
Listed solenoid codes: AC100V, AC200V, AC220V, DC24V with lamp/surge suppressor; conduit (T), DIN (D) or M12 (W) entry
Push-Turn manual (D), brackets B1/B2, M12 cable (V100-200), G/NPT/NPTF threads and made-to-order connector direction available

Specifications

Fluid	Coolant (not for water)
Fluid temperature	-10 to 60°C
Ambient temperature	-10 to 50°C
Proof pressure	4.5 / 10.5 / 15 / 21 MPa (3 / 7 / 10 / 14 MPa types)
Valve leakage	20 cm3/min or less (coolant pressure)
External pilot air pressure	0.25 to 0.7 MPa (14 MPa type 0.35 to 0.7 MPa)
Pilot valve	V116 0.35 W (Y) or VO307 1.8 W (H)
PE port	Filter fitted as standard
Lubrication	Not required
Source	SMC Korea catalog SGH CAT.KS70-37B (SMCKR_SGH.pdf), p. 3-8 (PDF p. 4-9)

SGHA121A-7010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH121A-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH121A-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH121A-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH121A-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH121A-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH121A-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH121A-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH121A-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH121A-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH121A-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH121A-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH121A-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA121B-7010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH121B-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH121B-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH121B-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH121B-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH121B-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH121B-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH121B-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH121B-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH121B-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH121B-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH121B-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH121B-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA122A-7010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH122A-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH122A-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH122A-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH122A-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH122A-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH122A-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH122A-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH122A-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH122A-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH122A-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH122A-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH122A-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA122B-7010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH122B-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH122B-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH122B-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH122B-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH122B-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH122B-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH122B-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH122B-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH122B-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH122B-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH122B-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH122B-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA121A-10010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: Air operated (no coil)
SGH121A-10010H-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
SGH121A-10010H-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
SGH121A-10010H-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
SGH121A-10010H-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
SGHA121B-10010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: Air operated (no coil)
SGH121B-10010H-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
SGH121B-10010H-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
SGH121B-10010H-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
SGH121B-10010H-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
SGHA121A-14010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: Air operated (no coil)
SGH121A-14010H-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
SGH121A-14010H-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
SGH121A-14010H-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
SGH121A-14010H-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
SGHA121B-14010		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: Air operated (no coil)
SGH121B-14010H-1DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
SGH121B-14010H-2DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
SGH121B-14010H-4DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
SGH121B-14010H-5DZ		Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
SGHA130A-3010		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH130A-3010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH130A-3010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH130A-3010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH130A-3010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH130A-3010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH130A-3010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH130A-3010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH130A-3010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH130A-3010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH130A-3010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH130A-3010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH130A-3010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA130B-3010		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH130B-3010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH130B-3010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH130B-3010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH130B-3010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH130B-3010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH130B-3010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH130B-3010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH130B-3010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH130B-3010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH130B-3010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH130B-3010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH130B-3010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA133A-3010		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH133A-3010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH133A-3010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH133A-3010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH133A-3010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH133A-3010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH133A-3010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH133A-3010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH133A-3010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH133A-3010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH133A-3010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH133A-3010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH133A-3010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA133B-3010		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH133B-3010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH133B-3010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH133B-3010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH133B-3010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH133B-3010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH133B-3010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH133B-3010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH133B-3010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH133B-3010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH133B-3010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH133B-3010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH133B-3010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA130A-7010		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH130A-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH130A-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH130A-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH130A-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH130A-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH130A-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH130A-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH130A-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH130A-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH130A-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH130A-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH130A-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA130B-7010		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH130B-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH130B-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH130B-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH130B-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH130B-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH130B-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH130B-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH130B-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH130B-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH130B-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH130B-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH130B-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA133A-7010		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH133A-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH133A-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH133A-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH133A-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH133A-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH133A-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH133A-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH133A-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH133A-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH133A-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH133A-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH133A-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA133B-7010		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH133B-7010Y-1TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH133B-7010Y-1DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH133B-7010Y-1WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH133B-7010Y-2TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH133B-7010Y-2DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH133B-7010Y-2WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH133B-7010Y-4TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH133B-7010Y-4DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH133B-7010Y-4WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH133B-7010Y-5TZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH133B-7010Y-5DZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH133B-7010Y-5WZ		Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA221A-7015		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH221A-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH221A-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH221A-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH221A-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH221A-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH221A-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH221A-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH221A-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH221A-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH221A-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH221A-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH221A-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA221B-7015		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH221B-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH221B-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH221B-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH221B-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH221B-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH221B-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH221B-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH221B-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH221B-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH221B-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH221B-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH221B-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA222A-7015		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH222A-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH222A-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH222A-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH222A-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH222A-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH222A-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH222A-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH222A-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH222A-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH222A-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH222A-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH222A-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA222B-7015		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH222B-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH222B-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH222B-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH222B-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH222B-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH222B-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH222B-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH222B-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH222B-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH222B-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH222B-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH222B-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA230A-3015		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH230A-3015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH230A-3015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH230A-3015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH230A-3015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH230A-3015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH230A-3015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH230A-3015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH230A-3015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH230A-3015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH230A-3015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH230A-3015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH230A-3015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA230B-3015		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH230B-3015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH230B-3015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH230B-3015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH230B-3015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH230B-3015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH230B-3015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH230B-3015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH230B-3015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH230B-3015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH230B-3015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH230B-3015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH230B-3015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA233A-3015		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH233A-3015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH233A-3015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH233A-3015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH233A-3015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH233A-3015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH233A-3015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH233A-3015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH233A-3015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH233A-3015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH233A-3015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH233A-3015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH233A-3015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA233B-3015		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH233B-3015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH233B-3015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH233B-3015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH233B-3015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH233B-3015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH233B-3015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH233B-3015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH233B-3015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH233B-3015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH233B-3015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH233B-3015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH233B-3015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA230A-7015		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH230A-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH230A-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH230A-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH230A-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH230A-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH230A-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH230A-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH230A-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH230A-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH230A-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH230A-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH230A-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA230B-7015		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH230B-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH230B-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH230B-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH230B-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH230B-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH230B-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH230B-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH230B-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH230B-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH230B-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH230B-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH230B-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA233A-7015		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH233A-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH233A-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH233A-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH233A-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH233A-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH233A-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH233A-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH233A-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH233A-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH233A-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH233A-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH233A-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA233B-7015		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH233B-7015Y-1TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH233B-7015Y-1DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH233B-7015Y-1WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH233B-7015Y-2TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH233B-7015Y-2DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH233B-7015Y-2WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH233B-7015Y-4TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH233B-7015Y-4DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH233B-7015Y-4WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH233B-7015Y-5TZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH233B-7015Y-5DZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH233B-7015Y-5WZ		Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA321A-7020		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH321A-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH321A-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH321A-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH321A-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH321A-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH321A-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH321A-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH321A-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH321A-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH321A-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH321A-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH321A-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA321B-7020		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH321B-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH321B-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH321B-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH321B-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH321B-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH321B-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH321B-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH321B-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH321B-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH321B-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH321B-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH321B-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA322A-7020		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH322A-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH322A-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH322A-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH322A-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH322A-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH322A-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH322A-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH322A-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH322A-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH322A-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH322A-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH322A-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA322B-7020		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH322B-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH322B-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH322B-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH322B-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH322B-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH322B-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH322B-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH322B-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH322B-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH322B-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH322B-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH322B-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA330A-3020		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH330A-3020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH330A-3020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH330A-3020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH330A-3020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH330A-3020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH330A-3020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH330A-3020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH330A-3020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH330A-3020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH330A-3020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH330A-3020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH330A-3020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA330B-3020		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH330B-3020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH330B-3020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH330B-3020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH330B-3020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH330B-3020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH330B-3020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH330B-3020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH330B-3020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH330B-3020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH330B-3020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH330B-3020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH330B-3020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA333A-3020		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH333A-3020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH333A-3020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH333A-3020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH333A-3020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH333A-3020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH333A-3020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH333A-3020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH333A-3020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH333A-3020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH333A-3020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH333A-3020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH333A-3020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA333B-3020		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH333B-3020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH333B-3020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH333B-3020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH333B-3020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH333B-3020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH333B-3020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH333B-3020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH333B-3020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH333B-3020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH333B-3020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH333B-3020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH333B-3020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA330A-7020		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH330A-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH330A-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH330A-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH330A-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH330A-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH330A-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH330A-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH330A-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH330A-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH330A-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH330A-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH330A-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA330B-7020		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH330B-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH330B-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH330B-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH330B-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH330B-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH330B-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH330B-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH330B-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH330B-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH330B-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH330B-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH330B-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA333A-7020		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH333A-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH333A-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH333A-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH333A-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH333A-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH333A-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH333A-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH333A-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH333A-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH333A-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH333A-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH333A-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA333B-7020		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH333B-7020Y-1TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH333B-7020Y-1DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH333B-7020Y-1WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH333B-7020Y-2TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH333B-7020Y-2DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH333B-7020Y-2WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH333B-7020Y-4TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH333B-7020Y-4DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH333B-7020Y-4WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH333B-7020Y-5TZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH333B-7020Y-5DZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH333B-7020Y-5WZ		Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA421A-7025		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH421A-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH421A-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH421A-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH421A-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH421A-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH421A-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH421A-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH421A-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH421A-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH421A-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH421A-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH421A-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA421B-7025		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH421B-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH421B-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH421B-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH421B-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH421B-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH421B-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH421B-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH421B-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH421B-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH421B-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH421B-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH421B-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA422A-7025		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH422A-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH422A-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH422A-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH422A-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH422A-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH422A-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH422A-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH422A-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH422A-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH422A-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH422A-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH422A-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA422B-7025		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH422B-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH422B-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH422B-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH422B-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH422B-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH422B-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH422B-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH422B-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH422B-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH422B-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH422B-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH422B-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA430A-3025		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH430A-3025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH430A-3025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH430A-3025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH430A-3025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH430A-3025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH430A-3025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH430A-3025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH430A-3025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH430A-3025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH430A-3025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH430A-3025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH430A-3025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA430B-3025		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH430B-3025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH430B-3025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH430B-3025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH430B-3025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH430B-3025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH430B-3025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH430B-3025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH430B-3025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH430B-3025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH430B-3025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH430B-3025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH430B-3025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA433A-3025		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH433A-3025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH433A-3025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH433A-3025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH433A-3025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH433A-3025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH433A-3025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH433A-3025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH433A-3025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH433A-3025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH433A-3025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH433A-3025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH433A-3025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA433B-3025		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
SGH433B-3025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH433B-3025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH433B-3025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH433B-3025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH433B-3025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH433B-3025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH433B-3025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH433B-3025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH433B-3025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH433B-3025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH433B-3025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH433B-3025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA430A-7025		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH430A-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH430A-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH430A-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH430A-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH430A-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH430A-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH430A-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH430A-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH430A-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH430A-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH430A-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH430A-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA430B-7025		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH430B-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH430B-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH430B-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH430B-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH430B-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH430B-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH430B-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH430B-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH430B-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH430B-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH430B-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH430B-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA433A-7025		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH433A-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH433A-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH433A-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH433A-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH433A-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH433A-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH433A-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH433A-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH433A-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH433A-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH433A-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH433A-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
SGHA433B-7025		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
SGH433B-7025Y-1TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
SGH433B-7025Y-1DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
SGH433B-7025Y-1WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
SGH433B-7025Y-2TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
SGH433B-7025Y-2DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
SGH433B-7025Y-2WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
SGH433B-7025Y-4TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
SGH433B-7025Y-4DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
SGH433B-7025Y-4WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
SGH433B-7025Y-5TZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
SGH433B-7025Y-5DZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
SGH433B-7025Y-5WZ		Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)

Process ValvesSMC

644 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SGH High-Pressure Coolant Valve (2/3-Port, 3 to 14 MPa)

Brand SMC·Process Valves

Available part numbers (644)

SGHA121A-7010, SGH121A-7010Y-1TZ, SGH121A-7010Y-1DZ, SGH121A-7010Y-1WZ, SGH121A-7010Y-2TZ, SGH121A-7010Y-2DZ, SGH121A-7010Y-2WZ, SGH121A-7010Y-4TZ, SGH121A-7010Y-4DZ, SGH121A-7010Y-4WZ + 634 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SGHA121A-7010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH121A-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH121A-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH121A-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH121A-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH121A-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH121A-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH121A-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH121A-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH121A-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH121A-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH121A-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH121A-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA121B-7010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH121B-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH121B-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH121B-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH121B-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH121B-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH121B-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH121B-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH121B-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH121B-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH121B-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH121B-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH121B-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA122A-7010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH122A-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH122A-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH122A-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH122A-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH122A-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH122A-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH122A-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH122A-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH122A-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH122A-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH122A-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH122A-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA122B-7010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH122B-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH122B-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH122B-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH122B-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH122B-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH122B-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH122B-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH122B-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH122B-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH122B-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH122B-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH122B-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA121A-10010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: Air operated (no coil)
	SGH121A-10010H-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
	SGH121A-10010H-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
	SGH121A-10010H-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
	SGH121A-10010H-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
	SGHA121B-10010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: Air operated (no coil)
	SGH121B-10010H-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
	SGH121B-10010H-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
	SGH121B-10010H-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
	SGH121B-10010H-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 10 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
	SGHA121A-14010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: Air operated (no coil)
	SGH121A-14010H-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
	SGH121A-14010H-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
	SGH121A-14010H-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
	SGH121A-14010H-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
	SGHA121B-14010	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: Air operated (no coil)
	SGH121B-14010H-1DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC100V, DIN (DZ)
	SGH121B-14010H-2DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC200V, DIN (DZ)
	SGH121B-14010H-4DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W AC220V, DIN (DZ)
	SGH121B-14010H-5DZ	Size: SGH100, Rc3/8 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 14 MPa \| Operation: VO307 1.8W DC24V, DIN (DZ)
	SGHA130A-3010	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH130A-3010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH130A-3010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH130A-3010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH130A-3010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH130A-3010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH130A-3010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH130A-3010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH130A-3010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH130A-3010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH130A-3010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH130A-3010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH130A-3010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA130B-3010	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH130B-3010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH130B-3010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH130B-3010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH130B-3010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH130B-3010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH130B-3010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH130B-3010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH130B-3010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH130B-3010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH130B-3010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH130B-3010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH130B-3010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA133A-3010	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH133A-3010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH133A-3010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH133A-3010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH133A-3010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH133A-3010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH133A-3010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH133A-3010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH133A-3010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH133A-3010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH133A-3010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH133A-3010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH133A-3010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA133B-3010	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH133B-3010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH133B-3010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH133B-3010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH133B-3010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH133B-3010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH133B-3010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH133B-3010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH133B-3010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH133B-3010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH133B-3010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH133B-3010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH133B-3010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA130A-7010	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH130A-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH130A-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH130A-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH130A-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH130A-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH130A-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH130A-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH130A-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH130A-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH130A-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH130A-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH130A-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA130B-7010	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH130B-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH130B-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH130B-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH130B-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH130B-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH130B-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH130B-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH130B-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH130B-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH130B-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH130B-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH130B-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA133A-7010	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH133A-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH133A-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH133A-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH133A-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH133A-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH133A-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH133A-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH133A-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH133A-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH133A-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH133A-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH133A-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA133B-7010	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH133B-7010Y-1TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH133B-7010Y-1DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH133B-7010Y-1WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH133B-7010Y-2TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH133B-7010Y-2DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH133B-7010Y-2WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH133B-7010Y-4TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH133B-7010Y-4DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH133B-7010Y-4WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH133B-7010Y-5TZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH133B-7010Y-5DZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH133B-7010Y-5WZ	Size: SGH100, Rc3/8 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA221A-7015	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH221A-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH221A-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH221A-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH221A-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH221A-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH221A-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH221A-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH221A-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH221A-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH221A-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH221A-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH221A-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA221B-7015	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH221B-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH221B-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH221B-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH221B-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH221B-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH221B-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH221B-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH221B-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH221B-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH221B-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH221B-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH221B-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA222A-7015	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH222A-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH222A-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH222A-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH222A-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH222A-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH222A-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH222A-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH222A-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH222A-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH222A-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH222A-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH222A-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA222B-7015	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH222B-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH222B-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH222B-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH222B-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH222B-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH222B-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH222B-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH222B-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH222B-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH222B-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH222B-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH222B-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA230A-3015	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH230A-3015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH230A-3015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH230A-3015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH230A-3015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH230A-3015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH230A-3015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH230A-3015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH230A-3015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH230A-3015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH230A-3015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH230A-3015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH230A-3015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA230B-3015	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH230B-3015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH230B-3015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH230B-3015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH230B-3015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH230B-3015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH230B-3015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH230B-3015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH230B-3015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH230B-3015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH230B-3015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH230B-3015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH230B-3015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA233A-3015	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH233A-3015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH233A-3015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH233A-3015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH233A-3015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH233A-3015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH233A-3015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH233A-3015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH233A-3015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH233A-3015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH233A-3015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH233A-3015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH233A-3015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA233B-3015	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH233B-3015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH233B-3015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH233B-3015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH233B-3015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH233B-3015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH233B-3015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH233B-3015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH233B-3015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH233B-3015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH233B-3015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH233B-3015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH233B-3015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA230A-7015	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH230A-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH230A-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH230A-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH230A-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH230A-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH230A-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH230A-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH230A-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH230A-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH230A-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH230A-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH230A-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA230B-7015	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH230B-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH230B-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH230B-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH230B-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH230B-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH230B-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH230B-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH230B-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH230B-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH230B-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH230B-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH230B-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA233A-7015	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH233A-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH233A-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH233A-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH233A-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH233A-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH233A-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH233A-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH233A-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH233A-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH233A-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH233A-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH233A-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA233B-7015	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH233B-7015Y-1TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH233B-7015Y-1DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH233B-7015Y-1WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH233B-7015Y-2TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH233B-7015Y-2DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH233B-7015Y-2WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH233B-7015Y-4TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH233B-7015Y-4DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH233B-7015Y-4WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH233B-7015Y-5TZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH233B-7015Y-5DZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH233B-7015Y-5WZ	Size: SGH200, Rc1/2 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA321A-7020	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH321A-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH321A-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH321A-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH321A-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH321A-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH321A-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH321A-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH321A-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH321A-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH321A-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH321A-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH321A-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA321B-7020	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH321B-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH321B-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH321B-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH321B-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH321B-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH321B-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH321B-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH321B-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH321B-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH321B-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH321B-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH321B-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA322A-7020	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH322A-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH322A-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH322A-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH322A-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH322A-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH322A-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH322A-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH322A-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH322A-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH322A-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH322A-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH322A-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA322B-7020	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH322B-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH322B-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH322B-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH322B-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH322B-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH322B-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH322B-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH322B-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH322B-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH322B-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH322B-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH322B-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA330A-3020	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH330A-3020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH330A-3020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH330A-3020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH330A-3020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH330A-3020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH330A-3020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH330A-3020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH330A-3020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH330A-3020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH330A-3020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH330A-3020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH330A-3020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA330B-3020	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH330B-3020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH330B-3020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH330B-3020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH330B-3020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH330B-3020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH330B-3020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH330B-3020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH330B-3020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH330B-3020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH330B-3020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH330B-3020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH330B-3020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA333A-3020	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH333A-3020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH333A-3020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH333A-3020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH333A-3020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH333A-3020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH333A-3020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH333A-3020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH333A-3020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH333A-3020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH333A-3020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH333A-3020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH333A-3020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA333B-3020	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH333B-3020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH333B-3020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH333B-3020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH333B-3020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH333B-3020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH333B-3020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH333B-3020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH333B-3020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH333B-3020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH333B-3020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH333B-3020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH333B-3020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA330A-7020	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH330A-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH330A-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH330A-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH330A-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH330A-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH330A-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH330A-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH330A-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH330A-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH330A-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH330A-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH330A-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA330B-7020	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH330B-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH330B-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH330B-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH330B-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH330B-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH330B-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH330B-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH330B-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH330B-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH330B-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH330B-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH330B-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA333A-7020	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH333A-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH333A-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH333A-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH333A-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH333A-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH333A-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH333A-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH333A-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH333A-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH333A-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH333A-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH333A-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA333B-7020	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH333B-7020Y-1TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH333B-7020Y-1DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH333B-7020Y-1WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH333B-7020Y-2TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH333B-7020Y-2DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH333B-7020Y-2WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH333B-7020Y-4TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH333B-7020Y-4DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH333B-7020Y-4WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH333B-7020Y-5TZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH333B-7020Y-5DZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH333B-7020Y-5WZ	Size: SGH300, Rc3/4 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA421A-7025	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH421A-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH421A-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH421A-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH421A-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH421A-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH421A-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH421A-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH421A-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH421A-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH421A-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH421A-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH421A-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA421B-7025	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH421B-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH421B-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH421B-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH421B-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH421B-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH421B-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH421B-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH421B-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH421B-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH421B-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH421B-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH421B-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.C. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA422A-7025	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH422A-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH422A-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH422A-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH422A-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH422A-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH422A-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH422A-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH422A-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH422A-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH422A-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH422A-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH422A-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA422B-7025	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH422B-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH422B-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH422B-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH422B-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH422B-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH422B-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH422B-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH422B-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH422B-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH422B-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH422B-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH422B-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 2-port N.O. \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA430A-3025	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH430A-3025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH430A-3025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH430A-3025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH430A-3025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH430A-3025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH430A-3025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH430A-3025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH430A-3025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH430A-3025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH430A-3025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH430A-3025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH430A-3025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA430B-3025	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH430B-3025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH430B-3025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH430B-3025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH430B-3025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH430B-3025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH430B-3025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH430B-3025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH430B-3025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH430B-3025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH430B-3025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH430B-3025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH430B-3025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA433A-3025	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH433A-3025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH433A-3025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH433A-3025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH433A-3025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH433A-3025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH433A-3025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH433A-3025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH433A-3025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH433A-3025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH433A-3025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH433A-3025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH433A-3025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA433B-3025	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: Air operated (no coil)
	SGH433B-3025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH433B-3025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH433B-3025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH433B-3025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH433B-3025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH433B-3025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH433B-3025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH433B-3025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH433B-3025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH433B-3025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH433B-3025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH433B-3025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 3 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA430A-7025	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH430A-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH430A-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH430A-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH430A-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH430A-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH430A-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH430A-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH430A-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH430A-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH430A-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH430A-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH430A-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA430B-7025	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH430B-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH430B-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH430B-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH430B-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH430B-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH430B-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH430B-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH430B-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH430B-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH430B-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH430B-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH430B-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA433A-7025	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH433A-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH433A-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH433A-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH433A-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH433A-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH433A-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH433A-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH433A-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH433A-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH433A-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH433A-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH433A-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: NBR \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)
	SGHA433B-7025	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: Air operated (no coil)
	SGH433B-7025Y-1TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, conduit (TZ)
	SGH433B-7025Y-1DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, DIN (DZ)
	SGH433B-7025Y-1WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC100V, M12 4-pin (WZ)
	SGH433B-7025Y-2TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, conduit (TZ)
	SGH433B-7025Y-2DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, DIN (DZ)
	SGH433B-7025Y-2WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC200V, M12 4-pin (WZ)
	SGH433B-7025Y-4TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, conduit (TZ)
	SGH433B-7025Y-4DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, DIN (DZ)
	SGH433B-7025Y-4WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W AC220V, M12 4-pin (WZ)
	SGH433B-7025Y-5TZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, conduit (TZ)
	SGH433B-7025Y-5DZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, DIN (DZ)
	SGH433B-7025Y-5WZ	Size: SGH400, Rc1 \| Valve type: 3-port reverse pressure \| Seal: FKM \| Pressure: 0 to 7 MPa \| Operation: V116 0.35W DC24V, M12 4-pin (WZ)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC SGH High-Pressure Coolant Valve (2/3-Port, 3 to 14 MPa)
