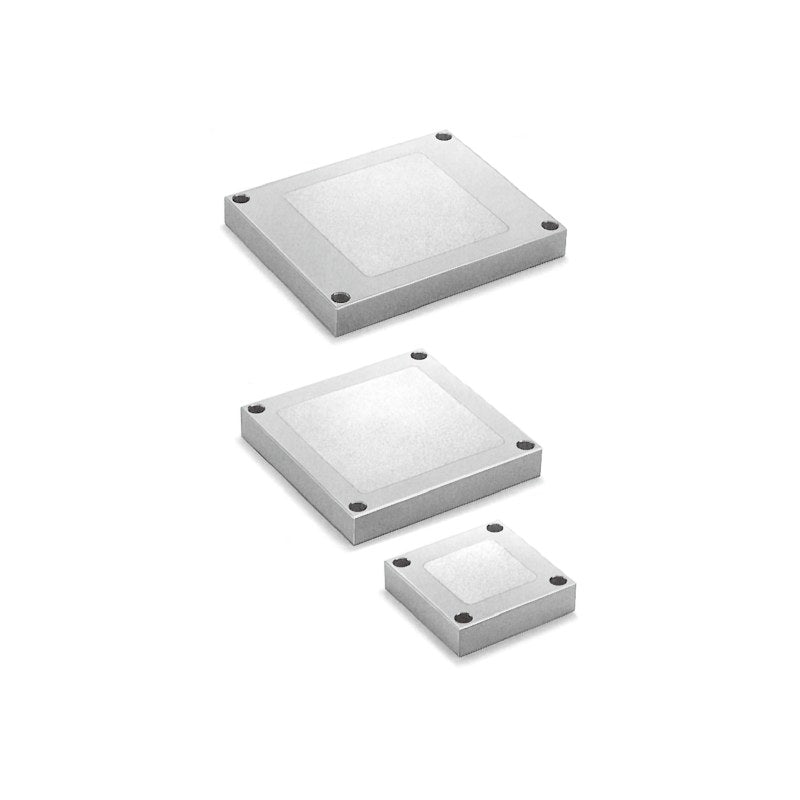

SMC SP Vacuum Suction Plate (Sintered Metal, 50x50 to 300x300 mm)

SMC SP Vacuum Suction Plate (Sintered Metal, 50x50 to 300x300 mm)

SMC SP series suction plate that holds thin sheets, glass substrates and flexible workpieces flat through a sintered metal element with many fine pores, leaving no wrinkles, bubbles or suction marks.

Key features

  • Suction surface with about 1300 fine pores per cm² (ø0.12 mm average), opening ratio 15% or more
  • High machining accuracy: lapped stainless steel suction surface, flatness 15 to 25 µm
  • Uniform, large holding force without workpiece deformation or position shift
  • Six suction area sizes from 50x50 to 300x300 mm, rectangular or square body outline
  • Side suction port position and element particle size (ø0.2 / ø0.4) are made to order

Specifications

Element Sintered metal, ø0.3 mm spherical particles (standard)
Opening ratio 15% or more
Suction surface material Stainless steel, lapped
Body material Aluminum casting, chromate (except suction and seat faces), ground
Ambient temperature 10 to 40°C
Suction port Rc1/8 (back)
Applications Screen printing, lamination, film, glass substrates, ceramic green sheets
Source SMC Korea catalog SP Series (SMCKR_SP.pdf), p. 753 (PDF p. 5)
SP1130 Body shape: Rectangular | Suction area: 50x50 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 0.5 kg
SP1230 Body shape: Rectangular | Suction area: 100x100 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.2 kg
SP1330 Body shape: Rectangular | Suction area: 150x150 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 2.1 kg
SP1430 Body shape: Rectangular | Suction area: 200x200 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 3.2 kg
SP1530 Body shape: Rectangular | Suction area: 250x250 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 5.8 kg
SP1630 Body shape: Rectangular | Suction area: 300x300 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 8 kg
SP2130 Body shape: Square | Suction area: 50x50 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 0.4 kg
SP2230 Body shape: Square | Suction area: 100x100 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.0 kg
SP2330 Body shape: Square | Suction area: 150x150 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.8 kg
SP2430 Body shape: Square | Suction area: 200x200 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 2.9 kg
SP2530 Body shape: Square | Suction area: 250x250 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 5.3 kg
SP2630 Body shape: Square | Suction area: 300x300 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 7.4 kg
Vacuum EquipmentSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SP Vacuum Suction Plate (Sintered Metal, 50x50 to 300x300 mm)

Brand SMC·Vacuum Equipment

Available part numbers (12)

SP1130, SP1230, SP1330, SP1430, SP1530, SP1630, SP2130, SP2230, SP2330, SP2430 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SP1130Body shape: Rectangular | Suction area: 50x50 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 0.5 kg
SP1230Body shape: Rectangular | Suction area: 100x100 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.2 kg
SP1330Body shape: Rectangular | Suction area: 150x150 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 2.1 kg
SP1430Body shape: Rectangular | Suction area: 200x200 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 3.2 kg
SP1530Body shape: Rectangular | Suction area: 250x250 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 5.8 kg
SP1630Body shape: Rectangular | Suction area: 300x300 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 8 kg
SP2130Body shape: Square | Suction area: 50x50 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 0.4 kg
SP2230Body shape: Square | Suction area: 100x100 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.0 kg
SP2330Body shape: Square | Suction area: 150x150 mm | Flatness: 15 µm max. | Parallelism: 30 µm max. | Mass: 1.8 kg
SP2430Body shape: Square | Suction area: 200x200 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 2.9 kg
SP2530Body shape: Square | Suction area: 250x250 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 5.3 kg
SP2630Body shape: Square | Suction area: 300x300 mm | Flatness: 25 µm max. | Parallelism: 40 µm max. | Mass: 7.4 kg
