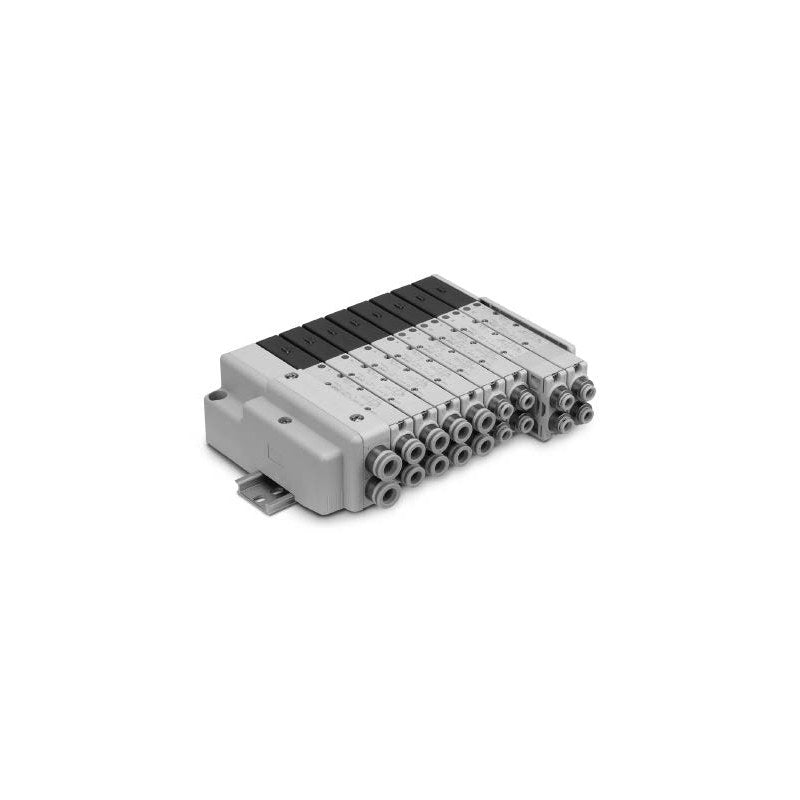

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-in Type)

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-in Type)

SMC SQ1000/SQ2000 series plug-in 5-port solenoid valve for SS5Q13/SS5Q23 manifolds, with metal or rubber seal and a 0.4 W standard coil.

Key features

  • Plug-in valve mounts on SS5Q13 (SQ1000) and SS5Q23 (SQ2000) manifolds; valves and manifold blocks form a cassette for easy station addition on DIN rail
  • Switching: 2-position single/double, 3-position closed/exhaust/pressure center, 4-position dual 3-port (rubber seal only)
  • Low power: 0.4 W standard; 0.95 W high-speed response (B) and 1.0 MPa high-pressure (K, metal seal) versions
  • Cylinder port one-touch fittings (side or top piping) replaceable by clip; 2-position double valves carry function symbol D
  • Light/surge voltage suppressor built in; options as suffixes: B/K/N/R function, manual B/D, port plug A/B, manifold block M/MB, CE/UKCA Q

Specifications

Fluid Air
Max. operating pressure 0.7 MPa (high-pressure type K, metal seal: 1.0 MPa)
Min. operating pressure Metal seal 0.1 MPa; rubber seal 0.15 MPa single, 0.1 MPa double, 0.2 MPa 3-pos, 0.15 MPa 4-pos
Ambient and fluid temperature -10 to 50°C
Lubrication Not required
Pilot valve manual override Non-locking push (standard); locking (B); SQ2000 slide locking (D)
Vibration/impact resistance 30/150 m/s²
Enclosure Dustproof
Allowable voltage fluctuation ±10% of rated voltage
Power consumption DC 0.4 W standard; 0.95 W high-speed (B) / high-pressure (K)
Flow rate C [dm³/(s·bar)] P→A/B SQ1000 0.58 to 0.79; SQ2000 1.9 to 2.3
Valve type Pilot-operated 5-port, plug-in
Source SMC Korea catalog SQ1000/2000 (SMCKR_SQ1000_2000.pdf), p. 607, 610, 625, 628 (PDF p. 9, 12, 27, 30)
SQ1130-51-C3 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1130-51-C4 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1130-51-C6 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1130-51-M5 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1130-51-L3 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1130-51-L4 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1130-51-L6 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1130-51-L5 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1130-61-C3 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1130-61-C4 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1130-61-C6 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1130-61-M5 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1130-61-L3 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1130-61-L4 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1130-61-L6 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1130-61-L5 Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1131-51-C3 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1131-51-C4 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1131-51-C6 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1131-51-M5 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1131-51-L3 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1131-51-L4 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1131-51-L6 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1131-51-L5 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1131-61-C3 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1131-61-C4 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1131-61-C6 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1131-61-M5 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1131-61-L3 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1131-61-L4 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1131-61-L6 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1131-61-L5 Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1230D-51-C3 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1230D-51-C4 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1230D-51-C6 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1230D-51-M5 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1230D-51-L3 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1230D-51-L4 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1230D-51-L6 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1230D-51-L5 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1230D-61-C3 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1230D-61-C4 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1230D-61-C6 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1230D-61-M5 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1230D-61-L3 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1230D-61-L4 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1230D-61-L6 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1230D-61-L5 Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1231D-51-C3 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1231D-51-C4 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1231D-51-C6 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1231D-51-M5 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1231D-51-L3 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1231D-51-L4 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1231D-51-L6 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1231D-51-L5 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1231D-61-C3 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1231D-61-C4 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1231D-61-C6 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1231D-61-M5 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1231D-61-L3 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1231D-61-L4 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1231D-61-L6 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1231D-61-L5 Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1330-51-C3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1330-51-C4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1330-51-C6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1330-51-M5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1330-51-L3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1330-51-L4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1330-51-L6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1330-51-L5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1330-61-C3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1330-61-C4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1330-61-C6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1330-61-M5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1330-61-L3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1330-61-L4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1330-61-L6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1330-61-L5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1331-51-C3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1331-51-C4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1331-51-C6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1331-51-M5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1331-51-L3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1331-51-L4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1331-51-L6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1331-51-L5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1331-61-C3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1331-61-C4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1331-61-C6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1331-61-M5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1331-61-L3 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1331-61-L4 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1331-61-L6 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1331-61-L5 Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1430-51-C3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1430-51-C4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1430-51-C6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1430-51-M5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1430-51-L3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1430-51-L4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1430-51-L6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1430-51-L5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1430-61-C3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1430-61-C4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1430-61-C6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1430-61-M5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1430-61-L3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1430-61-L4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1430-61-L6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1430-61-L5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1431-51-C3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1431-51-C4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1431-51-C6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1431-51-M5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1431-51-L3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1431-51-L4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1431-51-L6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1431-51-L5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1431-61-C3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1431-61-C4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1431-61-C6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1431-61-M5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1431-61-L3 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1431-61-L4 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1431-61-L6 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1431-61-L5 Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1530-51-C3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1530-51-C4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1530-51-C6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1530-51-M5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1530-51-L3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1530-51-L4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1530-51-L6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1530-51-L5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1530-61-C3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1530-61-C4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1530-61-C6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1530-61-M5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1530-61-L3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1530-61-L4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1530-61-L6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1530-61-L5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1531-51-C3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1531-51-C4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1531-51-C6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1531-51-M5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1531-51-L3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1531-51-L4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1531-51-L6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1531-51-L5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1531-61-C3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1531-61-C4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1531-61-C6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1531-61-M5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1531-61-L3 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1531-61-L4 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1531-61-L6 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1531-61-L5 Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1A31-51-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1A31-51-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1A31-51-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1A31-51-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1A31-51-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1A31-51-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1A31-51-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1A31-51-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1A31-61-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1A31-61-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1A31-61-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1A31-61-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1A31-61-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1A31-61-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1A31-61-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1A31-61-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1B31-51-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1B31-51-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1B31-51-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1B31-51-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1B31-51-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1B31-51-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1B31-51-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1B31-51-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1B31-61-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1B31-61-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1B31-61-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1B31-61-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1B31-61-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1B31-61-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1B31-61-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1B31-61-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1C31-51-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1C31-51-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1C31-51-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1C31-51-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1C31-51-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1C31-51-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1C31-51-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1C31-51-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1C31-61-C3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1C31-61-C4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1C31-61-C6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1C31-61-M5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1C31-61-L3 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1C31-61-L4 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1C31-61-L6 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1C31-61-L5 Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ2130-51-C4 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2130-51-C6 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2130-51-C8 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2130-51-L4 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2130-51-L6 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2130-51-L8 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2130-61-C4 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2130-61-C6 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2130-61-C8 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2130-61-L4 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2130-61-L6 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2130-61-L8 Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2131-51-C4 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2131-51-C6 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2131-51-C8 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2131-51-L4 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2131-51-L6 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2131-51-L8 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2131-61-C4 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2131-61-C6 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2131-61-C8 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2131-61-L4 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2131-61-L6 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2131-61-L8 Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2230D-51-C4 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2230D-51-C6 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2230D-51-C8 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2230D-51-L4 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2230D-51-L6 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2230D-51-L8 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2230D-61-C4 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2230D-61-C6 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2230D-61-C8 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2230D-61-L4 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2230D-61-L6 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2230D-61-L8 Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2231D-51-C4 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2231D-51-C6 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2231D-51-C8 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2231D-51-L4 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2231D-51-L6 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2231D-51-L8 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2231D-61-C4 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2231D-61-C6 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2231D-61-C8 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2231D-61-L4 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2231D-61-L6 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2231D-61-L8 Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2330-51-C4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2330-51-C6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2330-51-C8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2330-51-L4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2330-51-L6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2330-51-L8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2330-61-C4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2330-61-C6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2330-61-C8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2330-61-L4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2330-61-L6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2330-61-L8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2331-51-C4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2331-51-C6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2331-51-C8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2331-51-L4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2331-51-L6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2331-51-L8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2331-61-C4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2331-61-C6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2331-61-C8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2331-61-L4 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2331-61-L6 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2331-61-L8 Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2430-51-C4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2430-51-C6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2430-51-C8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2430-51-L4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2430-51-L6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2430-51-L8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2430-61-C4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2430-61-C6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2430-61-C8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2430-61-L4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2430-61-L6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2430-61-L8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2431-51-C4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2431-51-C6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2431-51-C8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2431-51-L4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2431-51-L6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2431-51-L8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2431-61-C4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2431-61-C6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2431-61-C8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2431-61-L4 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2431-61-L6 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2431-61-L8 Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2530-51-C4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2530-51-C6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2530-51-C8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2530-51-L4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2530-51-L6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2530-51-L8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2530-61-C4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2530-61-C6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2530-61-C8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2530-61-L4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2530-61-L6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2530-61-L8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2531-51-C4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2531-51-C6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2531-51-C8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2531-51-L4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2531-51-L6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2531-51-L8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2531-61-C4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2531-61-C6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2531-61-C8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2531-61-L4 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2531-61-L6 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2531-61-L8 Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2A31-51-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2A31-51-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2A31-51-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2A31-51-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2A31-51-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2A31-51-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2A31-61-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2A31-61-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2A31-61-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2A31-61-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2A31-61-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2A31-61-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2B31-51-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2B31-51-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2B31-51-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2B31-51-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2B31-51-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2B31-51-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2B31-61-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2B31-61-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2B31-61-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2B31-61-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2B31-61-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2B31-61-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2C31-51-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2C31-51-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2C31-51-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2C31-51-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2C31-51-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2C31-51-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2C31-61-C4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2C31-61-C6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2C31-61-C8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2C31-61-L4 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2C31-61-L6 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2C31-61-L8 Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
5-Port Solenoid ValvesSMC
364 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-in Type)

Brand SMC·5-Port Solenoid Valves

Available part numbers (364)

SQ1130-51-C3, SQ1130-51-C4, SQ1130-51-C6, SQ1130-51-M5, SQ1130-51-L3, SQ1130-51-L4, SQ1130-51-L6, SQ1130-51-L5, SQ1130-61-C3, SQ1130-61-C4 + 354 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SQ1130-51-C3Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1130-51-C4Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1130-51-C6Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1130-51-M5Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1130-51-L3Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1130-51-L4Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1130-51-L6Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1130-51-L5Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1130-61-C3Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1130-61-C4Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1130-61-C6Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1130-61-M5Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1130-61-L3Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1130-61-L4Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1130-61-L6Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1130-61-L5Series: SQ1000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1131-51-C3Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1131-51-C4Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1131-51-C6Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1131-51-M5Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1131-51-L3Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1131-51-L4Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1131-51-L6Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1131-51-L5Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1131-61-C3Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1131-61-C4Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1131-61-C6Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1131-61-M5Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1131-61-L3Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1131-61-L4Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1131-61-L6Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1131-61-L5Series: SQ1000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1230D-51-C3Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1230D-51-C4Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1230D-51-C6Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1230D-51-M5Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1230D-51-L3Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1230D-51-L4Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1230D-51-L6Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1230D-51-L5Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1230D-61-C3Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1230D-61-C4Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1230D-61-C6Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1230D-61-M5Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1230D-61-L3Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1230D-61-L4Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1230D-61-L6Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1230D-61-L5Series: SQ1000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1231D-51-C3Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1231D-51-C4Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1231D-51-C6Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1231D-51-M5Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1231D-51-L3Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1231D-51-L4Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1231D-51-L6Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1231D-51-L5Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1231D-61-C3Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1231D-61-C4Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1231D-61-C6Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1231D-61-M5Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1231D-61-L3Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1231D-61-L4Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1231D-61-L6Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1231D-61-L5Series: SQ1000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1330-51-C3Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1330-51-C4Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1330-51-C6Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1330-51-M5Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1330-51-L3Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1330-51-L4Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1330-51-L6Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1330-51-L5Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1330-61-C3Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1330-61-C4Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1330-61-C6Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1330-61-M5Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1330-61-L3Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1330-61-L4Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1330-61-L6Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1330-61-L5Series: SQ1000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1331-51-C3Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1331-51-C4Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1331-51-C6Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1331-51-M5Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1331-51-L3Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1331-51-L4Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1331-51-L6Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1331-51-L5Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1331-61-C3Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1331-61-C4Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1331-61-C6Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1331-61-M5Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1331-61-L3Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1331-61-L4Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1331-61-L6Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1331-61-L5Series: SQ1000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1430-51-C3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1430-51-C4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1430-51-C6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1430-51-M5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1430-51-L3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1430-51-L4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1430-51-L6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1430-51-L5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1430-61-C3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1430-61-C4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1430-61-C6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1430-61-M5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1430-61-L3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1430-61-L4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1430-61-L6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1430-61-L5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1431-51-C3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1431-51-C4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1431-51-C6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1431-51-M5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1431-51-L3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1431-51-L4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1431-51-L6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1431-51-L5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1431-61-C3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1431-61-C4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1431-61-C6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1431-61-M5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1431-61-L3Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1431-61-L4Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1431-61-L6Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1431-61-L5Series: SQ1000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1530-51-C3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1530-51-C4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1530-51-C6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1530-51-M5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1530-51-L3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1530-51-L4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1530-51-L6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1530-51-L5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1530-61-C3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1530-61-C4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1530-61-C6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1530-61-M5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1530-61-L3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1530-61-L4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1530-61-L6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1530-61-L5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1531-51-C3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1531-51-C4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1531-51-C6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1531-51-M5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1531-51-L3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1531-51-L4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1531-51-L6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1531-51-L5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1531-61-C3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1531-61-C4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1531-61-C6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1531-61-M5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1531-61-L3Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1531-61-L4Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1531-61-L6Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1531-61-L5Series: SQ1000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1A31-51-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1A31-51-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1A31-51-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1A31-51-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1A31-51-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1A31-51-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1A31-51-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1A31-51-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1A31-61-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1A31-61-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1A31-61-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1A31-61-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1A31-61-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1A31-61-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1A31-61-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1A31-61-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1B31-51-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1B31-51-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1B31-51-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1B31-51-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1B31-51-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1B31-51-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1B31-51-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1B31-51-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1B31-61-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1B31-61-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1B31-61-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1B31-61-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1B31-61-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1B31-61-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1B31-61-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1B31-61-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ1C31-51-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, side
SQ1C31-51-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ1C31-51-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ1C31-51-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, side
SQ1C31-51-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø3.2 one-touch, top
SQ1C31-51-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ1C31-51-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ1C31-51-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: M5 thread, top
SQ1C31-61-C3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, side
SQ1C31-61-C4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ1C31-61-C6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ1C31-61-M5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, side
SQ1C31-61-L3Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø3.2 one-touch, top
SQ1C31-61-L4Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ1C31-61-L6Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ1C31-61-L5Series: SQ1000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: M5 thread, top
SQ2130-51-C4Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2130-51-C6Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2130-51-C8Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2130-51-L4Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2130-51-L6Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2130-51-L8Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2130-61-C4Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2130-61-C6Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2130-61-C8Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2130-61-L4Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2130-61-L6Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2130-61-L8Series: SQ2000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2131-51-C4Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2131-51-C6Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2131-51-C8Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2131-51-L4Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2131-51-L6Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2131-51-L8Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2131-61-C4Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2131-61-C6Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2131-61-C8Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2131-61-L4Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2131-61-L6Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2131-61-L8Series: SQ2000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2230D-51-C4Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2230D-51-C6Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2230D-51-C8Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2230D-51-L4Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2230D-51-L6Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2230D-51-L8Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2230D-61-C4Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2230D-61-C6Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2230D-61-C8Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2230D-61-L4Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2230D-61-L6Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2230D-61-L8Series: SQ2000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2231D-51-C4Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2231D-51-C6Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2231D-51-C8Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2231D-51-L4Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2231D-51-L6Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2231D-51-L8Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2231D-61-C4Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2231D-61-C6Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2231D-61-C8Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2231D-61-L4Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2231D-61-L6Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2231D-61-L8Series: SQ2000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2330-51-C4Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2330-51-C6Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2330-51-C8Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2330-51-L4Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2330-51-L6Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2330-51-L8Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2330-61-C4Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2330-61-C6Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2330-61-C8Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2330-61-L4Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2330-61-L6Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2330-61-L8Series: SQ2000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2331-51-C4Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2331-51-C6Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2331-51-C8Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2331-51-L4Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2331-51-L6Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2331-51-L8Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2331-61-C4Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2331-61-C6Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2331-61-C8Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2331-61-L4Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2331-61-L6Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2331-61-L8Series: SQ2000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2430-51-C4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2430-51-C6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2430-51-C8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2430-51-L4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2430-51-L6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2430-51-L8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2430-61-C4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2430-61-C6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2430-61-C8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2430-61-L4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2430-61-L6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2430-61-L8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2431-51-C4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2431-51-C6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2431-51-C8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2431-51-L4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2431-51-L6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2431-51-L8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2431-61-C4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2431-61-C6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2431-61-C8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2431-61-L4Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2431-61-L6Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2431-61-L8Series: SQ2000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2530-51-C4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2530-51-C6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2530-51-C8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2530-51-L4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2530-51-L6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2530-51-L8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2530-61-C4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2530-61-C6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2530-61-C8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2530-61-L4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2530-61-L6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2530-61-L8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2531-51-C4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2531-51-C6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2531-51-C8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2531-51-L4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2531-51-L6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2531-51-L8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2531-61-C4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2531-61-C6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2531-61-C8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2531-61-L4Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2531-61-L6Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2531-61-L8Series: SQ2000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2A31-51-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2A31-51-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2A31-51-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2A31-51-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2A31-51-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2A31-51-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2A31-61-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2A31-61-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2A31-61-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2A31-61-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2A31-61-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2A31-61-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2B31-51-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2B31-51-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2B31-51-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2B31-51-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2B31-51-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2B31-51-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2B31-61-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2B31-61-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2B31-61-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2B31-61-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2B31-61-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2B31-61-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top
SQ2C31-51-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, side
SQ2C31-51-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, side
SQ2C31-51-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, side
SQ2C31-51-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø4 one-touch, top
SQ2C31-51-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø6 one-touch, top
SQ2C31-51-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Cylinder port: ø8 one-touch, top
SQ2C31-61-C4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, side
SQ2C31-61-C6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, side
SQ2C31-61-C8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, side
SQ2C31-61-L4Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø4 one-touch, top
SQ2C31-61-L6Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø6 one-touch, top
SQ2C31-61-L8Series: SQ2000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Cylinder port: ø8 one-touch, top

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
