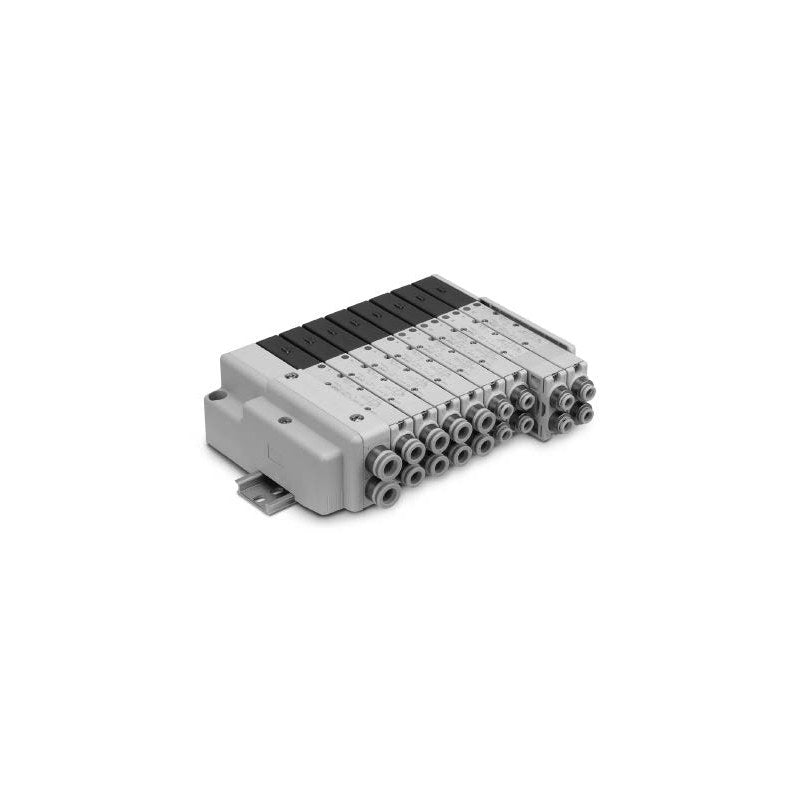

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-lead Type)

SMC SQ1000/SQ2000 series plug-lead 5-port solenoid valve with plug connector, for SS5Q14/SS5Q24 manifolds, with metal or rubber seal.

Key features

Plug-lead valve for SS5Q14 (SQ1000) and SS5Q24 (SQ2000) manifolds with F, P or C kit wiring
Electrical entry: plug connector with 300 mm lead (L) or without lead (LO, for F/P kit manifolds)
Switching: 2-position single/double, 3-position closed/exhaust/pressure center, 4-position dual 3-port (rubber seal only)
Low power: 0.4 W standard; 0.95 W high-speed response (B) and 1.0 MPa high-pressure (K, metal seal) versions
Options as suffixes: B/K/N/R function, manual B/D, port plug A/B, manifold block M/MB, CE/UKCA Q

Specifications

Fluid	Air
Max. operating pressure	0.7 MPa (high-pressure type K, metal seal: 1.0 MPa)
Min. operating pressure	Metal seal 0.1 MPa; rubber seal 0.15 MPa single, 0.1 MPa double, 0.2 MPa 3-pos, 0.15 MPa 4-pos
Ambient and fluid temperature	-10 to 50°C
Lubrication	Not required
Pilot valve manual override	Non-locking push (standard); locking (B); SQ2000 slide locking (D)
Vibration/impact resistance	30/150 m/s²
Enclosure	Dustproof
Allowable voltage fluctuation	±10% of rated voltage
Power consumption	DC 0.4 W standard; 0.95 W high-speed (B) / high-pressure (K)
Flow rate C [dm³/(s·bar)] P→A/B	SQ1000 0.58 to 0.79; SQ2000 1.9 to 2.3
Valve type	Pilot-operated 5-port, plug-lead
Source	SMC Korea catalog SQ1000/2000 (SMCKR_SQ1000_2000.pdf), p. 665, 668, 677, 680 (PDF p. 67, 70, 79, 82)

SQ1140-5L1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1140-5L1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1140-5L1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1140-5L1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1140-5L1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1140-5L1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1140-5L1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1140-5L1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1140-5LO1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1140-5LO1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1140-5LO1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1140-5LO1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1140-5LO1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1140-5LO1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1140-5LO1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1140-5LO1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1140-6L1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1140-6L1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1140-6L1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1140-6L1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1140-6L1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1140-6L1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1140-6L1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1140-6L1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1140-6LO1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1140-6LO1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1140-6LO1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1140-6LO1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1140-6LO1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1140-6LO1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1140-6LO1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1140-6LO1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1141-5L1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1141-5L1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1141-5L1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1141-5L1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1141-5L1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1141-5L1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1141-5L1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1141-5L1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1141-5LO1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1141-5LO1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1141-5LO1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1141-5LO1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1141-5LO1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1141-5LO1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1141-5LO1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1141-5LO1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1141-6L1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1141-6L1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1141-6L1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1141-6L1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1141-6L1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1141-6L1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1141-6L1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1141-6L1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1141-6LO1-C3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1141-6LO1-C4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1141-6LO1-C6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1141-6LO1-M5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1141-6LO1-L3		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1141-6LO1-L4		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1141-6LO1-L6		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1141-6LO1-L5		Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1240D-5L1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1240D-5L1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1240D-5L1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1240D-5L1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1240D-5L1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1240D-5L1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1240D-5L1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1240D-5L1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1240D-5LO1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1240D-5LO1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1240D-5LO1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1240D-5LO1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1240D-5LO1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1240D-5LO1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1240D-5LO1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1240D-5LO1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1240D-6L1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1240D-6L1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1240D-6L1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1240D-6L1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1240D-6L1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1240D-6L1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1240D-6L1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1240D-6L1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1240D-6LO1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1240D-6LO1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1240D-6LO1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1240D-6LO1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1240D-6LO1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1240D-6LO1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1240D-6LO1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1240D-6LO1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1241D-5L1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1241D-5L1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1241D-5L1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1241D-5L1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1241D-5L1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1241D-5L1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1241D-5L1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1241D-5L1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1241D-5LO1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1241D-5LO1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1241D-5LO1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1241D-5LO1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1241D-5LO1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1241D-5LO1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1241D-5LO1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1241D-5LO1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1241D-6L1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1241D-6L1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1241D-6L1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1241D-6L1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1241D-6L1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1241D-6L1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1241D-6L1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1241D-6L1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1241D-6LO1-C3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1241D-6LO1-C4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1241D-6LO1-C6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1241D-6LO1-M5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1241D-6LO1-L3		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1241D-6LO1-L4		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1241D-6LO1-L6		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1241D-6LO1-L5		Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1340-5L1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1340-5L1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1340-5L1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1340-5L1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1340-5L1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1340-5L1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1340-5L1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1340-5L1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1340-5LO1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1340-5LO1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1340-5LO1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1340-5LO1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1340-5LO1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1340-5LO1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1340-5LO1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1340-5LO1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1340-6L1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1340-6L1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1340-6L1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1340-6L1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1340-6L1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1340-6L1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1340-6L1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1340-6L1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1340-6LO1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1340-6LO1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1340-6LO1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1340-6LO1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1340-6LO1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1340-6LO1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1340-6LO1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1340-6LO1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1341-5L1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1341-5L1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1341-5L1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1341-5L1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1341-5L1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1341-5L1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1341-5L1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1341-5L1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1341-5LO1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1341-5LO1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1341-5LO1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1341-5LO1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1341-5LO1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1341-5LO1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1341-5LO1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1341-5LO1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1341-6L1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1341-6L1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1341-6L1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1341-6L1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1341-6L1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1341-6L1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1341-6L1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1341-6L1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1341-6LO1-C3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1341-6LO1-C4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1341-6LO1-C6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1341-6LO1-M5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1341-6LO1-L3		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1341-6LO1-L4		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1341-6LO1-L6		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1341-6LO1-L5		Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1440-5L1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1440-5L1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1440-5L1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1440-5L1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1440-5L1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1440-5L1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1440-5L1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1440-5L1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1440-5LO1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1440-5LO1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1440-5LO1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1440-5LO1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1440-5LO1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1440-5LO1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1440-5LO1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1440-5LO1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1440-6L1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1440-6L1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1440-6L1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1440-6L1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1440-6L1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1440-6L1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1440-6L1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1440-6L1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1440-6LO1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1440-6LO1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1440-6LO1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1440-6LO1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1440-6LO1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1440-6LO1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1440-6LO1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1440-6LO1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1441-5L1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1441-5L1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1441-5L1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1441-5L1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1441-5L1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1441-5L1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1441-5L1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1441-5L1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1441-5LO1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1441-5LO1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1441-5LO1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1441-5LO1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1441-5LO1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1441-5LO1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1441-5LO1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1441-5LO1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1441-6L1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1441-6L1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1441-6L1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1441-6L1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1441-6L1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1441-6L1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1441-6L1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1441-6L1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1441-6LO1-C3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1441-6LO1-C4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1441-6LO1-C6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1441-6LO1-M5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1441-6LO1-L3		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1441-6LO1-L4		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1441-6LO1-L6		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1441-6LO1-L5		Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1540-5L1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1540-5L1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1540-5L1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1540-5L1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1540-5L1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1540-5L1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1540-5L1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1540-5L1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1540-5LO1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1540-5LO1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1540-5LO1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1540-5LO1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1540-5LO1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1540-5LO1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1540-5LO1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1540-5LO1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1540-6L1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1540-6L1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1540-6L1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1540-6L1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1540-6L1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1540-6L1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1540-6L1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1540-6L1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1540-6LO1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1540-6LO1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1540-6LO1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1540-6LO1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1540-6LO1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1540-6LO1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1540-6LO1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1540-6LO1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1541-5L1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1541-5L1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1541-5L1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1541-5L1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1541-5L1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1541-5L1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1541-5L1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1541-5L1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1541-5LO1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1541-5LO1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1541-5LO1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1541-5LO1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1541-5LO1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1541-5LO1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1541-5LO1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1541-5LO1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1541-6L1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1541-6L1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1541-6L1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1541-6L1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1541-6L1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1541-6L1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1541-6L1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1541-6L1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1541-6LO1-C3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1541-6LO1-C4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1541-6LO1-C6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1541-6LO1-M5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1541-6LO1-L3		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1541-6LO1-L4		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1541-6LO1-L6		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1541-6LO1-L5		Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1A41-5L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1A41-5L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1A41-5L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1A41-5L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1A41-5L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1A41-5L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1A41-5L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1A41-5L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1A41-5LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1A41-5LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1A41-5LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1A41-5LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1A41-5LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1A41-5LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1A41-5LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1A41-5LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1A41-6L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1A41-6L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1A41-6L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1A41-6L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1A41-6L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1A41-6L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1A41-6L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1A41-6L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1A41-6LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1A41-6LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1A41-6LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1A41-6LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1A41-6LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1A41-6LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1A41-6LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1A41-6LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1B41-5L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1B41-5L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1B41-5L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1B41-5L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1B41-5L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1B41-5L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1B41-5L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1B41-5L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1B41-5LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1B41-5LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1B41-5LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1B41-5LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1B41-5LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1B41-5LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1B41-5LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1B41-5LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1B41-6L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1B41-6L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1B41-6L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1B41-6L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1B41-6L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1B41-6L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1B41-6L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1B41-6L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1B41-6LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1B41-6LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1B41-6LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1B41-6LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1B41-6LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1B41-6LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1B41-6LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1B41-6LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1C41-5L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1C41-5L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1C41-5L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1C41-5L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1C41-5L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1C41-5L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1C41-5L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1C41-5L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1C41-5LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1C41-5LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1C41-5LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1C41-5LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1C41-5LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1C41-5LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1C41-5LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1C41-5LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ1C41-6L1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
SQ1C41-6L1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ1C41-6L1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ1C41-6L1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
SQ1C41-6L1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
SQ1C41-6L1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ1C41-6L1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ1C41-6L1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
SQ1C41-6LO1-C3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
SQ1C41-6LO1-C4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ1C41-6LO1-C6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ1C41-6LO1-M5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
SQ1C41-6LO1-L3		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
SQ1C41-6LO1-L4		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ1C41-6LO1-L6		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ1C41-6LO1-L5		Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
SQ2140-5L1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2140-5L1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2140-5L1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2140-5L1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2140-5L1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2140-5L1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2140-5LO1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2140-5LO1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2140-5LO1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2140-5LO1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2140-5LO1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2140-5LO1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2140-6L1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2140-6L1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2140-6L1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2140-6L1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2140-6L1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2140-6L1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2140-6LO1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2140-6LO1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2140-6LO1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2140-6LO1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2140-6LO1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2140-6LO1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2141-5L1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2141-5L1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2141-5L1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2141-5L1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2141-5L1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2141-5L1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2141-5LO1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2141-5LO1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2141-5LO1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2141-5LO1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2141-5LO1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2141-5LO1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2141-6L1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2141-6L1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2141-6L1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2141-6L1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2141-6L1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2141-6L1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2141-6LO1-C4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2141-6LO1-C6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2141-6LO1-C8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2141-6LO1-L4		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2141-6LO1-L6		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2141-6LO1-L8		Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2240D-5L1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2240D-5L1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2240D-5L1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2240D-5L1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2240D-5L1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2240D-5L1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2240D-5LO1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2240D-5LO1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2240D-5LO1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2240D-5LO1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2240D-5LO1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2240D-5LO1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2240D-6L1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2240D-6L1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2240D-6L1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2240D-6L1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2240D-6L1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2240D-6L1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2240D-6LO1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2240D-6LO1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2240D-6LO1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2240D-6LO1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2240D-6LO1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2240D-6LO1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2241D-5L1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2241D-5L1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2241D-5L1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2241D-5L1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2241D-5L1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2241D-5L1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2241D-5LO1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2241D-5LO1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2241D-5LO1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2241D-5LO1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2241D-5LO1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2241D-5LO1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2241D-6L1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2241D-6L1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2241D-6L1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2241D-6L1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2241D-6L1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2241D-6L1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2241D-6LO1-C4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2241D-6LO1-C6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2241D-6LO1-C8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2241D-6LO1-L4		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2241D-6LO1-L6		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2241D-6LO1-L8		Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2340-5L1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2340-5L1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2340-5L1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2340-5L1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2340-5L1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2340-5L1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2340-5LO1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2340-5LO1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2340-5LO1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2340-5LO1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2340-5LO1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2340-5LO1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2340-6L1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2340-6L1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2340-6L1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2340-6L1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2340-6L1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2340-6L1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2340-6LO1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2340-6LO1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2340-6LO1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2340-6LO1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2340-6LO1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2340-6LO1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2341-5L1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2341-5L1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2341-5L1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2341-5L1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2341-5L1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2341-5L1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2341-5LO1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2341-5LO1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2341-5LO1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2341-5LO1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2341-5LO1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2341-5LO1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2341-6L1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2341-6L1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2341-6L1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2341-6L1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2341-6L1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2341-6L1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2341-6LO1-C4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2341-6LO1-C6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2341-6LO1-C8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2341-6LO1-L4		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2341-6LO1-L6		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2341-6LO1-L8		Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2440-5L1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2440-5L1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2440-5L1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2440-5L1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2440-5L1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2440-5L1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2440-5LO1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2440-5LO1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2440-5LO1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2440-5LO1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2440-5LO1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2440-5LO1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2440-6L1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2440-6L1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2440-6L1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2440-6L1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2440-6L1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2440-6L1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2440-6LO1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2440-6LO1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2440-6LO1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2440-6LO1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2440-6LO1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2440-6LO1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2441-5L1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2441-5L1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2441-5L1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2441-5L1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2441-5L1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2441-5L1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2441-5LO1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2441-5LO1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2441-5LO1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2441-5LO1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2441-5LO1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2441-5LO1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2441-6L1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2441-6L1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2441-6L1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2441-6L1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2441-6L1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2441-6L1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2441-6LO1-C4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2441-6LO1-C6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2441-6LO1-C8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2441-6LO1-L4		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2441-6LO1-L6		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2441-6LO1-L8		Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2540-5L1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2540-5L1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2540-5L1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2540-5L1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2540-5L1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2540-5L1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2540-5LO1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2540-5LO1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2540-5LO1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2540-5LO1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2540-5LO1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2540-5LO1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2540-6L1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2540-6L1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2540-6L1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2540-6L1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2540-6L1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2540-6L1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2540-6LO1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2540-6LO1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2540-6LO1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2540-6LO1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2540-6LO1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2540-6LO1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2541-5L1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2541-5L1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2541-5L1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2541-5L1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2541-5L1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2541-5L1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2541-5LO1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2541-5LO1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2541-5LO1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2541-5LO1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2541-5LO1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2541-5LO1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2541-6L1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2541-6L1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2541-6L1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2541-6L1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2541-6L1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2541-6L1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2541-6LO1-C4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2541-6LO1-C6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2541-6LO1-C8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2541-6LO1-L4		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2541-6LO1-L6		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2541-6LO1-L8		Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2A41-5L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2A41-5L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2A41-5L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2A41-5L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2A41-5L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2A41-5L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2A41-5LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2A41-5LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2A41-5LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2A41-5LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2A41-5LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2A41-5LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2A41-6L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2A41-6L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2A41-6L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2A41-6L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2A41-6L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2A41-6L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2A41-6LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2A41-6LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2A41-6LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2A41-6LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2A41-6LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2A41-6LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2B41-5L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2B41-5L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2B41-5L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2B41-5L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2B41-5L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2B41-5L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2B41-5LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2B41-5LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2B41-5LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2B41-5LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2B41-5LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2B41-5LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2B41-6L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2B41-6L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2B41-6L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2B41-6L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2B41-6L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2B41-6L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2B41-6LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2B41-6LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2B41-6LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2B41-6LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2B41-6LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2B41-6LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2C41-5L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2C41-5L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2C41-5L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2C41-5L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2C41-5L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2C41-5L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2C41-5LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2C41-5LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2C41-5LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2C41-5LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2C41-5LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2C41-5LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
SQ2C41-6L1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
SQ2C41-6L1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
SQ2C41-6L1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
SQ2C41-6L1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
SQ2C41-6L1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
SQ2C41-6L1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
SQ2C41-6LO1-C4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
SQ2C41-6LO1-C6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
SQ2C41-6LO1-C8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
SQ2C41-6LO1-L4		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
SQ2C41-6LO1-L6		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
SQ2C41-6LO1-L8		Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top

5-Port Solenoid ValvesSMC

728 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-lead Type)

Brand SMC·5-Port Solenoid Valves

Available part numbers (728)

SQ1140-5L1-C3, SQ1140-5L1-C4, SQ1140-5L1-C6, SQ1140-5L1-M5, SQ1140-5L1-L3, SQ1140-5L1-L4, SQ1140-5L1-L6, SQ1140-5L1-L5, SQ1140-5LO1-C3, SQ1140-5LO1-C4 + 718 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SQ1140-5L1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1140-5L1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1140-5L1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1140-5L1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1140-5L1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1140-5L1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1140-5L1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1140-5L1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1140-5LO1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1140-5LO1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1140-5LO1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1140-5LO1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1140-5LO1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1140-5LO1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1140-5LO1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1140-5LO1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1140-6L1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1140-6L1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1140-6L1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1140-6L1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1140-6L1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1140-6L1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1140-6L1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1140-6L1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1140-6LO1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1140-6LO1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1140-6LO1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1140-6LO1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1140-6LO1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1140-6LO1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1140-6LO1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1140-6LO1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1141-5L1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1141-5L1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1141-5L1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1141-5L1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1141-5L1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1141-5L1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1141-5L1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1141-5L1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1141-5LO1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1141-5LO1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1141-5LO1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1141-5LO1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1141-5LO1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1141-5LO1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1141-5LO1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1141-5LO1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1141-6L1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1141-6L1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1141-6L1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1141-6L1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1141-6L1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1141-6L1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1141-6L1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1141-6L1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1141-6LO1-C3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1141-6LO1-C4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1141-6LO1-C6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1141-6LO1-M5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1141-6LO1-L3	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1141-6LO1-L4	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1141-6LO1-L6	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1141-6LO1-L5	Series: SQ1000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1240D-5L1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1240D-5L1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1240D-5L1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1240D-5L1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1240D-5L1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1240D-5L1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1240D-5L1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1240D-5L1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1240D-5LO1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1240D-5LO1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1240D-5LO1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1240D-5LO1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1240D-5LO1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1240D-5LO1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1240D-5LO1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1240D-5LO1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1240D-6L1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1240D-6L1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1240D-6L1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1240D-6L1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1240D-6L1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1240D-6L1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1240D-6L1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1240D-6L1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1240D-6LO1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1240D-6LO1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1240D-6LO1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1240D-6LO1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1240D-6LO1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1240D-6LO1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1240D-6LO1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1240D-6LO1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1241D-5L1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1241D-5L1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1241D-5L1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1241D-5L1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1241D-5L1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1241D-5L1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1241D-5L1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1241D-5L1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1241D-5LO1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1241D-5LO1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1241D-5LO1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1241D-5LO1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1241D-5LO1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1241D-5LO1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1241D-5LO1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1241D-5LO1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1241D-6L1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1241D-6L1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1241D-6L1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1241D-6L1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1241D-6L1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1241D-6L1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1241D-6L1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1241D-6L1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1241D-6LO1-C3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1241D-6LO1-C4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1241D-6LO1-C6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1241D-6LO1-M5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1241D-6LO1-L3	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1241D-6LO1-L4	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1241D-6LO1-L6	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1241D-6LO1-L5	Series: SQ1000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1340-5L1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1340-5L1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1340-5L1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1340-5L1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1340-5L1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1340-5L1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1340-5L1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1340-5L1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1340-5LO1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1340-5LO1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1340-5LO1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1340-5LO1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1340-5LO1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1340-5LO1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1340-5LO1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1340-5LO1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1340-6L1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1340-6L1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1340-6L1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1340-6L1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1340-6L1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1340-6L1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1340-6L1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1340-6L1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1340-6LO1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1340-6LO1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1340-6LO1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1340-6LO1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1340-6LO1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1340-6LO1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1340-6LO1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1340-6LO1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1341-5L1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1341-5L1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1341-5L1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1341-5L1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1341-5L1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1341-5L1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1341-5L1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1341-5L1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1341-5LO1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1341-5LO1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1341-5LO1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1341-5LO1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1341-5LO1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1341-5LO1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1341-5LO1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1341-5LO1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1341-6L1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1341-6L1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1341-6L1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1341-6L1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1341-6L1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1341-6L1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1341-6L1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1341-6L1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1341-6LO1-C3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1341-6LO1-C4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1341-6LO1-C6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1341-6LO1-M5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1341-6LO1-L3	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1341-6LO1-L4	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1341-6LO1-L6	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1341-6LO1-L5	Series: SQ1000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1440-5L1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1440-5L1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1440-5L1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1440-5L1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1440-5L1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1440-5L1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1440-5L1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1440-5L1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1440-5LO1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1440-5LO1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1440-5LO1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1440-5LO1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1440-5LO1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1440-5LO1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1440-5LO1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1440-5LO1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1440-6L1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1440-6L1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1440-6L1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1440-6L1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1440-6L1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1440-6L1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1440-6L1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1440-6L1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1440-6LO1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1440-6LO1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1440-6LO1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1440-6LO1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1440-6LO1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1440-6LO1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1440-6LO1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1440-6LO1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1441-5L1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1441-5L1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1441-5L1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1441-5L1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1441-5L1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1441-5L1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1441-5L1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1441-5L1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1441-5LO1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1441-5LO1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1441-5LO1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1441-5LO1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1441-5LO1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1441-5LO1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1441-5LO1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1441-5LO1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1441-6L1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1441-6L1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1441-6L1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1441-6L1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1441-6L1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1441-6L1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1441-6L1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1441-6L1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1441-6LO1-C3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1441-6LO1-C4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1441-6LO1-C6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1441-6LO1-M5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1441-6LO1-L3	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1441-6LO1-L4	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1441-6LO1-L6	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1441-6LO1-L5	Series: SQ1000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1540-5L1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1540-5L1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1540-5L1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1540-5L1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1540-5L1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1540-5L1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1540-5L1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1540-5L1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1540-5LO1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1540-5LO1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1540-5LO1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1540-5LO1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1540-5LO1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1540-5LO1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1540-5LO1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1540-5LO1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1540-6L1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1540-6L1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1540-6L1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1540-6L1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1540-6L1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1540-6L1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1540-6L1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1540-6L1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1540-6LO1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1540-6LO1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1540-6LO1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1540-6LO1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1540-6LO1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1540-6LO1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1540-6LO1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1540-6LO1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1541-5L1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1541-5L1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1541-5L1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1541-5L1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1541-5L1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1541-5L1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1541-5L1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1541-5L1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1541-5LO1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1541-5LO1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1541-5LO1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1541-5LO1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1541-5LO1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1541-5LO1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1541-5LO1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1541-5LO1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1541-6L1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1541-6L1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1541-6L1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1541-6L1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1541-6L1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1541-6L1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1541-6L1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1541-6L1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1541-6LO1-C3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1541-6LO1-C4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1541-6LO1-C6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1541-6LO1-M5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1541-6LO1-L3	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1541-6LO1-L4	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1541-6LO1-L6	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1541-6LO1-L5	Series: SQ1000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1A41-5L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1A41-5L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1A41-5L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1A41-5L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1A41-5L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1A41-5L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1A41-5L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1A41-5L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1A41-5LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1A41-5LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1A41-5LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1A41-5LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1A41-5LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1A41-5LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1A41-5LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1A41-5LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1A41-6L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1A41-6L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1A41-6L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1A41-6L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1A41-6L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1A41-6L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1A41-6L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1A41-6L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1A41-6LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1A41-6LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1A41-6LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1A41-6LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1A41-6LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1A41-6LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1A41-6LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1A41-6LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1B41-5L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1B41-5L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1B41-5L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1B41-5L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1B41-5L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1B41-5L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1B41-5L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1B41-5L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1B41-5LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1B41-5LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1B41-5LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1B41-5LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1B41-5LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1B41-5LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1B41-5LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1B41-5LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1B41-6L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1B41-6L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1B41-6L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1B41-6L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1B41-6L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1B41-6L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1B41-6L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1B41-6L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1B41-6LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1B41-6LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1B41-6LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1B41-6LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1B41-6LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1B41-6LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1B41-6LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1B41-6LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1C41-5L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1C41-5L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1C41-5L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1C41-5L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1C41-5L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1C41-5L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1C41-5L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1C41-5L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1C41-5LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1C41-5LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1C41-5LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1C41-5LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1C41-5LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1C41-5LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1C41-5LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1C41-5LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ1C41-6L1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, side
	SQ1C41-6L1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ1C41-6L1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ1C41-6L1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, side
	SQ1C41-6L1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø3.2 one-touch, top
	SQ1C41-6L1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ1C41-6L1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ1C41-6L1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: M5 thread, top
	SQ1C41-6LO1-C3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, side
	SQ1C41-6LO1-C4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ1C41-6LO1-C6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ1C41-6LO1-M5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, side
	SQ1C41-6LO1-L3	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø3.2 one-touch, top
	SQ1C41-6LO1-L4	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ1C41-6LO1-L6	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ1C41-6LO1-L5	Series: SQ1000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: M5 thread, top
	SQ2140-5L1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2140-5L1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2140-5L1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2140-5L1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2140-5L1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2140-5L1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2140-5LO1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2140-5LO1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2140-5LO1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2140-5LO1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2140-5LO1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2140-5LO1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2140-6L1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2140-6L1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2140-6L1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2140-6L1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2140-6L1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2140-6L1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2140-6LO1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2140-6LO1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2140-6LO1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2140-6LO1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2140-6LO1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2140-6LO1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2141-5L1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2141-5L1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2141-5L1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2141-5L1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2141-5L1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2141-5L1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2141-5LO1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2141-5LO1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2141-5LO1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2141-5LO1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2141-5LO1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2141-5LO1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2141-6L1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2141-6L1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2141-6L1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2141-6L1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2141-6L1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2141-6L1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2141-6LO1-C4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2141-6LO1-C6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2141-6LO1-C8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2141-6LO1-L4	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2141-6LO1-L6	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2141-6LO1-L8	Series: SQ2000 \| Switching: 2-pos single \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2240D-5L1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2240D-5L1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2240D-5L1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2240D-5L1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2240D-5L1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2240D-5L1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2240D-5LO1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2240D-5LO1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2240D-5LO1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2240D-5LO1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2240D-5LO1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2240D-5LO1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2240D-6L1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2240D-6L1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2240D-6L1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2240D-6L1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2240D-6L1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2240D-6L1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2240D-6LO1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2240D-6LO1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2240D-6LO1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2240D-6LO1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2240D-6LO1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2240D-6LO1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2241D-5L1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2241D-5L1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2241D-5L1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2241D-5L1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2241D-5L1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2241D-5L1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2241D-5LO1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2241D-5LO1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2241D-5LO1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2241D-5LO1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2241D-5LO1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2241D-5LO1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2241D-6L1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2241D-6L1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2241D-6L1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2241D-6L1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2241D-6L1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2241D-6L1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2241D-6LO1-C4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2241D-6LO1-C6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2241D-6LO1-C8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2241D-6LO1-L4	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2241D-6LO1-L6	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2241D-6LO1-L8	Series: SQ2000 \| Switching: 2-pos double \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2340-5L1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2340-5L1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2340-5L1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2340-5L1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2340-5L1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2340-5L1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2340-5LO1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2340-5LO1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2340-5LO1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2340-5LO1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2340-5LO1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2340-5LO1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2340-6L1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2340-6L1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2340-6L1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2340-6L1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2340-6L1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2340-6L1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2340-6LO1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2340-6LO1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2340-6LO1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2340-6LO1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2340-6LO1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2340-6LO1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2341-5L1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2341-5L1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2341-5L1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2341-5L1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2341-5L1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2341-5L1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2341-5LO1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2341-5LO1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2341-5LO1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2341-5LO1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2341-5LO1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2341-5LO1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2341-6L1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2341-6L1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2341-6L1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2341-6L1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2341-6L1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2341-6L1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2341-6LO1-C4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2341-6LO1-C6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2341-6LO1-C8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2341-6LO1-L4	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2341-6LO1-L6	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2341-6LO1-L8	Series: SQ2000 \| Switching: 3-pos closed center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2440-5L1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2440-5L1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2440-5L1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2440-5L1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2440-5L1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2440-5L1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2440-5LO1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2440-5LO1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2440-5LO1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2440-5LO1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2440-5LO1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2440-5LO1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2440-6L1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2440-6L1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2440-6L1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2440-6L1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2440-6L1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2440-6L1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2440-6LO1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2440-6LO1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2440-6LO1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2440-6LO1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2440-6LO1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2440-6LO1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2441-5L1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2441-5L1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2441-5L1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2441-5L1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2441-5L1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2441-5L1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2441-5LO1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2441-5LO1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2441-5LO1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2441-5LO1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2441-5LO1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2441-5LO1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2441-6L1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2441-6L1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2441-6L1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2441-6L1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2441-6L1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2441-6L1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2441-6LO1-C4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2441-6LO1-C6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2441-6LO1-C8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2441-6LO1-L4	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2441-6LO1-L6	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2441-6LO1-L8	Series: SQ2000 \| Switching: 3-pos exhaust center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2540-5L1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2540-5L1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2540-5L1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2540-5L1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2540-5L1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2540-5L1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2540-5LO1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2540-5LO1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2540-5LO1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2540-5LO1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2540-5LO1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2540-5LO1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2540-6L1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2540-6L1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2540-6L1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2540-6L1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2540-6L1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2540-6L1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2540-6LO1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2540-6LO1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2540-6LO1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2540-6LO1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2540-6LO1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2540-6LO1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Metal seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2541-5L1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2541-5L1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2541-5L1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2541-5L1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2541-5L1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2541-5L1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2541-5LO1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2541-5LO1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2541-5LO1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2541-5LO1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2541-5LO1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2541-5LO1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2541-6L1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2541-6L1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2541-6L1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2541-6L1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2541-6L1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2541-6L1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2541-6LO1-C4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2541-6LO1-C6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2541-6LO1-C8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2541-6LO1-L4	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2541-6LO1-L6	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2541-6LO1-L8	Series: SQ2000 \| Switching: 3-pos pressure center \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2A41-5L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2A41-5L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2A41-5L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2A41-5L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2A41-5L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2A41-5L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2A41-5LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2A41-5LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2A41-5LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2A41-5LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2A41-5LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2A41-5LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2A41-6L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2A41-6L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2A41-6L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2A41-6L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2A41-6L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2A41-6L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2A41-6LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2A41-6LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2A41-6LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2A41-6LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2A41-6LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2A41-6LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.C. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2B41-5L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2B41-5L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2B41-5L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2B41-5L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2B41-5L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2B41-5L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2B41-5LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2B41-5LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2B41-5LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2B41-5LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2B41-5LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2B41-5LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2B41-6L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2B41-6L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2B41-6L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2B41-6L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2B41-6L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2B41-6L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2B41-6LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2B41-6LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2B41-6LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2B41-6LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2B41-6LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2B41-6LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.O./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2C41-5L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2C41-5L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2C41-5L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2C41-5L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2C41-5L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2C41-5L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2C41-5LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2C41-5LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2C41-5LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2C41-5LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2C41-5LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2C41-5LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC24V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top
	SQ2C41-6L1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, side
	SQ2C41-6L1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, side
	SQ2C41-6L1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, side
	SQ2C41-6L1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø4 one-touch, top
	SQ2C41-6L1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø6 one-touch, top
	SQ2C41-6L1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, 300 mm lead \| Cylinder port: ø8 one-touch, top
	SQ2C41-6LO1-C4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, side
	SQ2C41-6LO1-C6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, side
	SQ2C41-6LO1-C8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, side
	SQ2C41-6LO1-L4	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø4 one-touch, top
	SQ2C41-6LO1-L6	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø6 one-touch, top
	SQ2C41-6LO1-L8	Series: SQ2000 \| Switching: 4-pos dual 3-port N.C./N.O. \| Seal: Rubber seal \| Voltage: DC12V \| Electrical entry: Plug connector, no lead \| Cylinder port: ø8 one-touch, top

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC SQ1000/SQ2000 5-Port Solenoid Valve (Plug-lead Type)
