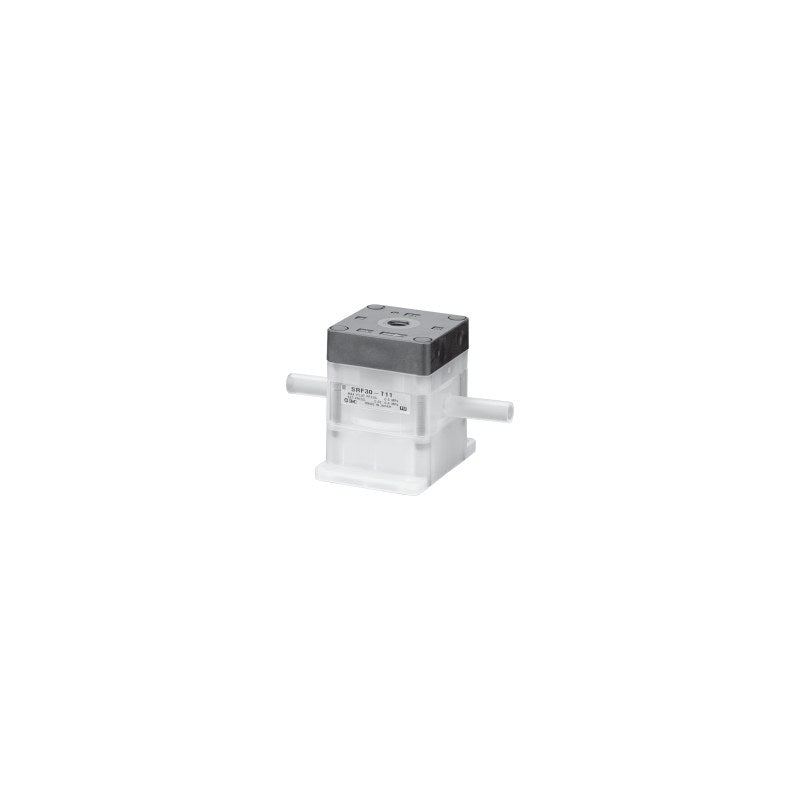

SMC SRF Clean Regulator, Fluoropolymer Type (SRF10/30/50)

SMC SRF Clean Regulator, Fluoropolymer Type (SRF10/30/50)

SMC SRF series pilot-operated clean regulator with New PFA body and PTFE diaphragms for DI water and chemical liquid lines, in three body sizes with nut-type LQ1 fittings or integrated tubes.

Key features

  • Wetted parts New PFA body and PTFE diaphragm; cleaned and clean packed (Clean Wet series)
  • Outlet pressure set by pilot air pressure; max. recommended flow 2 / 5 / 20 L/min (SRF10 / 30 / 50, water, 0.3 MPa inlet)
  • Nut type with LQ1 hyper fittings: IN and OUT sizes selectable, reducers available; tube integrated type with 1/4, 3/8 or 3/4 in tube
  • Pilot port Rc1/8 (NPT1/8 on order); made to order X401 mounting holes rotated 90 deg
  • Fitting integrated LQ2 type ends production March 2026 per catalog; nut type SRF-0S-1S is the replacement

Specifications

Fluid DI water, N2
Proof pressure 1.0 MPa
Max. operating pressure 0.5 MPa
Set pressure range 0.02 to 0.4 MPa
Max. pilot pressure 0.5 MPa
Ambient and fluid temperature 5 to 60 C
Valve leakage 10 cm3/min or less (water)
Wetted materials Body New PFA, diaphragm PTFE
Pilot port Rc1/8
Source SMC Korea catalog SRF (SMCKR_SRF.pdf), p. 1151-1154
SRF10S-1S07 Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 2 | OUT fitting: Same as IN
SRF10S-1S0711 Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 2 | OUT fitting: LQ1 size 3
SRF10S-1S11 Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: Same as IN
SRF10S-1S1107 Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: LQ1 size 2
SRF30S-1S11 Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: Same as IN
SRF30S-1S1113 Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: LQ1 size 4
SRF30S-1S13 Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 4 | OUT fitting: Same as IN
SRF30S-1S1311 Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 4 | OUT fitting: LQ1 size 3
SRF50S-1S19 Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 5 | OUT fitting: Same as IN
SRF50S-1S1925 Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 5 | OUT fitting: LQ1 size 6
SRF50S-1S25 Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 6 | OUT fitting: Same as IN
SRF50S-1S2519 Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 6 | OUT fitting: LQ1 size 5
SRF10-T07 Body size: SRF10 | Connection: Tube integrated | IN fitting: Tube O.D. 1/4 in | OUT fitting: Tube O.D. 1/4 in
SRF30-T11 Body size: SRF30 | Connection: Tube integrated | IN fitting: Tube O.D. 3/8 in | OUT fitting: Tube O.D. 3/8 in
SRF50-T19 Body size: SRF50 | Connection: Tube integrated | IN fitting: Tube O.D. 3/4 in | OUT fitting: Tube O.D. 3/4 in
RegulatorsSMC
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SRF Clean Regulator, Fluoropolymer Type (SRF10/30/50)

Brand SMC·Regulators

Available part numbers (15)

SRF10S-1S07, SRF10S-1S0711, SRF10S-1S11, SRF10S-1S1107, SRF30S-1S11, SRF30S-1S1113, SRF30S-1S13, SRF30S-1S1311, SRF50S-1S19, SRF50S-1S1925 + 5 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRF10S-1S07Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 2 | OUT fitting: Same as IN
SRF10S-1S0711Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 2 | OUT fitting: LQ1 size 3
SRF10S-1S11Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: Same as IN
SRF10S-1S1107Body size: SRF10 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: LQ1 size 2
SRF30S-1S11Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: Same as IN
SRF30S-1S1113Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 3 | OUT fitting: LQ1 size 4
SRF30S-1S13Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 4 | OUT fitting: Same as IN
SRF30S-1S1311Body size: SRF30 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 4 | OUT fitting: LQ1 size 3
SRF50S-1S19Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 5 | OUT fitting: Same as IN
SRF50S-1S1925Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 5 | OUT fitting: LQ1 size 6
SRF50S-1S25Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 6 | OUT fitting: Same as IN
SRF50S-1S2519Body size: SRF50 | Connection: Nut type (LQ1) | IN fitting: LQ1 size 6 | OUT fitting: LQ1 size 5
SRF10-T07Body size: SRF10 | Connection: Tube integrated | IN fitting: Tube O.D. 1/4 in | OUT fitting: Tube O.D. 1/4 in
SRF30-T11Body size: SRF30 | Connection: Tube integrated | IN fitting: Tube O.D. 3/8 in | OUT fitting: Tube O.D. 3/8 in
SRF50-T19Body size: SRF50 | Connection: Tube integrated | IN fitting: Tube O.D. 3/4 in | OUT fitting: Tube O.D. 3/4 in
