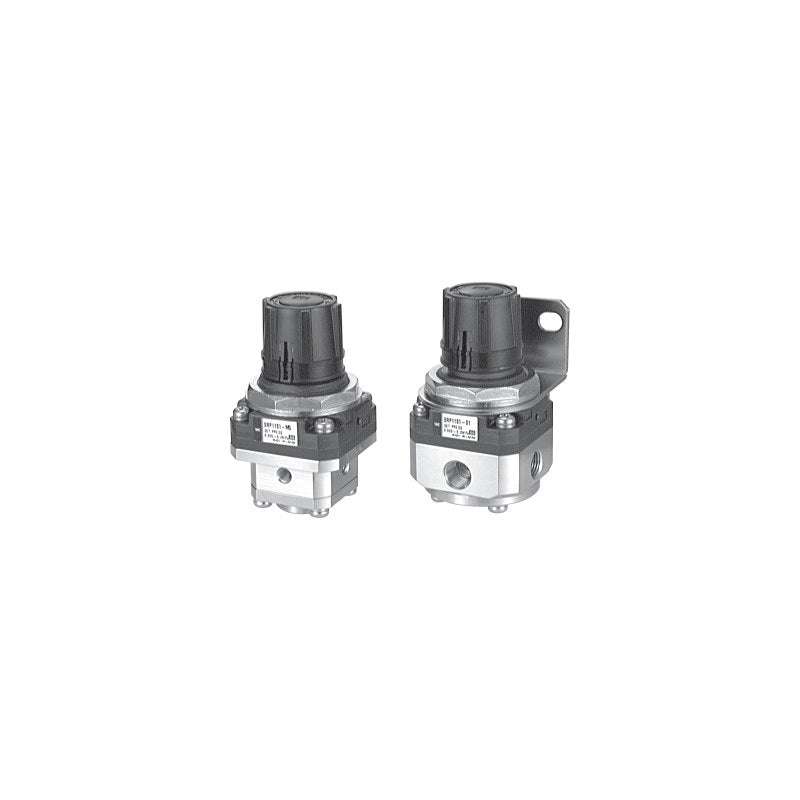

SMC SRP Precision Clean Regulator (Stainless, M5 / Rc1/8)

SMC SRP Precision Clean Regulator (Stainless, M5 / Rc1/8)

SMC SRP series compact precision clean regulator with SUS316 wetted metal, low air consumption (0.5 L/min or less) and Class 10000 clean room assembly.

Key features

  • Precision: sensitivity 0.3% F.S., repeatability +/-1% F.S.
  • Low bleed: air consumption 0.5 L/min (ANR) or less at 0.2 MPa setting
  • Oil-free: all wetted parts degreased and cleaned; assembled in Class 10000 clean room
  • Wetted materials SUS316, fluororesin, fluororubber and ceramic
  • Gauge port direction R, bracket B21-1-T1 and pressure gauges available; made to order M5 bleed port (X201) and bleed port fitting (X206); NPT1/8 (N01) and G1/8 (F01) ports also offered

Specifications

Fluid Air, N2, CO2, Ar
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature 0 to 60 C
Air consumption 0.5 L/min (ANR) or less (set 0.2 MPa)
Sensitivity Within 0.3% of full span
Repeatability Within +/-1% of full span
Wetted metal SUS316
Assembly environment Clean room Class 10000
Source SMC Korea catalog SRP (SMCKR_SRP.pdf), p. 1143-1145
SRP1101-M5 Set pressure: 0.005 to 0.2 MPa | Port size: M5x0.8
SRP1101-01 Set pressure: 0.005 to 0.2 MPa | Port size: Rc1/8
SRP1111-M5 Set pressure: 0.01 to 0.4 MPa | Port size: M5x0.8
SRP1111-01 Set pressure: 0.01 to 0.4 MPa | Port size: Rc1/8
RegulatorsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SRP Precision Clean Regulator (Stainless, M5 / Rc1/8)

Brand SMC·Regulators

Available part numbers (4)

SRP1101-M5, SRP1101-01, SRP1111-M5, SRP1111-01

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRP1101-M5Set pressure: 0.005 to 0.2 MPa | Port size: M5x0.8
SRP1101-01Set pressure: 0.005 to 0.2 MPa | Port size: Rc1/8
SRP1111-M5Set pressure: 0.01 to 0.4 MPa | Port size: M5x0.8
SRP1111-01Set pressure: 0.01 to 0.4 MPa | Port size: Rc1/8
