SMC SS3Y1 Manifold Base (for SY100 3-Port Valves)

SMC SS3Y1 Manifold Base (for SY100 3-Port Valves)

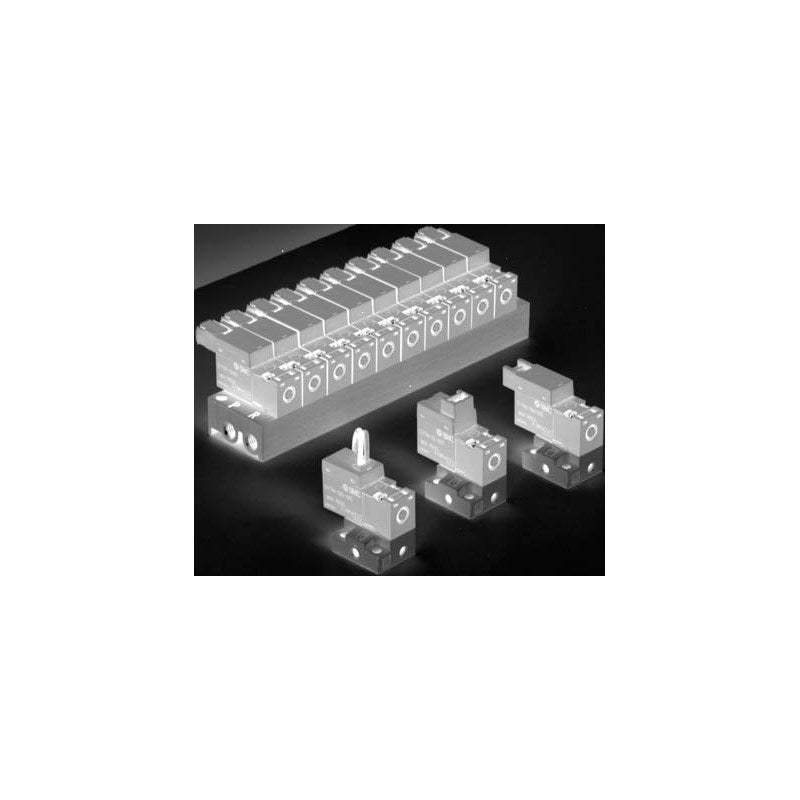

SMC SS3Y1 single-base gasket manifold for SY100 direct-operated 3-port solenoid valves, common supply and exhaust, in 30, 31 and S41 types.

Key features

  • 30 type: 2 to 10 stations for SY113(A) valves, with bracket (F); exhaust port cannot be piped
  • 31 type: 2 to 20 stations for SY113(A)/SY123(A) direct piping valves (N.C. and N.O. not mixed)
  • S41 type: 2 to 20 stations for SY114(A)/SY124(A) base piping valves, A port on base side, M3 or M5
  • Blanking plate assembly SY100-77-1A; CE/UKCA version by -Q suffix

Specifications

Manifold type Single base, B mount
P (SUP) / R (EXH) Common SUP, common EXH
P, R port M5x0.8
Valve stations 2 to 10 (30 type), 2 to 20 (31, S41)
A port location Valve top (30, 31) or base side (S41)
Fluid Air
