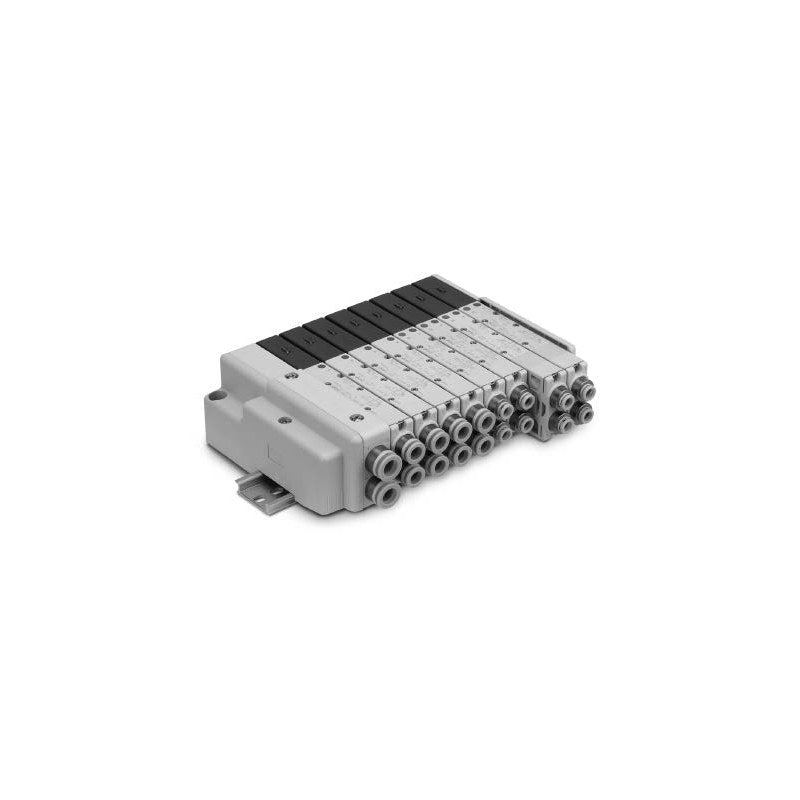

SMC SS5Q14/SS5Q24 Plug-lead Manifold for SQ1000/SQ2000

SMC SS5Q14/SS5Q24 Plug-lead Manifold for SQ1000/SQ2000

SMC SS5Q14 (SQ1000) and SS5Q24 (SQ2000) plug-lead manifold bases with D-sub, flat cable or individual connector wiring.

Key features

  • DIN rail mounted manifold for plug-lead SQ valves; SS5Q24 C kit also available as direct mount (E)
  • Wiring kits: F (D-sub 25P), P (flat cable 26P/20P), C (connector kit, lead wire per valve)
  • Standard stations: F/P kits 1 to 12 (20P flat cable 1 to 9); C kit 1 to 24 (SQ1000) or 1 to 16 (SQ2000)
  • Supply/exhaust ports 1(P), 3(R): ø8 one-touch (SQ1000), ø10 one-touch (SQ2000); inch fittings (00T) on request
  • Options as suffixes: DIN rail length, B back-pressure check valve, K special wiring, N name plate, R external pilot, S built-in silencer, Q CE/UKCA

Specifications

Applicable valves SQ140/SQ141 (SS5Q14), SQ240/SQ241 (SS5Q24)
Valve electrical entry LO (no lead) for F/P kits; L (300 mm lead) for C kit
1(P), 3(R) port SQ1000 ø8 one-touch; SQ2000 ø10 one-touch
Exhaust Common exhaust; built-in silencer direct exhaust option (S)
Wiring Double wiring standard (F/P kits)
Max. stations with special wiring 24 solenoids (F/P kits), 18 (20P flat cable)
Source SMC Korea catalog SQ1000/2000 (SMCKR_SQ1000_2000.pdf), p. 664, 669, 676, 681, 699 (PDF p. 66, 71, 78, 83, 101)
SS5Q14-01FD0-D Series: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02FD0-D Series: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03FD0-D Series: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04FD0-D Series: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05FD0-D Series: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06FD0-D Series: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07FD0-D Series: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08FD0-D Series: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09FD0-D Series: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-10FD0-D Series: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-11FD0-D Series: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-12FD0-D Series: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01FD1-D Series: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-02FD1-D Series: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-03FD1-D Series: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-04FD1-D Series: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-05FD1-D Series: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-06FD1-D Series: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-07FD1-D Series: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-08FD1-D Series: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-09FD1-D Series: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-10FD1-D Series: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-11FD1-D Series: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-12FD1-D Series: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-01FD2-D Series: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-02FD2-D Series: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-03FD2-D Series: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-04FD2-D Series: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-05FD2-D Series: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-06FD2-D Series: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-07FD2-D Series: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-08FD2-D Series: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-09FD2-D Series: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-10FD2-D Series: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-11FD2-D Series: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-12FD2-D Series: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-01FD3-D Series: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-02FD3-D Series: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-03FD3-D Series: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-04FD3-D Series: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-05FD3-D Series: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-06FD3-D Series: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-07FD3-D Series: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-08FD3-D Series: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-09FD3-D Series: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-10FD3-D Series: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-11FD3-D Series: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-12FD3-D Series: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-01PD0-D Series: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02PD0-D Series: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03PD0-D Series: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04PD0-D Series: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05PD0-D Series: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06PD0-D Series: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07PD0-D Series: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08PD0-D Series: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09PD0-D Series: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-10PD0-D Series: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-11PD0-D Series: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-12PD0-D Series: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01PD1-D Series: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-02PD1-D Series: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-03PD1-D Series: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-04PD1-D Series: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-05PD1-D Series: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-06PD1-D Series: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-07PD1-D Series: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-08PD1-D Series: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-09PD1-D Series: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-10PD1-D Series: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-11PD1-D Series: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-12PD1-D Series: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-01PD2-D Series: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-02PD2-D Series: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-03PD2-D Series: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-04PD2-D Series: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-05PD2-D Series: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-06PD2-D Series: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-07PD2-D Series: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-08PD2-D Series: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-09PD2-D Series: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-10PD2-D Series: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-11PD2-D Series: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-12PD2-D Series: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-01PD3-D Series: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-02PD3-D Series: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-03PD3-D Series: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-04PD3-D Series: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-05PD3-D Series: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-06PD3-D Series: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-07PD3-D Series: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-08PD3-D Series: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-09PD3-D Series: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-10PD3-D Series: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-11PD3-D Series: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-12PD3-D Series: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-01PDC-D Series: SQ1000 | Stations: 1 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02PDC-D Series: SQ1000 | Stations: 2 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03PDC-D Series: SQ1000 | Stations: 3 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04PDC-D Series: SQ1000 | Stations: 4 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05PDC-D Series: SQ1000 | Stations: 5 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06PDC-D Series: SQ1000 | Stations: 6 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07PDC-D Series: SQ1000 | Stations: 7 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08PDC-D Series: SQ1000 | Stations: 8 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09PDC-D Series: SQ1000 | Stations: 9 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01C-D Series: SQ1000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-02C-D Series: SQ1000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-03C-D Series: SQ1000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-04C-D Series: SQ1000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-05C-D Series: SQ1000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-06C-D Series: SQ1000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-07C-D Series: SQ1000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-08C-D Series: SQ1000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-09C-D Series: SQ1000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-10C-D Series: SQ1000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-11C-D Series: SQ1000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-12C-D Series: SQ1000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-13C-D Series: SQ1000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-14C-D Series: SQ1000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-15C-D Series: SQ1000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-16C-D Series: SQ1000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-17C-D Series: SQ1000 | Stations: 17 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-18C-D Series: SQ1000 | Stations: 18 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-19C-D Series: SQ1000 | Stations: 19 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-20C-D Series: SQ1000 | Stations: 20 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-21C-D Series: SQ1000 | Stations: 21 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-22C-D Series: SQ1000 | Stations: 22 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-23C-D Series: SQ1000 | Stations: 23 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-24C-D Series: SQ1000 | Stations: 24 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-01FD0-D Series: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02FD0-D Series: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03FD0-D Series: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04FD0-D Series: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05FD0-D Series: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06FD0-D Series: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07FD0-D Series: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08FD0-D Series: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09FD0-D Series: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-10FD0-D Series: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-11FD0-D Series: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-12FD0-D Series: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01FD1-D Series: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-02FD1-D Series: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-03FD1-D Series: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-04FD1-D Series: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-05FD1-D Series: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-06FD1-D Series: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-07FD1-D Series: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-08FD1-D Series: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-09FD1-D Series: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-10FD1-D Series: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-11FD1-D Series: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-12FD1-D Series: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-01FD2-D Series: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-02FD2-D Series: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-03FD2-D Series: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-04FD2-D Series: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-05FD2-D Series: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-06FD2-D Series: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-07FD2-D Series: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-08FD2-D Series: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-09FD2-D Series: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-10FD2-D Series: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-11FD2-D Series: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-12FD2-D Series: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-01FD3-D Series: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-02FD3-D Series: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-03FD3-D Series: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-04FD3-D Series: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-05FD3-D Series: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-06FD3-D Series: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-07FD3-D Series: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-08FD3-D Series: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-09FD3-D Series: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-10FD3-D Series: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-11FD3-D Series: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-12FD3-D Series: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-01PD0-D Series: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02PD0-D Series: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03PD0-D Series: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04PD0-D Series: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05PD0-D Series: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06PD0-D Series: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07PD0-D Series: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08PD0-D Series: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09PD0-D Series: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-10PD0-D Series: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-11PD0-D Series: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-12PD0-D Series: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01PD1-D Series: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-02PD1-D Series: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-03PD1-D Series: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-04PD1-D Series: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-05PD1-D Series: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-06PD1-D Series: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-07PD1-D Series: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-08PD1-D Series: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-09PD1-D Series: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-10PD1-D Series: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-11PD1-D Series: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-12PD1-D Series: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-01PD2-D Series: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-02PD2-D Series: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-03PD2-D Series: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-04PD2-D Series: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-05PD2-D Series: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-06PD2-D Series: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-07PD2-D Series: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-08PD2-D Series: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-09PD2-D Series: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-10PD2-D Series: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-11PD2-D Series: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-12PD2-D Series: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-01PD3-D Series: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-02PD3-D Series: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-03PD3-D Series: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-04PD3-D Series: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-05PD3-D Series: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-06PD3-D Series: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-07PD3-D Series: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-08PD3-D Series: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-09PD3-D Series: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-10PD3-D Series: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-11PD3-D Series: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-12PD3-D Series: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-01PDC-D Series: SQ2000 | Stations: 1 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02PDC-D Series: SQ2000 | Stations: 2 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03PDC-D Series: SQ2000 | Stations: 3 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04PDC-D Series: SQ2000 | Stations: 4 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05PDC-D Series: SQ2000 | Stations: 5 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06PDC-D Series: SQ2000 | Stations: 6 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07PDC-D Series: SQ2000 | Stations: 7 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08PDC-D Series: SQ2000 | Stations: 8 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09PDC-D Series: SQ2000 | Stations: 9 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01C-D Series: SQ2000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-01C-E Series: SQ2000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-02C-D Series: SQ2000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-02C-E Series: SQ2000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-03C-D Series: SQ2000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-03C-E Series: SQ2000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-04C-D Series: SQ2000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-04C-E Series: SQ2000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-05C-D Series: SQ2000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-05C-E Series: SQ2000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-06C-D Series: SQ2000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-06C-E Series: SQ2000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-07C-D Series: SQ2000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-07C-E Series: SQ2000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-08C-D Series: SQ2000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-08C-E Series: SQ2000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-09C-D Series: SQ2000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-09C-E Series: SQ2000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-10C-D Series: SQ2000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-10C-E Series: SQ2000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-11C-D Series: SQ2000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-11C-E Series: SQ2000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-12C-D Series: SQ2000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-12C-E Series: SQ2000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-13C-D Series: SQ2000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-13C-E Series: SQ2000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-14C-D Series: SQ2000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-14C-E Series: SQ2000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-15C-D Series: SQ2000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-15C-E Series: SQ2000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-16C-D Series: SQ2000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-16C-E Series: SQ2000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
ManifoldsSMC
266 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SS5Q14/SS5Q24 Plug-lead Manifold for SQ1000/SQ2000

Brand SMC·Manifolds

Available part numbers (266)

SS5Q14-01FD0-D, SS5Q14-02FD0-D, SS5Q14-03FD0-D, SS5Q14-04FD0-D, SS5Q14-05FD0-D, SS5Q14-06FD0-D, SS5Q14-07FD0-D, SS5Q14-08FD0-D, SS5Q14-09FD0-D, SS5Q14-10FD0-D + 256 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SS5Q14-01FD0-DSeries: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02FD0-DSeries: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03FD0-DSeries: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04FD0-DSeries: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05FD0-DSeries: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06FD0-DSeries: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07FD0-DSeries: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08FD0-DSeries: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09FD0-DSeries: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-10FD0-DSeries: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-11FD0-DSeries: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-12FD0-DSeries: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01FD1-DSeries: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-02FD1-DSeries: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-03FD1-DSeries: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-04FD1-DSeries: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-05FD1-DSeries: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-06FD1-DSeries: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-07FD1-DSeries: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-08FD1-DSeries: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-09FD1-DSeries: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-10FD1-DSeries: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-11FD1-DSeries: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-12FD1-DSeries: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-01FD2-DSeries: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-02FD2-DSeries: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-03FD2-DSeries: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-04FD2-DSeries: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-05FD2-DSeries: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-06FD2-DSeries: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-07FD2-DSeries: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-08FD2-DSeries: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-09FD2-DSeries: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-10FD2-DSeries: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-11FD2-DSeries: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-12FD2-DSeries: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-01FD3-DSeries: SQ1000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-02FD3-DSeries: SQ1000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-03FD3-DSeries: SQ1000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-04FD3-DSeries: SQ1000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-05FD3-DSeries: SQ1000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-06FD3-DSeries: SQ1000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-07FD3-DSeries: SQ1000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-08FD3-DSeries: SQ1000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-09FD3-DSeries: SQ1000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-10FD3-DSeries: SQ1000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-11FD3-DSeries: SQ1000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-12FD3-DSeries: SQ1000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-01PD0-DSeries: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02PD0-DSeries: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03PD0-DSeries: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04PD0-DSeries: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05PD0-DSeries: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06PD0-DSeries: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07PD0-DSeries: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08PD0-DSeries: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09PD0-DSeries: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-10PD0-DSeries: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-11PD0-DSeries: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-12PD0-DSeries: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01PD1-DSeries: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-02PD1-DSeries: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-03PD1-DSeries: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-04PD1-DSeries: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-05PD1-DSeries: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-06PD1-DSeries: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-07PD1-DSeries: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-08PD1-DSeries: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-09PD1-DSeries: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-10PD1-DSeries: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-11PD1-DSeries: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-12PD1-DSeries: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q14-01PD2-DSeries: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-02PD2-DSeries: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-03PD2-DSeries: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-04PD2-DSeries: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-05PD2-DSeries: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-06PD2-DSeries: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-07PD2-DSeries: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-08PD2-DSeries: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-09PD2-DSeries: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-10PD2-DSeries: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-11PD2-DSeries: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-12PD2-DSeries: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q14-01PD3-DSeries: SQ1000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-02PD3-DSeries: SQ1000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-03PD3-DSeries: SQ1000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-04PD3-DSeries: SQ1000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-05PD3-DSeries: SQ1000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-06PD3-DSeries: SQ1000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-07PD3-DSeries: SQ1000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-08PD3-DSeries: SQ1000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-09PD3-DSeries: SQ1000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-10PD3-DSeries: SQ1000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-11PD3-DSeries: SQ1000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-12PD3-DSeries: SQ1000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q14-01PDC-DSeries: SQ1000 | Stations: 1 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-02PDC-DSeries: SQ1000 | Stations: 2 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-03PDC-DSeries: SQ1000 | Stations: 3 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-04PDC-DSeries: SQ1000 | Stations: 4 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-05PDC-DSeries: SQ1000 | Stations: 5 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-06PDC-DSeries: SQ1000 | Stations: 6 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-07PDC-DSeries: SQ1000 | Stations: 7 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-08PDC-DSeries: SQ1000 | Stations: 8 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-09PDC-DSeries: SQ1000 | Stations: 9 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q14-01C-DSeries: SQ1000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-02C-DSeries: SQ1000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-03C-DSeries: SQ1000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-04C-DSeries: SQ1000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-05C-DSeries: SQ1000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-06C-DSeries: SQ1000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-07C-DSeries: SQ1000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-08C-DSeries: SQ1000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-09C-DSeries: SQ1000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-10C-DSeries: SQ1000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-11C-DSeries: SQ1000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-12C-DSeries: SQ1000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-13C-DSeries: SQ1000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-14C-DSeries: SQ1000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-15C-DSeries: SQ1000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-16C-DSeries: SQ1000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-17C-DSeries: SQ1000 | Stations: 17 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-18C-DSeries: SQ1000 | Stations: 18 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-19C-DSeries: SQ1000 | Stations: 19 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-20C-DSeries: SQ1000 | Stations: 20 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-21C-DSeries: SQ1000 | Stations: 21 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-22C-DSeries: SQ1000 | Stations: 22 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-23C-DSeries: SQ1000 | Stations: 23 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q14-24C-DSeries: SQ1000 | Stations: 24 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-01FD0-DSeries: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02FD0-DSeries: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03FD0-DSeries: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04FD0-DSeries: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05FD0-DSeries: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06FD0-DSeries: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07FD0-DSeries: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08FD0-DSeries: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09FD0-DSeries: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-10FD0-DSeries: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-11FD0-DSeries: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-12FD0-DSeries: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01FD1-DSeries: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-02FD1-DSeries: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-03FD1-DSeries: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-04FD1-DSeries: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-05FD1-DSeries: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-06FD1-DSeries: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-07FD1-DSeries: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-08FD1-DSeries: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-09FD1-DSeries: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-10FD1-DSeries: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-11FD1-DSeries: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-12FD1-DSeries: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-01FD2-DSeries: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-02FD2-DSeries: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-03FD2-DSeries: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-04FD2-DSeries: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-05FD2-DSeries: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-06FD2-DSeries: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-07FD2-DSeries: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-08FD2-DSeries: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-09FD2-DSeries: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-10FD2-DSeries: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-11FD2-DSeries: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-12FD2-DSeries: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-01FD3-DSeries: SQ2000 | Stations: 1 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-02FD3-DSeries: SQ2000 | Stations: 2 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-03FD3-DSeries: SQ2000 | Stations: 3 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-04FD3-DSeries: SQ2000 | Stations: 4 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-05FD3-DSeries: SQ2000 | Stations: 5 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-06FD3-DSeries: SQ2000 | Stations: 6 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-07FD3-DSeries: SQ2000 | Stations: 7 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-08FD3-DSeries: SQ2000 | Stations: 8 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-09FD3-DSeries: SQ2000 | Stations: 9 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-10FD3-DSeries: SQ2000 | Stations: 10 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-11FD3-DSeries: SQ2000 | Stations: 11 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-12FD3-DSeries: SQ2000 | Stations: 12 | Kit: F kit D-sub 25P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-01PD0-DSeries: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02PD0-DSeries: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03PD0-DSeries: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04PD0-DSeries: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05PD0-DSeries: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06PD0-DSeries: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07PD0-DSeries: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08PD0-DSeries: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09PD0-DSeries: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-10PD0-DSeries: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-11PD0-DSeries: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-12PD0-DSeries: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01PD1-DSeries: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-02PD1-DSeries: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-03PD1-DSeries: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-04PD1-DSeries: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-05PD1-DSeries: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-06PD1-DSeries: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-07PD1-DSeries: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-08PD1-DSeries: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-09PD1-DSeries: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-10PD1-DSeries: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-11PD1-DSeries: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-12PD1-DSeries: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 1.5 m | Mounting: DIN rail mount
SS5Q24-01PD2-DSeries: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-02PD2-DSeries: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-03PD2-DSeries: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-04PD2-DSeries: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-05PD2-DSeries: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-06PD2-DSeries: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-07PD2-DSeries: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-08PD2-DSeries: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-09PD2-DSeries: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-10PD2-DSeries: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-11PD2-DSeries: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-12PD2-DSeries: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 3 m | Mounting: DIN rail mount
SS5Q24-01PD3-DSeries: SQ2000 | Stations: 1 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-02PD3-DSeries: SQ2000 | Stations: 2 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-03PD3-DSeries: SQ2000 | Stations: 3 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-04PD3-DSeries: SQ2000 | Stations: 4 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-05PD3-DSeries: SQ2000 | Stations: 5 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-06PD3-DSeries: SQ2000 | Stations: 6 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-07PD3-DSeries: SQ2000 | Stations: 7 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-08PD3-DSeries: SQ2000 | Stations: 8 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-09PD3-DSeries: SQ2000 | Stations: 9 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-10PD3-DSeries: SQ2000 | Stations: 10 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-11PD3-DSeries: SQ2000 | Stations: 11 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-12PD3-DSeries: SQ2000 | Stations: 12 | Kit: P kit flat cable 26P | Cable: 5 m | Mounting: DIN rail mount
SS5Q24-01PDC-DSeries: SQ2000 | Stations: 1 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-02PDC-DSeries: SQ2000 | Stations: 2 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-03PDC-DSeries: SQ2000 | Stations: 3 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-04PDC-DSeries: SQ2000 | Stations: 4 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-05PDC-DSeries: SQ2000 | Stations: 5 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-06PDC-DSeries: SQ2000 | Stations: 6 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-07PDC-DSeries: SQ2000 | Stations: 7 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-08PDC-DSeries: SQ2000 | Stations: 8 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-09PDC-DSeries: SQ2000 | Stations: 9 | Kit: P kit flat cable 20P | Cable: No cable | Mounting: DIN rail mount
SS5Q24-01C-DSeries: SQ2000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-01C-ESeries: SQ2000 | Stations: 1 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-02C-DSeries: SQ2000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-02C-ESeries: SQ2000 | Stations: 2 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-03C-DSeries: SQ2000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-03C-ESeries: SQ2000 | Stations: 3 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-04C-DSeries: SQ2000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-04C-ESeries: SQ2000 | Stations: 4 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-05C-DSeries: SQ2000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-05C-ESeries: SQ2000 | Stations: 5 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-06C-DSeries: SQ2000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-06C-ESeries: SQ2000 | Stations: 6 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-07C-DSeries: SQ2000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-07C-ESeries: SQ2000 | Stations: 7 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-08C-DSeries: SQ2000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-08C-ESeries: SQ2000 | Stations: 8 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-09C-DSeries: SQ2000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-09C-ESeries: SQ2000 | Stations: 9 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-10C-DSeries: SQ2000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-10C-ESeries: SQ2000 | Stations: 10 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-11C-DSeries: SQ2000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-11C-ESeries: SQ2000 | Stations: 11 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-12C-DSeries: SQ2000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-12C-ESeries: SQ2000 | Stations: 12 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-13C-DSeries: SQ2000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-13C-ESeries: SQ2000 | Stations: 13 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-14C-DSeries: SQ2000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-14C-ESeries: SQ2000 | Stations: 14 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-15C-DSeries: SQ2000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-15C-ESeries: SQ2000 | Stations: 15 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount
SS5Q24-16C-DSeries: SQ2000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: DIN rail mount
SS5Q24-16C-ESeries: SQ2000 | Stations: 16 | Kit: C kit connector kit | Cable: None | Mounting: Direct mount

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
