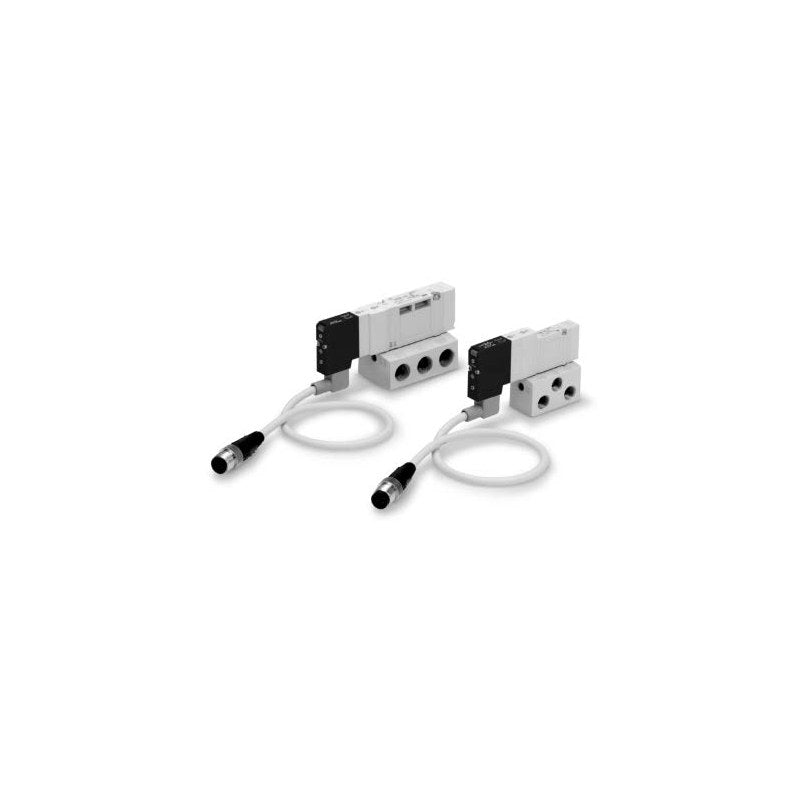

SMC SV 5-Port Solenoid Valve (SV1000 to SV4000, Manifold / Single)

SMC SV 5-Port Solenoid Valve (SV1000 to SV4000, Manifold / Single)

SMC SV series rubber-seal 5-port solenoid valves in four sizes (SV1000 to SV4000), as plug-in manifold valves or as IP67 single units with M12 connector and optional sub-plate.

Key features

  • Four body sizes SV1000, SV2000, SV3000, SV4000; 2-position single/double and 3-position closed/exhaust/pressure center
  • Dual 3-port valves (N.C./N.C., N.O./N.O., N.C./N.O.) available for SV1000 and SV2000
  • Plug-in manifold valve (F) for connector manifolds: multi-connector, D-sub, flat cable and serial transmission (EX120, EX126, EX250, EX260, EX500, EX600)
  • Single unit IP67 type with M12 waterproof connector; listed codes use 300 mm cable (W1), W2 to W7 (0.5 to 5 m) on order; sub-plate Rc1/8 to Rc1/2
  • Lamp and surge suppressor (U) or surge suppressor only (R); external pilot (R), back-pressure check valve (K), push-turn lock manual (D), G/NPT/NPTF threads and -X90 on order
  • Coil voltage DC24V or DC12V, power consumption 0.6 W (0.65 W with lamp)

Specifications

Fluid Air
Valve construction Rubber seal, pilot-operated
Operating pressure (internal pilot) 0.15 to 0.7 MPa (2-pos single, dual 3-port), 0.1 to 0.7 MPa (2-pos double), 0.2 to 0.7 MPa (3-pos)
Ambient and fluid temperature -10 to 50°C (no freezing)
Max. operating frequency 5 Hz (2-pos, dual 3-port), 3 Hz (3-pos)
Lubrication Not required
Mounting orientation Unrestricted
Impact/vibration resistance 150/30 m/s²
Enclosure IP67 (IEC60529)
Allowable voltage fluctuation ±10% of rated voltage
Power consumption 0.6 W (with lamp 0.65 W)
Source SMC Korea catalog SV Series (SMCKR_SV.pdf), p. 19, 25, 81, 126-127 (PDF p. 1, 7, 55, 100-101)
SV1100-5FU Series: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1100-5W1U Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1100-5W1U-01 Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1100-5FR Series: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1100-5W1R Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1100-5W1R-01 Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1100-6FU Series: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1100-6W1U Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1100-6W1U-01 Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1100-6FR Series: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1100-6W1R Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1100-6W1R-01 Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1200-5FU Series: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1200-5W1U Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1200-5W1U-01 Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1200-5FR Series: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1200-5W1R Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1200-5W1R-01 Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1200-6FU Series: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1200-6W1U Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1200-6W1U-01 Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1200-6FR Series: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1200-6W1R Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1200-6W1R-01 Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1300-5FU Series: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1300-5W1U Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1300-5W1U-01 Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1300-5FR Series: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1300-5W1R Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1300-5W1R-01 Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1300-6FU Series: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1300-6W1U Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1300-6W1U-01 Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1300-6FR Series: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1300-6W1R Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1300-6W1R-01 Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1400-5FU Series: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1400-5W1U Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1400-5W1U-01 Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1400-5FR Series: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1400-5W1R Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1400-5W1R-01 Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1400-6FU Series: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1400-6W1U Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1400-6W1U-01 Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1400-6FR Series: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1400-6W1R Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1400-6W1R-01 Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1500-5FU Series: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1500-5W1U Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1500-5W1U-01 Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1500-5FR Series: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1500-5W1R Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1500-5W1R-01 Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1500-6FU Series: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1500-6W1U Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1500-6W1U-01 Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1500-6FR Series: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1500-6W1R Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1500-6W1R-01 Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1A00-5FU Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1A00-5W1U Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1A00-5W1U-01 Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1A00-5FR Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1A00-5W1R Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1A00-5W1R-01 Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1A00-6FU Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1A00-6W1U Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1A00-6W1U-01 Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1A00-6FR Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1A00-6W1R Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1A00-6W1R-01 Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1B00-5FU Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1B00-5W1U Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1B00-5W1U-01 Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1B00-5FR Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1B00-5W1R Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1B00-5W1R-01 Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1B00-6FU Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1B00-6W1U Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1B00-6W1U-01 Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1B00-6FR Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1B00-6W1R Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1B00-6W1R-01 Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1C00-5FU Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1C00-5W1U Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1C00-5W1U-01 Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1C00-5FR Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1C00-5W1R Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1C00-5W1R-01 Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1C00-6FU Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1C00-6W1U Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1C00-6W1U-01 Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1C00-6FR Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1C00-6W1R Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1C00-6W1R-01 Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV2100-5FU Series: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2100-5W1U Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2100-5W1U-02 Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2100-5FR Series: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2100-5W1R Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2100-5W1R-02 Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2100-6FU Series: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2100-6W1U Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2100-6W1U-02 Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2100-6FR Series: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2100-6W1R Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2100-6W1R-02 Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2200-5FU Series: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2200-5W1U Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2200-5W1U-02 Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2200-5FR Series: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2200-5W1R Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2200-5W1R-02 Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2200-6FU Series: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2200-6W1U Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2200-6W1U-02 Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2200-6FR Series: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2200-6W1R Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2200-6W1R-02 Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2300-5FU Series: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2300-5W1U Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2300-5W1U-02 Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2300-5FR Series: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2300-5W1R Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2300-5W1R-02 Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2300-6FU Series: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2300-6W1U Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2300-6W1U-02 Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2300-6FR Series: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2300-6W1R Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2300-6W1R-02 Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2400-5FU Series: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2400-5W1U Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2400-5W1U-02 Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2400-5FR Series: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2400-5W1R Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2400-5W1R-02 Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2400-6FU Series: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2400-6W1U Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2400-6W1U-02 Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2400-6FR Series: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2400-6W1R Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2400-6W1R-02 Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2500-5FU Series: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2500-5W1U Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2500-5W1U-02 Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2500-5FR Series: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2500-5W1R Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2500-5W1R-02 Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2500-6FU Series: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2500-6W1U Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2500-6W1U-02 Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2500-6FR Series: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2500-6W1R Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2500-6W1R-02 Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2A00-5FU Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2A00-5W1U Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2A00-5W1U-02 Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2A00-5FR Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2A00-5W1R Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2A00-5W1R-02 Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2A00-6FU Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2A00-6W1U Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2A00-6W1U-02 Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2A00-6FR Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2A00-6W1R Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2A00-6W1R-02 Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2B00-5FU Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2B00-5W1U Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2B00-5W1U-02 Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2B00-5FR Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2B00-5W1R Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2B00-5W1R-02 Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2B00-6FU Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2B00-6W1U Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2B00-6W1U-02 Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2B00-6FR Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2B00-6W1R Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2B00-6W1R-02 Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2C00-5FU Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2C00-5W1U Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2C00-5W1U-02 Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2C00-5FR Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2C00-5W1R Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2C00-5W1R-02 Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2C00-6FU Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2C00-6W1U Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2C00-6W1U-02 Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2C00-6FR Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2C00-6W1R Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2C00-6W1R-02 Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-5FU Series: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3100-5W1U Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3100-5W1U-02 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3100-5W1U-03 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3100-5FR Series: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3100-5W1R Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3100-5W1R-02 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-5W1R-03 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3100-6FU Series: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3100-6W1U Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3100-6W1U-02 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3100-6W1U-03 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3100-6FR Series: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3100-6W1R Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3100-6W1R-02 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-6W1R-03 Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3200-5FU Series: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3200-5W1U Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3200-5W1U-02 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3200-5W1U-03 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3200-5FR Series: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3200-5W1R Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3200-5W1R-02 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3200-5W1R-03 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3200-6FU Series: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3200-6W1U Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3200-6W1U-02 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3200-6W1U-03 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3200-6FR Series: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3200-6W1R Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3200-6W1R-02 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3200-6W1R-03 Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3300-5FU Series: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3300-5W1U Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3300-5W1U-02 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3300-5W1U-03 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3300-5FR Series: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3300-5W1R Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3300-5W1R-02 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3300-5W1R-03 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3300-6FU Series: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3300-6W1U Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3300-6W1U-02 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3300-6W1U-03 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3300-6FR Series: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3300-6W1R Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3300-6W1R-02 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3300-6W1R-03 Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3400-5FU Series: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3400-5W1U Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3400-5W1U-02 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3400-5W1U-03 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3400-5FR Series: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3400-5W1R Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3400-5W1R-02 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3400-5W1R-03 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3400-6FU Series: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3400-6W1U Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3400-6W1U-02 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3400-6W1U-03 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3400-6FR Series: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3400-6W1R Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3400-6W1R-02 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3400-6W1R-03 Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3500-5FU Series: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3500-5W1U Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3500-5W1U-02 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3500-5W1U-03 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3500-5FR Series: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3500-5W1R Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3500-5W1R-02 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3500-5W1R-03 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3500-6FU Series: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3500-6W1U Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3500-6W1U-02 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3500-6W1U-03 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3500-6FR Series: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3500-6W1R Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3500-6W1R-02 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3500-6W1R-03 Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-5FU Series: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4100-5W1U Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4100-5W1U-03 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4100-5W1U-04 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4100-5FR Series: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4100-5W1R Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4100-5W1R-03 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-5W1R-04 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4100-6FU Series: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4100-6W1U Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4100-6W1U-03 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4100-6W1U-04 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4100-6FR Series: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4100-6W1R Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4100-6W1R-03 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-6W1R-04 Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4200-5FU Series: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4200-5W1U Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4200-5W1U-03 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4200-5W1U-04 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4200-5FR Series: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4200-5W1R Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4200-5W1R-03 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4200-5W1R-04 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4200-6FU Series: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4200-6W1U Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4200-6W1U-03 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4200-6W1U-04 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4200-6FR Series: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4200-6W1R Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4200-6W1R-03 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4200-6W1R-04 Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4300-5FU Series: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4300-5W1U Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4300-5W1U-03 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4300-5W1U-04 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4300-5FR Series: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4300-5W1R Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4300-5W1R-03 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4300-5W1R-04 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4300-6FU Series: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4300-6W1U Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4300-6W1U-03 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4300-6W1U-04 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4300-6FR Series: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4300-6W1R Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4300-6W1R-03 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4300-6W1R-04 Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4400-5FU Series: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4400-5W1U Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4400-5W1U-03 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4400-5W1U-04 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4400-5FR Series: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4400-5W1R Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4400-5W1R-03 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4400-5W1R-04 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4400-6FU Series: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4400-6W1U Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4400-6W1U-03 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4400-6W1U-04 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4400-6FR Series: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4400-6W1R Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4400-6W1R-03 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4400-6W1R-04 Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4500-5FU Series: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4500-5W1U Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4500-5W1U-03 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4500-5W1U-04 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4500-5FR Series: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4500-5W1R Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4500-5W1R-03 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4500-5W1R-04 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4500-6FU Series: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4500-6W1U Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4500-6W1U-03 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4500-6W1U-04 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4500-6FR Series: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4500-6W1R Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4500-6W1R-03 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4500-6W1R-04 Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
5-Port Solenoid ValvesSMC
352 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SV 5-Port Solenoid Valve (SV1000 to SV4000, Manifold / Single)

Brand SMC·5-Port Solenoid Valves

Available part numbers (352)

SV1100-5FU, SV1100-5W1U, SV1100-5W1U-01, SV1100-5FR, SV1100-5W1R, SV1100-5W1R-01, SV1100-6FU, SV1100-6W1U, SV1100-6W1U-01, SV1100-6FR + 342 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV1100-5FUSeries: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1100-5W1USeries: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1100-5W1U-01Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1100-5FRSeries: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1100-5W1RSeries: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1100-5W1R-01Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1100-6FUSeries: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1100-6W1USeries: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1100-6W1U-01Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1100-6FRSeries: SV1000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1100-6W1RSeries: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1100-6W1R-01Series: SV1000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1200-5FUSeries: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1200-5W1USeries: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1200-5W1U-01Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1200-5FRSeries: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1200-5W1RSeries: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1200-5W1R-01Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1200-6FUSeries: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1200-6W1USeries: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1200-6W1U-01Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1200-6FRSeries: SV1000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1200-6W1RSeries: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1200-6W1R-01Series: SV1000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1300-5FUSeries: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1300-5W1USeries: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1300-5W1U-01Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1300-5FRSeries: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1300-5W1RSeries: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1300-5W1R-01Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1300-6FUSeries: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1300-6W1USeries: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1300-6W1U-01Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1300-6FRSeries: SV1000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1300-6W1RSeries: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1300-6W1R-01Series: SV1000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1400-5FUSeries: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1400-5W1USeries: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1400-5W1U-01Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1400-5FRSeries: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1400-5W1RSeries: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1400-5W1R-01Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1400-6FUSeries: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1400-6W1USeries: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1400-6W1U-01Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1400-6FRSeries: SV1000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1400-6W1RSeries: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1400-6W1R-01Series: SV1000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1500-5FUSeries: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1500-5W1USeries: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1500-5W1U-01Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1500-5FRSeries: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1500-5W1RSeries: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1500-5W1R-01Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1500-6FUSeries: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1500-6W1USeries: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1500-6W1U-01Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1500-6FRSeries: SV1000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1500-6W1RSeries: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1500-6W1R-01Series: SV1000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1A00-5FUSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1A00-5W1USeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1A00-5W1U-01Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1A00-5FRSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1A00-5W1RSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1A00-5W1R-01Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1A00-6FUSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1A00-6W1USeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1A00-6W1U-01Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1A00-6FRSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1A00-6W1RSeries: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1A00-6W1R-01Series: SV1000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1B00-5FUSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1B00-5W1USeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1B00-5W1U-01Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1B00-5FRSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1B00-5W1RSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1B00-5W1R-01Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1B00-6FUSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1B00-6W1USeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1B00-6W1U-01Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1B00-6FRSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1B00-6W1RSeries: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1B00-6W1R-01Series: SV1000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1C00-5FUSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1C00-5W1USeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1C00-5W1U-01Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1C00-5FRSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1C00-5W1RSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1C00-5W1R-01Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV1C00-6FUSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV1C00-6W1USeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV1C00-6W1U-01Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/8
SV1C00-6FRSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV1C00-6W1RSeries: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV1C00-6W1R-01Series: SV1000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/8
SV2100-5FUSeries: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2100-5W1USeries: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2100-5W1U-02Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2100-5FRSeries: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2100-5W1RSeries: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2100-5W1R-02Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2100-6FUSeries: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2100-6W1USeries: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2100-6W1U-02Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2100-6FRSeries: SV2000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2100-6W1RSeries: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2100-6W1R-02Series: SV2000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2200-5FUSeries: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2200-5W1USeries: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2200-5W1U-02Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2200-5FRSeries: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2200-5W1RSeries: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2200-5W1R-02Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2200-6FUSeries: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2200-6W1USeries: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2200-6W1U-02Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2200-6FRSeries: SV2000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2200-6W1RSeries: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2200-6W1R-02Series: SV2000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2300-5FUSeries: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2300-5W1USeries: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2300-5W1U-02Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2300-5FRSeries: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2300-5W1RSeries: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2300-5W1R-02Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2300-6FUSeries: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2300-6W1USeries: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2300-6W1U-02Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2300-6FRSeries: SV2000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2300-6W1RSeries: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2300-6W1R-02Series: SV2000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2400-5FUSeries: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2400-5W1USeries: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2400-5W1U-02Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2400-5FRSeries: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2400-5W1RSeries: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2400-5W1R-02Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2400-6FUSeries: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2400-6W1USeries: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2400-6W1U-02Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2400-6FRSeries: SV2000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2400-6W1RSeries: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2400-6W1R-02Series: SV2000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2500-5FUSeries: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2500-5W1USeries: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2500-5W1U-02Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2500-5FRSeries: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2500-5W1RSeries: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2500-5W1R-02Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2500-6FUSeries: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2500-6W1USeries: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2500-6W1U-02Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2500-6FRSeries: SV2000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2500-6W1RSeries: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2500-6W1R-02Series: SV2000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2A00-5FUSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2A00-5W1USeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2A00-5W1U-02Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2A00-5FRSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2A00-5W1RSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2A00-5W1R-02Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2A00-6FUSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2A00-6W1USeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2A00-6W1U-02Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2A00-6FRSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2A00-6W1RSeries: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2A00-6W1R-02Series: SV2000 | Switching: Dual 3-port N.C./N.C. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2B00-5FUSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2B00-5W1USeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2B00-5W1U-02Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2B00-5FRSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2B00-5W1RSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2B00-5W1R-02Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2B00-6FUSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2B00-6W1USeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2B00-6W1U-02Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2B00-6FRSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2B00-6W1RSeries: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2B00-6W1R-02Series: SV2000 | Switching: Dual 3-port N.O./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2C00-5FUSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2C00-5W1USeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2C00-5W1U-02Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2C00-5FRSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2C00-5W1RSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2C00-5W1R-02Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV2C00-6FUSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV2C00-6W1USeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV2C00-6W1U-02Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV2C00-6FRSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV2C00-6W1RSeries: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV2C00-6W1R-02Series: SV2000 | Switching: Dual 3-port N.C./N.O. | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-5FUSeries: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3100-5W1USeries: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3100-5W1U-02Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3100-5W1U-03Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3100-5FRSeries: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3100-5W1RSeries: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3100-5W1R-02Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-5W1R-03Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3100-6FUSeries: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3100-6W1USeries: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3100-6W1U-02Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3100-6W1U-03Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3100-6FRSeries: SV3000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3100-6W1RSeries: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3100-6W1R-02Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3100-6W1R-03Series: SV3000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3200-5FUSeries: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3200-5W1USeries: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3200-5W1U-02Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3200-5W1U-03Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3200-5FRSeries: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3200-5W1RSeries: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3200-5W1R-02Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3200-5W1R-03Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3200-6FUSeries: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3200-6W1USeries: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3200-6W1U-02Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3200-6W1U-03Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3200-6FRSeries: SV3000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3200-6W1RSeries: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3200-6W1R-02Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3200-6W1R-03Series: SV3000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3300-5FUSeries: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3300-5W1USeries: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3300-5W1U-02Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3300-5W1U-03Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3300-5FRSeries: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3300-5W1RSeries: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3300-5W1R-02Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3300-5W1R-03Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3300-6FUSeries: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3300-6W1USeries: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3300-6W1U-02Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3300-6W1U-03Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3300-6FRSeries: SV3000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3300-6W1RSeries: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3300-6W1R-02Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3300-6W1R-03Series: SV3000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3400-5FUSeries: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3400-5W1USeries: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3400-5W1U-02Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3400-5W1U-03Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3400-5FRSeries: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3400-5W1RSeries: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3400-5W1R-02Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3400-5W1R-03Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3400-6FUSeries: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3400-6W1USeries: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3400-6W1U-02Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3400-6W1U-03Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3400-6FRSeries: SV3000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3400-6W1RSeries: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3400-6W1R-02Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3400-6W1R-03Series: SV3000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3500-5FUSeries: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3500-5W1USeries: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3500-5W1U-02Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3500-5W1U-03Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3500-5FRSeries: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3500-5W1RSeries: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3500-5W1R-02Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3500-5W1R-03Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV3500-6FUSeries: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV3500-6W1USeries: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV3500-6W1U-02Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/4
SV3500-6W1U-03Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV3500-6FRSeries: SV3000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV3500-6W1RSeries: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV3500-6W1R-02Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/4
SV3500-6W1R-03Series: SV3000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-5FUSeries: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4100-5W1USeries: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4100-5W1U-03Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4100-5W1U-04Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4100-5FRSeries: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4100-5W1RSeries: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4100-5W1R-03Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-5W1R-04Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4100-6FUSeries: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4100-6W1USeries: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4100-6W1U-03Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4100-6W1U-04Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4100-6FRSeries: SV4000 | Switching: 2-pos single | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4100-6W1RSeries: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4100-6W1R-03Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4100-6W1R-04Series: SV4000 | Switching: 2-pos single | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4200-5FUSeries: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4200-5W1USeries: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4200-5W1U-03Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4200-5W1U-04Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4200-5FRSeries: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4200-5W1RSeries: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4200-5W1R-03Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4200-5W1R-04Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4200-6FUSeries: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4200-6W1USeries: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4200-6W1U-03Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4200-6W1U-04Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4200-6FRSeries: SV4000 | Switching: 2-pos double | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4200-6W1RSeries: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4200-6W1R-03Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4200-6W1R-04Series: SV4000 | Switching: 2-pos double | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4300-5FUSeries: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4300-5W1USeries: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4300-5W1U-03Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4300-5W1U-04Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4300-5FRSeries: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4300-5W1RSeries: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4300-5W1R-03Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4300-5W1R-04Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4300-6FUSeries: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4300-6W1USeries: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4300-6W1U-03Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4300-6W1U-04Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4300-6FRSeries: SV4000 | Switching: 3-pos closed center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4300-6W1RSeries: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4300-6W1R-03Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4300-6W1R-04Series: SV4000 | Switching: 3-pos closed center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4400-5FUSeries: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4400-5W1USeries: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4400-5W1U-03Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4400-5W1U-04Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4400-5FRSeries: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4400-5W1RSeries: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4400-5W1R-03Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4400-5W1R-04Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4400-6FUSeries: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4400-6W1USeries: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4400-6W1U-03Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4400-6W1U-04Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4400-6FRSeries: SV4000 | Switching: 3-pos exhaust center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4400-6W1RSeries: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4400-6W1R-03Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4400-6W1R-04Series: SV4000 | Switching: 3-pos exhaust center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4500-5FUSeries: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4500-5W1USeries: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4500-5W1U-03Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4500-5W1U-04Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4500-5FRSeries: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4500-5W1RSeries: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4500-5W1R-03Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4500-5W1R-04Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC24V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2
SV4500-6FUSeries: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Manifold
SV4500-6W1USeries: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: No sub-plate
SV4500-6W1U-03Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc3/8
SV4500-6W1U-04Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Lamp and surge suppressor (U) | Port: Sub-plate Rc1/2
SV4500-6FRSeries: SV4000 | Switching: 3-pos pressure center | Type: Manifold valve, plug-in (F) | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Manifold
SV4500-6W1RSeries: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: No sub-plate
SV4500-6W1R-03Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc3/8
SV4500-6W1R-04Series: SV4000 | Switching: 3-pos pressure center | Type: Single unit IP67, M12 cable 300mm | Voltage: DC12V | Surge suppressor: Surge suppressor only (R) | Port: Sub-plate Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
