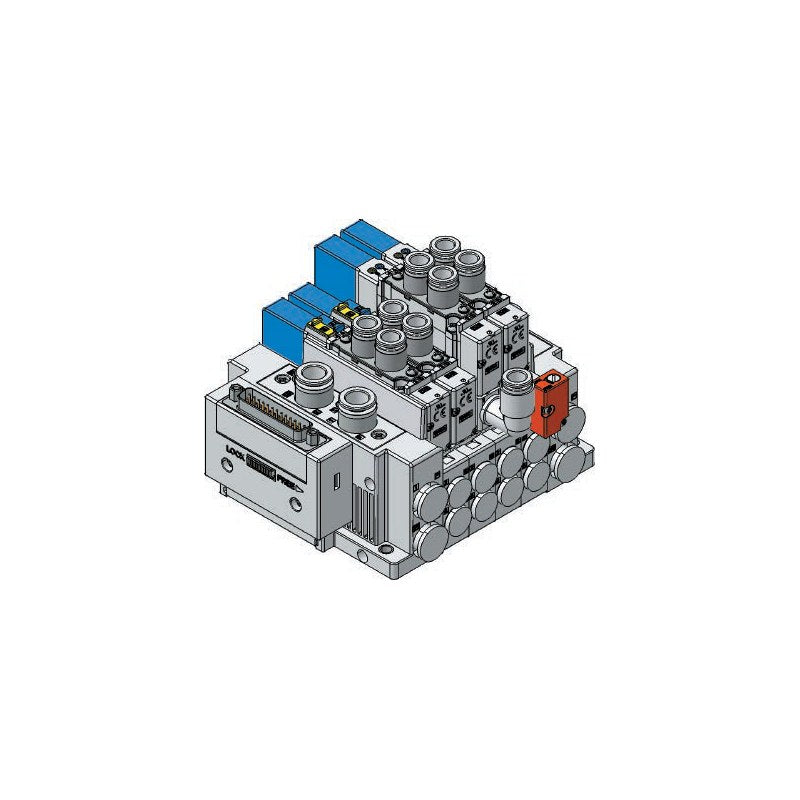

SMC SY Plug-in 5-Port Solenoid Valve (SY3000/5000/7000, Base Ported)

SMC SY Plug-in 5-Port Solenoid Valve (SY3000/5000/7000, Base Ported)

SMC SY series plug-in 5-port solenoid valve, base ported, for SS5Y connector base (10/11 type) and metal base (50/51 type) manifolds in three body sizes.

Key features

  • Plug-in connector valve mounted with two screws (SY7000: three); no lead wiring at the valve
  • Switching: 2-position single/double, 3-position closed/exhaust/pressure center, 4-position dual 3-port (rubber seal only)
  • Rubber or metal seal spool; rated coil voltage DC24V or DC12V
  • Listed codes: internal pilot, standard pilot valve, with light and surge voltage suppressor (U non-polar, Z +COM, NZ -COM), non-locking push manual override
  • Suffix options: external pilot (R), back-pressure check valve (H), high-speed (B) or 1.0 MPa high-pressure (K) pilot valve, power-saving circuit (T), locking manual override (D/E/F), anti-drop screws (B/K/H)
  • IP67 enclosure (IEC60529) when mounted on IP67 manifold

Specifications

Valve type Pilot-operated 5-port, plug-in, base ported
Pilot / manual override Internal pilot / non-locking push
Fluid Air
Operating pressure (internal pilot) Rubber seal: 0.15-0.7 MPa single, 0.1-0.7 double, 0.2-0.7 3-pos; metal seal 0.1-0.7 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Allowable voltage fluctuation ±10% of rated voltage
Power consumption Standard 0.35 W (0.4 W with light); high-pressure/high-speed 0.95 W with light
Surge voltage suppressor Diode (varistor for non-polar type)
Indicator light LED
Source SMC Korea catalog SY3000/5000/7000 (SMCKR_SY3000_5000_7000.pdf), p. 404, 432, 638 (PDF p. 18, 48, 282)
SY3100-5U1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3100-5Z1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3100-5NZ1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3100-6U1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3100-6Z1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3100-6NZ1 Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3101-5U1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3101-5Z1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3101-5NZ1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3101-6U1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3101-6Z1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3101-6NZ1 Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3200-5U1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3200-5Z1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3200-5NZ1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3200-6U1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3200-6Z1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3200-6NZ1 Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3201-5U1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3201-5Z1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3201-5NZ1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3201-6U1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3201-6Z1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3201-6NZ1 Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3300-5U1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3300-5Z1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3300-5NZ1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3300-6U1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3300-6Z1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3300-6NZ1 Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3301-5U1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3301-5Z1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3301-5NZ1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3301-6U1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3301-6Z1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3301-6NZ1 Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3400-5U1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3400-5Z1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3400-5NZ1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3400-6U1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3400-6Z1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3400-6NZ1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3401-5U1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3401-5Z1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3401-5NZ1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3401-6U1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3401-6Z1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3401-6NZ1 Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3500-5U1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3500-5Z1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3500-5NZ1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3500-6U1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3500-6Z1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3500-6NZ1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3501-5U1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3501-5Z1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3501-5NZ1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3501-6U1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3501-6Z1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3501-6NZ1 Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3A00-5U1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3A00-5Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3A00-5NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3A00-6U1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3A00-6Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3A00-6NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3B00-5U1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3B00-5Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3B00-5NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3B00-6U1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3B00-6Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3B00-6NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3C00-5U1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3C00-5Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3C00-5NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3C00-6U1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3C00-6Z1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3C00-6NZ1 Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5100-5U1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5100-5Z1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5100-5NZ1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5100-6U1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5100-6Z1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5100-6NZ1 Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5101-5U1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5101-5Z1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5101-5NZ1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5101-6U1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5101-6Z1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5101-6NZ1 Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5200-5U1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5200-5Z1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5200-5NZ1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5200-6U1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5200-6Z1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5200-6NZ1 Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5201-5U1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5201-5Z1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5201-5NZ1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5201-6U1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5201-6Z1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5201-6NZ1 Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5300-5U1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5300-5Z1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5300-5NZ1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5300-6U1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5300-6Z1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5300-6NZ1 Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5301-5U1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5301-5Z1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5301-5NZ1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5301-6U1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5301-6Z1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5301-6NZ1 Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5400-5U1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5400-5Z1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5400-5NZ1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5400-6U1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5400-6Z1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5400-6NZ1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5401-5U1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5401-5Z1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5401-5NZ1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5401-6U1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5401-6Z1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5401-6NZ1 Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5500-5U1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5500-5Z1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5500-5NZ1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5500-6U1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5500-6Z1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5500-6NZ1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5501-5U1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5501-5Z1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5501-5NZ1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5501-6U1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5501-6Z1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5501-6NZ1 Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5A00-5U1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5A00-5Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5A00-5NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5A00-6U1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5A00-6Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5A00-6NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5B00-5U1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5B00-5Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5B00-5NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5B00-6U1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5B00-6Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5B00-6NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5C00-5U1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5C00-5Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5C00-5NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5C00-6U1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5C00-6Z1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5C00-6NZ1 Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7100-5U1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7100-5Z1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7100-5NZ1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7100-6U1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7100-6Z1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7100-6NZ1 Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7101-5U1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7101-5Z1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7101-5NZ1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7101-6U1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7101-6Z1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7101-6NZ1 Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7200-5U1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7200-5Z1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7200-5NZ1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7200-6U1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7200-6Z1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7200-6NZ1 Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7201-5U1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7201-5Z1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7201-5NZ1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7201-6U1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7201-6Z1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7201-6NZ1 Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7300-5U1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7300-5Z1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7300-5NZ1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7300-6U1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7300-6Z1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7300-6NZ1 Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7301-5U1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7301-5Z1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7301-5NZ1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7301-6U1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7301-6Z1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7301-6NZ1 Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7400-5U1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7400-5Z1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7400-5NZ1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7400-6U1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7400-6Z1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7400-6NZ1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7401-5U1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7401-5Z1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7401-5NZ1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7401-6U1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7401-6Z1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7401-6NZ1 Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7500-5U1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7500-5Z1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7500-5NZ1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7500-6U1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7500-6Z1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7500-6NZ1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7501-5U1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7501-5Z1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7501-5NZ1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7501-6U1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7501-6Z1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7501-6NZ1 Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7A00-5U1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7A00-5Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7A00-5NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7A00-6U1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7A00-6Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7A00-6NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7B00-5U1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7B00-5Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7B00-5NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7B00-6U1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7B00-6Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7B00-6NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7C00-5U1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7C00-5Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7C00-5NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7C00-6U1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7C00-6Z1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7C00-6NZ1 Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
5-Port Solenoid ValvesSMC
234 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SY Plug-in 5-Port Solenoid Valve (SY3000/5000/7000, Base Ported)

Brand SMC·5-Port Solenoid Valves

Available part numbers (234)

SY3100-5U1, SY3100-5Z1, SY3100-5NZ1, SY3100-6U1, SY3100-6Z1, SY3100-6NZ1, SY3101-5U1, SY3101-5Z1, SY3101-5NZ1, SY3101-6U1 + 224 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SY3100-5U1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3100-5Z1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3100-5NZ1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3100-6U1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3100-6Z1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3100-6NZ1Series: SY3000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3101-5U1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3101-5Z1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3101-5NZ1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3101-6U1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3101-6Z1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3101-6NZ1Series: SY3000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3200-5U1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3200-5Z1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3200-5NZ1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3200-6U1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3200-6Z1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3200-6NZ1Series: SY3000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3201-5U1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3201-5Z1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3201-5NZ1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3201-6U1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3201-6Z1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3201-6NZ1Series: SY3000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3300-5U1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3300-5Z1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3300-5NZ1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3300-6U1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3300-6Z1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3300-6NZ1Series: SY3000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3301-5U1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3301-5Z1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3301-5NZ1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3301-6U1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3301-6Z1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3301-6NZ1Series: SY3000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3400-5U1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3400-5Z1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3400-5NZ1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3400-6U1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3400-6Z1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3400-6NZ1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3401-5U1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3401-5Z1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3401-5NZ1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3401-6U1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3401-6Z1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3401-6NZ1Series: SY3000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3500-5U1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3500-5Z1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3500-5NZ1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3500-6U1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3500-6Z1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3500-6NZ1Series: SY3000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3501-5U1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3501-5Z1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3501-5NZ1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3501-6U1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3501-6Z1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3501-6NZ1Series: SY3000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3A00-5U1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3A00-5Z1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3A00-5NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3A00-6U1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3A00-6Z1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3A00-6NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3B00-5U1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3B00-5Z1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3B00-5NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3B00-6U1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3B00-6Z1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3B00-6NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY3C00-5U1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY3C00-5Z1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY3C00-5NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY3C00-6U1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY3C00-6Z1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY3C00-6NZ1Series: SY3000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5100-5U1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5100-5Z1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5100-5NZ1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5100-6U1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5100-6Z1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5100-6NZ1Series: SY5000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5101-5U1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5101-5Z1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5101-5NZ1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5101-6U1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5101-6Z1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5101-6NZ1Series: SY5000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5200-5U1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5200-5Z1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5200-5NZ1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5200-6U1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5200-6Z1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5200-6NZ1Series: SY5000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5201-5U1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5201-5Z1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5201-5NZ1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5201-6U1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5201-6Z1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5201-6NZ1Series: SY5000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5300-5U1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5300-5Z1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5300-5NZ1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5300-6U1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5300-6Z1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5300-6NZ1Series: SY5000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5301-5U1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5301-5Z1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5301-5NZ1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5301-6U1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5301-6Z1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5301-6NZ1Series: SY5000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5400-5U1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5400-5Z1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5400-5NZ1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5400-6U1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5400-6Z1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5400-6NZ1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5401-5U1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5401-5Z1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5401-5NZ1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5401-6U1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5401-6Z1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5401-6NZ1Series: SY5000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5500-5U1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5500-5Z1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5500-5NZ1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5500-6U1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5500-6Z1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5500-6NZ1Series: SY5000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5501-5U1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5501-5Z1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5501-5NZ1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5501-6U1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5501-6Z1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5501-6NZ1Series: SY5000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5A00-5U1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5A00-5Z1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5A00-5NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5A00-6U1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5A00-6Z1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5A00-6NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5B00-5U1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5B00-5Z1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5B00-5NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5B00-6U1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5B00-6Z1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5B00-6NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY5C00-5U1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY5C00-5Z1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY5C00-5NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY5C00-6U1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY5C00-6Z1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY5C00-6NZ1Series: SY5000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7100-5U1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7100-5Z1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7100-5NZ1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7100-6U1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7100-6Z1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7100-6NZ1Series: SY7000 | Switching: 2-pos single | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7101-5U1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7101-5Z1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7101-5NZ1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7101-6U1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7101-6Z1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7101-6NZ1Series: SY7000 | Switching: 2-pos single | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7200-5U1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7200-5Z1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7200-5NZ1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7200-6U1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7200-6Z1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7200-6NZ1Series: SY7000 | Switching: 2-pos double | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7201-5U1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7201-5Z1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7201-5NZ1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7201-6U1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7201-6Z1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7201-6NZ1Series: SY7000 | Switching: 2-pos double | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7300-5U1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7300-5Z1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7300-5NZ1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7300-6U1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7300-6Z1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7300-6NZ1Series: SY7000 | Switching: 3-pos closed center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7301-5U1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7301-5Z1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7301-5NZ1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7301-6U1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7301-6Z1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7301-6NZ1Series: SY7000 | Switching: 3-pos closed center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7400-5U1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7400-5Z1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7400-5NZ1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7400-6U1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7400-6Z1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7400-6NZ1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7401-5U1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7401-5Z1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7401-5NZ1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7401-6U1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7401-6Z1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7401-6NZ1Series: SY7000 | Switching: 3-pos exhaust center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7500-5U1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7500-5Z1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7500-5NZ1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7500-6U1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7500-6Z1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7500-6NZ1Series: SY7000 | Switching: 3-pos pressure center | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7501-5U1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7501-5Z1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7501-5NZ1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7501-6U1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7501-6Z1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7501-6NZ1Series: SY7000 | Switching: 3-pos pressure center | Seal: Metal seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7A00-5U1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7A00-5Z1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7A00-5NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7A00-6U1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7A00-6Z1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7A00-6NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.C. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7B00-5U1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7B00-5Z1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7B00-5NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7B00-6U1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7B00-6Z1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7B00-6NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.O./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM
SY7C00-5U1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, non-polar
SY7C00-5Z1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, +COM
SY7C00-5NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC24V | Light/surge: Light/surge, -COM
SY7C00-6U1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, non-polar
SY7C00-6Z1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, +COM
SY7C00-6NZ1Series: SY7000 | Switching: 4-pos dual 3-port N.C./N.O. | Seal: Rubber seal | Voltage: DC12V | Light/surge: Light/surge, -COM

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
