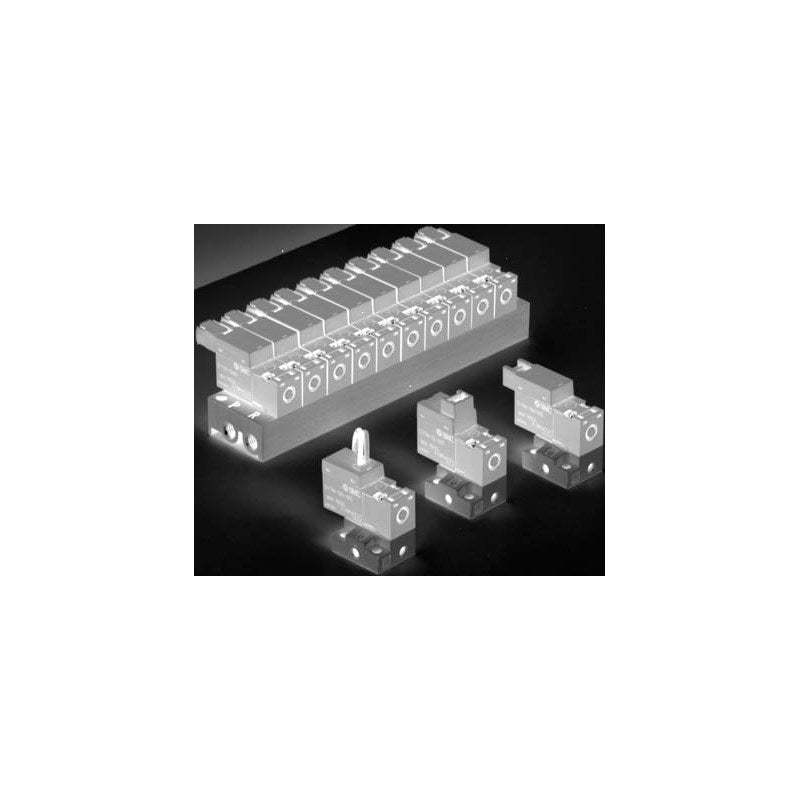

SMC SY100 3-Port Solenoid Valve (Direct Operated, 10 mm Width)

SMC SY100 3-Port Solenoid Valve (Direct Operated, 10 mm Width)

SMC SY100 series direct-operated 3-port solenoid valve with rubber seal, 10 mm body width, N.C. or N.O., in standard and high-flow versions for direct or base piping.

Key features

  • Low power consumption 0.5 W (standard type, without lamp); high-flow type 0.75 W
  • Usable for vacuum down to -100 kPa (10 Torr)
  • Standard type effective area 0.14 mm², high-flow type (A) 0.22 mm²
  • Copper-free wetted parts; grommet (G/H), L or M plug connector entry; listed codes cover G, L and M
  • Lamp/surge suppressor (S, Z, R, U), manual override (B, D, E), bracket (F) and CE/UKCA (Q) ordered as suffixes

Specifications

Fluid Air
Operating pressure range 0 to 0.7 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Response time 10 ms or less
Max. operating frequency 20 Hz
Port size M3x0.5
Coil rated voltage DC 24, 12, 6, 5, 3 V; AC 100, 110, 200, 220 V (standard type)
Lubrication Not required
Impact/vibration resistance 150/30 m/s²
Enclosure Dustproof
Source SMC Korea catalog SY100 (SMCKR_SY100.pdf), p. 1-4
SY113-5G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY113-5G-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY114-5G Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY114-5G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY113-5L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY113-5L-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY114-5L Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY114-5L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY113-5M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY113-5M-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY114-5M Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY114-5M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY113-6G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY113-6G-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY114-6G Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY114-6G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY113-6L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY113-6L-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY114-6L Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY114-6L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY113-6M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY113-6M-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY114-6M Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY114-6M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY113-1G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: Grommet
SY113-1G-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: Grommet
SY114-1G Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: Grommet
SY114-1G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: Grommet
SY113-1L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: L-type plug connector
SY113-1L-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY114-1L Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: L-type plug connector
SY114-1L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY113-1M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: M-type plug connector
SY113-1M-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY114-1M Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: M-type plug connector
SY114-1M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY113-2G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: Grommet
SY113-2G-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: Grommet
SY114-2G Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: Grommet
SY114-2G-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: Grommet
SY113-2L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: L-type plug connector
SY113-2L-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY114-2L Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: L-type plug connector
SY114-2L-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY113-2M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: M-type plug connector
SY113-2M-PM3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY114-2M Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: M-type plug connector
SY114-2M-M3 Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY123-5G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY123-5G-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY124-5G Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY124-5G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY123-5L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY123-5L-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY124-5L Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY124-5L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY123-5M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY123-5M-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY124-5M Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY124-5M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY123-6G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY123-6G-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY124-6G Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY124-6G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY123-6L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY123-6L-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY124-6L Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY124-6L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY123-6M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY123-6M-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY124-6M Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY124-6M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY123-1G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: Grommet
SY123-1G-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: Grommet
SY124-1G Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: Grommet
SY124-1G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: Grommet
SY123-1L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: L-type plug connector
SY123-1L-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY124-1L Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: L-type plug connector
SY124-1L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY123-1M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: M-type plug connector
SY123-1M-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY124-1M Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: M-type plug connector
SY124-1M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY123-2G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: Grommet
SY123-2G-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: Grommet
SY124-2G Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: Grommet
SY124-2G-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: Grommet
SY123-2L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: L-type plug connector
SY123-2L-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY124-2L Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: L-type plug connector
SY124-2L-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY123-2M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: M-type plug connector
SY123-2M-PM3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY124-2M Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: M-type plug connector
SY124-2M-M3 Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY113A-5G-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY113A-5G-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY114A-5G Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY114A-5G-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY113A-5L-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY113A-5L-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY114A-5L Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY114A-5L-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY113A-5M-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY113A-5M-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY114A-5M Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY114A-5M-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY113A-6G-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY113A-6G-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY114A-6G Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY114A-6G-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY113A-6L-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY113A-6L-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY114A-6L Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY114A-6L-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY113A-6M-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY113A-6M-PM3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY114A-6M Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY114A-6M-M3 Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY123A-5G-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY123A-5G-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY124A-5G Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY124A-5G-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY123A-5L-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY123A-5L-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY124A-5L Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY124A-5L-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY123A-5M-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY123A-5M-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY124A-5M Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY124A-5M-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY123A-6G-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY123A-6G-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY124A-6G Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY124A-6G-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY123A-6L-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY123A-6L-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY124A-6L Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY124A-6L-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY123A-6M-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY123A-6M-PM3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY124A-6M Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY124A-6M-M3 Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
3-Port Solenoid ValvesSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SY100 3-Port Solenoid Valve (Direct Operated, 10 mm Width)

Brand SMC·3-Port Solenoid Valves

Available part numbers (144)

SY113-5G-M3, SY113-5G-PM3, SY114-5G, SY114-5G-M3, SY113-5L-M3, SY113-5L-PM3, SY114-5L, SY114-5L-M3, SY113-5M-M3, SY113-5M-PM3 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SY113-5G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY113-5G-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY114-5GSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY114-5G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY113-5L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY113-5L-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY114-5LSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY114-5L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY113-5M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY113-5M-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY114-5MSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY114-5M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY113-6G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY113-6G-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY114-6GSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY114-6G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY113-6L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY113-6L-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY114-6LSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY114-6L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY113-6M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY113-6M-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY114-6MSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY114-6M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY113-1G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: Grommet
SY113-1G-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: Grommet
SY114-1GSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: Grommet
SY114-1G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: Grommet
SY113-1L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: L-type plug connector
SY113-1L-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY114-1LSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: L-type plug connector
SY114-1L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY113-1M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: M-type plug connector
SY113-1M-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY114-1MSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: M-type plug connector
SY114-1M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY113-2G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: Grommet
SY113-2G-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: Grommet
SY114-2GSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: Grommet
SY114-2G-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: Grommet
SY113-2L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: L-type plug connector
SY113-2L-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY114-2LSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: L-type plug connector
SY114-2L-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY113-2M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: M-type plug connector
SY113-2M-PM3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY114-2MSwitching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: M-type plug connector
SY114-2M-M3Switching: N.C. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY123-5G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY123-5G-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY124-5GSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY124-5G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY123-5L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY123-5L-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY124-5LSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY124-5L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY123-5M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY123-5M-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY124-5MSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY124-5M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY123-6G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY123-6G-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY124-6GSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY124-6G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY123-6L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY123-6L-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY124-6LSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY124-6L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY123-6M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY123-6M-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY124-6MSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY124-6M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY123-1G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: Grommet
SY123-1G-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: Grommet
SY124-1GSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: Grommet
SY124-1G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: Grommet
SY123-1L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: L-type plug connector
SY123-1L-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY124-1LSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: L-type plug connector
SY124-1L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: L-type plug connector
SY123-1M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC100V | Electrical entry: M-type plug connector
SY123-1M-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY124-1MSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC100V | Electrical entry: M-type plug connector
SY124-1M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC100V | Electrical entry: M-type plug connector
SY123-2G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: Grommet
SY123-2G-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: Grommet
SY124-2GSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: Grommet
SY124-2G-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: Grommet
SY123-2L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: L-type plug connector
SY123-2L-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY124-2LSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: L-type plug connector
SY124-2L-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: L-type plug connector
SY123-2M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, for 30/31 manifold | Voltage: AC200V | Electrical entry: M-type plug connector
SY123-2M-PM3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Direct piping, P/R/A ports M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY124-2MSwitching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, without sub-plate | Voltage: AC200V | Electrical entry: M-type plug connector
SY124-2M-M3Switching: N.O. | Flow type: Standard (Cv 0.008) | Piping: Base piping, with sub-plate M3 | Voltage: AC200V | Electrical entry: M-type plug connector
SY113A-5G-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY113A-5G-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY114A-5GSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY114A-5G-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY113A-5L-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY113A-5L-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY114A-5LSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY114A-5L-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY113A-5M-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY113A-5M-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY114A-5MSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY114A-5M-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY113A-6G-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY113A-6G-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY114A-6GSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY114A-6G-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY113A-6L-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY113A-6L-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY114A-6LSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY114A-6L-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY113A-6M-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY113A-6M-PM3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY114A-6MSwitching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY114A-6M-M3Switching: N.C. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY123A-5G-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: Grommet
SY123A-5G-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: Grommet
SY124A-5GSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: Grommet
SY124A-5G-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: Grommet
SY123A-5L-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: L-type plug connector
SY123A-5L-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY124A-5LSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: L-type plug connector
SY124A-5L-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: L-type plug connector
SY123A-5M-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC24V | Electrical entry: M-type plug connector
SY123A-5M-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY124A-5MSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC24V | Electrical entry: M-type plug connector
SY124A-5M-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC24V | Electrical entry: M-type plug connector
SY123A-6G-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: Grommet
SY123A-6G-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: Grommet
SY124A-6GSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: Grommet
SY124A-6G-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: Grommet
SY123A-6L-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: L-type plug connector
SY123A-6L-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY124A-6LSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: L-type plug connector
SY124A-6L-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: L-type plug connector
SY123A-6M-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, for 30/31 manifold | Voltage: DC12V | Electrical entry: M-type plug connector
SY123A-6M-PM3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Direct piping, P/R/A ports M3 | Voltage: DC12V | Electrical entry: M-type plug connector
SY124A-6MSwitching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, without sub-plate | Voltage: DC12V | Electrical entry: M-type plug connector
SY124A-6M-M3Switching: N.O. | Flow type: High flow (Cv 0.012) | Piping: Base piping, with sub-plate M3 | Voltage: DC12V | Electrical entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
