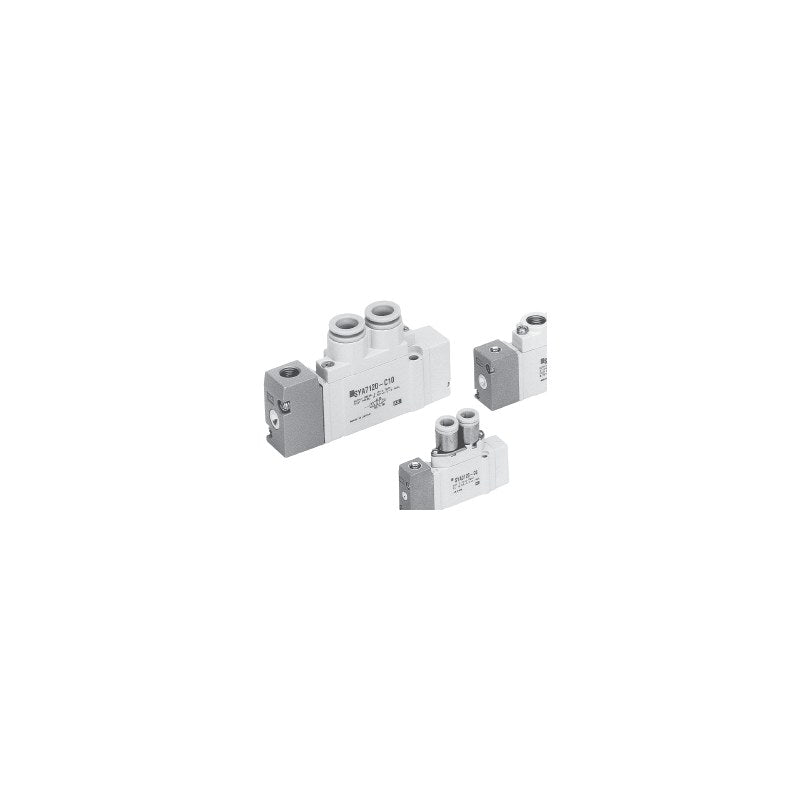

SMC SYA3000/5000/7000 5-Port Air Operated Valve

SMC SYA3000/5000/7000 5-Port Air Operated Valve

SMC SYA series air-piloted 5-port spool valve, the air-operated version of the SY valve, in three body sizes with direct piping or base piping (with or without sub-plate).

Key features

  • Five switching types: 2-position single/double and 3-position closed, exhaust and pressure center
  • Direct piping type (SYA20) with threaded or one-touch fitting A/B ports; base piping type (SYA40) for sub-plate or manifold mounting
  • Usable with vacuum down to -100 kPa (2-position double and 3-position)
  • Mounts on the same non-plug-in manifolds as the SY series (types 20, 41, 42, 45), ordered as SS5YA
  • Thread type Rc standard; G (F), NPT (N), NPTF (T) and inch one-touch fittings (N3 to N11) on order; foot (F1) and side (F2) brackets as suffixes

Specifications

Fluid Air
Valve type Air-operated 5-port spool valve
Operating pressure 0.15 to 0.7 MPa (2-pos single), -100 kPa to 0.7 MPa (2-pos double, 3-pos)
Pilot pressure (0.7xP+0.1) to 0.7 MPa (2-pos single), 0.1 to 0.7 MPa (2-pos double), 0.2 to 0.7 MPa (3-pos)
Pilot port M5x0.8
Ambient and fluid temperature -10 to 60°C (no freezing)
Manual override Non-locking push type
Lubrication Not required
Mounting orientation Unrestricted
Impact/vibration resistance 150/30 m/s²
Source SMC Korea catalog SYA3000/5000/7000 (SMCKR_SYA3000_5000_7000.pdf), p. 1266-1268 (PDF p. 1-3)
SYA3120-M5 Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: M5x0.8
SYA3120-C4 Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3120-C6 Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3140 Series: SYA3000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA3140-01 Series: SYA3000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3220-M5 Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: M5x0.8
SYA3220-C4 Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3220-C6 Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3240 Series: SYA3000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA3240-01 Series: SYA3000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3320-M5 Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: M5x0.8
SYA3320-C4 Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3320-C6 Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3340 Series: SYA3000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA3340-01 Series: SYA3000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3420-M5 Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: M5x0.8
SYA3420-C4 Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3420-C6 Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3440 Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA3440-01 Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3520-M5 Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: M5x0.8
SYA3520-C4 Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3520-C6 Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3540 Series: SYA3000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA3540-01 Series: SYA3000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA5120-01 Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: Rc1/8
SYA5120-C4 Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5120-C6 Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5120-C8 Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5140 Series: SYA5000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA5140-02 Series: SYA5000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5220-01 Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: Rc1/8
SYA5220-C4 Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5220-C6 Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5220-C8 Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5240 Series: SYA5000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA5240-02 Series: SYA5000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5320-01 Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: Rc1/8
SYA5320-C4 Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5320-C6 Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5320-C8 Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5340 Series: SYA5000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA5340-02 Series: SYA5000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5420-01 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: Rc1/8
SYA5420-C4 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5420-C6 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5420-C8 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5440 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA5440-02 Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5520-01 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: Rc1/8
SYA5520-C4 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5520-C6 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5520-C8 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5540 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA5540-02 Series: SYA5000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7120-02 Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: Rc1/4
SYA7120-C8 Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7120-C10 Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7140 Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA7140-02 Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7140-03 Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7220-02 Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: Rc1/4
SYA7220-C8 Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7220-C10 Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7240 Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA7240-02 Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7240-03 Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7320-02 Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: Rc1/4
SYA7320-C8 Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7320-C10 Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7340 Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA7340-02 Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7340-03 Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7420-02 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: Rc1/4
SYA7420-C8 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7420-C10 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7440 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA7440-02 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7440-03 Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7520-02 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: Rc1/4
SYA7520-C8 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7520-C10 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7540 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA7540-02 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7540-03 Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc3/8
Air Operated ValvesSMC
85 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SYA3000/5000/7000 5-Port Air Operated Valve

Brand SMC·Air Operated Valves

Available part numbers (85)

SYA3120-M5, SYA3120-C4, SYA3120-C6, SYA3140, SYA3140-01, SYA3220-M5, SYA3220-C4, SYA3220-C6, SYA3240, SYA3240-01 + 75 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYA3120-M5Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: M5x0.8
SYA3120-C4Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3120-C6Series: SYA3000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3140Series: SYA3000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA3140-01Series: SYA3000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3220-M5Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: M5x0.8
SYA3220-C4Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3220-C6Series: SYA3000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3240Series: SYA3000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA3240-01Series: SYA3000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3320-M5Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: M5x0.8
SYA3320-C4Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3320-C6Series: SYA3000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3340Series: SYA3000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA3340-01Series: SYA3000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3420-M5Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: M5x0.8
SYA3420-C4Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3420-C6Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3440Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA3440-01Series: SYA3000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA3520-M5Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: M5x0.8
SYA3520-C4Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA3520-C6Series: SYA3000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA3540Series: SYA3000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA3540-01Series: SYA3000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/8
SYA5120-01Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: Rc1/8
SYA5120-C4Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5120-C6Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5120-C8Series: SYA5000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5140Series: SYA5000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA5140-02Series: SYA5000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5220-01Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: Rc1/8
SYA5220-C4Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5220-C6Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5220-C8Series: SYA5000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5240Series: SYA5000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA5240-02Series: SYA5000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5320-01Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: Rc1/8
SYA5320-C4Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5320-C6Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5320-C8Series: SYA5000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5340Series: SYA5000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA5340-02Series: SYA5000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5420-01Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: Rc1/8
SYA5420-C4Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5420-C6Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5420-C8Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5440Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA5440-02Series: SYA5000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA5520-01Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: Rc1/8
SYA5520-C4Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø4 one-touch fitting
SYA5520-C6Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø6 one-touch fitting
SYA5520-C8Series: SYA5000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA5540Series: SYA5000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA5540-02Series: SYA5000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7120-02Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: Rc1/4
SYA7120-C8Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7120-C10Series: SYA7000 | Switching: 2-pos single | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7140Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Without sub-plate
SYA7140-02Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7140-03Series: SYA7000 | Switching: 2-pos single | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7220-02Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: Rc1/4
SYA7220-C8Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7220-C10Series: SYA7000 | Switching: 2-pos double | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7240Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Without sub-plate
SYA7240-02Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7240-03Series: SYA7000 | Switching: 2-pos double | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7320-02Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: Rc1/4
SYA7320-C8Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7320-C10Series: SYA7000 | Switching: 3-pos closed center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7340Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Without sub-plate
SYA7340-02Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7340-03Series: SYA7000 | Switching: 3-pos closed center | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7420-02Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: Rc1/4
SYA7420-C8Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7420-C10Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7440Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Without sub-plate
SYA7440-02Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7440-03Series: SYA7000 | Switching: 3-pos exhaust center | Piping: Base piping | A/B port: Sub-plate Rc3/8
SYA7520-02Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: Rc1/4
SYA7520-C8Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø8 one-touch fitting
SYA7520-C10Series: SYA7000 | Switching: 3-pos pressure center | Piping: Direct piping | A/B port: ø10 one-touch fitting
SYA7540Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Without sub-plate
SYA7540-02Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc1/4
SYA7540-03Series: SYA7000 | Switching: 3-pos pressure center | Piping: Base piping | A/B port: Sub-plate Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
