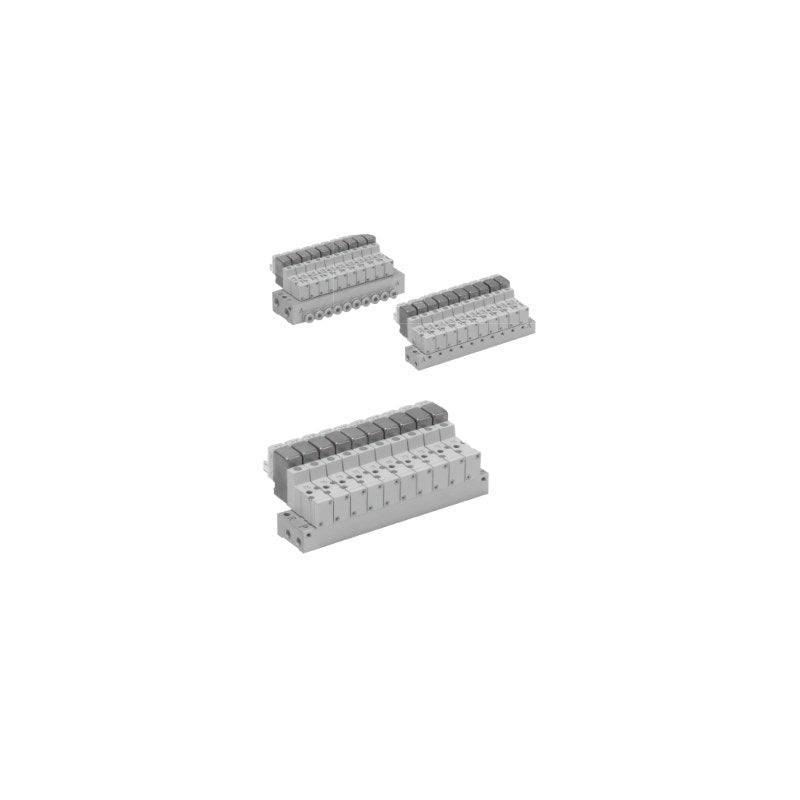

SMC SYJ300 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

SMC SYJ300 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

SMC SYJ300 series pilot-operated 3-port solenoid valve with rubber seal, available N.C. or N.O. for direct piping or base piping (sub-plate or SS3YJ3 manifold).

Key features

  • Rubber seal poppet type, internal pilot standard; external pilot (R) for vacuum to -100 kPa or low pressure below 0.15 MPa
  • Body option: individual pilot exhaust (standard) or common pilot/main valve exhaust (M)
  • Power-saving circuit coil (T) reduces power consumption to 0.1 W (DC24V/12V, with Z lamp/surge suppressor)
  • Electrical entry: grommet (G/H), L or M plug connector and M8 connector (W); listed codes cover G, L and M
  • Lamp/surge voltage suppressor (S, Z, R, U), manual override (D, E), bracket (F), G/NPT/NPTF threads and CE/UKCA (Q) are ordered as suffixes
  • Stainless steel pilot valve cover for improved strength

Specifications

Fluid Air
Operating pressure range (internal pilot) 0.15 to 0.7 MPa
External pilot Main -100 kPa to 0.7 MPa, pilot 0.15 to 0.7 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Response time (0.5 MPa) 15 ms or less
Max. operating frequency 10 Hz
Port size Direct piping M3x0.5; base piping sub-plate M5x0.8
Flow rate C [dm³/(s·bar)] 0.36 (base, sub-plate)
Lubrication Not required
Power consumption (DC) 0.35 W standard, 0.1 W with power-saving circuit
Impact/vibration resistance 150/30 m/s²
Source SMC Korea catalog SYJ300/500/700 (SMCKR_SYJ300_500_700.pdf), p. 952-960 (PDF p. 4-12)
SYJ312-5G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312-5L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312-5M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312-6G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312-6L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312-6M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312-1G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312-1L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312-1M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312-2G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312-2L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312-2M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312T-5GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312T-5LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312T-5MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312T-6GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312T-6LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312T-6MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312M-5G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312M-5L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312M-5M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312M-6G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312M-6L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312M-6M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312M-1G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312M-1L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312M-1M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312M-2G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312M-2L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312M-2M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312MT-5GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312MT-5LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312MT-5MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312MT-6GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312MT-6LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312MT-6MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312R-5G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312R-5L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312R-5M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312R-6G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312R-6L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312R-6M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312R-1G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312R-1L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312R-1M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312R-2G-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312R-2L-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312R-2M-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312RT-5GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312RT-5LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312RT-5MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312RT-6GZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312RT-6LZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312RT-6MZ-M3 Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314T-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314T-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314T-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314T-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314T-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314T-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314M-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314M-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314M-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314M-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314M-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314M-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314M-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314M-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314M-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314M-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314MT-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314MT-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314MT-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314MT-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314MT-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314MT-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314R-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314R-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314R-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314R-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314R-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314R-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314R-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314R-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314R-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314R-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314RT-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314RT-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314RT-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314RT-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314RT-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314RT-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-5G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314-5L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314-5M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314-6G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314-6L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314-6M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-1G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314-1L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314-1M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314-2G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314-2L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314-2M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314T-5GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314T-5LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314T-5MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314T-6GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314T-6LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314T-6MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-5G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314M-5L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314M-5M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314M-6G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314M-6L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314M-6M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-1G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314M-1L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314M-1M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314M-2G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314M-2L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314M-2M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314MT-5GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314MT-5LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314MT-5MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314MT-6GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314MT-6LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314MT-6MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-5G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314R-5L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314R-5M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314R-6G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314R-6L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314R-6M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-1G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314R-1L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314R-1M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314R-2G-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314R-2L-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314R-2M-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314RT-5GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314RT-5LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314RT-5MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314RT-6GZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314RT-6LZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314RT-6MZ-M5 Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322-5G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322-5L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322-5M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322-6G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322-6L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322-6M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322-1G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322-1L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322-1M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322-2G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322-2L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322-2M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322T-5GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322T-5LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322T-5MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322T-6GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322T-6LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322T-6MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322M-5G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322M-5L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322M-5M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322M-6G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322M-6L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322M-6M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322M-1G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322M-1L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322M-1M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322M-2G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322M-2L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322M-2M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322MT-5GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322MT-5LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322MT-5MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322MT-6GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322MT-6LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322MT-6MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322R-5G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322R-5L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322R-5M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322R-6G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322R-6L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322R-6M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322R-1G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322R-1L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322R-1M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322R-2G-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322R-2L-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322R-2M-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322RT-5GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322RT-5LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322RT-5MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322RT-6GZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322RT-6LZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322RT-6MZ-M3 Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324T-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324T-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324T-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324T-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324T-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324T-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324M-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324M-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324M-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324M-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324M-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324M-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324M-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324M-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324M-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324M-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324MT-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324MT-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324MT-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324MT-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324MT-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324MT-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324R-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324R-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324R-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324R-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324R-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324R-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324R-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324R-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324R-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324R-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324RT-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324RT-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324RT-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324RT-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324RT-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324RT-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-5G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324-5L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324-5M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324-6G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324-6L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324-6M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-1G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324-1L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324-1M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324-2G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324-2L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324-2M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324T-5GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324T-5LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324T-5MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324T-6GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324T-6LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324T-6MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-5G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324M-5L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324M-5M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324M-6G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324M-6L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324M-6M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-1G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324M-1L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324M-1M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324M-2G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324M-2L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324M-2M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324MT-5GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324MT-5LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324MT-5MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324MT-6GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324MT-6LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324MT-6MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-5G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324R-5L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324R-5M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324R-6G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324R-6L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324R-6M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-1G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324R-1L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324R-1M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324R-2G-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324R-2L-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324R-2M-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324RT-5GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324RT-5LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324RT-5MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324RT-6GZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324RT-6LZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324RT-6MZ-M5 Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
3-Port Solenoid ValvesSMC
324 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SYJ300 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

Brand SMC·3-Port Solenoid Valves

Available part numbers (324)

SYJ312-5G-M3, SYJ312-5L-M3, SYJ312-5M-M3, SYJ312-6G-M3, SYJ312-6L-M3, SYJ312-6M-M3, SYJ312-1G-M3, SYJ312-1L-M3, SYJ312-1M-M3, SYJ312-2G-M3 + 314 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYJ312-5G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312-5L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312-5M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312-6G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312-6L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312-6M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312-1G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312-1L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312-1M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312-2G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312-2L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312-2M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312T-5GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312T-5LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312T-5MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312T-6GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312T-6LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312T-6MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312M-5G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312M-5L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312M-5M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312M-6G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312M-6L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312M-6M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312M-1G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312M-1L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312M-1M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312M-2G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312M-2L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312M-2M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312MT-5GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312MT-5LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312MT-5MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312MT-6GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312MT-6LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312MT-6MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312R-5G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ312R-5L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312R-5M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312R-6G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ312R-6L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312R-6M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ312R-1G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ312R-1L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ312R-1M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ312R-2G-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ312R-2L-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ312R-2M-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ312RT-5GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ312RT-5LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ312RT-5MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ312RT-6GZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ312RT-6LZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ312RT-6MZ-M3Switching: N.C. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314T-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314T-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314T-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314T-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314T-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314T-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314M-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314M-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314M-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314M-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314M-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314M-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314M-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314M-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314M-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314M-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314MT-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314MT-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314MT-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314MT-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314MT-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314MT-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314R-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314R-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314R-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314R-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314R-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314R-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314R-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314R-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314R-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314R-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314RT-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314RT-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314RT-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314RT-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314RT-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314RT-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-5G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314-5L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314-5M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314-6G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314-6L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314-6M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314-1G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314-1L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314-1M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314-2G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314-2L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314-2M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314T-5GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314T-5LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314T-5MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314T-6GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314T-6LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314T-6MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-5G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314M-5L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314M-5M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314M-6G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314M-6L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314M-6M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314M-1G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314M-1L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314M-1M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314M-2G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314M-2L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314M-2M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314MT-5GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314MT-5LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314MT-5MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314MT-6GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314MT-6LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314MT-6MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-5G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ314R-5L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314R-5M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314R-6G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ314R-6L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314R-6M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ314R-1G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ314R-1L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ314R-1M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ314R-2G-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ314R-2L-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ314R-2M-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ314RT-5GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ314RT-5LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ314RT-5MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ314RT-6GZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ314RT-6LZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ314RT-6MZ-M5Switching: N.C. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322-5G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322-5L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322-5M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322-6G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322-6L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322-6M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322-1G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322-1L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322-1M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322-2G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322-2L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322-2M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322T-5GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322T-5LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322T-5MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322T-6GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322T-6LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322T-6MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322M-5G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322M-5L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322M-5M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322M-6G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322M-6L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322M-6M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322M-1G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322M-1L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322M-1M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322M-2G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322M-2L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322M-2M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322MT-5GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322MT-5LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322MT-5MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322MT-6GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322MT-6LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322MT-6MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322R-5G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ322R-5L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322R-5M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322R-6G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ322R-6L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322R-6M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ322R-1G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ322R-1L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ322R-1M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ322R-2G-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ322R-2L-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ322R-2M-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ322RT-5GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ322RT-5LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ322RT-5MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ322RT-6GZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ322RT-6LZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ322RT-6MZ-M3Switching: N.O. | Piping: Direct piping, M3x0.5 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324T-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324T-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324T-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324T-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324T-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324T-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324M-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324M-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324M-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324M-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324M-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324M-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324M-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324M-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324M-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324M-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324MT-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324MT-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324MT-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324MT-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324MT-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324MT-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324R-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324R-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324R-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324R-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324R-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324R-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324R-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324R-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324R-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324R-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324RT-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324RT-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324RT-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324RT-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324RT-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324RT-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-5G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324-5L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324-5M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324-6G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324-6L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324-6M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324-1G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324-1L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324-1M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324-2G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324-2L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324-2M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324T-5GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324T-5LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324T-5MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324T-6GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324T-6LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324T-6MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-5G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324M-5L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324M-5M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324M-6G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324M-6L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324M-6M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324M-1G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324M-1L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324M-1M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324M-2G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324M-2L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324M-2M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324MT-5GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324MT-5LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324MT-5MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324MT-6GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324MT-6LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324MT-6MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-5G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ324R-5L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324R-5M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324R-6G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ324R-6L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324R-6M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ324R-1G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ324R-1L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ324R-1M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ324R-2G-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ324R-2L-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ324R-2M-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ324RT-5GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ324RT-5LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ324RT-5MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ324RT-6GZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ324RT-6LZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ324RT-6MZ-M5Switching: N.O. | Piping: Base piping, sub-plate M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
