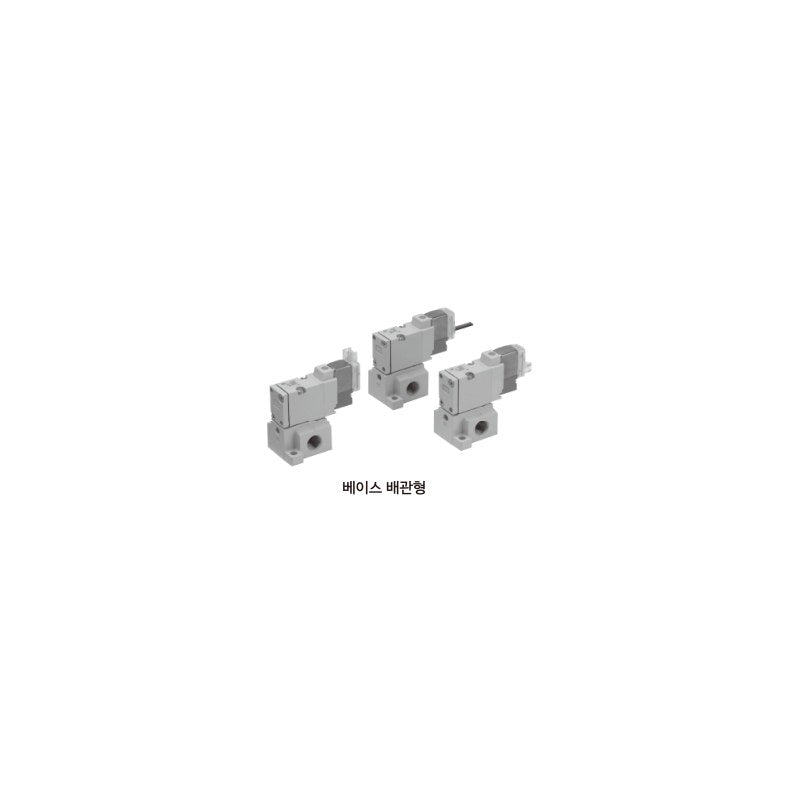

SMC SYJ500 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

SMC SYJ500 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

SMC SYJ500 series pilot-operated 3-port solenoid valve with rubber seal, available N.C. or N.O. for direct piping or base piping (sub-plate or SS3YJ5 manifold).

Key features

  • Rubber seal poppet type, internal pilot standard; external pilot (R) for vacuum to -100 kPa or low pressure below 0.15 MPa
  • Body option: individual pilot exhaust (standard) or common pilot/main valve exhaust (M)
  • Power-saving circuit coil (T) reduces power consumption to 0.1 W (DC24V/12V, with Z lamp/surge suppressor)
  • Electrical entry: grommet (G/H), L or M plug connector, DIN terminal (D/Y) and M8 connector (W); listed codes cover G, L, M and D
  • Lamp/surge voltage suppressor (S, Z, R, U), manual override (D, E), bracket (F), G/NPT/NPTF threads and CE/UKCA (Q) are ordered as suffixes
  • Stainless steel pilot valve cover for improved strength

Specifications

Fluid Air
Operating pressure range (internal pilot) 0.15 to 0.7 MPa
External pilot Main -100 kPa to 0.7 MPa, pilot 0.15 to 0.7 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Response time (0.5 MPa) 25 ms or less
Max. operating frequency 5 Hz
Port size Direct piping M5x0.8; base piping sub-plate Rc1/8
Flow rate C [dm³/(s·bar)] 1.2 (base, sub-plate)
Lubrication Not required
Power consumption (DC) 0.35 W standard, 0.1 W with power-saving circuit
Impact/vibration resistance 150/30 m/s²
Source SMC Korea catalog SYJ300/500/700 (SMCKR_SYJ300_500_700.pdf), p. 966-974 (PDF p. 18-26)
SYJ512-5G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512-5L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512-5M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512-5D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512-6G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512-6L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512-6M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512-6D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512-1G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512-1L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512-1M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512-1D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512-2G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512-2L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512-2M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512-2D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512T-5GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512T-5LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512T-5MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512T-6GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512T-6LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512T-6MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512M-5G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512M-5L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512M-5M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512M-5D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512M-6G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512M-6L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512M-6M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512M-6D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512M-1G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512M-1L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512M-1M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512M-1D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512M-2G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512M-2L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512M-2M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512M-2D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512MT-5GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512MT-5LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512MT-5MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512MT-6GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512MT-6LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512MT-6MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512R-5G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512R-5L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512R-5M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512R-5D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512R-6G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512R-6L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512R-6M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512R-6D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512R-1G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512R-1L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512R-1M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512R-1D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512R-2G-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512R-2L-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512R-2M-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512R-2D-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512RT-5GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512RT-5LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512RT-5MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512RT-6GZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512RT-6LZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512RT-6MZ-M5 Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514-5D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-6D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514-1D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514-2D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514T-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514T-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514T-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514T-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514T-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514T-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514M-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514M-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514M-5D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514M-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514M-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514M-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-6D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514M-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514M-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514M-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514M-1D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514M-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514M-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514M-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514M-2D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514MT-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514MT-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514MT-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514MT-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514MT-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514MT-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-5G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514R-5L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514R-5M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514R-5D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514R-6G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514R-6L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514R-6M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-6D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514R-1G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514R-1L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514R-1M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514R-1D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514R-2G Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514R-2L Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514R-2M Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514R-2D Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514RT-5GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514RT-5LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514RT-5MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514RT-6GZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514RT-6LZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514RT-6MZ Switching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-5G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514-5L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514-5M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514-5D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514-6G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514-6L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514-6M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-6D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514-1G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514-1L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514-1M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514-1D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514-2G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514-2L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514-2M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514-2D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514T-5GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514T-5LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514T-5MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514T-6GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514T-6LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514T-6MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-5G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514M-5L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514M-5M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514M-5D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514M-6G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514M-6L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514M-6M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-6D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514M-1G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514M-1L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514M-1M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514M-1D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514M-2G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514M-2L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514M-2M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514M-2D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514MT-5GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514MT-5LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514MT-5MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514MT-6GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514MT-6LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514MT-6MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-5G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514R-5L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514R-5M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514R-5D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514R-6G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514R-6L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514R-6M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-6D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514R-1G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514R-1L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514R-1M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514R-1D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514R-2G-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514R-2L-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514R-2M-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514R-2D-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514RT-5GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514RT-5LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514RT-5MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514RT-6GZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514RT-6LZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514RT-6MZ-01 Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522-5G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522-5L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522-5M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522-5D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522-6G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522-6L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522-6M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522-6D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522-1G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522-1L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522-1M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522-1D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522-2G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522-2L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522-2M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522-2D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522T-5GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522T-5LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522T-5MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522T-6GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522T-6LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522T-6MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522M-5G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522M-5L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522M-5M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522M-5D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522M-6G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522M-6L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522M-6M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522M-6D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522M-1G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522M-1L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522M-1M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522M-1D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522M-2G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522M-2L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522M-2M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522M-2D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522MT-5GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522MT-5LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522MT-5MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522MT-6GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522MT-6LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522MT-6MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522R-5G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522R-5L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522R-5M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522R-5D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522R-6G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522R-6L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522R-6M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522R-6D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522R-1G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522R-1L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522R-1M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522R-1D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522R-2G-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522R-2L-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522R-2M-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522R-2D-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522RT-5GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522RT-5LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522RT-5MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522RT-6GZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522RT-6LZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522RT-6MZ-M5 Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524-5D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-6D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524-1D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524-2D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524T-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524T-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524T-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524T-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524T-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524T-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524M-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524M-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524M-5D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524M-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524M-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524M-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-6D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524M-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524M-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524M-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524M-1D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524M-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524M-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524M-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524M-2D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524MT-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524MT-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524MT-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524MT-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524MT-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524MT-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-5G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524R-5L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524R-5M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524R-5D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524R-6G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524R-6L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524R-6M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-6D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524R-1G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524R-1L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524R-1M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524R-1D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524R-2G Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524R-2L Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524R-2M Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524R-2D Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524RT-5GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524RT-5LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524RT-5MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524RT-6GZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524RT-6LZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524RT-6MZ Switching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-5G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524-5L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524-5M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524-5D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524-6G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524-6L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524-6M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-6D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524-1G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524-1L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524-1M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524-1D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524-2G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524-2L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524-2M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524-2D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524T-5GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524T-5LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524T-5MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524T-6GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524T-6LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524T-6MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-5G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524M-5L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524M-5M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524M-5D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524M-6G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524M-6L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524M-6M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-6D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524M-1G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524M-1L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524M-1M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524M-1D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524M-2G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524M-2L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524M-2M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524M-2D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524MT-5GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524MT-5LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524MT-5MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524MT-6GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524MT-6LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524MT-6MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-5G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524R-5L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524R-5M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524R-5D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524R-6G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524R-6L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524R-6M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-6D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524R-1G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524R-1L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524R-1M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524R-1D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524R-2G-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524R-2L-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524R-2M-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524R-2D-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524RT-5GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524RT-5LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524RT-5MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524RT-6GZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524RT-6LZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524RT-6MZ-01 Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
3-Port Solenoid ValvesSMC
396 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SYJ500 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

Brand SMC·3-Port Solenoid Valves

Available part numbers (396)

SYJ512-5G-M5, SYJ512-5L-M5, SYJ512-5M-M5, SYJ512-5D-M5, SYJ512-6G-M5, SYJ512-6L-M5, SYJ512-6M-M5, SYJ512-6D-M5, SYJ512-1G-M5, SYJ512-1L-M5 + 386 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYJ512-5G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512-5L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512-5M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512-5D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512-6G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512-6L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512-6M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512-6D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512-1G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512-1L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512-1M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512-1D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512-2G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512-2L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512-2M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512-2D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512T-5GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512T-5LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512T-5MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512T-6GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512T-6LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512T-6MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512M-5G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512M-5L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512M-5M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512M-5D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512M-6G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512M-6L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512M-6M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512M-6D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512M-1G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512M-1L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512M-1M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512M-1D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512M-2G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512M-2L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512M-2M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512M-2D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512MT-5GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512MT-5LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512MT-5MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512MT-6GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512MT-6LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512MT-6MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512R-5G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ512R-5L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512R-5M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512R-5D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ512R-6G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ512R-6L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512R-6M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ512R-6D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ512R-1G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ512R-1L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ512R-1M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ512R-1D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ512R-2G-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ512R-2L-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ512R-2M-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ512R-2D-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ512RT-5GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ512RT-5LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ512RT-5MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ512RT-6GZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ512RT-6LZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ512RT-6MZ-M5Switching: N.C. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514-5DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-6DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514-1DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514-2DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514T-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514T-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514T-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514T-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514T-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514T-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514M-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514M-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514M-5DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514M-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514M-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514M-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-6DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514M-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514M-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514M-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514M-1DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514M-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514M-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514M-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514M-2DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514MT-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514MT-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514MT-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514MT-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514MT-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514MT-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-5GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514R-5LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514R-5MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514R-5DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514R-6GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514R-6LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514R-6MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-6DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514R-1GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514R-1LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514R-1MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514R-1DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514R-2GSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514R-2LSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514R-2MSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514R-2DSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514RT-5GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514RT-5LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514RT-5MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514RT-6GZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514RT-6LZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514RT-6MZSwitching: N.C. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-5G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514-5L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514-5M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514-5D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514-6G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514-6L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514-6M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514-6D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514-1G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514-1L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514-1M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514-1D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514-2G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514-2L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514-2M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514-2D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514T-5GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514T-5LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514T-5MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514T-6GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514T-6LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514T-6MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-5G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514M-5L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514M-5M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514M-5D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514M-6G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514M-6L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514M-6M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514M-6D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514M-1G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514M-1L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514M-1M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514M-1D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514M-2G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514M-2L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514M-2M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514M-2D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514MT-5GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514MT-5LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514MT-5MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514MT-6GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514MT-6LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514MT-6MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-5G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ514R-5L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514R-5M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514R-5D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ514R-6G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ514R-6L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514R-6M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ514R-6D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ514R-1G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ514R-1L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ514R-1M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ514R-1D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ514R-2G-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ514R-2L-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ514R-2M-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ514R-2D-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ514RT-5GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ514RT-5LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ514RT-5MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ514RT-6GZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ514RT-6LZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ514RT-6MZ-01Switching: N.C. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522-5G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522-5L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522-5M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522-5D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522-6G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522-6L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522-6M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522-6D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522-1G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522-1L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522-1M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522-1D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522-2G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522-2L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522-2M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522-2D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522T-5GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522T-5LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522T-5MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522T-6GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522T-6LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522T-6MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522M-5G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522M-5L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522M-5M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522M-5D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522M-6G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522M-6L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522M-6M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522M-6D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522M-1G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522M-1L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522M-1M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522M-1D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522M-2G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522M-2L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522M-2M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522M-2D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522MT-5GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522MT-5LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522MT-5MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522MT-6GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522MT-6LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522MT-6MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522R-5G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ522R-5L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522R-5M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522R-5D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ522R-6G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ522R-6L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522R-6M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ522R-6D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ522R-1G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ522R-1L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ522R-1M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ522R-1D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ522R-2G-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ522R-2L-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ522R-2M-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ522R-2D-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ522RT-5GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ522RT-5LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ522RT-5MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ522RT-6GZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ522RT-6LZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ522RT-6MZ-M5Switching: N.O. | Piping: Direct piping, M5x0.8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524-5DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-6DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524-1DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524-2DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524T-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524T-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524T-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524T-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524T-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524T-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524M-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524M-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524M-5DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524M-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524M-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524M-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-6DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524M-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524M-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524M-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524M-1DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524M-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524M-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524M-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524M-2DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524MT-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524MT-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524MT-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524MT-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524MT-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524MT-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-5GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524R-5LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524R-5MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524R-5DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524R-6GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524R-6LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524R-6MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-6DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524R-1GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524R-1LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524R-1MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524R-1DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524R-2GSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524R-2LSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524R-2MSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524R-2DSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524RT-5GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524RT-5LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524RT-5MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524RT-6GZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524RT-6LZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524RT-6MZSwitching: N.O. | Piping: Base piping, without sub-plate | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-5G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524-5L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524-5M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524-5D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524-6G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524-6L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524-6M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524-6D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524-1G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524-1L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524-1M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524-1D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524-2G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524-2L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524-2M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524-2D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524T-5GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524T-5LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524T-5MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524T-6GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524T-6LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524T-6MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Individual pilot exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-5G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524M-5L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524M-5M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524M-5D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524M-6G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524M-6L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524M-6M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524M-6D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524M-1G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524M-1L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524M-1M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524M-1D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524M-2G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524M-2L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524M-2M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524M-2D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524MT-5GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524MT-5LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524MT-5MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524MT-6GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524MT-6LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524MT-6MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: Common pilot/main exhaust | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-5G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: Grommet
SYJ524R-5L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524R-5M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524R-5D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC24V | Electrical entry: DIN terminal
SYJ524R-6G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: Grommet
SYJ524R-6L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524R-6M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: M-type plug connector
SYJ524R-6D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: DC12V | Electrical entry: DIN terminal
SYJ524R-1G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: Grommet
SYJ524R-1L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: L-type plug connector
SYJ524R-1M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: M-type plug connector
SYJ524R-1D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC100V | Electrical entry: DIN terminal
SYJ524R-2G-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: Grommet
SYJ524R-2L-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: L-type plug connector
SYJ524R-2M-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: M-type plug connector
SYJ524R-2D-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Standard | Voltage: AC200V | Electrical entry: DIN terminal
SYJ524RT-5GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: Grommet
SYJ524RT-5LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: L-type plug connector
SYJ524RT-5MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC24V | Electrical entry: M-type plug connector
SYJ524RT-6GZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: Grommet
SYJ524RT-6LZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: L-type plug connector
SYJ524RT-6MZ-01Switching: N.O. | Piping: Base piping, sub-plate Rc1/8 | Body option: External pilot | Coil: Power-saving circuit (T), with Z | Voltage: DC12V | Electrical entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
