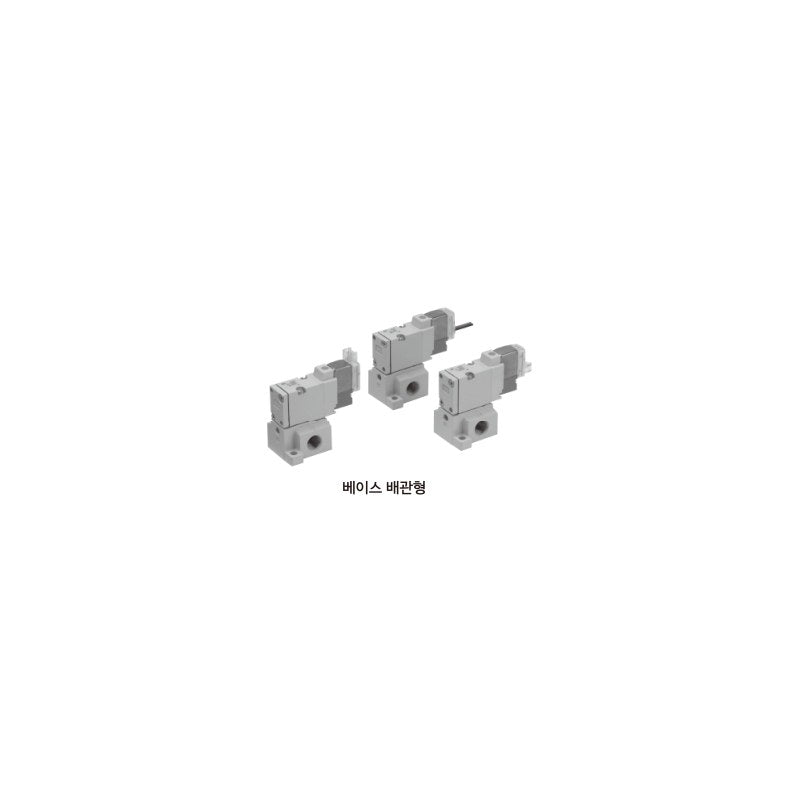

SMC SYJ700 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

SMC SYJ700 series pilot-operated 3-port solenoid valve with rubber seal, available N.C. or N.O. for direct piping or base piping (sub-plate or SS3YJ7 manifold).

Key features

Rubber seal poppet type, internal pilot standard; external pilot (R) for vacuum to -100 kPa or low pressure below 0.15 MPa
Body option: individual pilot exhaust (standard) or common pilot/main valve exhaust (M)
Power-saving circuit coil (T) reduces power consumption to 0.1 W (DC24V/12V, with Z lamp/surge suppressor)
Electrical entry: grommet (G/H), L or M plug connector, DIN terminal (D/Y) and M8 connector (W); listed codes cover G, L, M and D
Lamp/surge voltage suppressor (S, Z, R, U), manual override (D, E), bracket (F), G/NPT/NPTF threads and CE/UKCA (Q) are ordered as suffixes
Stainless steel pilot valve cover for improved strength

Specifications

Fluid	Air
Operating pressure range (internal pilot)	0.15 to 0.7 MPa
External pilot	Main -100 kPa to 0.7 MPa, pilot 0.15 to 0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Response time (0.5 MPa)	30 ms or less
Max. operating frequency	5 Hz
Port size	Direct piping Rc1/8; base piping sub-plate Rc1/8 or Rc1/4
Flow rate C [dm³/(s·bar)]	2.8 (direct piping), 3.0 (base, Rc1/4)
Lubrication	Not required
Power consumption (DC)	0.35 W standard, 0.1 W with power-saving circuit
Impact/vibration resistance	150/30 m/s²
Source	SMC Korea catalog SYJ300/500/700 (SMCKR_SYJ300_500_700.pdf), p. 984-992 (PDF p. 36-44)

SYJ712-5G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712-5L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712-5M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712-5D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ712-6G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712-6L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712-6M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ712-6D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ712-1G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ712-1L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ712-1M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ712-1D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ712-2G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ712-2L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ712-2M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ712-2D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ712T-5GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712T-5LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712T-5MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712T-6GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712T-6LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712T-6MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ712M-5G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712M-5L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712M-5M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712M-5D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ712M-6G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712M-6L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712M-6M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ712M-6D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ712M-1G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ712M-1L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ712M-1M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ712M-1D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ712M-2G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ712M-2L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ712M-2M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ712M-2D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ712MT-5GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712MT-5LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712MT-5MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712MT-6GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712MT-6LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712MT-6MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ712R-5G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712R-5L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712R-5M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712R-5D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ712R-6G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712R-6L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712R-6M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ712R-6D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ712R-1G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ712R-1L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ712R-1M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ712R-1D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ712R-2G-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ712R-2L-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ712R-2M-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ712R-2D-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ712RT-5GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ712RT-5LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ712RT-5MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ712RT-6GZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ712RT-6LZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ712RT-6MZ-01		Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-5G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714-5L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714-5M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714-5D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714-6G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714-6L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714-6M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-6D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714-1G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714-1L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714-1M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714-1D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714-2G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714-2L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714-2M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714-2D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714T-5GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714T-5LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714T-5MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714T-6GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714T-6LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714T-6MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-5G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714M-5L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714M-5M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714M-5D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714M-6G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714M-6L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714M-6M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-6D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714M-1G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714M-1L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714M-1M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714M-1D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714M-2G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714M-2L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714M-2M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714M-2D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714MT-5GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714MT-5LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714MT-5MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714MT-6GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714MT-6LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714MT-6MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-5G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714R-5L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714R-5M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714R-5D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714R-6G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714R-6L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714R-6M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-6D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714R-1G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714R-1L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714R-1M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714R-1D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714R-2G		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714R-2L		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714R-2M		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714R-2D		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714RT-5GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714RT-5LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714RT-5MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714RT-6GZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714RT-6LZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714RT-6MZ		Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-5G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714-5L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714-5M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714-5D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714-6G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714-6L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714-6M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-6D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714-1G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714-1L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714-1M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714-1D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714-2G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714-2L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714-2M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714-2D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714T-5GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714T-5LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714T-5MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714T-6GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714T-6LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714T-6MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-5G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714M-5L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714M-5M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714M-5D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714M-6G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714M-6L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714M-6M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-6D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714M-1G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714M-1L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714M-1M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714M-1D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714M-2G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714M-2L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714M-2M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714M-2D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714MT-5GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714MT-5LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714MT-5MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714MT-6GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714MT-6LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714MT-6MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-5G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714R-5L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714R-5M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714R-5D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714R-6G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714R-6L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714R-6M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-6D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714R-1G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714R-1L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714R-1M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714R-1D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714R-2G-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714R-2L-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714R-2M-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714R-2D-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714RT-5GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714RT-5LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714RT-5MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714RT-6GZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714RT-6LZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714RT-6MZ-01		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-5G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714-5L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714-5M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714-5D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714-6G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714-6L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714-6M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714-6D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714-1G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714-1L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714-1M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714-1D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714-2G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714-2L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714-2M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714-2D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714T-5GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714T-5LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714T-5MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714T-6GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714T-6LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714T-6MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-5G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714M-5L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714M-5M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714M-5D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714M-6G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714M-6L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714M-6M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714M-6D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714M-1G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714M-1L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714M-1M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714M-1D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714M-2G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714M-2L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714M-2M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714M-2D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714MT-5GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714MT-5LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714MT-5MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714MT-6GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714MT-6LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714MT-6MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-5G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714R-5L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714R-5M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714R-5D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ714R-6G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714R-6L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714R-6M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ714R-6D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ714R-1G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ714R-1L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ714R-1M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ714R-1D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ714R-2G-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ714R-2L-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ714R-2M-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ714R-2D-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ714RT-5GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ714RT-5LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ714RT-5MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ714RT-6GZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ714RT-6LZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ714RT-6MZ-02		Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722-5G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722-5L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722-5M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722-5D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ722-6G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722-6L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722-6M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722-6D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ722-1G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ722-1L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ722-1M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ722-1D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ722-2G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ722-2L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ722-2M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ722-2D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ722T-5GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722T-5LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722T-5MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722T-6GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722T-6LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722T-6MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722M-5G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722M-5L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722M-5M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722M-5D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ722M-6G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722M-6L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722M-6M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722M-6D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ722M-1G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ722M-1L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ722M-1M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ722M-1D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ722M-2G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ722M-2L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ722M-2M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ722M-2D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ722MT-5GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722MT-5LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722MT-5MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722MT-6GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722MT-6LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722MT-6MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722R-5G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722R-5L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722R-5M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722R-5D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ722R-6G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722R-6L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722R-6M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ722R-6D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ722R-1G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ722R-1L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ722R-1M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ722R-1D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ722R-2G-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ722R-2L-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ722R-2M-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ722R-2D-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ722RT-5GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ722RT-5LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ722RT-5MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ722RT-6GZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ722RT-6LZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ722RT-6MZ-01		Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-5G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724-5L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724-5M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724-5D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724-6G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724-6L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724-6M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-6D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724-1G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724-1L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724-1M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724-1D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724-2G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724-2L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724-2M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724-2D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724T-5GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724T-5LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724T-5MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724T-6GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724T-6LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724T-6MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-5G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724M-5L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724M-5M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724M-5D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724M-6G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724M-6L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724M-6M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-6D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724M-1G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724M-1L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724M-1M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724M-1D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724M-2G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724M-2L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724M-2M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724M-2D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724MT-5GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724MT-5LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724MT-5MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724MT-6GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724MT-6LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724MT-6MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-5G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724R-5L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724R-5M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724R-5D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724R-6G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724R-6L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724R-6M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-6D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724R-1G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724R-1L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724R-1M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724R-1D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724R-2G		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724R-2L		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724R-2M		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724R-2D		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724RT-5GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724RT-5LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724RT-5MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724RT-6GZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724RT-6LZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724RT-6MZ		Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-5G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724-5L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724-5M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724-5D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724-6G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724-6L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724-6M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-6D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724-1G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724-1L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724-1M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724-1D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724-2G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724-2L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724-2M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724-2D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724T-5GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724T-5LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724T-5MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724T-6GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724T-6LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724T-6MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-5G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724M-5L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724M-5M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724M-5D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724M-6G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724M-6L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724M-6M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-6D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724M-1G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724M-1L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724M-1M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724M-1D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724M-2G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724M-2L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724M-2M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724M-2D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724MT-5GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724MT-5LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724MT-5MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724MT-6GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724MT-6LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724MT-6MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-5G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724R-5L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724R-5M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724R-5D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724R-6G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724R-6L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724R-6M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-6D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724R-1G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724R-1L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724R-1M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724R-1D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724R-2G-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724R-2L-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724R-2M-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724R-2D-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724RT-5GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724RT-5LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724RT-5MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724RT-6GZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724RT-6LZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724RT-6MZ-01		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-5G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724-5L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724-5M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724-5D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724-6G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724-6L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724-6M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724-6D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724-1G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724-1L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724-1M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724-1D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724-2G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724-2L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724-2M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724-2D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724T-5GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724T-5LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724T-5MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724T-6GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724T-6LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724T-6MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-5G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724M-5L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724M-5M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724M-5D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724M-6G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724M-6L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724M-6M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724M-6D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724M-1G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724M-1L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724M-1M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724M-1D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724M-2G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724M-2L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724M-2M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724M-2D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724MT-5GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724MT-5LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724MT-5MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724MT-6GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724MT-6LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724MT-6MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-5G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724R-5L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724R-5M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724R-5D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
SYJ724R-6G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724R-6L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724R-6M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
SYJ724R-6D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
SYJ724R-1G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
SYJ724R-1L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
SYJ724R-1M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
SYJ724R-1D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
SYJ724R-2G-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
SYJ724R-2L-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
SYJ724R-2M-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
SYJ724R-2D-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
SYJ724RT-5GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
SYJ724RT-5LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
SYJ724RT-5MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
SYJ724RT-6GZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
SYJ724RT-6LZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
SYJ724RT-6MZ-02		Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector

3-Port Solenoid ValvesSMC

528 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC SYJ700 3-Port Solenoid Valve (Pilot Operated, Direct/Base)

Brand SMC·3-Port Solenoid Valves

Available part numbers (528)

SYJ712-5G-01, SYJ712-5L-01, SYJ712-5M-01, SYJ712-5D-01, SYJ712-6G-01, SYJ712-6L-01, SYJ712-6M-01, SYJ712-6D-01, SYJ712-1G-01, SYJ712-1L-01 + 518 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SYJ712-5G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712-5L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712-5M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712-5D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ712-6G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712-6L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712-6M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ712-6D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ712-1G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ712-1L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ712-1M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ712-1D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ712-2G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ712-2L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ712-2M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ712-2D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ712T-5GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712T-5LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712T-5MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712T-6GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712T-6LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712T-6MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ712M-5G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712M-5L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712M-5M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712M-5D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ712M-6G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712M-6L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712M-6M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ712M-6D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ712M-1G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ712M-1L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ712M-1M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ712M-1D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ712M-2G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ712M-2L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ712M-2M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ712M-2D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ712MT-5GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712MT-5LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712MT-5MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712MT-6GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712MT-6LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712MT-6MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ712R-5G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712R-5L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712R-5M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712R-5D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ712R-6G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712R-6L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712R-6M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ712R-6D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ712R-1G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ712R-1L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ712R-1M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ712R-1D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ712R-2G-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ712R-2L-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ712R-2M-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ712R-2D-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ712RT-5GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ712RT-5LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ712RT-5MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ712RT-6GZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ712RT-6LZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ712RT-6MZ-01	Switching: N.C. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-5G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714-5L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714-5M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714-5D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714-6G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714-6L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714-6M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-6D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714-1G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714-1L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714-1M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714-1D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714-2G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714-2L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714-2M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714-2D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714T-5GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714T-5LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714T-5MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714T-6GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714T-6LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714T-6MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-5G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714M-5L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714M-5M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714M-5D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714M-6G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714M-6L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714M-6M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-6D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714M-1G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714M-1L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714M-1M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714M-1D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714M-2G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714M-2L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714M-2M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714M-2D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714MT-5GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714MT-5LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714MT-5MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714MT-6GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714MT-6LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714MT-6MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-5G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714R-5L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714R-5M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714R-5D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714R-6G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714R-6L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714R-6M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-6D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714R-1G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714R-1L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714R-1M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714R-1D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714R-2G	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714R-2L	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714R-2M	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714R-2D	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714RT-5GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714RT-5LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714RT-5MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714RT-6GZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714RT-6LZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714RT-6MZ	Switching: N.C. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-5G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714-5L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714-5M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714-5D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714-6G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714-6L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714-6M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-6D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714-1G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714-1L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714-1M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714-1D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714-2G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714-2L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714-2M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714-2D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714T-5GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714T-5LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714T-5MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714T-6GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714T-6LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714T-6MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-5G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714M-5L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714M-5M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714M-5D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714M-6G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714M-6L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714M-6M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-6D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714M-1G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714M-1L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714M-1M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714M-1D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714M-2G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714M-2L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714M-2M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714M-2D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714MT-5GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714MT-5LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714MT-5MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714MT-6GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714MT-6LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714MT-6MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-5G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714R-5L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714R-5M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714R-5D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714R-6G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714R-6L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714R-6M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-6D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714R-1G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714R-1L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714R-1M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714R-1D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714R-2G-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714R-2L-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714R-2M-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714R-2D-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714RT-5GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714RT-5LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714RT-5MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714RT-6GZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714RT-6LZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714RT-6MZ-01	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-5G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714-5L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714-5M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714-5D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714-6G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714-6L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714-6M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714-6D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714-1G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714-1L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714-1M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714-1D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714-2G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714-2L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714-2M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714-2D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714T-5GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714T-5LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714T-5MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714T-6GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714T-6LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714T-6MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-5G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714M-5L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714M-5M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714M-5D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714M-6G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714M-6L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714M-6M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714M-6D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714M-1G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714M-1L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714M-1M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714M-1D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714M-2G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714M-2L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714M-2M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714M-2D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714MT-5GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714MT-5LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714MT-5MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714MT-6GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714MT-6LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714MT-6MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-5G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714R-5L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714R-5M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714R-5D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ714R-6G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714R-6L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714R-6M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ714R-6D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ714R-1G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ714R-1L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ714R-1M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ714R-1D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ714R-2G-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ714R-2L-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ714R-2M-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ714R-2D-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ714RT-5GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ714RT-5LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ714RT-5MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ714RT-6GZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ714RT-6LZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ714RT-6MZ-02	Switching: N.C. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722-5G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722-5L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722-5M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722-5D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ722-6G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722-6L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722-6M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722-6D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ722-1G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ722-1L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ722-1M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ722-1D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ722-2G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ722-2L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ722-2M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ722-2D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ722T-5GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722T-5LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722T-5MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722T-6GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722T-6LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722T-6MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722M-5G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722M-5L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722M-5M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722M-5D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ722M-6G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722M-6L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722M-6M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722M-6D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ722M-1G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ722M-1L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ722M-1M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ722M-1D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ722M-2G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ722M-2L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ722M-2M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ722M-2D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ722MT-5GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722MT-5LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722MT-5MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722MT-6GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722MT-6LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722MT-6MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722R-5G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722R-5L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722R-5M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722R-5D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ722R-6G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722R-6L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722R-6M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ722R-6D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ722R-1G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ722R-1L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ722R-1M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ722R-1D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ722R-2G-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ722R-2L-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ722R-2M-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ722R-2D-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ722RT-5GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ722RT-5LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ722RT-5MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ722RT-6GZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ722RT-6LZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ722RT-6MZ-01	Switching: N.O. \| Piping: Direct piping, Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-5G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724-5L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724-5M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724-5D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724-6G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724-6L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724-6M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-6D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724-1G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724-1L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724-1M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724-1D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724-2G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724-2L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724-2M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724-2D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724T-5GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724T-5LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724T-5MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724T-6GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724T-6LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724T-6MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-5G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724M-5L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724M-5M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724M-5D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724M-6G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724M-6L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724M-6M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-6D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724M-1G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724M-1L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724M-1M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724M-1D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724M-2G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724M-2L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724M-2M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724M-2D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724MT-5GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724MT-5LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724MT-5MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724MT-6GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724MT-6LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724MT-6MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-5G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724R-5L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724R-5M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724R-5D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724R-6G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724R-6L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724R-6M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-6D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724R-1G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724R-1L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724R-1M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724R-1D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724R-2G	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724R-2L	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724R-2M	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724R-2D	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724RT-5GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724RT-5LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724RT-5MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724RT-6GZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724RT-6LZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724RT-6MZ	Switching: N.O. \| Piping: Base piping, without sub-plate \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-5G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724-5L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724-5M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724-5D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724-6G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724-6L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724-6M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-6D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724-1G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724-1L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724-1M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724-1D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724-2G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724-2L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724-2M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724-2D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724T-5GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724T-5LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724T-5MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724T-6GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724T-6LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724T-6MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-5G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724M-5L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724M-5M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724M-5D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724M-6G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724M-6L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724M-6M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-6D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724M-1G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724M-1L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724M-1M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724M-1D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724M-2G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724M-2L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724M-2M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724M-2D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724MT-5GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724MT-5LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724MT-5MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724MT-6GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724MT-6LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724MT-6MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-5G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724R-5L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724R-5M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724R-5D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724R-6G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724R-6L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724R-6M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-6D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724R-1G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724R-1L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724R-1M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724R-1D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724R-2G-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724R-2L-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724R-2M-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724R-2D-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724RT-5GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724RT-5LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724RT-5MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724RT-6GZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724RT-6LZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724RT-6MZ-01	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/8 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-5G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724-5L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724-5M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724-5D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724-6G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724-6L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724-6M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724-6D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724-1G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724-1L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724-1M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724-1D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724-2G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724-2L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724-2M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724-2D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724T-5GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724T-5LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724T-5MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724T-6GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724T-6LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724T-6MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Individual pilot exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-5G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724M-5L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724M-5M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724M-5D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724M-6G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724M-6L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724M-6M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724M-6D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724M-1G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724M-1L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724M-1M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724M-1D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724M-2G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724M-2L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724M-2M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724M-2D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724MT-5GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724MT-5LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724MT-5MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724MT-6GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724MT-6LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724MT-6MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: Common pilot/main exhaust \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-5G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724R-5L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724R-5M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724R-5D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC24V \| Electrical entry: DIN terminal
	SYJ724R-6G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724R-6L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724R-6M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: M-type plug connector
	SYJ724R-6D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: DC12V \| Electrical entry: DIN terminal
	SYJ724R-1G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: Grommet
	SYJ724R-1L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: L-type plug connector
	SYJ724R-1M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: M-type plug connector
	SYJ724R-1D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC100V \| Electrical entry: DIN terminal
	SYJ724R-2G-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: Grommet
	SYJ724R-2L-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: L-type plug connector
	SYJ724R-2M-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: M-type plug connector
	SYJ724R-2D-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Standard \| Voltage: AC200V \| Electrical entry: DIN terminal
	SYJ724RT-5GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: Grommet
	SYJ724RT-5LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: L-type plug connector
	SYJ724RT-5MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC24V \| Electrical entry: M-type plug connector
	SYJ724RT-6GZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: Grommet
	SYJ724RT-6LZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: L-type plug connector
	SYJ724RT-6MZ-02	Switching: N.O. \| Piping: Base piping, sub-plate Rc1/4 \| Body option: External pilot \| Coil: Power-saving circuit (T), with Z \| Voltage: DC12V \| Electrical entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC SYJ700 3-Port Solenoid Valve (Pilot Operated, Direct/Base)
