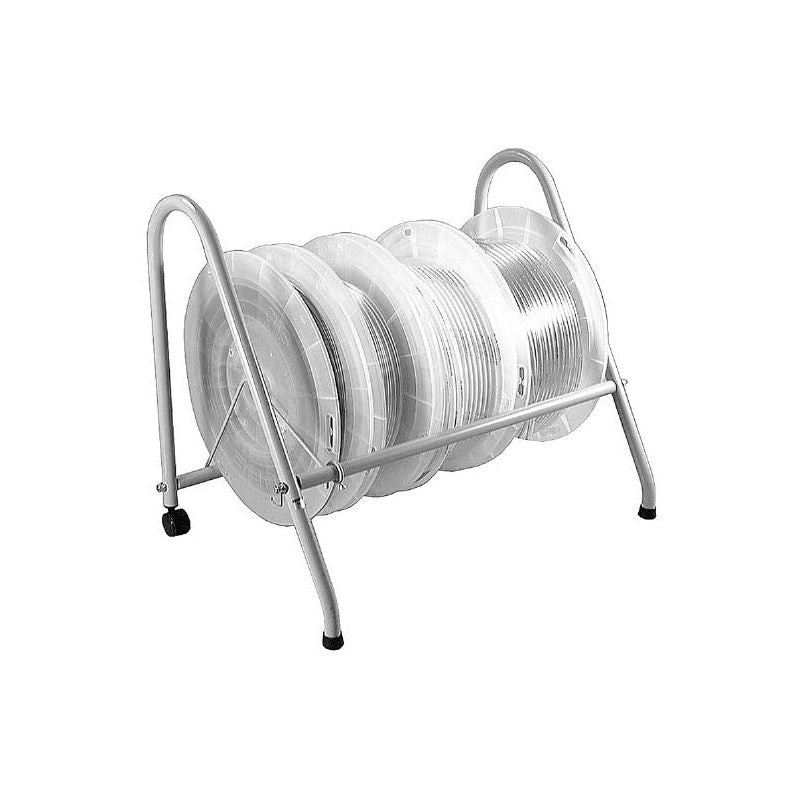

SMC TB/TBR Tube Stand and Tube Reel

SMC TB/TBR Tube Stand and Tube Reel

SMC TB tube stand and TBR tube reels for compact storage and dispensing of tubing rolls, with spare parts.

Key features

  • TBR reels for 4/6, 8, 10 and 12 mm tubes (TBR-1 width 84 mm, 102 mm with paper core); tube refill and exchange by snap-fit one-touch operation
  • TB-2 stand with casters for easy moving and an adjustable anti-tip mechanism
  • Stand outer dimensions approx. 750 x 520 x 600 mm
  • Spare side plates, paper cores, fixing rods and fixing plates available

Specifications

Reel materials Side plate and fixing plate PP; paper core and fixing rod ABS
Reel core diameter 50 mm
Stand size Approx. 750 x 520 x 600 mm
Stand features Casters, anti-tip mechanism
Reel tube sizes 4/6, 8, 10, 12 mm
Standards RoHS
Source SMC Korea catalog (SMCKR_TB_TBR.pdf), p. 534
TB-2 Item: Tube stand | Applicable model: TBR-1 to TBR-4 | Applicable tube: All TBR reels
TBR-1 Item: Tube reel, W 84 mm | Applicable model: TB-2 stand | Applicable tube: 4, 6 mm
TBR-2 Item: Tube reel, W 134 mm | Applicable model: TB-2 stand | Applicable tube: 8 mm
TBR-3 Item: Tube reel, W 184 mm | Applicable model: TB-2 stand | Applicable tube: 10 mm
TBR-4 Item: Tube reel, W 234 mm | Applicable model: TB-2 stand | Applicable tube: 12 mm
TBR-A167 Item: Spare side plate (PP) | Applicable model: TBR-1 to TBR-4 | Applicable tube: All TBR reels
TBR-A187 Item: Spare fixing plate (PP) | Applicable model: TBR-1 to TBR-4 | Applicable tube: All TBR reels
TBR-A188 Item: Spare paper core (ABS) | Applicable model: TBR-1 | Applicable tube: 4, 6 mm
TBR-A183 Item: Spare fixing rod (ABS) | Applicable model: TBR-1 | Applicable tube: 4, 6 mm
TBR-A168 Item: Spare paper core (ABS) | Applicable model: TBR-2 | Applicable tube: 8 mm
TBR-A184 Item: Spare fixing rod (ABS) | Applicable model: TBR-2 | Applicable tube: 8 mm
TBR-A169 Item: Spare paper core (ABS) | Applicable model: TBR-3 | Applicable tube: 10 mm
TBR-A185 Item: Spare fixing rod (ABS) | Applicable model: TBR-3 | Applicable tube: 10 mm
TBR-A170 Item: Spare paper core (ABS) | Applicable model: TBR-4 | Applicable tube: 12 mm
TBR-A186 Item: Spare fixing rod (ABS) | Applicable model: TBR-4 | Applicable tube: 12 mm
