SMC TG Tube Release Tool (for One-Touch Fittings)

SMC TG Tube Release Tool (for One-Touch Fittings)

SMC TG series tools for releasing tubes from one-touch fittings in tight spaces where fingers cannot reach the release button.

Key features

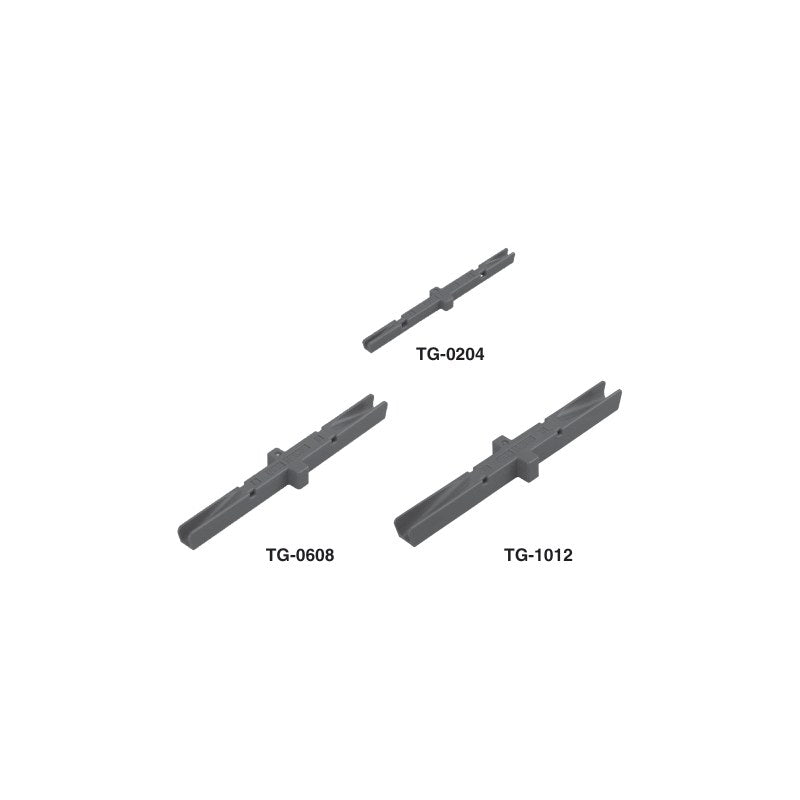

  • TG-0204/-0608/-1012: slim tools, each covering two tube sizes from 2 to 12 mm, strap hole for carrying
  • TG-1/-2: one-hand tools with spring return, reversible tip for two tube sizes
  • TG-1 for 4 and 6 mm metric tubes, TG-2 for 1/8 and 1/4 in tubes
  • For nylon, soft nylon and polyurethane tubes
  • Applicable size marked on the tool

Specifications

Applicable fittings One-touch fittings with release bushing
Strap Not included
Applicable tube materials Nylon, soft nylon, polyurethane
Tube sizes covered 2 to 12 mm, 1/8 and 1/4 in
Sizes per tool 2
Standards RoHS
Source SMC Korea catalog (SMCKR_TG.pdf), p. 754-755
TG-0204 Type: Slim release tool | Applicable tube: 2, 4 mm | Body/handle color: Blue | Mass: 4 g
TG-0608 Type: Slim release tool | Applicable tube: 6, 8 mm | Body/handle color: Blue | Mass: 11 g
TG-1012 Type: Slim release tool | Applicable tube: 10, 12 mm | Body/handle color: Blue | Mass: 26 g
TG-1 Type: One-hand release tool | Applicable tube: 4, 6 mm | Body/handle color: Blue | Mass: 33 g
TG-2 Type: One-hand release tool | Applicable tube: 1/8, 1/4 in | Body/handle color: Red | Mass: 33 g
AccessoriesSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TG Tube Release Tool (for One-Touch Fittings)

Brand SMC·Accessories

Available part numbers (5)

TG-0204, TG-0608, TG-1012, TG-1, TG-2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TG-0204Type: Slim release tool | Applicable tube: 2, 4 mm | Body/handle color: Blue | Mass: 4 g
TG-0608Type: Slim release tool | Applicable tube: 6, 8 mm | Body/handle color: Blue | Mass: 11 g
TG-1012Type: Slim release tool | Applicable tube: 10, 12 mm | Body/handle color: Blue | Mass: 26 g
TG-1Type: One-hand release tool | Applicable tube: 4, 6 mm | Body/handle color: Blue | Mass: 33 g
TG-2Type: One-hand release tool | Applicable tube: 1/8, 1/4 in | Body/handle color: Red | Mass: 33 g
