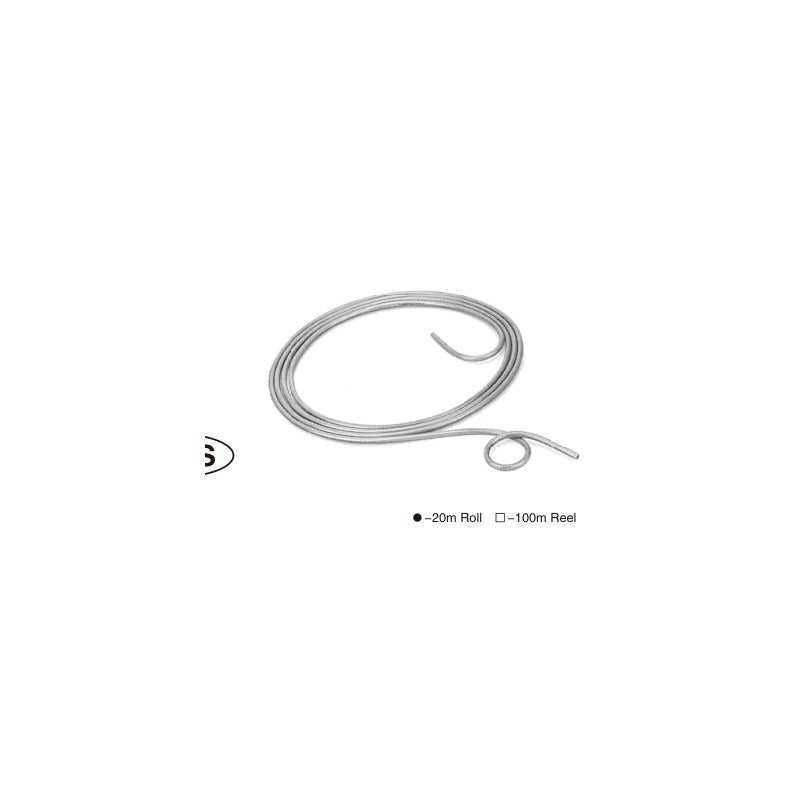

SMC TJ Inner Sleeve (for TUS Soft Polyurethane Tubing)

SMC TJ Inner Sleeve (for TUS Soft Polyurethane Tubing)

SMC TJ series inner sleeve, inserted into TUS soft polyurethane tubing to reinforce it when used with one-touch fittings.

Key features

  • Raises tube pull-out strength in one-touch fittings (e.g. TUS0604: 60 N to 230 N)
  • Recommended for safety circuits and critical connections
  • Brass C2700T with electroless nickel plating, 0.2 mm wall
  • One sleeve per tube size, 4 to 12 mm OD

Specifications

Material C2700T (electroless nickel plated)
Wall thickness 0.2 mm
Applicable tubing TUS series soft polyurethane tubing
Sizes TJ-0425, TJ-0604, TJ-0805, TJ-1065, TJ-1208
Pull-out strength with sleeve 80 N (4 mm) to 480 N (12 mm)
Standards RoHS
Source SMC Korea catalog (SMCKR_TUS_p688.pdf), p. 688
TJ-0425 Applicable tube: TUS0425 | Tube size: 4 x 2.5 mm | Sleeve length: 18 mm
TJ-0604 Applicable tube: TUS0604 | Tube size: 6 x 4 mm | Sleeve length: 19 mm
TJ-0805 Applicable tube: TUS0805 | Tube size: 8 x 5 mm | Sleeve length: 20.5 mm
TJ-1065 Applicable tube: TUS1065 | Tube size: 10 x 6.5 mm | Sleeve length: 23 mm
TJ-1208 Applicable tube: TUS1208 | Tube size: 12 x 8 mm | Sleeve length: 24 mm
AccessoriesSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TJ Inner Sleeve (for TUS Soft Polyurethane Tubing)

Brand SMC·Accessories

Available part numbers (5)

TJ-0425, TJ-0604, TJ-0805, TJ-1065, TJ-1208

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TJ-0425Applicable tube: TUS0425 | Tube size: 4 x 2.5 mm | Sleeve length: 18 mm
TJ-0604Applicable tube: TUS0604 | Tube size: 6 x 4 mm | Sleeve length: 19 mm
TJ-0805Applicable tube: TUS0805 | Tube size: 8 x 5 mm | Sleeve length: 20.5 mm
TJ-1065Applicable tube: TUS1065 | Tube size: 10 x 6.5 mm | Sleeve length: 23 mm
TJ-1208Applicable tube: TUS1208 | Tube size: 12 x 8 mm | Sleeve length: 24 mm
