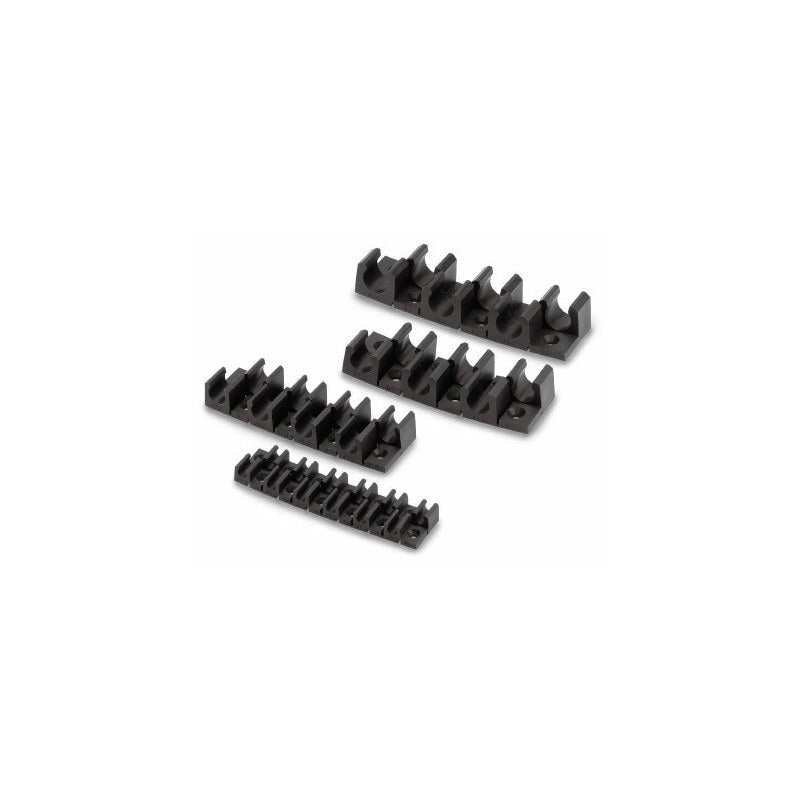

SMC TM Multi-Tube Holder

SMC TM Multi-Tube Holder

SMC TM series multi-tube holder for neat parallel routing of 4 to 12 mm tubes, cut to the required number of positions.

Key features

  • Tubes snap into the holder from above and are held firmly; pull up to remove
  • Cut to any number of positions at the separation grooves with nippers
  • Flame-resistant polypropylene (UL-94 V-0 equivalent), black
  • For nylon, soft nylon, polyurethane and other soft plastic tubes
  • Supplied with 4 cross-recessed flat-head tapping screws for mounting

Specifications

Material Flame-resistant polypropylene (UL-94 V-0 eq.)
Color Black
Ambient temperature -20 to 60C
Accessories Tapping screws (zinc chromated), 4 pcs
Standards RoHS
Source SMC Korea catalog (SMCKR_TM.pdf), p. 530
TM-04 Applicable tube OD: 4 mm | Max. tubes held: 12 | Mounting screw: 2 x 6
TM-06 Applicable tube OD: 6 mm | Max. tubes held: 12 | Mounting screw: 2.6 x 8
TM-08 Applicable tube OD: 8 mm | Max. tubes held: 8 | Mounting screw: 2.6 x 8
TM-10 Applicable tube OD: 10 mm | Max. tubes held: 6 | Mounting screw: 3 x 8
TM-12 Applicable tube OD: 12 mm | Max. tubes held: 6 | Mounting screw: 3 x 8
